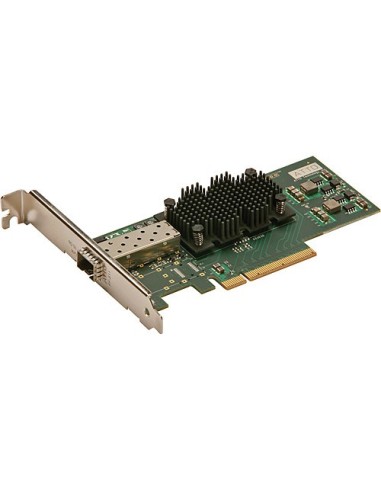

ATTO Technology FastFrame NS11 Single-Port 10 GbE PCIe 2.0 Network Interface Card



ATTO Technology FastFrame NS11 Single-Port 10 GbE PCIe 2.0 Network Interface Card, Up to 10 Gb/s Throughput Per Port, High-Performance x8 PCIe 2.0 Bus, Load-Balancing on Multiple CPUs, Minimized Interrupts for Low Latency, Reduced Power, Cooling & Cabling Costs, Driver Support for Windows, Linux & Mac

More details

You can purchase this product in installments with Consel. Click here for more information.

€ 643,18
€ 527,20tax excl.

Add to my wishlist

The FastFrame NS11 Single-Port 10 GbE PCIe 2.0 Network Interface Card from ATTO Technologyleverages the industry standard Ethernet technology from Intel, to meet the bandwidth-intensive demands of high-performance, high-bandwidth I/O environments. The NS11 provides industry-leading throughput and latency management with minimal CPU utilization and power consumption.

The FastFrame NS11 is the premier connectivity choice for applications such as data back-up and restoration, clustered computing, medical imaging, IP content delivery and video rendering. With support for data center bridging and native OS iSCSI initiators, FastFrame network adapter provides unmatched features for networking environments.

The FastFrame NS11 combines the unparalleled performance of 10 Gigabit Ethernet, the lossless benefits of enhanced Ethernet and robustness of software iSCSI initiators, to meet the performance and economic needs of today's growing data centers. The FastFrame NS11 is ideal for applications that require low latency, high bandwidth data transfers, such as data back-up and restoration, video-on-demand and video streaming, medical imaging and clustered databases.

Industry Proven Technology
The FastFrame NS11 is built on an industry standard Ethernet technology from Intel. It simplifies networking administration, integrates seamlessly into existing environments and reduces the total cost of ownership by improving connection bandwidth and eliminating redundant network infrastructure components.
Flexible Connectivity Solutions
The FastFrame NS11 provides the most flexible and scalable connectivity for today's data center environments. By leveraging data center bridging and support for software iSCSI initiators FastFrame NS11 offers the ability to support both local and storage area networks. With broad operating system support NS11 offers optimized connectivity for high bandwidth environments.
Performance Engineered
The FastFrame NS11 with support for link aggregation and failover, offers redundancy and high availability for critical network applications. The FastFrame NS11 provides industry-leading throughput and latency management with minimal CPU utilization and power consumption. With 10 Gb/s data transfer rate and multiple offloads (IPsec, TCP, IPv4, UDP) FastFrame NS11 is the premier connectivity choice for bandwidth-intensive applications such as data back-up and restoration, clustered computing, IP content delivery, medical imaging and video rendering. With multi-core processors driving the need for higher bandwidth, FastFrame NS11 delivers superior throughput to meet that need.
Advanced Network Management
The FastFrame NS11 provides a common foundation for both Ethernet and storage networks. It leverages unified network investments and eliminates the need for multiple adapters and switches, while reducing power and cooling expenses. By providing multi-protocol support and leveraging 10 GB converged enhanced Ethernet links, FastFrame NS11 dramatically reduces the cost and complexity of a data center's cabling infrastructure.




Product TypeFiber optic card
Transfer Rate2.5 Gb/s
Interfaces/PortsSingle-Port LC network
Form FactorLow profile
Bus Specificationsx8 PCI express 2.0
Supports PCI express base 2.0 and CEM spec 2.0
External ConnectivityDual speed 10 G / 1 G four, two or one LC fiber optic connectors
Supports 10 G SFP + Cu for direct attach
2 LED indicators per port
LED indicators: LINK (solid), ACTIVITY (blinking), LINK SPEED (green = 10 GB, yellow = 1 GB)
Network StandardsIEE802.3ae: 10GBASE - SR, 10GBASE - LR
SFF-8431: 10GSFP + Cu
802.1 Qbb: priority flow control
802.1 Qaz: enhanced transmission
DCBX protocol
Management ToolsEasy system monitoring with Simple Network Management Protocol and Remote Network Monitoring Statistic Counters
Watchdog timer for chip / driver status monitoring
Agency ApprovalFCC part 15.107, Class B
FCC part 15.109, Class B
EN55022: 2006, Class B
EN55022: 2006 + A1: 2007, CISPR22, Class B
EN55024: 1998 + A1: 2001 & A2: 2003
ComplianceEN60950 - 1: 2001, IEC 60950 - 1: 2001
EN60825 - 1: 2007, IEC 60825 - 1: 2007
EN60825 - 2: 2004, IEC 60825 - 2: 2004
FeaturesGeneral Features
Intel Ethernet controller #82599
Data rate per port: 10 GbE
TCP, UDP and IPv4 checksum offloading
Tx / TCP segmentation offload
IPsec offload
Low latency interrupts
MSI-X support multiple independent queues
Interrupt moderation
Header splits and replication in receive
Receive side scaling for multiple Rx queues
Direct cache access eliminates cache misses and reduces CPU load
Interrupt levels INTA, MSI, MSI-X
Plug and play specification support
Time sync for networked Ethernet equipment
VMDq and next-generation VMDq QoS features
IEEE 802.3 2005 flow control support
Advanced packet filtering
VLAN support with tag insertion and stripping
PC-SIG SR-IOV implementation
Advanced Software Features
Adaptive load balancing
Teaming support
PCIe hot plug / active peripheral interconnect
Power Consumption4.7 W
Environmental and Physical SpecificationsOperating environment: 32 to 131° F (0 to 55° C)
Non operating environment: -40 to 157° F (-40 to 70° C)
Airflow required: 100 lf / m
Humidity: 5 to 95% non-condensing
Operating System SupportWindows Server 2003, 2008
Windows XP, Vista, 7
Red Hat and SUSE Linux
Mac OS X 10.6 & later
