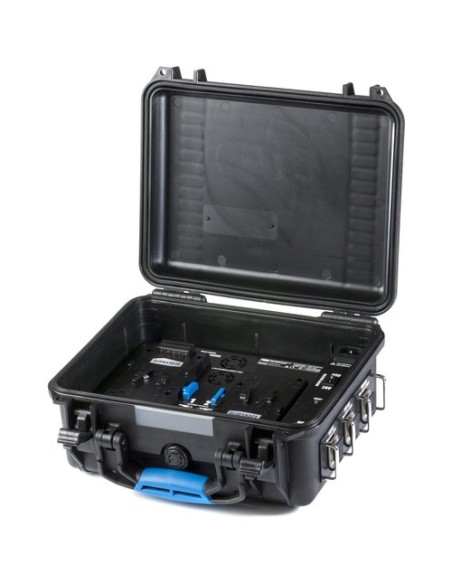

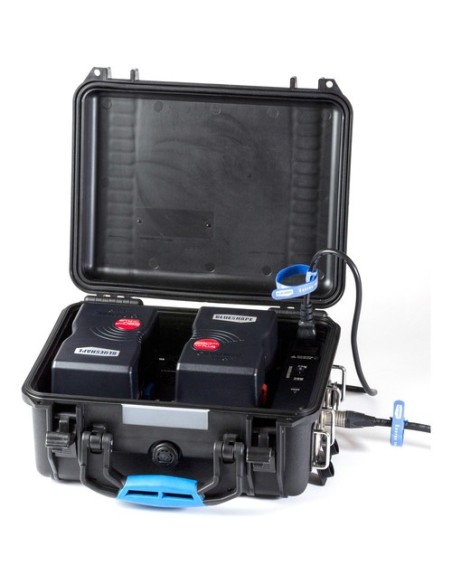

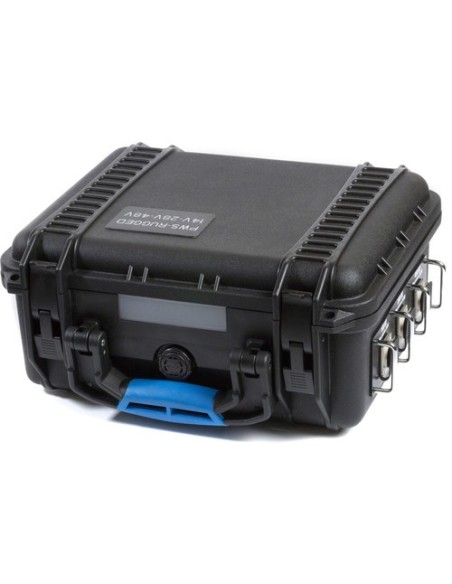

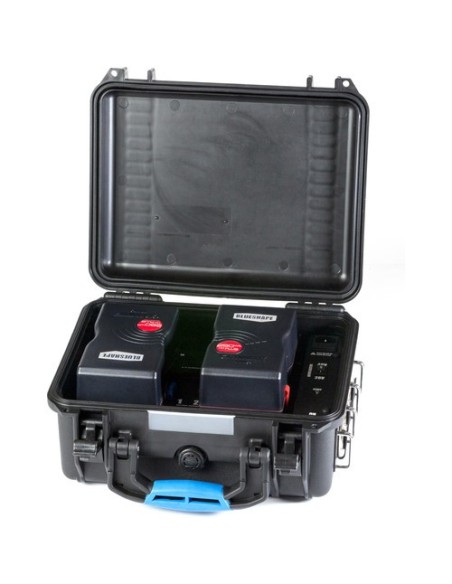

BLUESHAPE Rugged Mini Field Production Power Station (V-Mount)

The V-mount Rugged Mini Field Production Power Station from BLUESHAPE provides two battery charging bays and three XLR outputs for powering your cameras, lights, and other gear on set and nearly anywhere else. It also features a 4-pin data socket for computer testing, debugging, and calibration. All this is offered in a compact-sized, watertight, and impact-resistant portable hard case with locking 2-step latches and a swiveling ergonomic carry handle.

The case connects to a wall outlet for power using an included 3-prong AC power cable. The battery bays provide simultaneous charging at 65W each and allow hot-swapping so that you can use the case uninterruptedly. The XLR outputs are powered from mounted batteries and can be used even when the batteries are being charged off of AC power.

A 14V 4-pin XLR output is always live, and the 28V and 48V 3-pin XLR outputs are alternately selectable via a selector switch. Two of the three XLR ports can be used at the same time. An array of three LED indicators per each battery bay confirms the current output delivered by a battery on a 0-10A scale.

Features

Two Simultaneous Battery Bays, 65W Each
Live 14V & Selectable 28/48V XLR Outputs
AC Power Connection; Hot-Swappable
Watertight, Impact-Resistant Hard Case
Data Socket for Computer Testing & More
Swiveling, Ergonomic Handle
LED Indicators
Illuminated On/Off Switch
Cool Performance

Specification

Mount Type 2 x V-Mount
Outputs
1 x 4-Pin XLR, Regulated 14 V (Max 170 W)
1 x 3-Pin XLR, Regulated 48 V (Max 280 W)
1 x 3-Pin XLR, Regulated 28 V (Max 280 W)
Other Connections 4-Pin Data Socket Connector
IP Rating IP67
Dimensions 13.2 x 11.4 x 6.1" / 33.5 x 29 x 15.5 cm
Weight 9.9 lb / 4.5 kg
