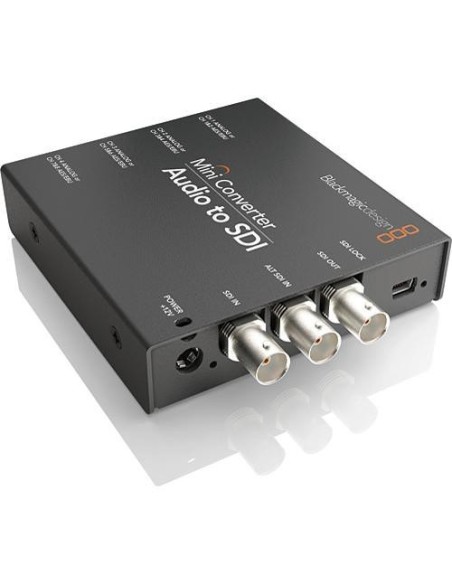

Blackmagic Design Mini Converter Audio to SDI 2

CONVMCAUDS2

Nuovo

Blackmagic Design Mini Converter Audio to SDI HD, AES/EBU Input, Analog Audio Input 3GB/Sec SDI, Redundant SDI Input, NTSC/PAL, Embed 8 Channels of AES/EBU Audio to SDI , Embed 4 Channels of Analog Audio to SDI , Auto Detection of SD/HD/3G SDI

Maggiori dettagli

Disponibile

Puoi acquistare questo prodotto a rate tramite Consel. Clicca qui per maggiori informazioni.


€ 230,58
€ 189,00 + IVA

Aggiungi alla mia lista dei desideri

The Blackmagic Design CONVMCAUDS includes everything you need to embed 4 channels of analog audio, or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

Auto Switching SD and HD

Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Advanced 3 Gb/s SDI Technology

Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

International Power Supply

Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!

SDI Input

SDI: Switchable between SD, HD and 3 Gb/s SDI

SDI Redundant: Automatically switches over if main SDI input is lost

Analog Audio

Analog Audio: 4 channels of professional balanced analog audio with standard 1/4 inch jack connections

AES/EBU

8 channels of professional balanced digital with standard 1/4 inch jack connections

Sampling

625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

Sampling

4:2:2

Power Requirements

12VDC (includes power supply)
