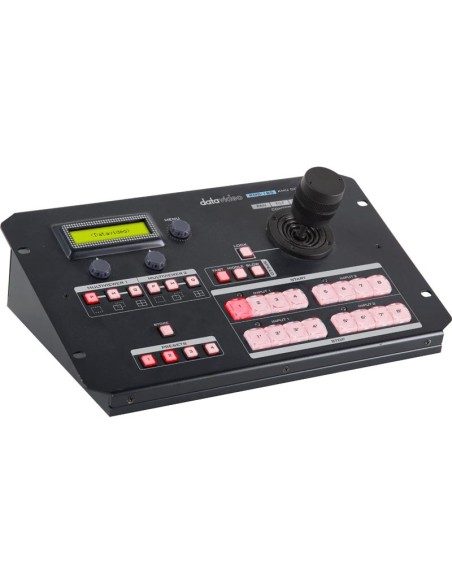

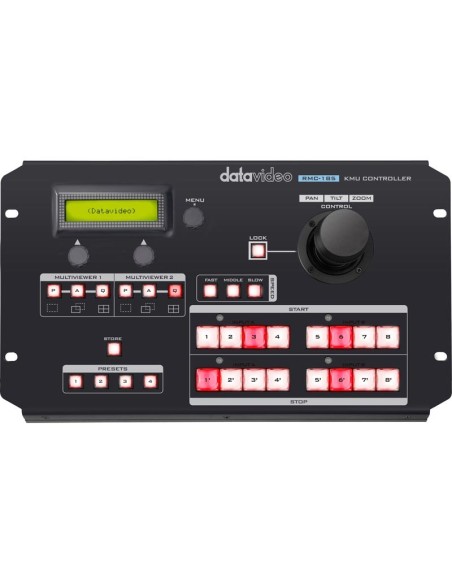

Datavideo RMC-185 KMU Controller

The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.
The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.
4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.

Features

Dedicated control surface for KMU-100
Provides easy and intuitive control of the KMU-100
Easily pan, tilt and zoom to create the user defined windows on the 4K signal
Switch between live and preview inputs
LCD display showing setup menu options
Three Multiviewer modes (Preview, A to B Motion and Quad)
Robust, rugged metal housing
Dimensions: 310 x 129.98 x 170mm
Weight: 1.5 Kg

Specifications

Firmware Upgrade USB
Power DC 12V 0.5A
Dimensions (W x H x D) 310 x 130 x 170 mm
Net Weight 1.5 kg
Gross Weight 2 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Humidity 10% to 80%

What's in the Box:
1 x RMC-185 Main Unit
1 x DC 12V Power Adaptor
1 x RMC-185 Thank you Card
1 x D-Sub 9Pin to RJ-45 Cable
1 x PVC Cover Sticker
1 x USB Type A to Type A Cable
