DataVideo DVK-400 live 4K chromakeyer

2210-1030

Nuovo

Datavideo DVK-400 Chromakeyer 4K professionale e facile da usare dal vivo, Chromakeyer 4K in tempo reale con processo interno 4: 4: 4 a 10 bit. Un vero chromakey 4K in tempo reale per fornire risultati di keying live eccellenti e professionali. Gli algoritmi avanzati possono presentare in dettaglio trasparenza, fumo, riflesso ed ombre

Maggiori dettagli

Disponibile in 5/7 giorni

Puoi acquistare questo prodotto a rate tramite Consel. Clicca qui per maggiori informazioni.


€ 2.397,30
€ 1.965,00 + IVA

Aggiungi alla mia lista dei desideri

DVK-400 Professional and easy to use live 4K chromakeyer, 4K Real-time chromakeyer with 4:4:4 10-bit internal process
A true 4K Real-time chromakey to provide you excellent and professional live keying results.

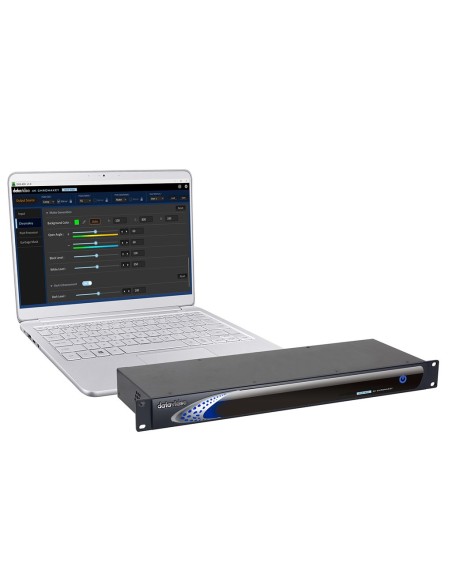

Easy operation and control over the network
Operating the keyer is very easy. The application runs on your laptop and the keyer is accessible over the network. Save and recall presets very easily.



Advanced algorithms can present transparency, smoke, reflection, and shadow in detail
Even the most difficult object can be keyed out by DVK-400. Blond hair, water bottles or glass, smoke and reflections can be easy keyed out by DVK-400.



Multiple HDMI and SDI outputs for Program and Preview with mirror option
A useful mirror feature is designed for the talent to see his or her own reference to the background objects.

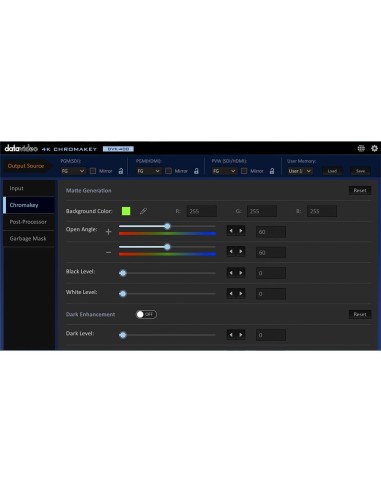

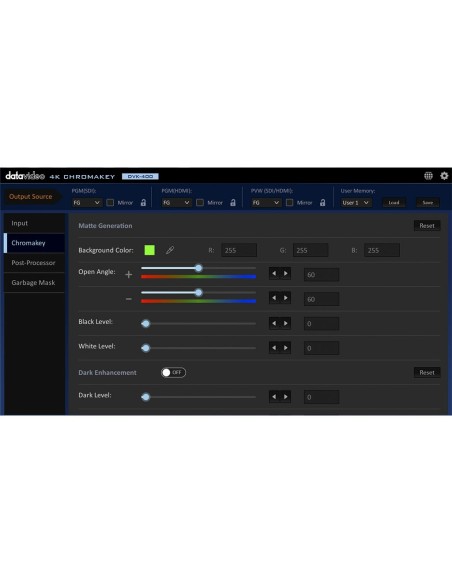

Intelligent for Matte control
An adjustment black and white level for a precise chromakeyer settings to delete the reflective color from foreground

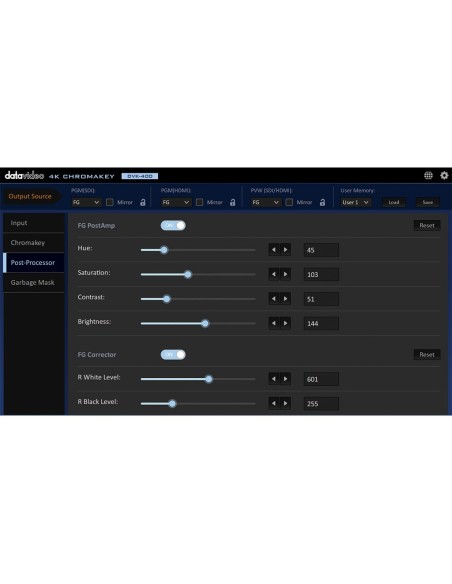

Post-processing
Correction of picture parameters (brightness, contrast, saturation) applied on foreground signal after keying processing. To give you the best color adjustment to match your background atmosphere.





DVK-400 4K Chromakey
Video Camera Input

1 x 12G/3G-SDI
1 x HDMI 2.0

Video Background Input

1 x HDMI 2.0

Aux input

1 x HDMI 1.4
(Lumakey Overlay or External Matte or Camera )

Video Camera Output

1 x 12G/3G-SDI Camera loop out

Video PGM Output

2 x 12G/3G-SDI
1 x HDMI 2.0

Video PVW Output (PGM Mirror, PFG, Matte, Inputs)

1 x 12G/3G-SDI
1 x HDMI 2.0

Sync Reference

Input & Loop Output (Tri-Sync or Black Burst)

Control

Ethernet, RS-232

Firmware Update

Ethernet, USB

Power

DC in 7~15V

Video Foreground Camera Input Format

3840x2160p 60/59.94/50/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50

Background Input Format

3840x2160p 60/59.94/50/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50

Video Output Format

3840x2160p 60/59.94/50/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50

Video Process

4:4:4 10bits

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Humidity

10% to 80% (non-condensing)

Dimension

484 x 243 x 44 mm

UtilizzoBroadcast
Risoluzione VideoUHD 4K
Interfacce digitali12G-SDI
