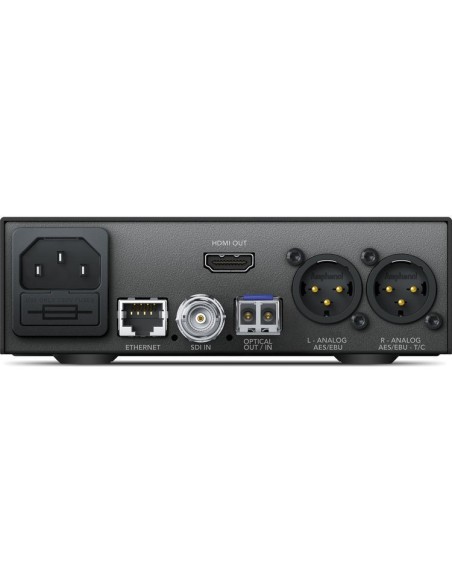

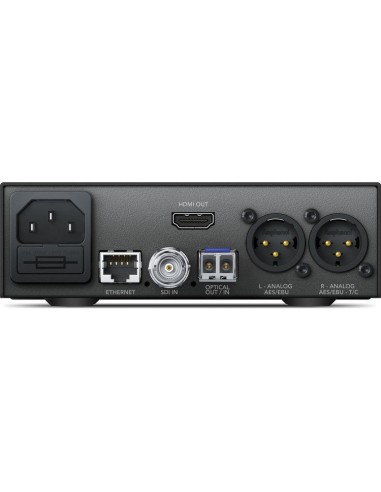

Blackmagic Design Teranex Mini Optical to HDMI 12G Converter, advanced High-Data Rate Signal Converter, Optical Fiber and SDI 12G Inputs, Optical Fiber 12G Loopout, Up to 4K DCI 4096x2160p on Input/Output, XLR Connections Switchable to AES/EBU, Ethernet Port for Remote Control or PoE, Supports Optional LCD Smart Front Panel, Intelligent Thermal Heat Dissipation
Disponibile in 3/5 giorni
Attenzione: Ultimi articoli in magazzino!
Supporting up to 12G data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini Optical to HDMI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. This model is an optical fiber version of the Teranex Mini SDI to HDMI model, featuring an optical fiber input in addition to the SDI input to give you a choice of both. It also has an optical loopout in place of the SDI loopout that's available on the SDI to HDMI model. The SDI and optical fiber ports support up to 12G data rates. Connect an SDI or optical signal in up to Full 4K DCI 4096x2160p and route it out via an HDMI output. You can also route separate audio via full-size XLR connectors that are switchable between balanced analog and AES/EBU digital audio.
The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

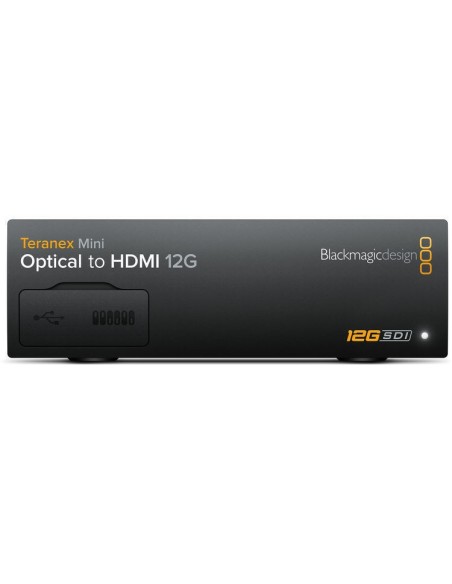

A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.
What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack, keeping all units cool and providing redundancy for each one.
The Teranex Mini Optical to HDMI 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.
|Optical Fiber Video Input||1x 12G SD/HD/2K/4K auto switching|
|SDI Video Input||1x SDI on BNC 12G-SDI SD/HD/2K/4K auto switching|
|Optical Fiber Video Output||1x 12G loopout|
|Optical Fiber Type||LC connector, 1310 nanometer wavelength, single mode|
|HDMI Output||1x HDMI 2.0 type A|
|Analog Audio Output||2 channels professional balanced analog audio via XLR connectors |
Right XLR can be configured for timecode output
|AES/EBU Audio Output||4 channels professional 110 ohm balanced digital audio via XLR connectors |
Right XLR can be configured for timecode output
|Multi Rate Support||Automatic switching between SD, HD, 2K, and 4K|
|Updates and Configuration||USB or Ethernet|
|SD Format Support||525/29.97 NTSC, 625/25 PAL|
|HD Format Support||1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60|
|2K Format Support||2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25|
|4K Format Support||3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60|
|SDI Compliance||SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI|
|SDI Video Rates||SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI|
|SDI Video Sampling||4:2:2 and 4:4:4|
|SDI Audio Sampling||Television standard sample rate of 48 kHz and 24-bit|
|SDI Color Precision||4:2:2 and 4:4:4|
|SDI Color Space||YUV and RGB|
|HDMI Format Support||525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60|
|HDMI Color Space||REC 601, REC 709|
|HDMI Color Precision||YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K|
|Software Control||Mac OS X and Windows software upgrade via USB and Ethernet|
|Internal Software Upgrade||Via included updater application|
|Basic Settings Control||Mini Switches, USB, and Ethernet via free software utility|
|Power Supply||1x built-in international AC power supply with IEC C14 inlet |
IEC power cable required (not included)
90 - 240 VAC input
|Power Over Ethernet||Can be powered via 48 VDC using PoE (Power-over-Ethernet)|
|Power Consumption||15 W|
|Operational Voltage Range||90 - 240 VAC|
|Operating Temperature||32 to 104°F (0 to 40°C)|
|Storage Temperature||-4 to 140°F (-20 to 60°C)|
|Relative Humidity||0 to 90% non-condensing|
|Dimensions||W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included)|
|Weight||1.3 lb (0.6 kg)|
