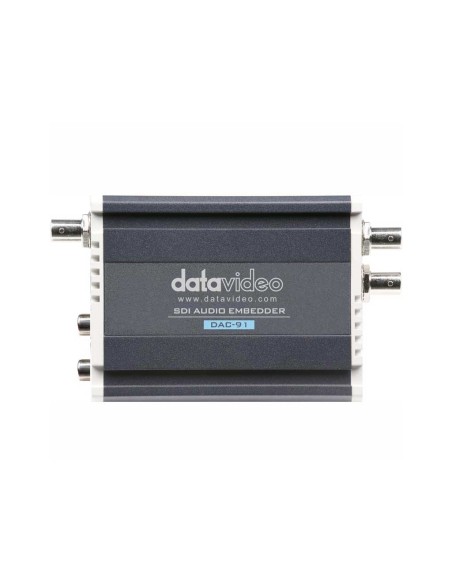

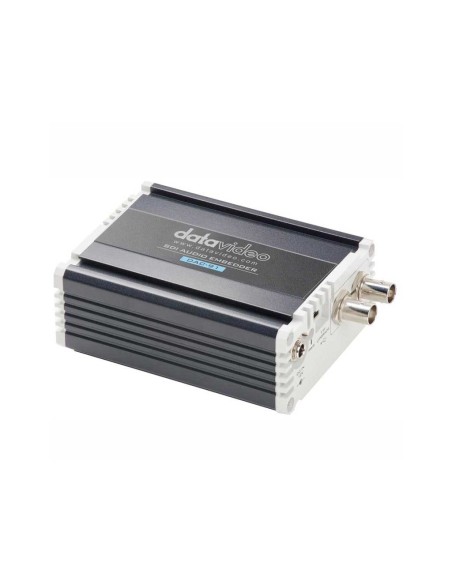

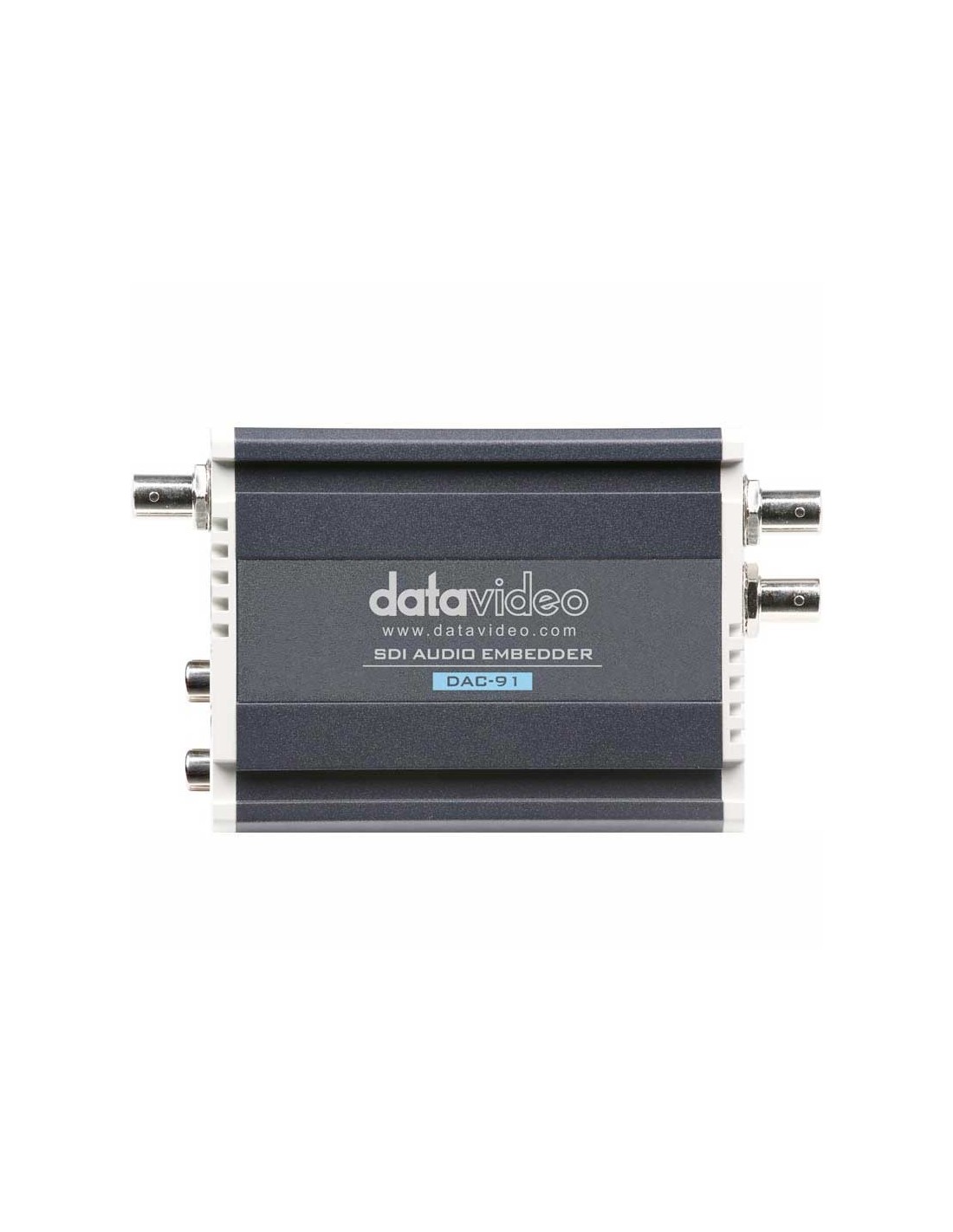

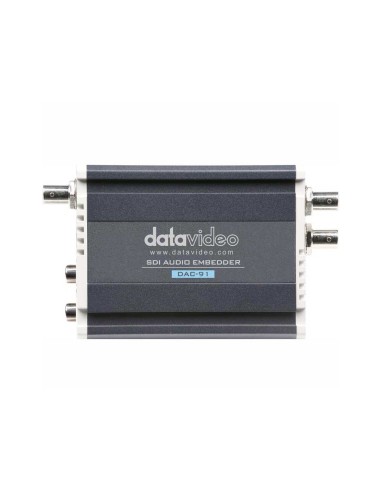

Datavideo DAC-91 audio embedder

The DAC-91 is an embedded audio box with useful functions that allow users to embed 2 channels of analogue audio into SDI video signal.

It features 3G/HD/SD-SDI to support up to 1080p/60 video format, automatically detecting and switching between the different formats and provides mini XLR and RCA audio connectors for inputting analogue audio.

The Audio box also has audio level adjustment by using the built-in DIP switches.

Features

Audio Embedder
Embed Audio into an SDI Signal
Automatically detects 3G, HD, SD signal
4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
Audio level indicator display
Audio level adjustment
Control via DIP Switches

Specifications

SDI Video Input  3G/HD/SD-SDI x 1

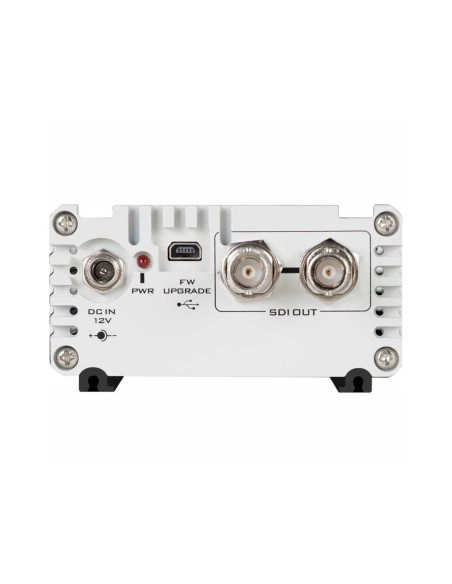

SDI Video Output  3G/HD/SD-SDI x 2

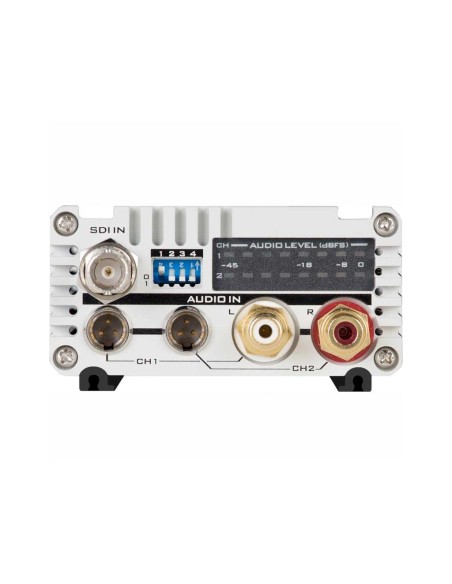

Analog Audio Input :

Mini XLR (balanced) x 2 ,RCA (unbalanced) x 2

* Mini XLR1 & RCA1 mixed to CH1

* Mini XLR2 & RCA2 mixed to CH2

Indicator  Power LED x 1 Audio Level LED : 2 rows

Updates and Configuration   Mini USB x 1

Audio Format Selection  SMPTE, EBU

Gain Yes

Dimension (LxWxH) 112 x 85 x 45 mm

Weight 0.4 kg

Operating Temp. Range 0~40 °C

Power DC 12V, 0.5A

Included in box:
1x DAC-91 Audio Embedder Box
1x AD Switch DC 12V
2x Mini XLR to female XLR cable
