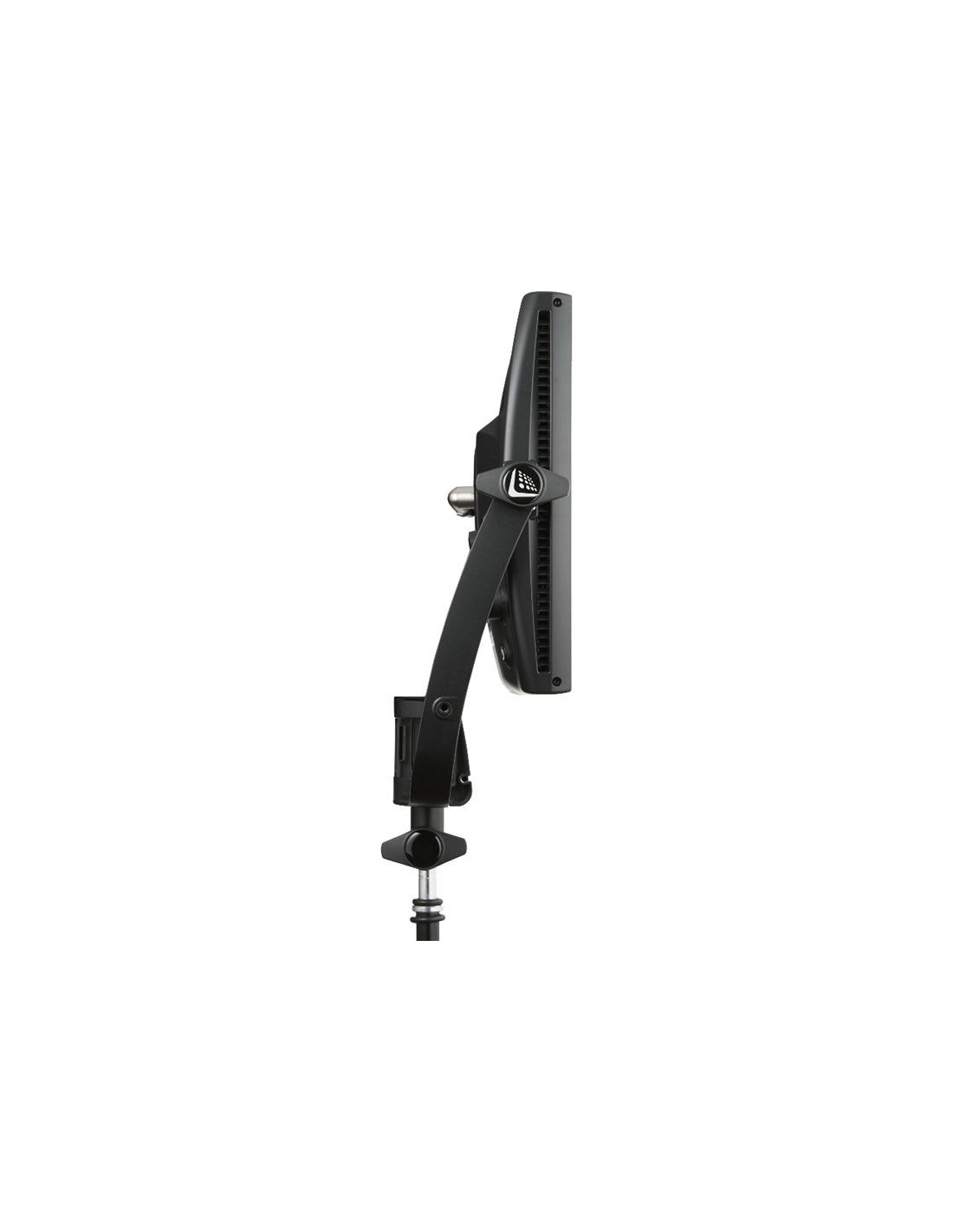

Litepanels Astra 3x Bi-Colour LED EU Power Supply

935-2023

Nuovo

Litepanels Astra 3X Bi-Color LED Panel, Variable Tungsten to Daylight Balance, 588 fc / 6330 lux @ 5.0' at 5600K, Dual Cooling Modes, Optional DMX Module, TIR Optics, 100-240 VAC with Included AC Adapter, 13-24 VDC with Optional Battery, Optional Gold Mount and V-Mount Plates, High CRI: Daylight 95, Tungsten

Maggiori dettagli

Disponibile in 2/3gg

Puoi acquistare questo prodotto con Sella Personal Credit Clicca qui per maggiori informazioni.


Aggiungi alla mia lista dei desideri

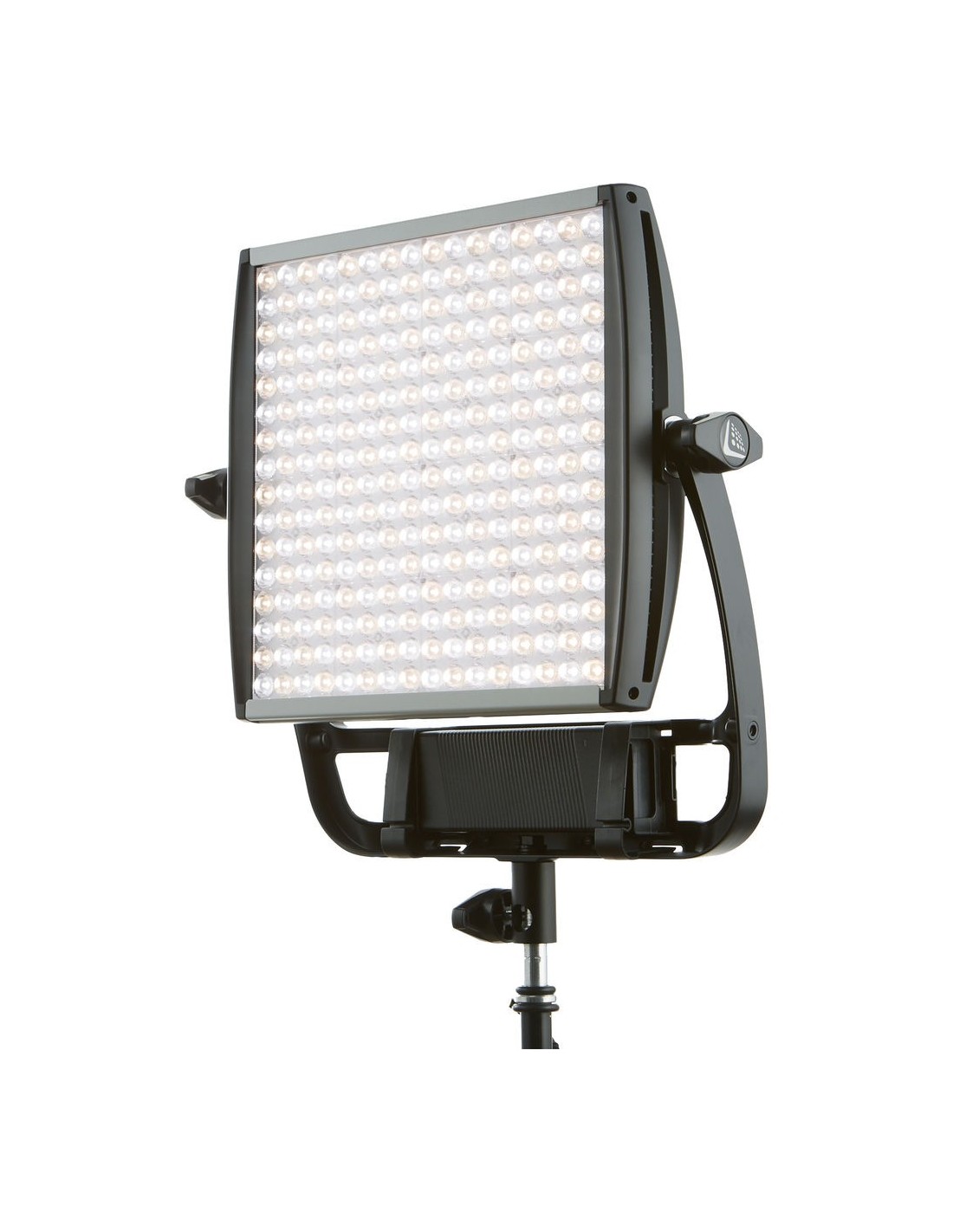

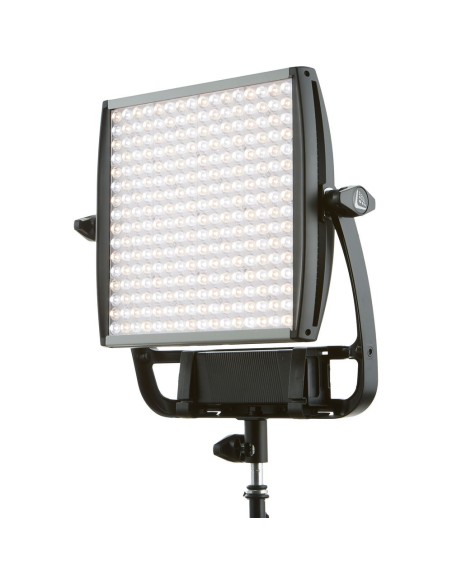

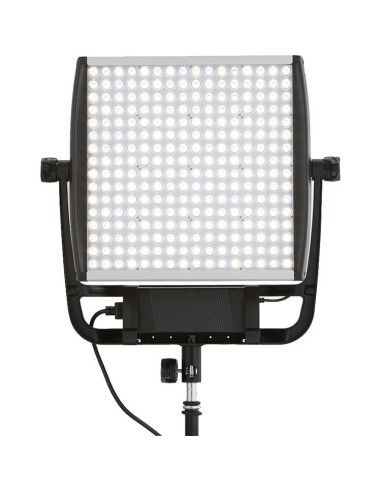

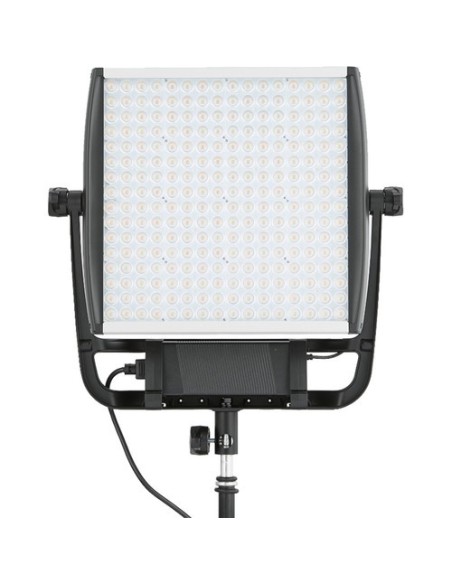

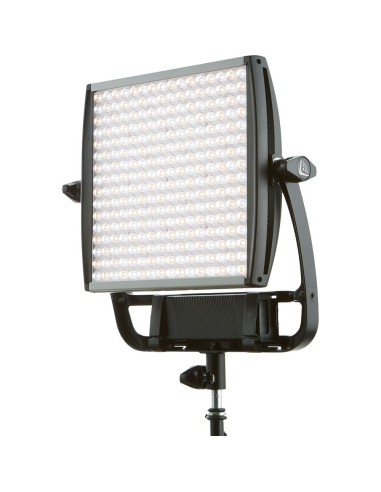

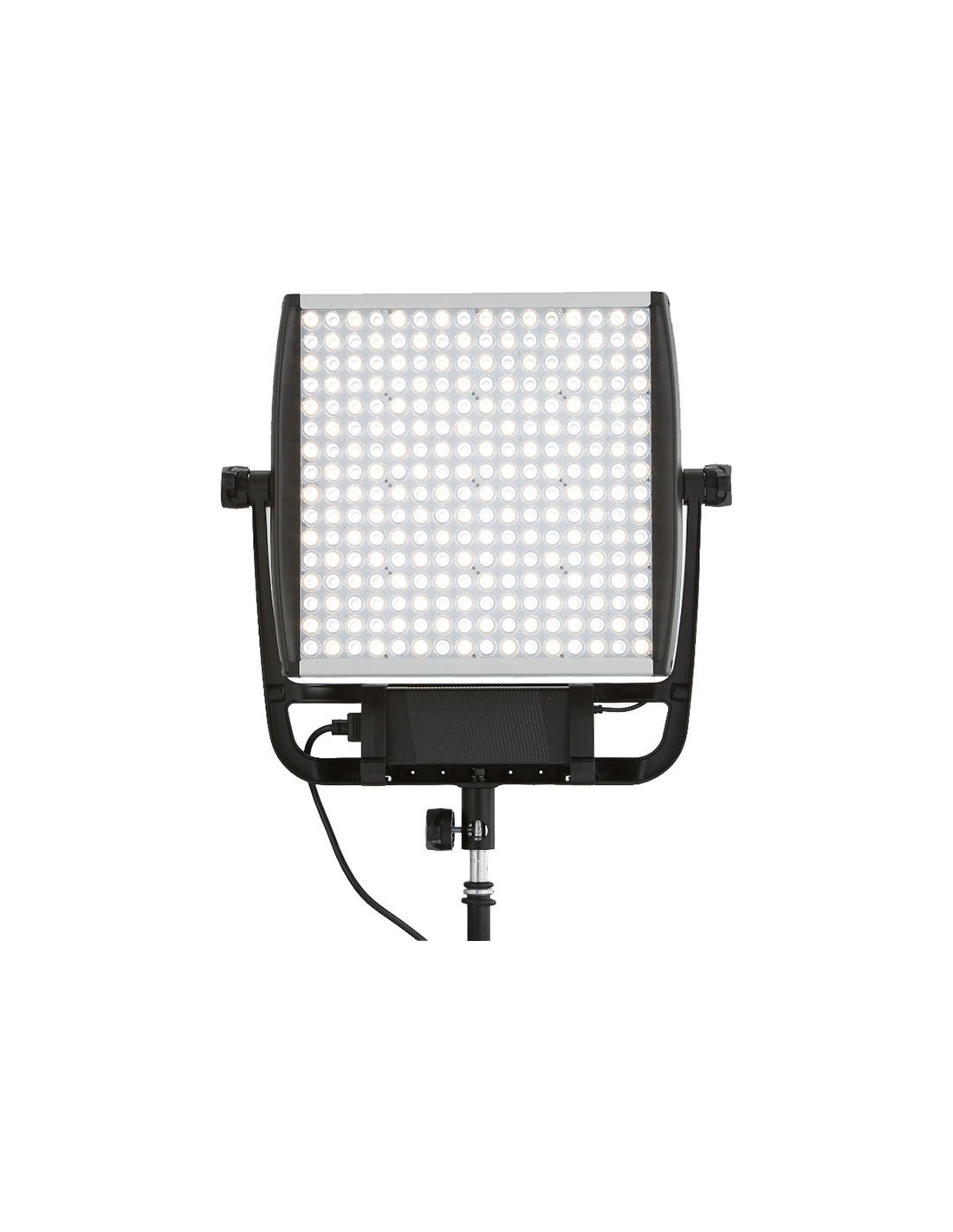

Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 3X Bi-Color LED Panel that is 6x the brightness of the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra has variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate.

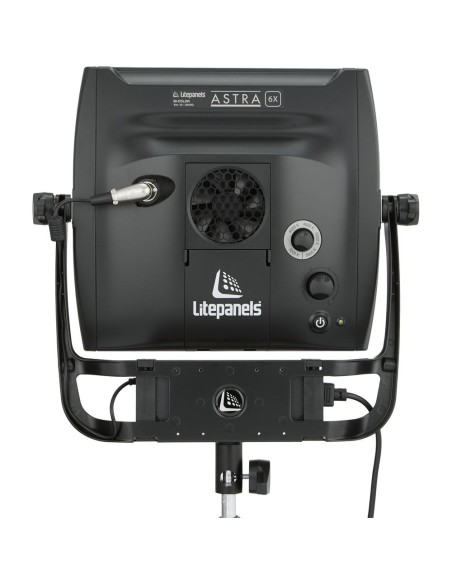

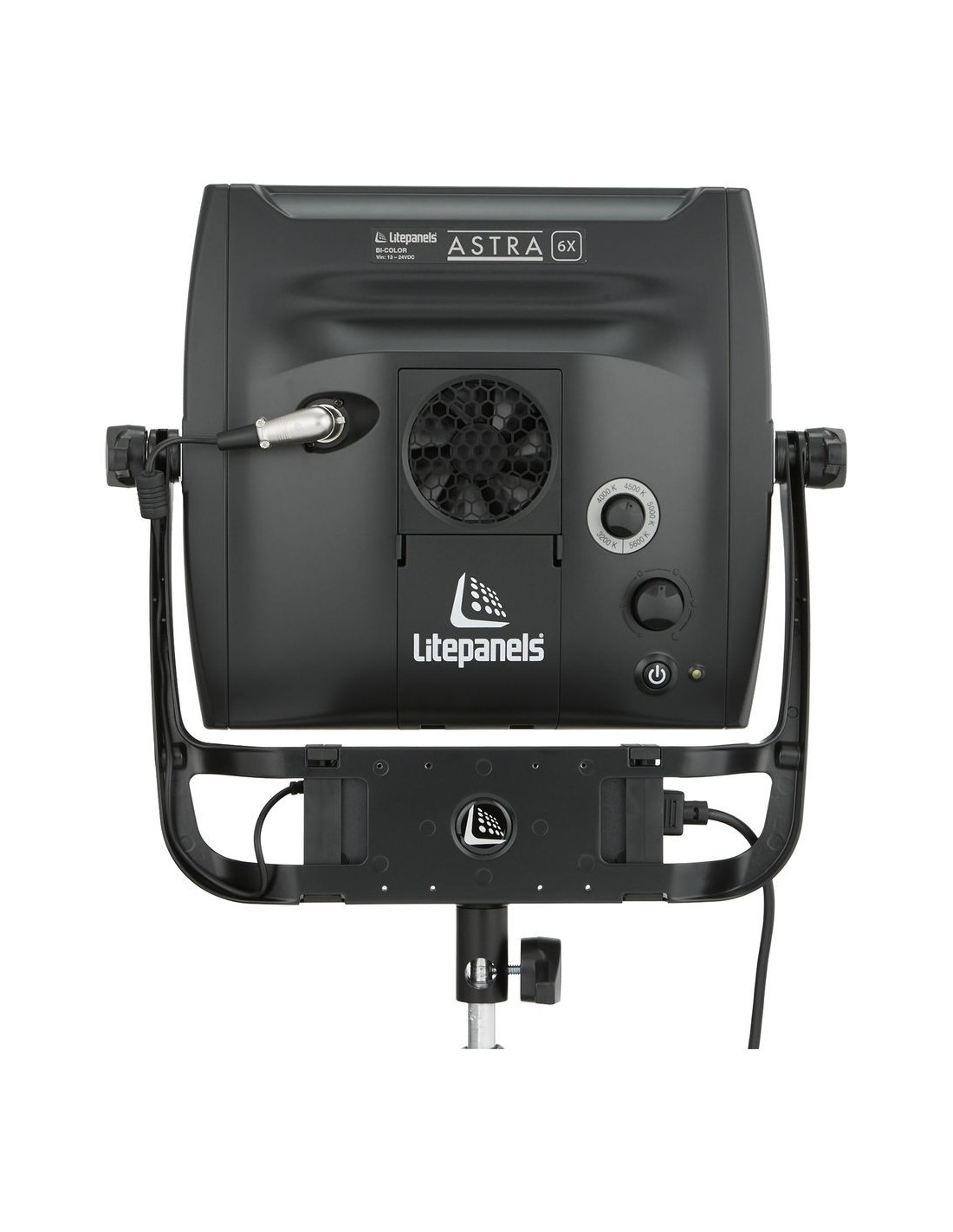

The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. Another addition is the Astra Bi-Color's Dual Cooling. Choose the fan/convection mode or run silent with the field-replaceable fan off. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 6X Bi-Color comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.



High Output
  • High performance LEDs with custom paired optics
  • Higher intensity equals longer throw with wider effective beam spread
Superior Color Reproduction
  • High color rendition (CRI)
Efficient Thermal Management
  • Ultra-quiet active cooling mode
Smooth Dimming from 0-100%
  • No noticeable color shift throughout the entire range
  • Flicker-free at any frame rate or shutter angle
Flexible, Modular Concept
  • Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
  • Optional yoke mounted Gold Mount or V-Mount battery plates
  • External power supply
  • Field-replaceable fan module
Modern Fixture Design
  • Easily identifiable and ergonomic manual controls for dimming, color, and power status
  • Aluminum I-beam core construction to provide maximum durability and superior thermal management
  • Aluminum accessory mounting points and lens/filter rails
  • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Durable, industry standard 3-pin XLR locking power connector
Custom Curved Yoke Design
  • Wide, unobstructed tilt range
  • Yoke mounted power supply and optional battery plates with dual integrated cable guides
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4"-20 mounting points

Litepanels Astra 3X Specs



Light Fixture
Beam Angle46°
Color Temperature3200 to 5600K
Color Accuracy StandardCRI 95
Cooling SystemFan/Passive Combo
DimmingYes, 0 to 100%
DisplayNone
Housing MaterialAluminum
Fixture Dimensions17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm
Fixture Weight7.0 lb / 3.2 kg
Connectors
Power Input Connector3-Pin XLR
Mounting
Yoke MountTVMP/ Hex Bolt
Fixture Mount5/8" Receiver
Accessory MountNone
Yoke
Remote Operation
Remote Control TypeDMX
Power
AC Input Power100 to 240 VAC, 50 / 60 Hz
DC Input Power13 to 24 VDC
Power SourceAC Adapter, External Battery
Max Power Consumption105 W
Physical
IP RatingIP20
