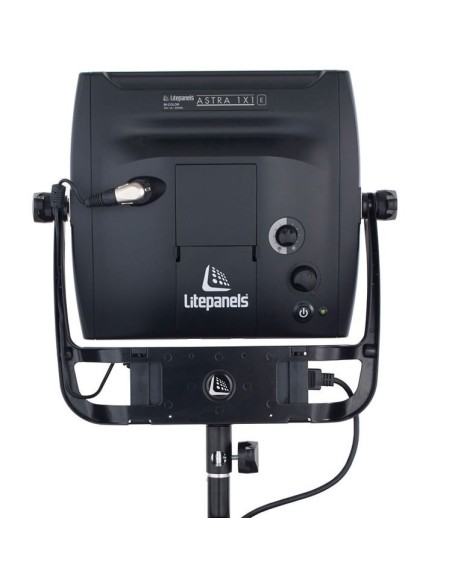

Litepanels Astra 1x1 Bi-Color 56W

935-2003

Nuovo

Litepanels  Astra 1x1 Bi-Color 56W, Variable Tungsten to Daylight Balance, Same Power of Original 1x1, Optional DMX Module, 100-240 VAC with Included AC Adapter

Maggiori dettagli

Aggiungi alla mia lista dei desideri

Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra EP 1x1 Bi-Color LED Panelthat is 2x the brightness the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra 1x1 variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate.

The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra EP 1x1 Bi-Color comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.

High Output
High performance LEDs with custom paired optics Higher intensity equals longer throw with wider effective beam spread
Superior Color Reproduction
High color rendition (CRI)
Efficient Thermal Management
Completely silent passive cooling mode
Smooth Dimming from 0-100%
No noticeable color shift throughout the entire range Flicker-free at any frame rate or shutter angle
Flexible, Modular Concept
Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development) Optional yoke mounted Gold Mount or V-Mount battery plates External power supply
Modern Fixture Design
Easily identifiable and ergonomic manual controls for dimming, color, and power status Aluminum I-beam core construction to provide maximum durability and superior thermal management Aluminum accessory mounting points and lens/filter rails End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering Durable, industry standard 3-pin XLR locking power connector
Custom Curved Yoke Design
Wide, unobstructed tilt range Yoke mounted power supply and optional battery plates with dual integrated cable guides Removable TVMP connector for flexible mounting options Two alternate 1/4"-20 mounting points



Specs

MaterialAluminum
Light SourceLED
Color RangeApproximately 3,200-5,600 K
Beam AngleBeam angle: 44°
PhotometricsDaylight:
291 fc / 3132 lux @ 5' / 1.5 m
73 fc / 783 lux @ 10' / 3 m
32 fc / 348 lux @ 15' / 4.6 m

Tungsten:
223 fc / 2395 lux @ 5' / 1.5 m
56 fc / 599 lux @ 10' / 3 m
25 fc / 266 lux @ 15' / 4.6 m
Dimming0-100%
Operating Voltage100-240 VAC 50/60 Hz with included AC adapter
13-24 VDC with optional battery
Power Draw55 W
DMXYes, with optional adapter
Power Connector3-Pin XLR
Mount5/8" (16 mm)
Dimensions17.7 x 16.3 x 5.3" (45 x 41.4 x 13.4 cm)
Weight7.0 lb (3.2 kg)
