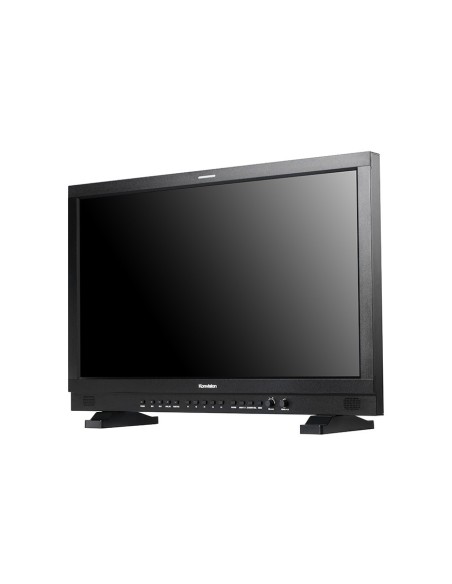

Konvision KVM-2250W 21.5" FHD Broadcast Monitor

KVM-2250W

Nuovo

Konvision KVM-2250W 21.5" FHD Broadcast Monitor is a multi-functional monitor that supports full video formats including 2K and 3Gbs SDI 4:4:412 Bit signals. Efficient features makes it a nice choice for production, post-production and editing, as well as studio and OB truck, 1920×1080 native resolution, 12Bit video processing, 3D LUT color calibration, Waveform, Vectorscope, Audio Meter

Maggiori dettagli

Aggiungi alla mia lista dei desideri



Pixel Measurement:

Select any single pixel or block of pixels, using a movable crosshair to obtain real time readouts of YRGB values and the percent difference, make the comparison easily.



3D LUT Color Calibration:

Integrated 3D LUT color calibration technology,mostly Konvision monitors are compatible with Lightspace and Calman (REC 709 color space) intomonitor.Lightspace and Calman for Konvision are competible with popular colorimeters including the X-rite i1 Display,C6,CR100, and Klein K10A.



Waveform, Vector, Audio Meter for All Signals

All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.



PIP/PBP Mode

Support 2 SDI signals display at same time, also one SDI with any other signals of Video, HDMI/DVI/VGA. Two pictures can swap between each other freely.



Features:

21.5" 1920×1080 native resolution

12Bit video processing

3D LUT color calibration

3G-SDI, 4:4:4 12Bit signals (SMPTE 425M A/B)

2x2K/3G/HD-SDI in/out

Composite/Component in/out

PIP/PBP(size/position adjustable)

Wide type/Waveform(waveform alarm)

Waveform,Vectorscope,Audio Meter for SDI1,SDI2

Waveform,Vectorscope,Audio Meter for HDMI

Histogram

Pixel Measurement

Picture Flip,H/V Delay

Focus Assist,Zoom

False Color,Zebra- Scan,Marker,Blue Only/Mono- Audio Phase,Time Code- Audio Meter (16ch SDI,2ch HDMI)- Dynamic UMD(TSL3.1/4.0)- Built-in DC IN /AC IN- Power-off Memory- Ethernet/GPI- RS422 in/out

Specifications:

LCD:

Display Size 21.5"

High Resolution Full HD 1920×1080

Aspect Ratio 16:9

Wide Viewing Angle 178°(H) / 178°(V)

Pixel Pitch 0.248×0.248(mm)

Color Depth 16.7M

Back Light LED

Brightness 250cd/m2

Contrast Ratio 1000:1

INPUT:

2 × BNC SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

1 × DVI DVI-I Input

1 × HMDI HMDI input

OUTPUT:

2 × BNC SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

COMPANTIBLE SDI FORMATS:

MPTE-425M-A/B 4:2:2 YCbCr 10-bit 1080p(50/59.94/60)

4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)

4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:2:2 YCbCr 12-bit 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-274M 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-260M 1035i(60/59.94)

SMPTE-125M 480i(59.94)

ITUR BT.656 576i(50)

Audio In / Out:

SDI Audio In 16 Channel Embeded Audio
Audio Meter Display(VU+PPM) H/V Audio Level Meter Didsplay
Analog Audio Input 3.5mm Headset Switch Cable
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2

GENERAL:

Operating Temperature -10℃50℃

Input Voltage AC 100-240V 50/60Hz / DC 12V

Power Consumption 42W

Power-Saving Mode Turn off unimportant Key Automatically if No Signal Input

Shell Materials Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell

Accessory Desktop Stand/Power Cord / Fastening screws / Manual

Optional DVI-HMDI adapter/VESA Mount
