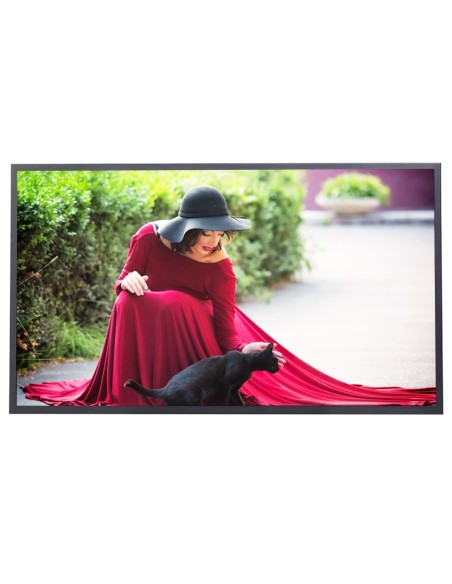

Konvision KVM-3250W 32" Wall-Mount Broadcast Monitor FHD IPS panel

KVM-3250W

Nuovo

Konvision KVM-3250W 32” monitor equipped with FHD resolution IPS LCD panel, high brightness and contrast ratio, 2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enables two signals be displayed on screen in the same time. Supper slim design offers excellent solution for studio, broadcast, video conference applications.

Maggiori dettagli

Aggiungi alla mia lista dei desideri



3D LUT Color Calibration

Integrated 3D LUT color calibration technology, Konvision KVM-5X series monitors are compatible with Lightspace and Calman(REC709 Color space). Lightspace and Calman for Konvision are competible with popular colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.



Waveform, Vector, Audio Meter for All Signals

All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.



Pixel Measurement

Select any single pixel or block of pixels,using a movable crosshair to obtain real time readouts of YRGB values and the percent difference, make the comparison easily.



PIP/PBP Mode

Support 2 SDI signals display at same time, also one SDI with any other signals of Video, HDMI/DVI/VGA. Two pictures can swap between each other freely.



Features:

32" 1920×1080 native resolution

12Bit video processing

3D LUT color calibration

3G-SDI 4:4:4 12Bit signals(SMPTE 425M A/B)

2x2K/3G/HD-SDI in/out

Composite/Component in/out

PIP/PBP- Waveform,Vectorscope, Histogram Audio Meter for SDI1, SDI2

Pixel Measurement

Picture Flip, H/V Delay

Focus Assist, Zoom

False Color, Zebra

Scan, Marker, Blue Only/Mono

Time Code, Audio Meter

Power-off Memory

Ethernet/GPI



Specification:

LCD :

Display Size 32"

High Resolution 1920×1080

Aspect Ratio 16:9

Wide Viewing Angle 178°(H) / 178°(V)

Pixel Pitch 0.3638×0.3638(mm)

Color Depth 16.7M

Back Light LED

Brightness 360cd/m2

Contrast Ratio 1400:1

INPUT:

2 × BNC SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

1 × DVI DVI-I Input

2 × BNC SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)

COMPANTIBLE SDI FORMATS:

SMPTE-425M-A/B

4:2:2 YCbCr 10-bit 1080p(50/59.94/60)

4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)

4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:2:2 YCbCr 12-bit 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-274M 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-260M 1035i(60/59.94)

SMPTE-125M 480i(59.94)

ITUR BT.656 576i(50)

AUDIO IN / OUT:

SDI Audio In 8 Channel Embeded Audio

Audio Meter Display(VU+PPM) H/V Audio Level Meter Didsplay

Analog Audio Input 3.5mm Headset Switch Cable

Audio Headset Output 3.5mm Headset Jack

Built-in Speaker 2.5W×2

GENERAL:

Operating Temperature -10℃50℃

Input Voltage AC 100-240V 50/60Hz

Power Consumption 80W

Power-Saving Mode Turn off unimportant Key Automatically if No Signal Input

Shell Materials Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell

Accessory Power Cord

Optional DVI-HMDI adapter/Wall-Mount VESA bracket/Big Desktop stand
