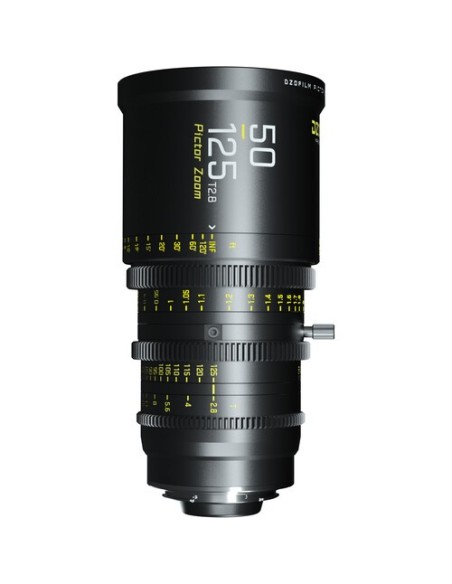

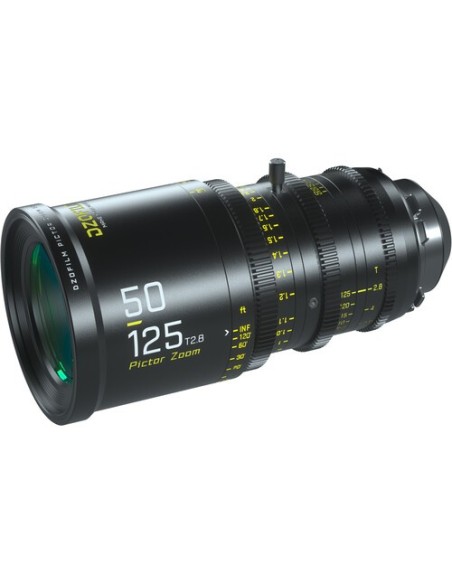

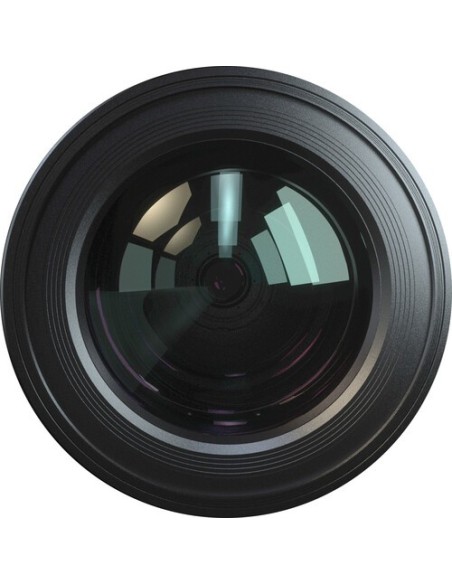

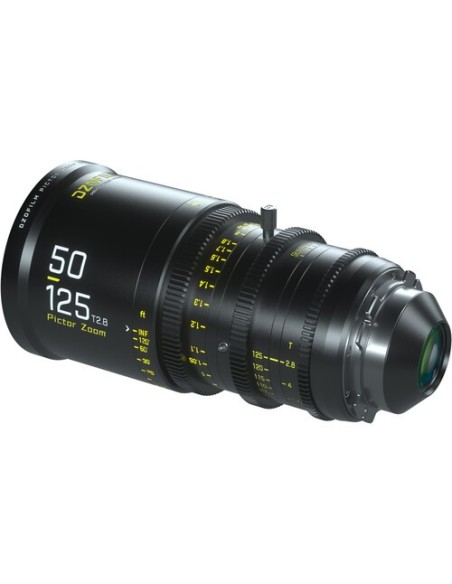

DZOFilm Pictor 50 to 125mm T2.8 Super35 Parfocal Zoom Lens (PL Mount and EF Mount)

A parfocal cine lens, the DZO Pictor 50 to 125mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes a Canon EF mount.

The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.

Key Features

Maintains focus throughout the zoom range

Minimal breathing

16-blade iris produces round out-of-focus highlights

T2.8 to T22 aperture

95mm front diameter

Compatible with standard cine-style lens accessories

SPECIFICATION

Focus Distance 50-125mm

T- stop T2.8 - T22

Mag. Ratio≈2.5X

Image Circle 24.89 mm*18.66 mm（φ31.1 mm）ratio 1.33:1

Flange Distance 52mm (PL mount) 44.14mm (EF mount)

Close Focus Distance 0.8m/2ft8in.

Sizeφ95.0*175mm(PL mount）

/φ95.0*182.9mm (EF mount）

Iris Blades 16 pcs

Gear Pitch 0.8 M

Front Outer Diaφ95 mm

Filter Size M86*0.75

Weight≈1700g

INCLUDED IN BOX

• 1x 50-125mm T2.8 Pictor Zoom - PL Mount

• 1x EF Bayonet Lens Mount
