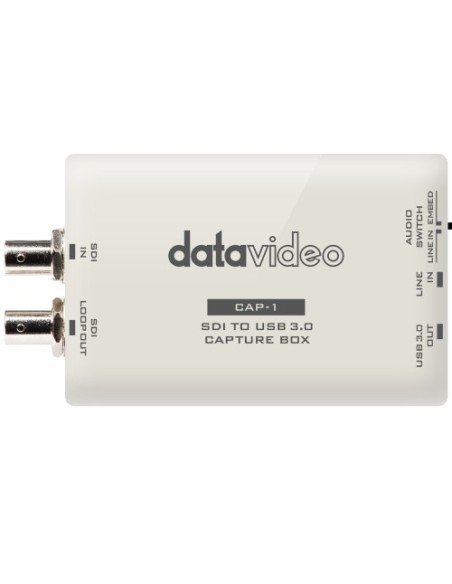

Datavideo CAP-1 SDI capture interface USB 3.0

SDI to USB 3.0 Capture Box, SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

Specifications

CAP-1 SDI to USB 3.0 Capture Box

Input 1x 3G-SDI

Output 1x USB 3.0 (Type A)

1x SDI Loopthrough

Input Video Bandwidth 150MHz

Output Video Bandwidth Up to 350MBps (USB)

Supported Input /Output Video Formats • 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976

• 1920 x 1080i 60/59.94/50

• 1280 x 720p 60/59.94/50

• 720 x 576i 50

• 720 x 480i 60

Audio Input SDI Embedded Audio & Line in Stereo

Audio Format 2 Channel, 16 bit PCM

Recording Mode Software Compression

Recording Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update USB Port

Software Compatibility • Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us

• Linux: VLC, OBS

• Mac OS X: OBS, Quicktime player, VLC, Facetime

Supported OS Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04

Power Supply Via USB

Power Consumption 3W

Operation Temperature 0~40C [32~104F]

Storage Temperature -20~60C [-4~140F]

Humidity 20~90% RH

Dimension (L x D x H) 120.5 (L) x 68 (D) x 23 (H)mm
