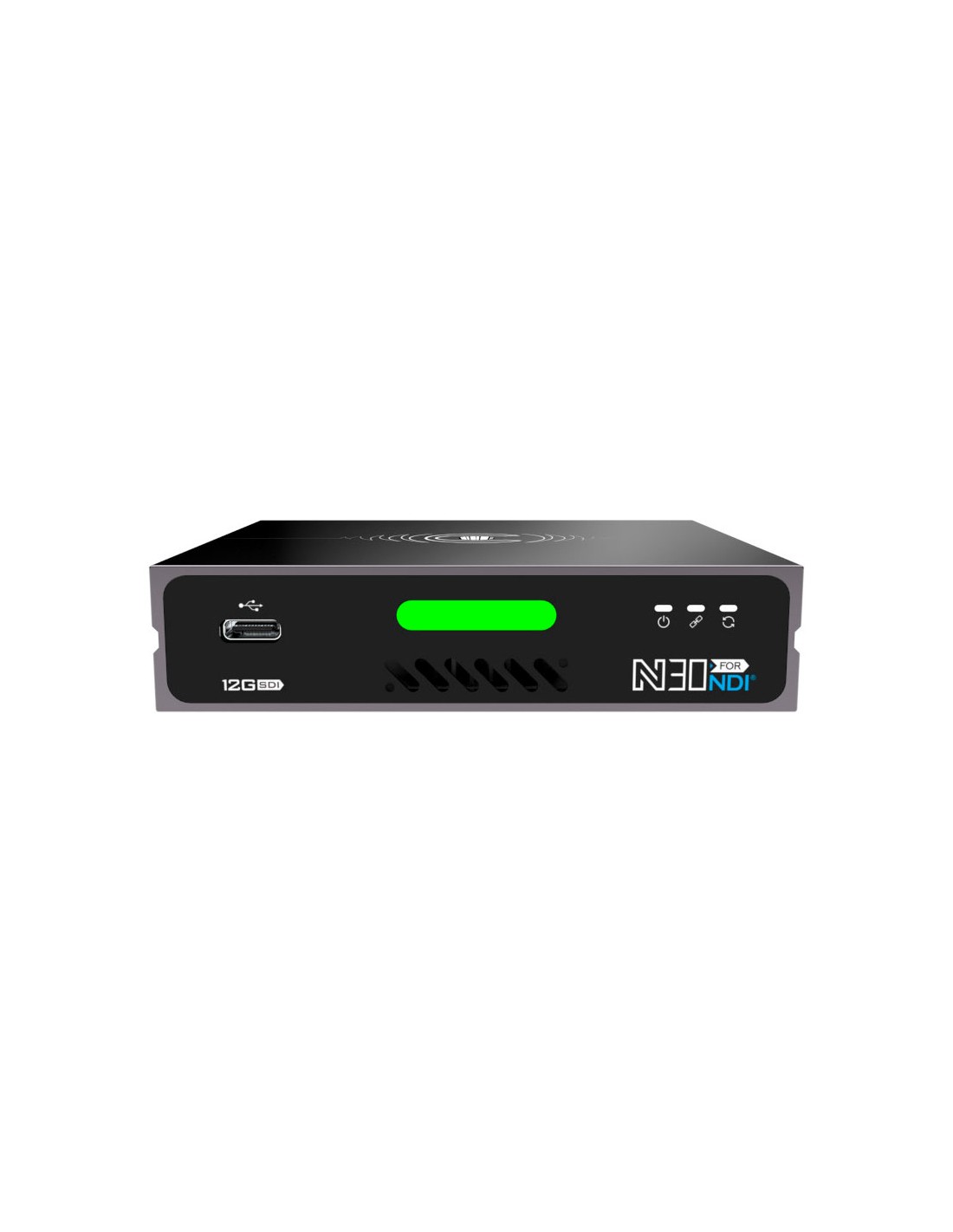

Kiloview N30 (12G-SDI NDI Bi-Directional Video Encoder)

N30

Nuovo

Kiloview N30 (12G-SDI NDI Bi-Directional Video Encoder), Kiloview Videocodificatore bidirezionale Kiloview Plug and play, da SDI a NDI o da NDI a 12G-SDI, YCbCr 4: 2: 2 NDI, Tally Light, Wide DC power input range from 5V-18V

Maggiori dettagli

Disponibile

Aggiungi alla mia lista dei desideri

N30 12G-SDI/NDI Bi-directional Converter / Kiloview N30 for NDI supports up to 12G-SDI video input (Encoder) or 12G-SDI video output (Decoder).

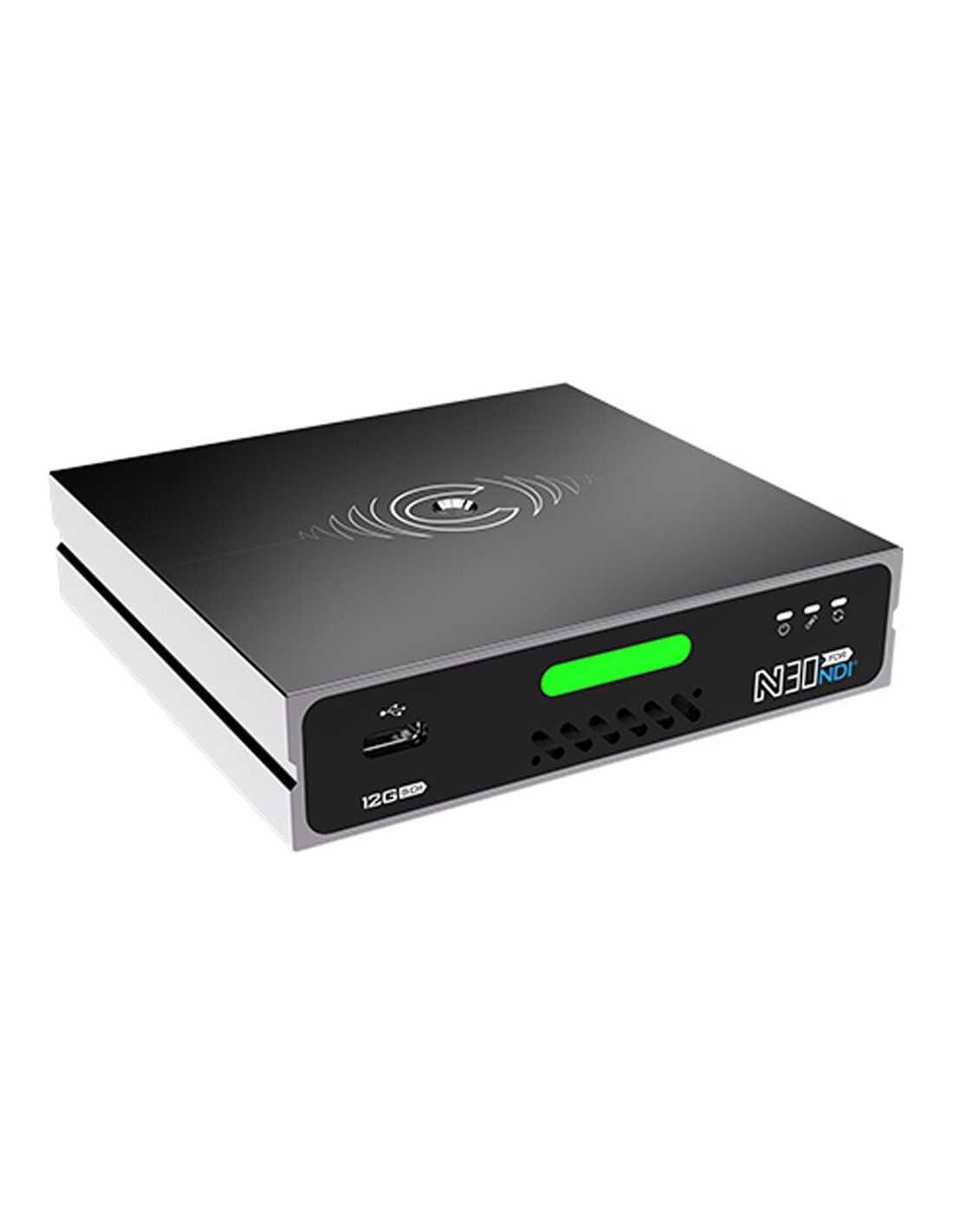

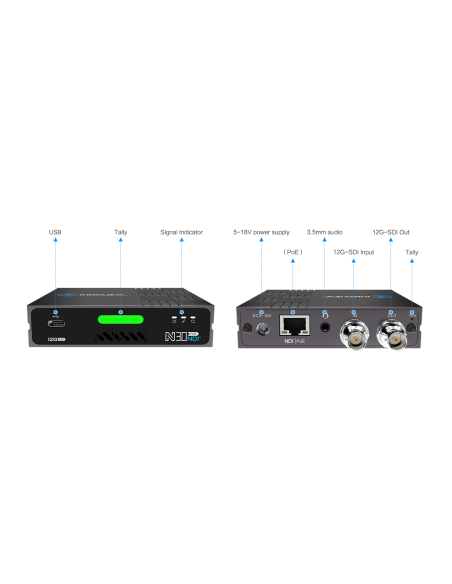

It is small and compact enough to put in your pocket with the overall size of 100*80*28mm. It featured with an 12G-SDI input and 12G-SDI loop for view on the monitor while NDI streaming, or 12G-SDI output while decoding.

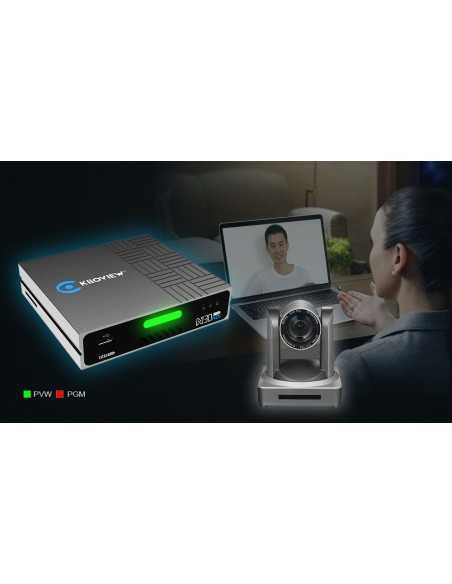

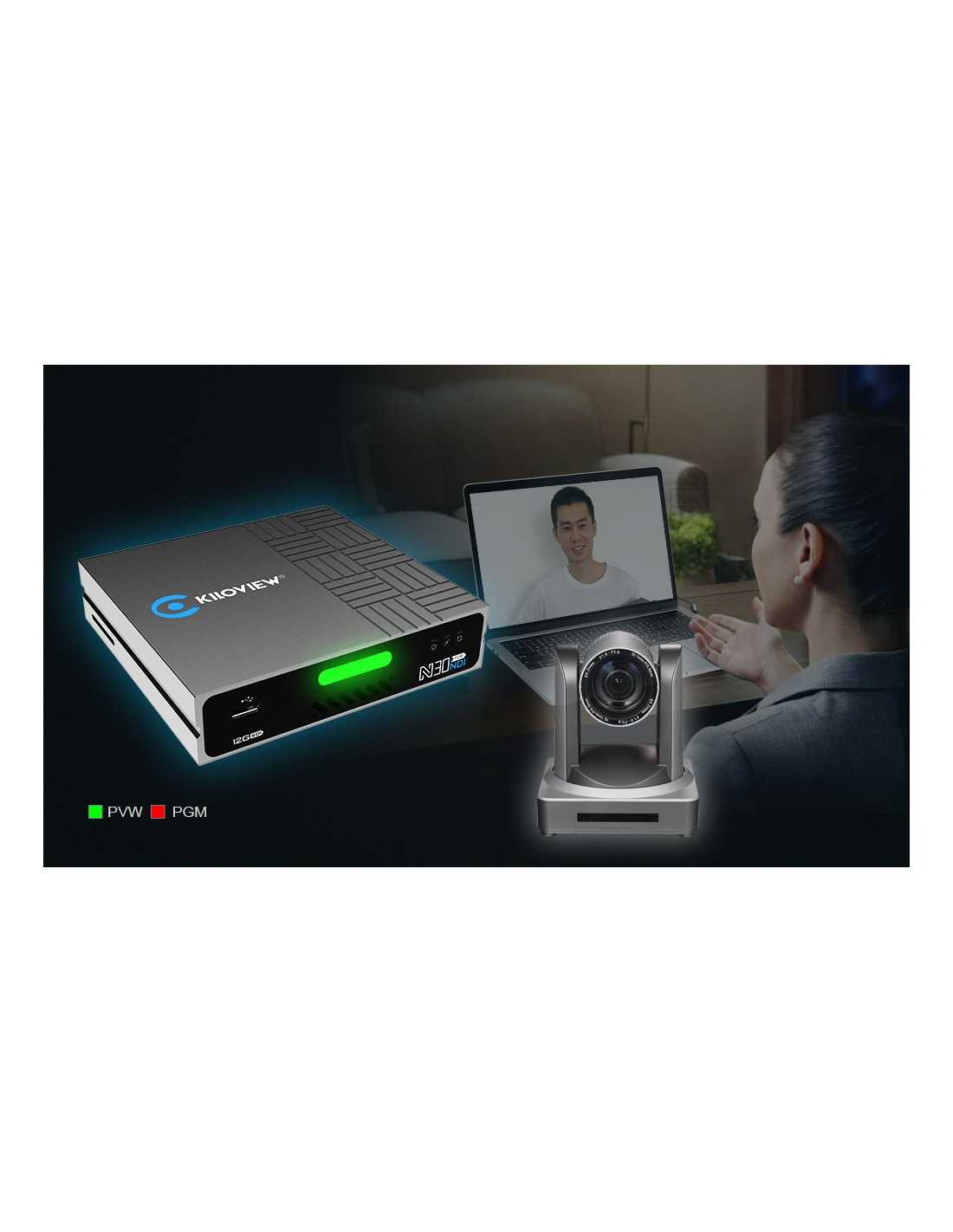

A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output.

Kiloivew N30 for 12G-SDI has a wide DC input range from 5V to 18V, so it can be easily powered by USB, power bank or camera battery. It can also be powered over Ethernet (PoE).

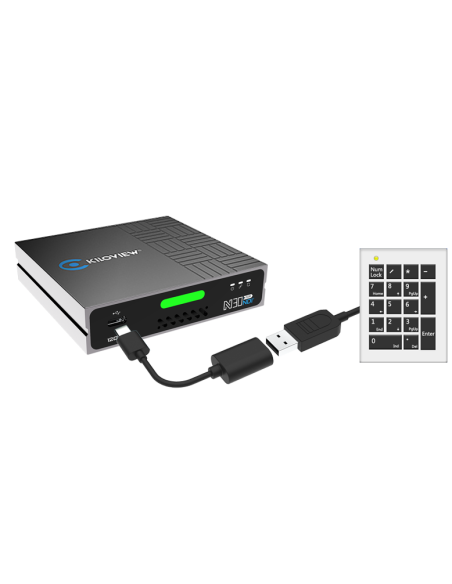

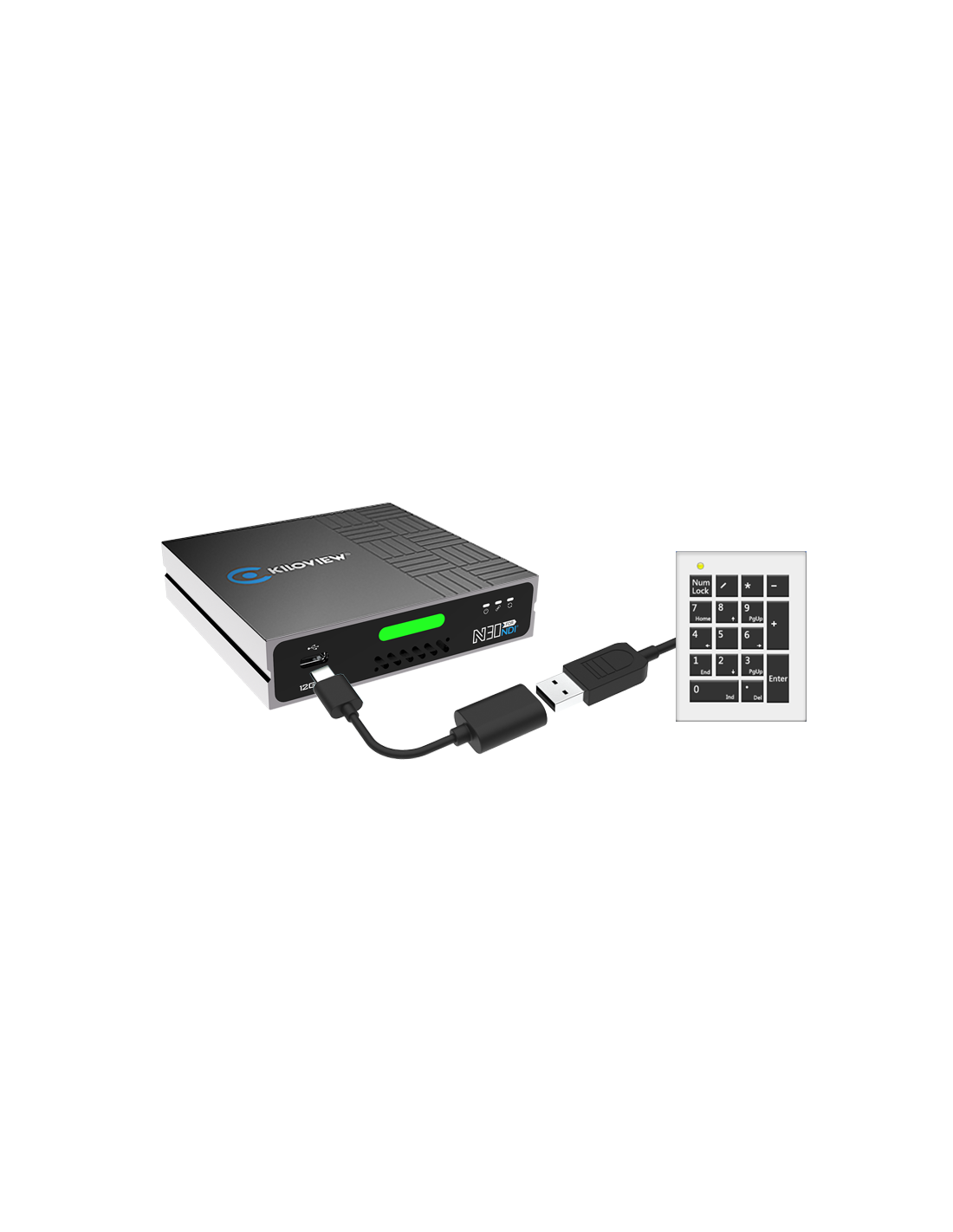

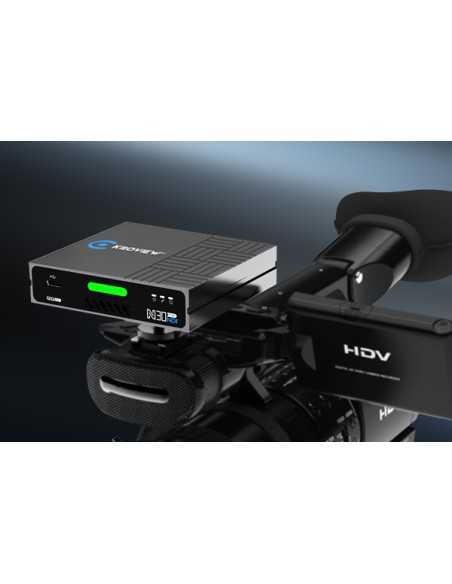

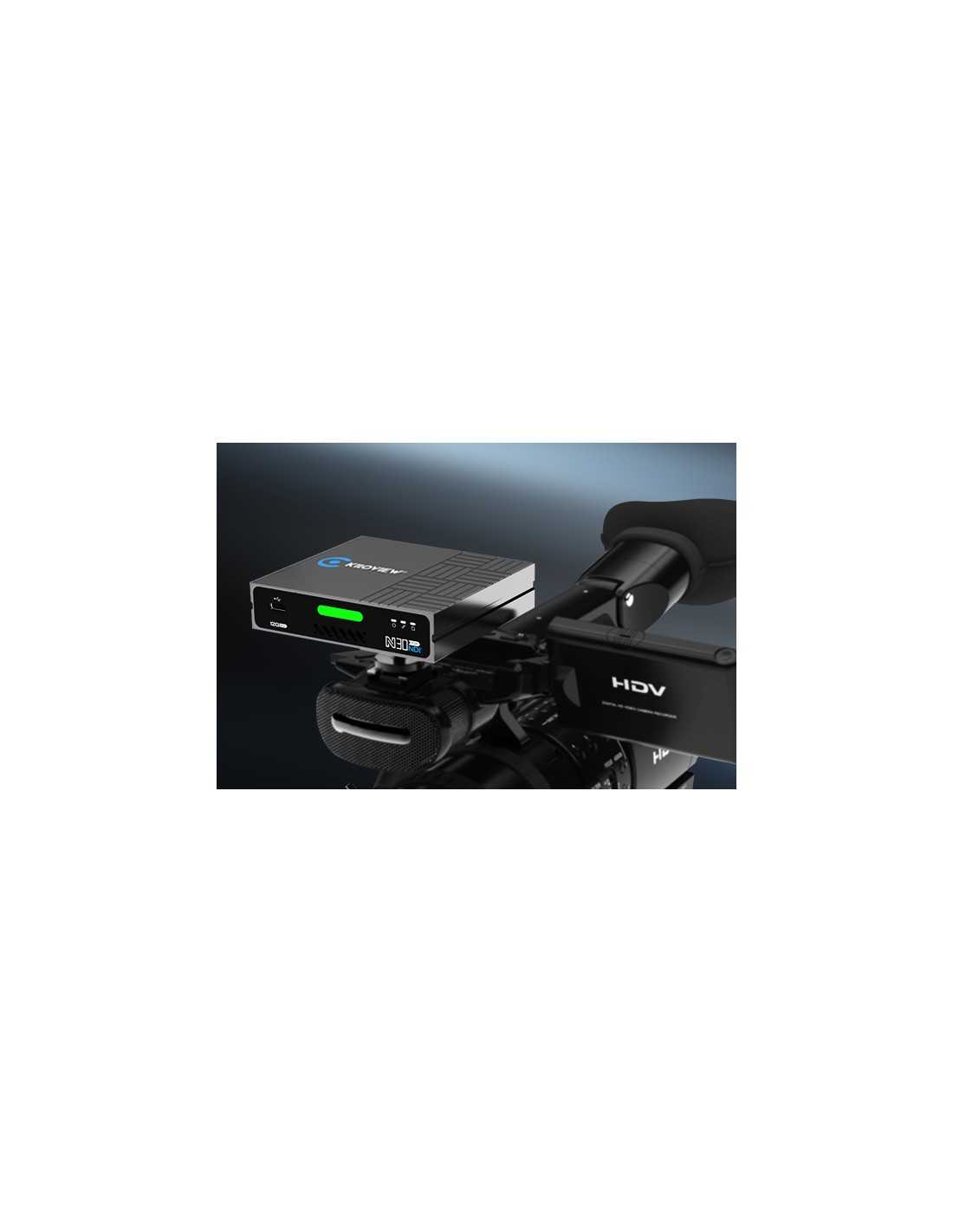

A threaded screw camera mount is provided for your mounting on a camera. PTZ control is available by USB to Serial adaptor.



Product Features



● Rack-mounted design to support install on the camera easily

● Plug and play, SDI to NDI®, or NDI® to 12G-SDI to screen can be easily realized

● SDI input/output supported to monitor during NDI® streaming



Support resolution up to 12G-SDI when encoding and decoding and compatible with SD / HD / VESA

YCbCr 4: 2: 2 NDI® encoding ensures excellent picture quality, lossless audio encoding ensures high-fidelity

 Through accurate clock and intelligent algorithm,  ensure video frame synchronization, as well as   resolution and others. sound quality. accurate picture and audio synchronization.



Product Highlight

  • Tally Light
  • 3.5mm audio Input/output   ( Kiloview Software required)
  • Optional control cable supported which can control PTZ  over Visca / Visca over IP / Pelco etc..(Customize available for other unlisted PTZ protocols)
  • Wide DC power input range from 5V-18V  o make it easy powered by USB, power bank, etc.
  • Threaded screw camera mount
  • Compatible with Kiloview IMS software for device and source management.
