IDX System Technology CW-3 3G-SDI Wireless Video Transmission System

CW-3

Nuovo

IDX System Technology CW-3 3G-SDI Wireless Video Transmission System , Transmits 50m Without Quality Loss, Transmits up to 380' Maximum, Supports up to 1080p60 4:2:2 10-Bit, SDI Loopthrough on Transmitter, Uses 5 GHz WHDI Wireless Technology, GPI Output on Transmitter, Transmitter Camera Mountable

Maggiori dettagli

Disponibile in 15gg

Puoi acquistare questo prodotto a rate tramite Consel. Clicca qui per maggiori informazioni.


€ 1.706,78
€ 1.399,00 + IVA

Aggiungi alla mia lista dei desideri

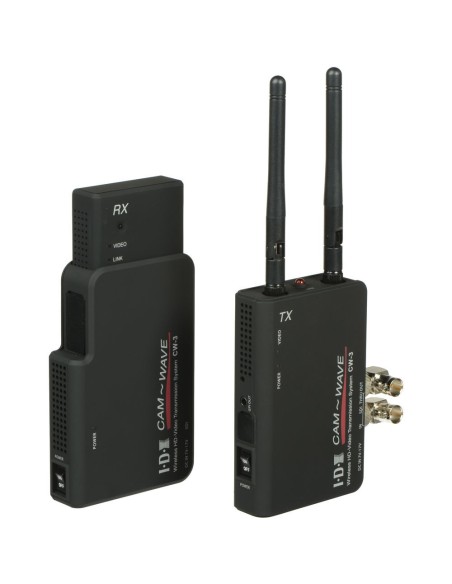

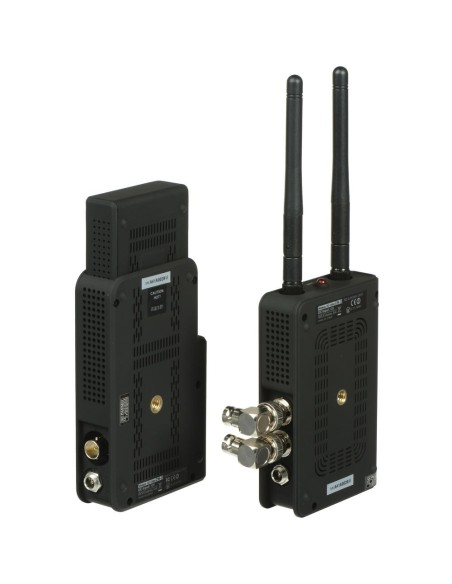

The CW-3 3G-SDI Wireless Video Transmission System from IDX is able to transmit Full HD 1080p video at up to 164' line-of-sight with no quality loss and less than 1 ms latency. It can transmit even further; up to 380' line-of-sight (depending on conditions), but at this extended range some loss in quality may be experienced. It supports 3G- and HD-SDI video signals at up to 1080p60 with 4:2:2, 10-bit color. AC adapters are induced for the transmitter (Tx) and receiver (Rx), or they can be powered from a 7 to 17VDC external source, such as a video battery system with PowerTap. A 1/4"-20 adapter is included for mounting the transmitter on a camera.


Utilizes WHDI (MIMO/OFDM) wireless technology
Operates on 5 GHz frequency band (license free)
Zero frame delay; less than 1ms latency
Dynamic Frequency Selection (DFS) operates on less congested channels for optimal performance
GPI output on TX for tally

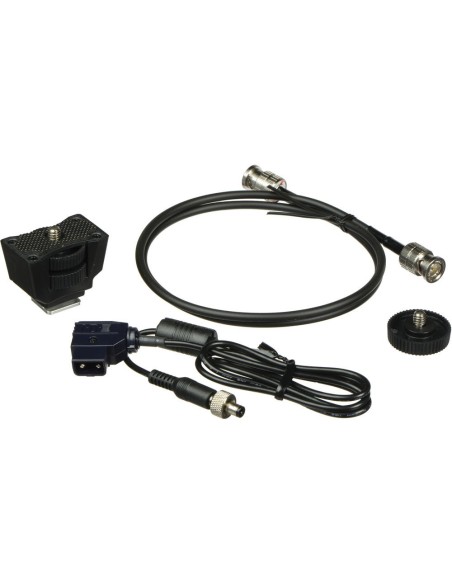

PowerTap cables, SDI cables, AC adapters, and 1/4"-20 mounting adapter all included



Specs



Performance
Frequency5270, 5310, 5510, 5550, and 5670 MHz
Note: FCC compliant; other countries may require different frequencies.
Transmit MethodWHDI (MIMO)
ModulationOFDM
LatencyZero frame (less than 1 ms)
Transmit RangeWithout Quality Loss: 164' (50 m)
Maximum Line-of-Sight: 380' / 115 m
Video and Audio
ConnectorsTx
1 x 3G/HD-SDI input
1 x 3G/HD-SDI loop-out
1 x GPI output


Rx
1 x 3G/HD-SDI output
SDI Formats Supported3G-SDI: YCbCr, 4:2:2 10-bit
HD-SDI: YCbCr, 4:2:2 10-bit
Supported Resolutions3G-SDI: 1080p: 60, 59.94/, or 50 Hz
HD-SDI:
1080i: 60, 59.94, or 50 Hz
1080p: 30, 29.97, 25, 24, or 23.98 Hz 720p: 59.94 or 50Hz
General
Power Requirements7 to 17 VDC
Power ConsumptionTx Maximum: 8 W
Rx Maximum: 10 W
DimensionsTx: 4.3 x 2.7 x 1" (109.2 x 68.8 x 25.4 mm)
Rx: 6 x 2.9 x 1" (153.5 x 73.5 x 25 mm)
Antenna: 4.3 x 0.4 x 0.4" (108 x 10 x 10 mm)
WeightTx: 0.3 lb (150 g)
Rx: 0.4 lb (165 g)





Alimentazionebatteria V-mount
UtilizzoBroadcast
Interfacce digitaliHD-SDI
