Swit Electronics CW-S300 SDI 300m Promo Pack

CW-S300FS

Nuovo

Swit CW-S300 SDI 300m Wireless System, WHDI (MIMO/OFDM) Swit Sistema di trasmissione HD wireless non compresso. Attacco batterie: TX - Sony serie L, RX - V-Mount, Connessione SDI Loop, Tecnologia WHDI su frequenza 5,1-5,9GHz (frequenze senza licenza), Distanza massima: 300m (LoS), Latenza molto bassa: meno di 1ms, 2-ch Audio integrati, Supporta Multicast (fino a 4 ricevitori in simultanea)

Maggiori dettagli

Disponibile

Aggiungi alla mia lista dei desideri

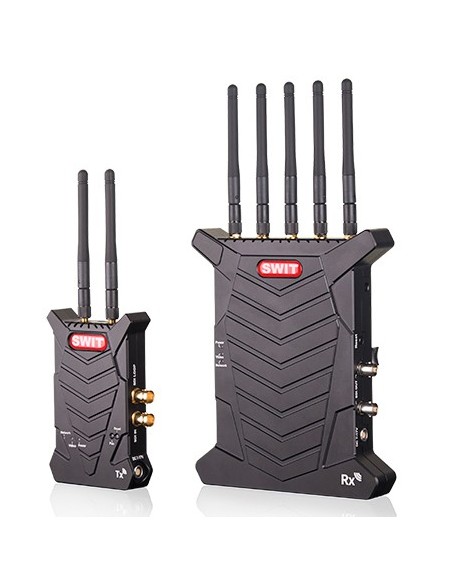

CW-S300 wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, DFS comply, , supports uncompressed 3G/HD-SDI to transmit 300 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

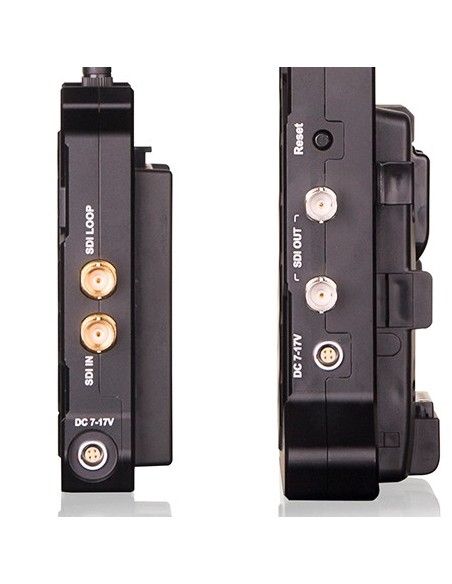

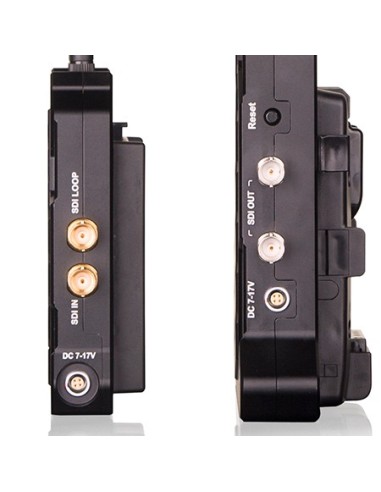

Input & Output

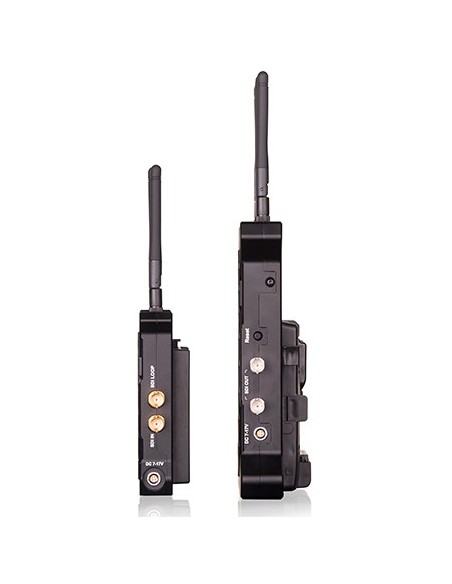

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x 7-17V 4-pin LEMO DC input

The Receiver (Rx) has 5 omni antennas, supports
2x 3G/HD-SDI output
1x 7-17V 4-pin LEMO DC input

SDI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30;
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p5



300meters Transmission

3G/HD-SDI non-compressed, ≤1ms latency

In Line-of-Sight, CW-S300 supports non-compressed 3G/HD-SDI 300 meters (1000 feet) transmission, with less than 1 millisecond latency.


Embedded Audio/Timecode Transmission

CW-S300 supports SDI embedded audio (CH1&2) transmission, and supports SDI timecode transmission.



5.1-5.9GHz Frequency

DFS comply

CW-S300 wireless system works at 5.1-5.9GHz License-free frequency, and support DFS (Dynamic Frequency Switch). The transmitter and receiver are paired to work. Support 3-4 pairs wireless channels to work together in one location.
The wireless output power is less than 100mW, which will not do harm to human bodies.




Multicast Setting
Users can Pair up to 4 Receivers with 1 Transmitter, to enable 1 Transmitter to multi Receivers multicast mode.



Power Supply and Set-up

The Transmitter is compact designed, provides 7-17V 4-pin LEMO DC input, and equipped with various DV battery plates for selection:
Plate Types
Compatible batteries
F
SONY NP-F970/770, SWIT S-8972, S-8970
U
SONY BP-U60/U30, SWIT S-8U63, S-8U93
D
Panasonic CGA-D54/D28, VW-VBD58, SWIT S-8D62, S-8D58, S-8D98
B
Panasonic VW-VBG6, SWIT S-8BG6
V
JVC BN-VF823, SWIT S-8823
I
SSL-JVC50, SWIT S-8i50, S-8i75
C
Canon BP-945/970G, SWIT S-8845, S-8945
E
Canon LP-E6, SWIT S-8PE6

The Receiver provides 7-17V 4-pin LEMO DC input, and equipped with V-mount or Gold mount battery plate for option.

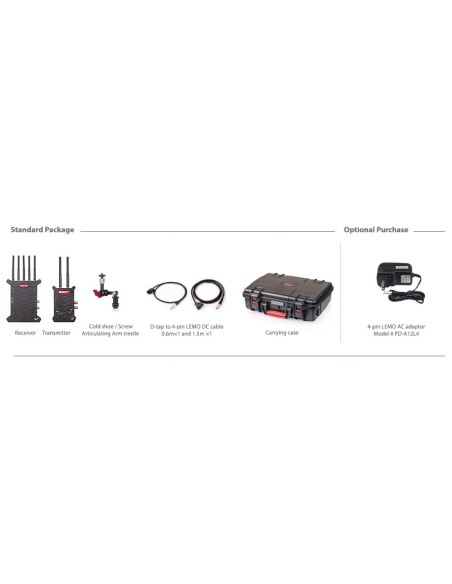

Standard Package

CW-S300 standard package includes:
1x Transmitter (Various DV plates types option)
1x Receiver (V-mount or Gold mount option)
7x Antennas (2 for Transmitter and 5 for Receiver)
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to 4-pin LEMO DC cable – 0.6m
1x D-tap to 4-pin LEMO DC cable – 1.5m
1x Carrying case (for everything)

* AC-DC adaptor is optional purchased, Model #PD-A12L4
