Magewell USB Capture HDMI Plus

Magewell USB Capture HDMI Plus, Capture Device with Built-In Auto ScalerSupports Input Resolutions up to 4K, Scales to 2K for Recording/Streaming, Loop-Through HDMI Port for Monitoring, Mic / Headphone Jacks, Compatible with Windows, Mac, and Linux, Can Be Operated 24/7, Deinterlacing, Image Control

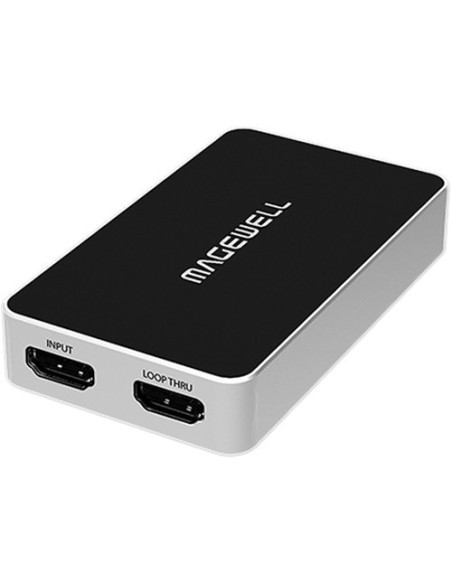

The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.

The USB Capture HDMI Plus is compatible with Windows, Mac, and Linux. It works plug-and-play and can be operated 24 hours a day, 7 days a week.

HDMI Features

297 MHz HDMI receiver
Support for up to 4096 x 2160 4:4:4/4:2:2 input at 30 fps or 4:2:0 at 60 fps input signals
For 4:2:0 input signals, the horizontal and vertical resolution are reduced to 1/2 for capturing
For 4:4:4/4:2:2 input at more than 170 MHz, the horizontal resolution is reduced to 1/2 for capturing
Adaptive HDMI equalizer support for cables lengths up to 98 ft
Customized EDID support
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 2 channel ISC60958 audio streams
Support for extraction of audio formation information and channel status data, video timing information, 3D format information
Support for Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D modes

Analog Audio Features

Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo jack
Capture of analog audio via 3.5mm microphone interface
Integrate the functions of a USB audio card
Playback audio via 3.5mm headphones interface
Support for recording the playback audio of the computer

Video Processing Features

Video processing pipelines with 160 megapixels processing bandwidth
Video cropping
Video scaling
Video deinterlacing (Weave, Blend Top & Bottom Field, Top Field Only, Bottom Field Only)
Auto or manual selection of input and output aspect ratios
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
Auto or manual selection of input color format and quantization range
Auto or manual selection of output color format, quantization range, and saturation range
Support for RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full, and "Extended Gamut" saturation range
Video frame rate conversion
Vertical flip and mirror

Riferimento 32040

Condizione Nuovo

ean13 8143950200860

MAGEWELL, azienda che produce schede per acquisizione video di altissima qualità ed affidabilità. Di rapida installazione e facile utilizzo, i vari modelli disponibili consentono l'acquisizione dei vari segnali video sia con schede PCIe che tramite connessione USB. Quest'ultimo caso anche nella modalità PnP (Plug & Play) senza installazione manuale dei driver su PC.

Magewell USB Capture HDMI Plus
