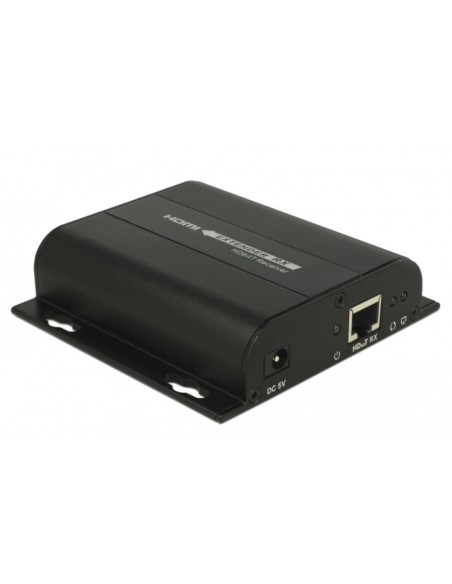

Delock HDMI Receiver for Video over IP HDBitT

Delock HDMI Receiver for Video over IP - This video extender system by Delock allows video signals to be transmitted over an IP network. The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively both devices can be connected via a switch, the distance between the source and the display device can then be 200 m.

HDBitT
The HDBitT technology allows different transmitters and receivers to be combined with each other, e.g. a DisplayPort transmitter with an HDMI receiver. Optionally, several receivers can be operated simultaneously.

Specification
• Connectors:
- 1 x RJ45 jack
- 1 x HDMI-A 19 pin female
- 1 x 3 pin terminal block (serial)
- 1 x 3.5 mm 3 pin stereo jack female (IR)
- 1 x DC 5.5 x 2.1 mm female
• Transmission of audio and video signals
• Transmission of IR signals 20 - 60 kHz
• Transmission of serial signals
• Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Supports RTP Multicast
• Supports One-to-one and One-to-many connections
• Latency: ca. 400 ms
• Power consumption: max. 3.5 W
• Robust metal housing
• Wallmount option
• Dimensions (LxWxH): ca. 103 x 84 x 25 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
- inside: ø ca. 2.1 mm
- outside: ø ca. 5.5 mm
- length: ca. 9 mm

System requirements
• Connection cables
• Switch with VLAN or IGMP snooping

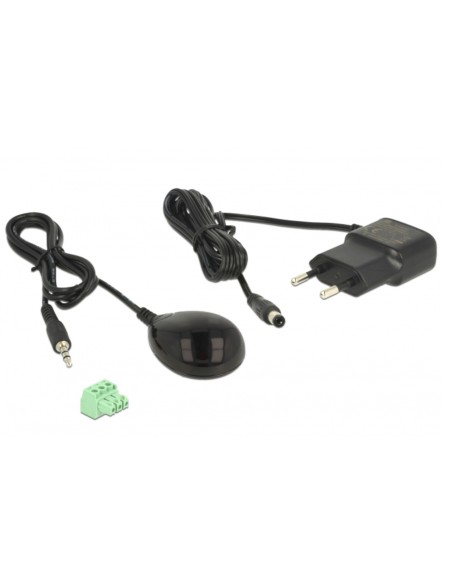

Package content
• HDMI receiver
• Infrared receiver
• Power supply
• User manual
