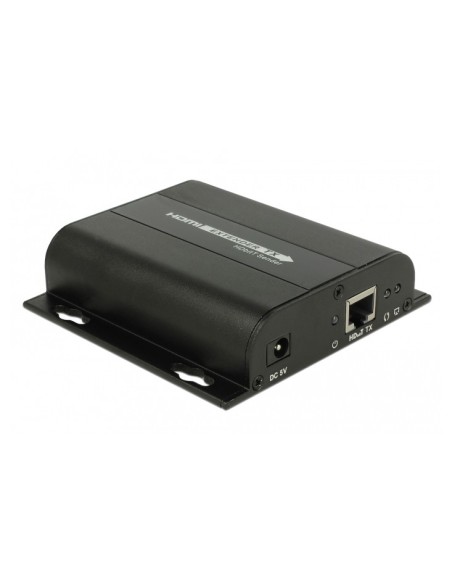

Delock HDMI Transmitter for Video over IP HDBitT

Delock HDMI Transmitter for Video over IP

This video extender system by Delock allows video signals to be transmitted over an IP network. The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively both devices can be connected via a switch, the distance between the source and the display device can then be 200 m.

HDBitT
The HDBitT technology allows different transmitters and receivers to be combined with each other, e.g. a DisplayPort transmitter with an HDMI receiver. Optionally, several receivers can be operated simultaneously.

Specification
• Connectors:
- 1 x RJ45 jack
- 1 x HDMI-A 19 pin female
- 1 x 3 pin terminal block (serial)
- 1 x 3.5 mm 3 pin stereo jack female (IR)
- 1 x DC 5.5 x 2.1 mm female
• Transmission of audio and video signals
• Transmission of IR signals 20 - 60 kHz
• Transmission of serial signals
• Supported resolution: 480i / 480p / 576i / 576p  / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Supports RTP Multicast
• Supports One-to-one and One-to-many connections
• Latency: ca. 400 ms
• Power consumption: max. 3.5 W
• Robust metal housing
• Wallmount option
• Dimensions (LxWxH): ca. 103 x 84 x 25 mm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
- inside: ø ca. 2.1 mm
- outside: ø ca. 5.5 mm
- length: ca. 9 mm

System requirements
• Connection cables
• Switch with VLAN or IGMP snooping

Package content
• HDMI transmitter
• Infrared transmitter
• Power supply
• User manual
