SWIT CM-S73H 7-inch Full HD High Bright 3G-SDI e 4K-HDMI LCD Monitor 2500nits

SWIT 7-inch Full HD High Bright 3G-SDI &4K-HDMI LCD Monitor

Swits New CM-S73H 7" Full HD (1920 x 1080) monitor has 2500nits of brightness.

The monitor is based around Swit’s existing S-1073H, with the brightness increasing by a generous 525%.

Display aids include R/G/B/Mono only, zebra, and false color.

The monitor features built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick (support 17x17x17 3DLUT cube files).

The CM-S73H also boasts embedded audio monitoring of up to 16-ch meters with alerts and a select output.

You can also select any 2 channels audio to output via 3.5mm socket or speakers.

The audiometer pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audiometer pattern are selectable.

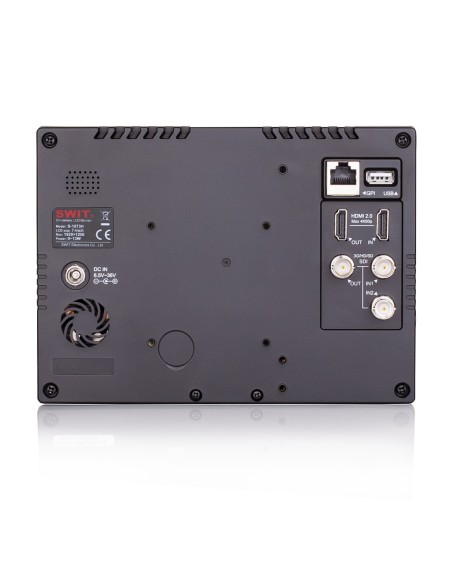

Inputs/Outputs

• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 1
• HDMI 2.0 (4K60p) input × 1
• HDMI 2.0 (4K60p) loop output × 1
• 3.5mm SDI/HDMI embedded audio output

Key Features

• 7-inch 1920×1200 FHD LCD
• 2500nit super high brightness for sunlight using
• 2K/3G/HD/SD-SDI input & loop output
• 4K HDMI 2.0 input & loop output
• Up to 16-ch embedded audio meters with alert
• Select any 2 audio channels to output
• 9-steps quick zoom-in and mapping
• Focus assist with precision adjustment
• Built-in multi-camera De-log 3DLUTs
• User 3DLUTs upload by USB
• On-screen TALLY display and GPI control
• Zebra stripes, False color, Blue only
• V-mount/Gold mount or various DV plates option
