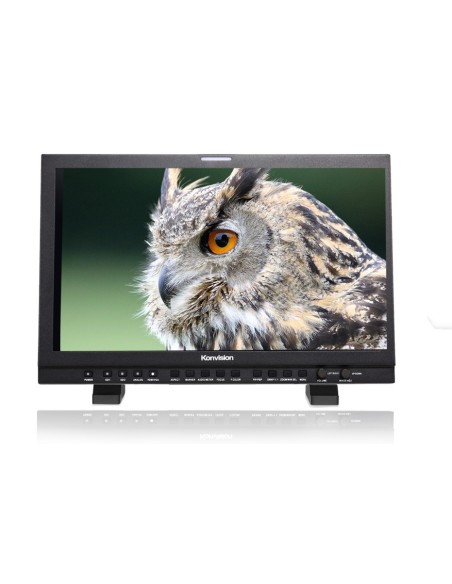

Konvision KVM-1951W 19.5" FHD Broadcast Monitor

KVM-1951W

Nuovo

Konvision KVM-1951W 19.5" FHD Broadcast Monitor, 19.5” FHD Broadcast Monitor, FHD resolution,multiple channels with full broadcast feature, cost-effective monitor for various broadcasting applications, 1920×1080 native resolution, 12Bit video processing, 3D LUT color calibration, Waveform, Vectorscope, Audio Meter for SDI1,SDI2

Maggiori dettagli

Aggiungi alla mia lista dei desideri



Pixel Measurement:

Select any single pixel or block of pixels, using a movable crosshair to obtain real time readouts of YRGB values and the percent difference, make the comparison easily.



3D LUT Color Calibration:

Integrated 3D LUT color calibration technology, Konvision KVM-5X series monitors are compatible with Lightspace and Calman(REC709 Color space). Lightspace and Calman for Konvision are competible with popular colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.



Waveform, Vector, Audio Meter for All Signals

All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.



PIP/PBP Mode

Support 2 SDI signals display at same time, also one SDI with any other signals of Video, HDMI/DVI/VGA. Two pictures can swap between each other freely.



Features:

19.5" 1920×1080 native resolution

3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)

12 Bit Video Processing

3D LUT Color calibration with LightSpace & CalMAN

2K/3G/HD-SDI 2x In & 2x Out

Composite/Component In/Out- PBP/PIP(size/position adjustable)

Waveform, Vectorscope for SDI1 and SDI2

Waveform, Vectorscope for HDMI/DVI

Pixel Measurement and Audio Phase

Picture Flip, Histogram, H/V Delay

Focus Assist, Zoom, False Colour, Zebra

Over Scan, Markers, Blue Only/Mono Only

Audio Level Meter (16CH for SDI, 2CH for HDMI)

Dynamic UMD(TSL3.1/4.0), Time Code Display

LED Tally Light and On-screen Tally display

On-screen Alarms: no video, video black, freeze frame, no audio

F-key configuration and Key Lock function

Remote control: Ethernet/GPI, RS422 In/Out

Built-in AC IN and DC IN power supply



Specifications:

LCD:

Display Size 19.5"

High Resolution 1920×1080

Aspect Ratio 16:9

Wide Viewing Angle 178°(H) / 178°(V)

Pixel Pitch 0.2265×0.221(mm)

Color Depth 16.7M

Back Light LED

Brightness 300cd/m2

Contrast Ratio 1000:1

INPUT:

2 × BNC SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/ Y/C

1 × DVI DVI-I Input

1 × HMDI HMDI input

OUTPUT

2 × BNC SDI Output (3G/HD/SD-SDI Auto-Detected)

3 × BNC YPbPr/Video/Y/C

COMPANTIBLE SDI FORMATS:

SMPTE-425M-A/B 4:2:2 YCbCr 10-bit 1080p(50/59.94/60)

4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)

4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:2:2 YCbCr 12-bit 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

4:4:4 YCbCr/RGB 10-bit 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-274M 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

SMPTE-296M 720p(60/59.94/50/30/29/25/24/23.98)

SMPTE-260M 1035i(60/59.94)

SMPTE-125M 480i(59.94)

ITUR BT.656 576i(50)

Audio In / Out:

SDI Audio In 16 Channel Embedded Audio

Audio Meter Display(VU+PPM) H/V Audio Level Meter Display

Analog Audio Input 3.5mm Headset Switch Cable

Audio Headset Output 3.5mm Headset Jack

Built-in Speaker 2.5W×2

GENERAL:

Operating Temperature -10℃50℃

Input Voltage AC 100-240V 50/60Hz & DC 12V IN

Power Consumption 35W

Power-Saving Mode Turn off unimportant Key Automatically if No Signal Input

Accessory Power Cord / Fastening screws / Manual
