Tally Technologies Wired Pro Bundle with Base4 Transmitter and x3 Wireless Pro Receivers
Paga 28.60€ in 15 mesi senza nessuno costo
Parla con un esperto
Whatsapp Live Chat


This Tally Technologies Wireless Pro Bundle comes with everything you need for your production and broadcast studios, with a TallyTec Pro Wireless Base4 Transmitter and three Wireless Pro Receivers, including TimeSync.

Base4 Transmitter

The TallyTec Base4 Transmitter can support up to 4 channels for receivers, giving a wireless range of up to 2km. Powered through mains or 12v battery, this robust transmitter continuously outputs both live and preview signals from a wide variety of mixers to a receiver.

The case of the TallyTec Base4 incorporates a small screen for displaying the receiver status, an alarm button with a flashing light should a receiver deactivate, and a menu for managing the remote receivers. The transmitter also displays the battery charge level for each wireless receiver in use. The rear of the case has x4 RJ45 ports that can be used for charging the receiver and for use with wired receivers via Cat5/6 cable. The Base4 transmitter manages up to 4 receivers. The transmitter also has the ability to operate with any vision mixers using open/closed contact or +5v or -5v.

The transmitter receives information from a mixer's PGM output and sends a pulse to turn on the red LED on both the front and back of the receiver assigned to this camera. If the mixer also generates information from the selected camera's preview channel. The Base4 also transmits this channel and turns a green LED on located at the back of the receiver. The green LED can be switched off at any time if required.

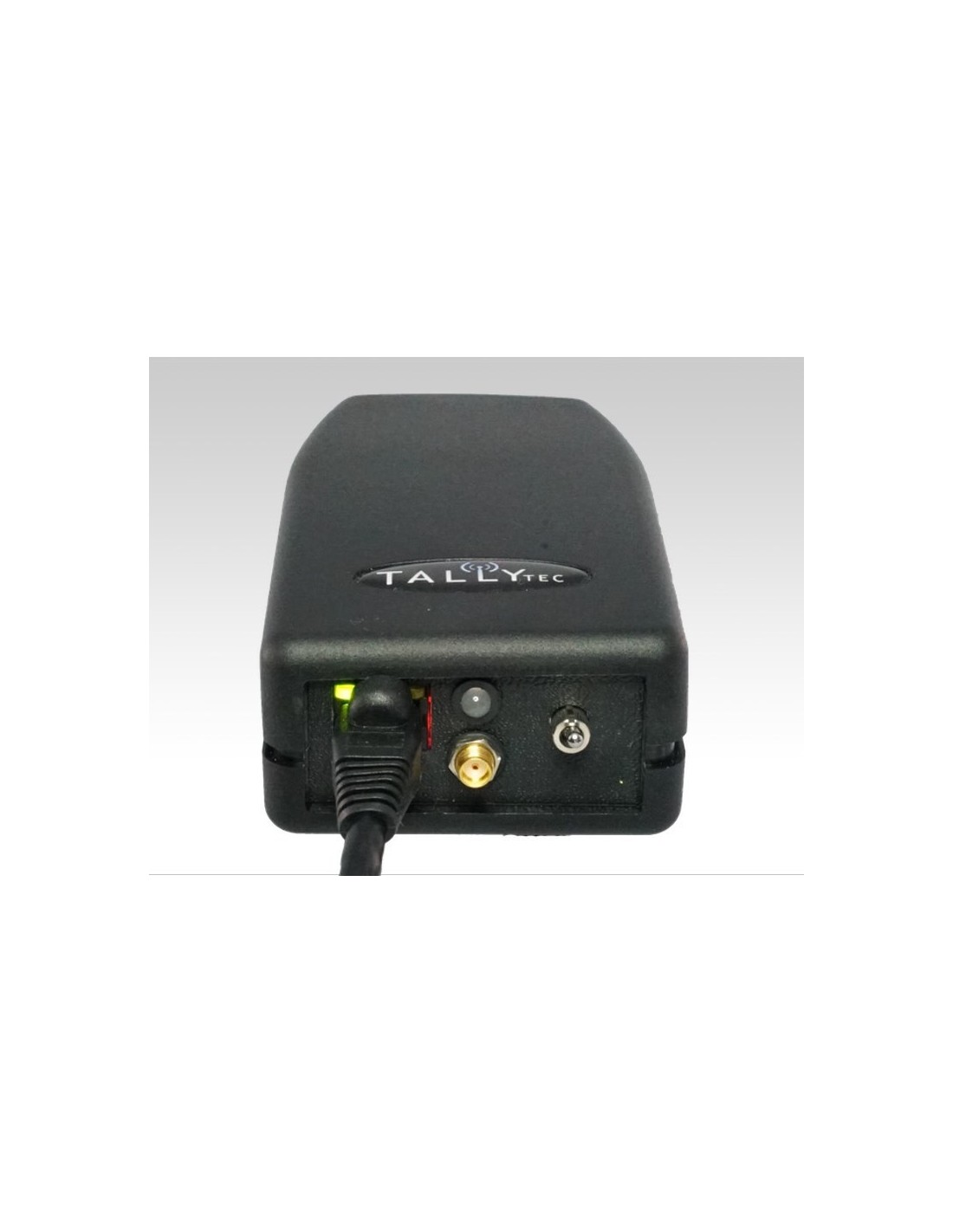

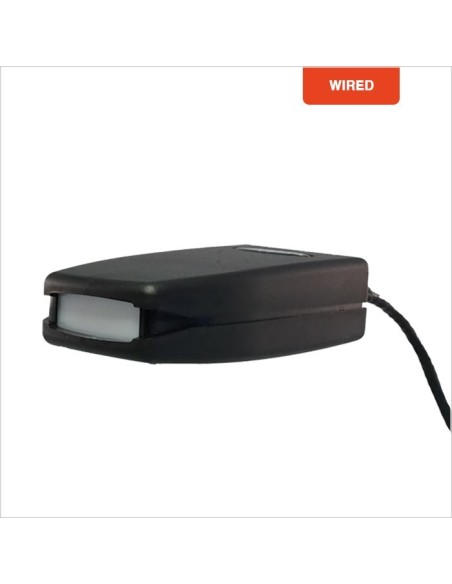

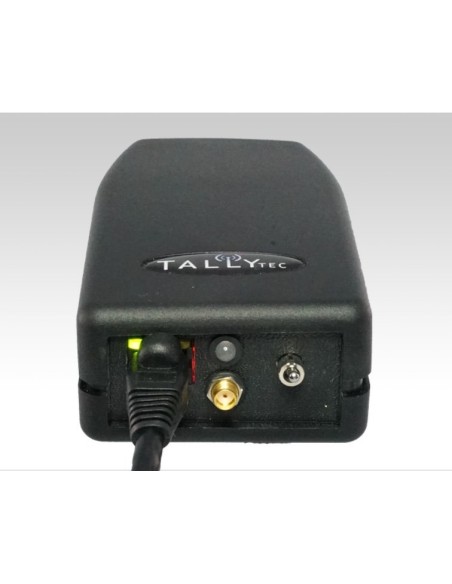

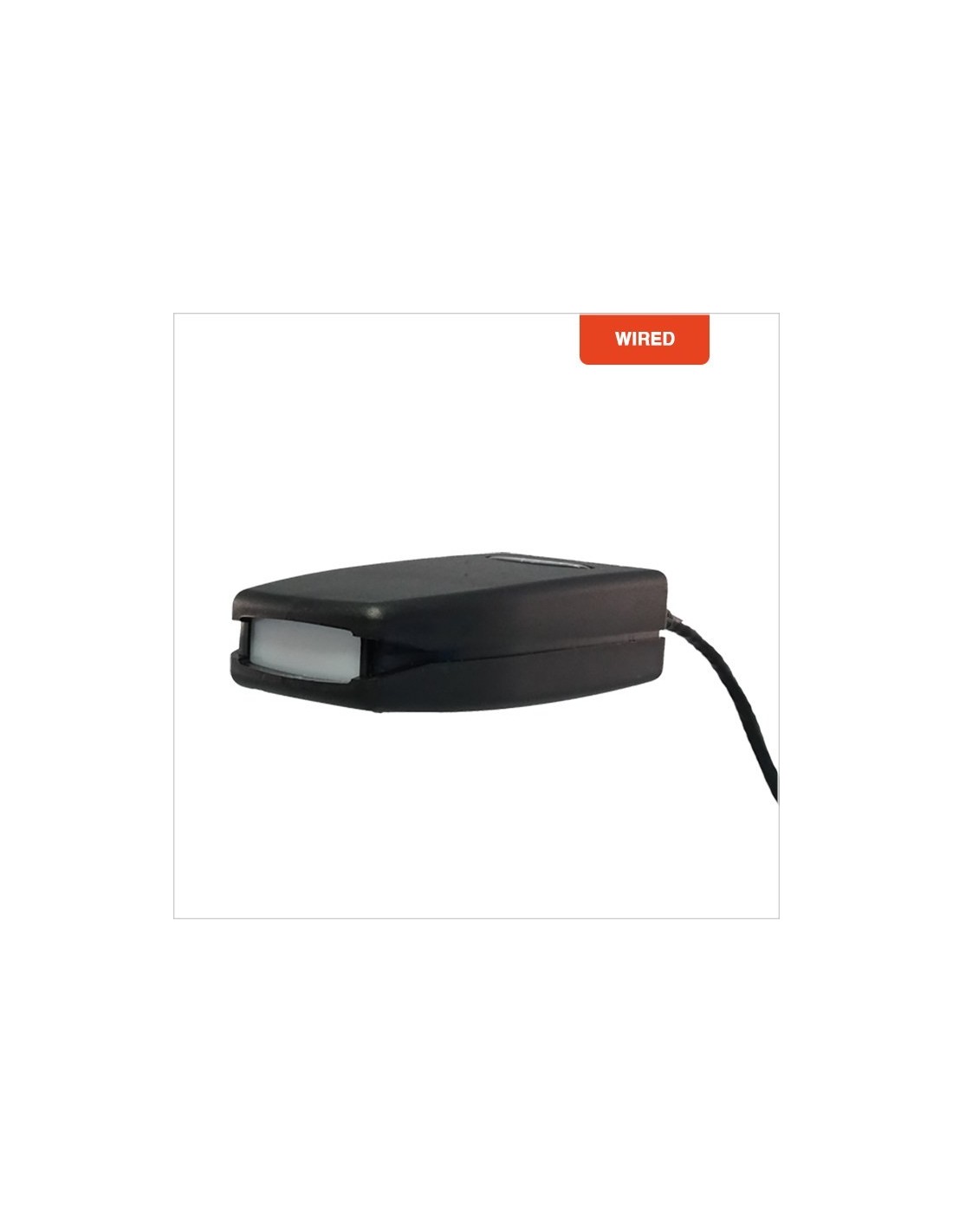

Wired Pro Receiver

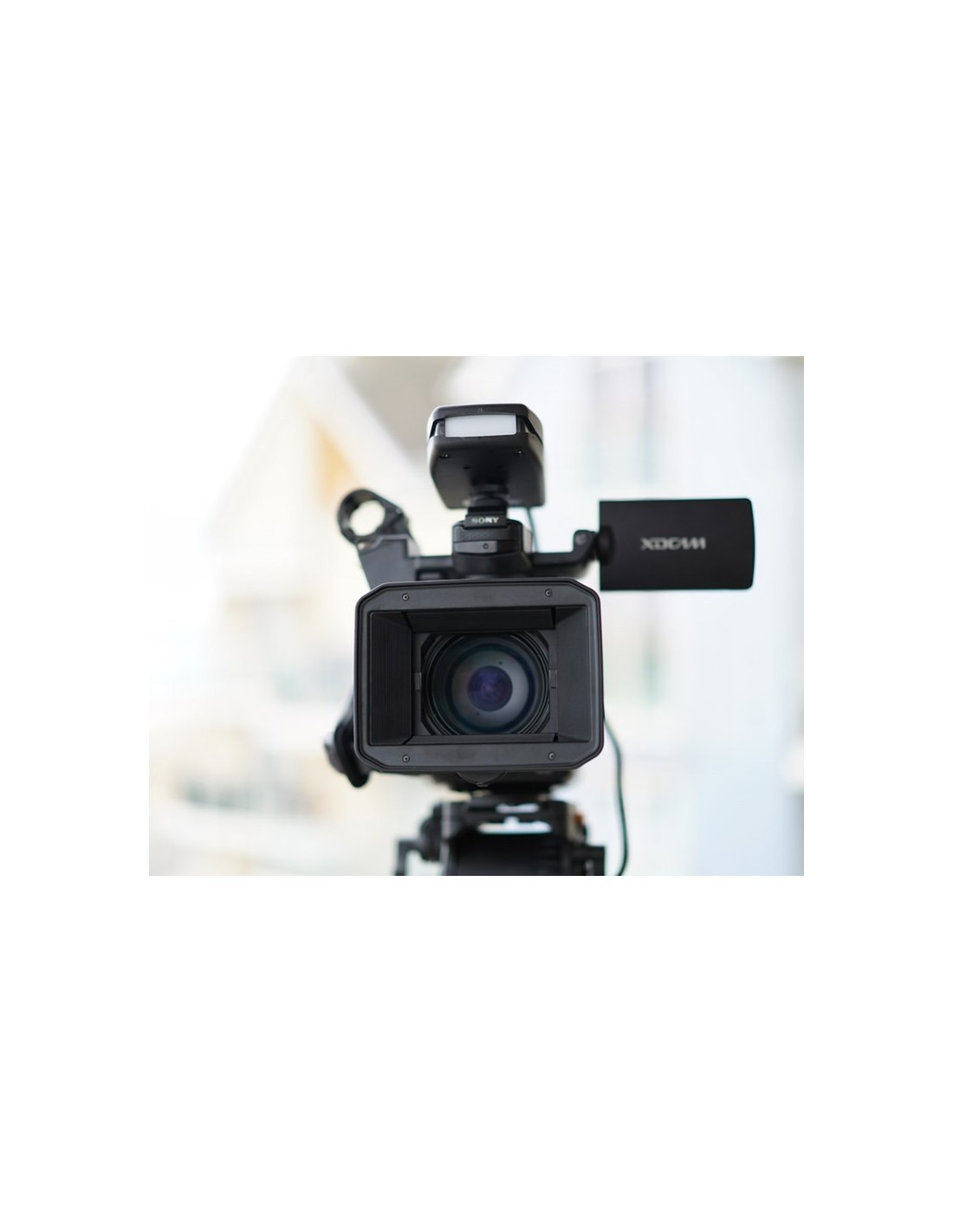

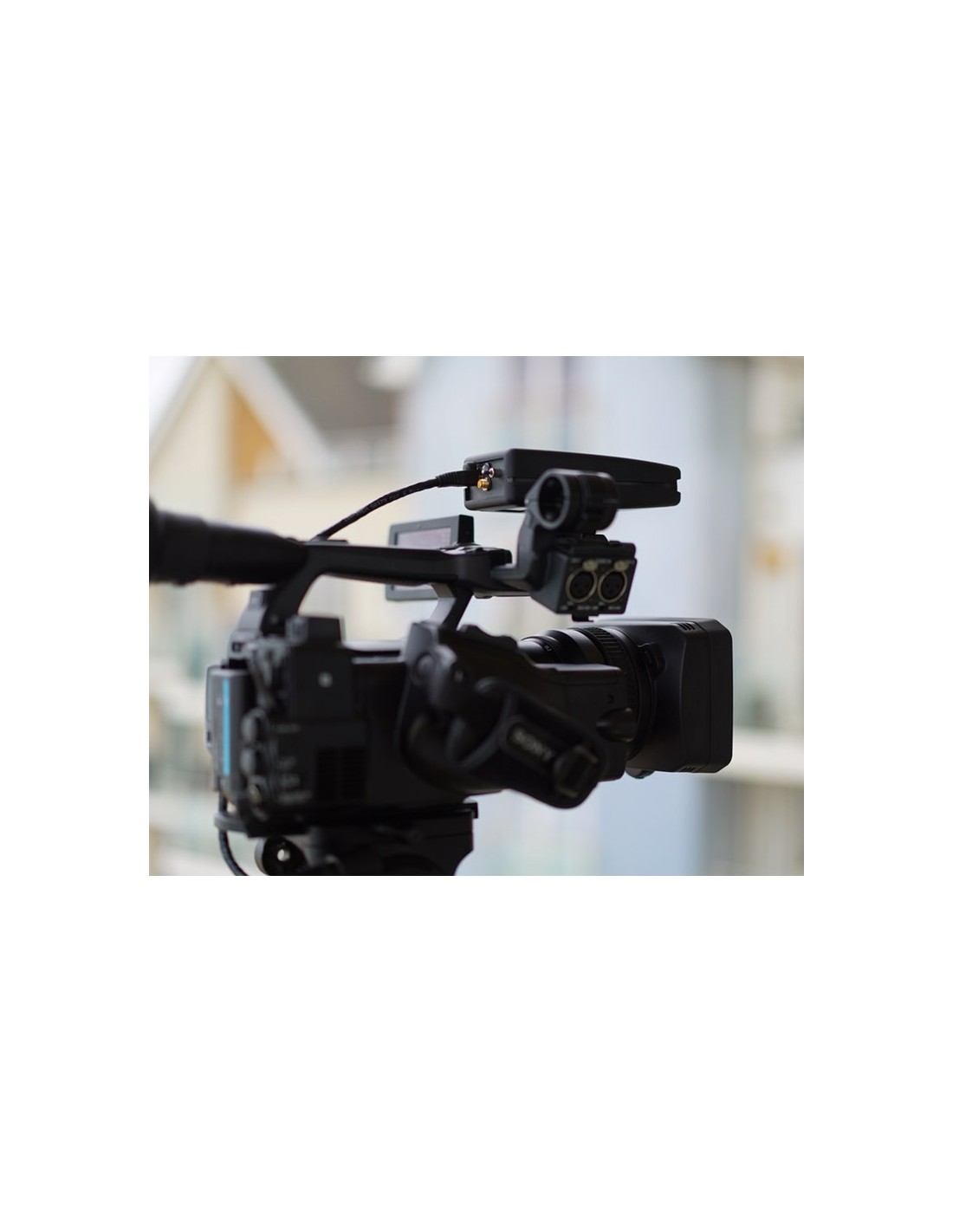

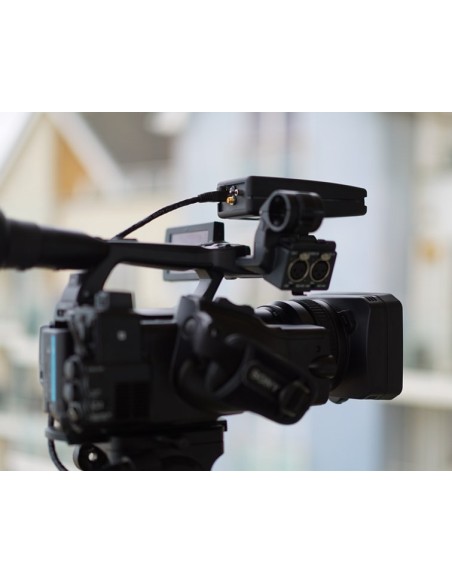

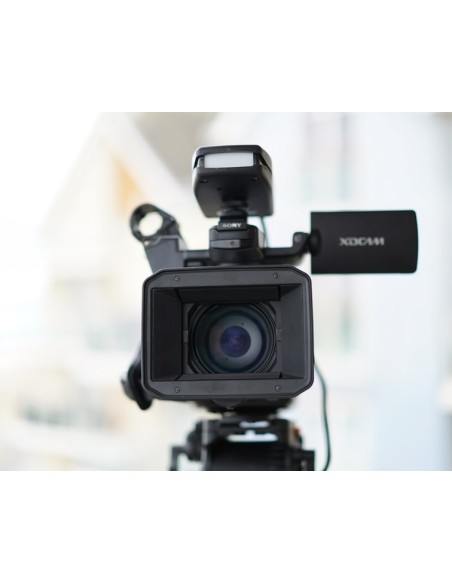

The TallyTec Pro Wired Receiver mounts easily to a camera cold shoe, steadicam, crane, jib and many more. Connecting to the transmitters via RJ45 ports through cat 5/6 cable, the receivers range can be extended to any distance with the cable. The receiver provides both a green preview tally light and a red live tally light at the front and rear. The front tally lights can be turned off when required.

The wired receiver is powered through its connection to the transmitter so no charging or batteries are required. The receiver comes in a professionally finished, lightweight, tough case with a standard screw thread for mounting.

features:

Base4 Transmitter

Compatible with any vision mixer using open/closed contact or +5v or -5v
Management of the Tally Program and Preview on mixers which support both functions
Supports up to 4 receivers
4 Channels supported in the 866/915MHz transmission waveband
2km wireless range
Powered through mains or 12V battery
LED panel



Wired Receiver

Sleek, lightweight design
Wired receiver mounts easily onto the camera cold shoe, steadicam, crane, jib etc
Provides both a green preview tally light and red live tally light at rear and front
Front tally lights can be switched off when necessary
Tough case with standard screw thread for mounting



Specifications:

Transmitter Weight : 1.5kg

Transmitter Dimensions: 25x31x6cm (9.8x12.2x2.6")

Transmitter Channels: Wireless: 4 Channels- Wired: 4 Channels

Transmitter Range: 2km

Transmitter Power: Mains Battery

Transmitter Ports: x4 RJ45

Receiver Weight : 0.5kg

Receiver Dimensions: 25x17x6cm (9.8x6.6x2.3")

Receiver Mount : Standard Screw Mount

Receiver Power :Via Cable

INCLUDED IN BOX
x1 Pro Base4 Wireless Transmitter
x1 Antenna
x1 USB Cable
x1 Power Supply
x3 WiredReceiver
x3 Antenna
x3 Cat 5/6 Charging Cable
x3 Extension LED Cable
