Garanzia ufficiale Italia
Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher (1 RU), Supports 12/3G/HD-SDI at 10-Bit, 20 x 12G-SDI Input, 12 x 12G-SDI Output, Up to 16-Multiview Monitoring Windows, Webcam Output via USB-C, Frame Rate/Format Converter per Input, 48-Channel Audio Mixer, 8 x Upstream, 2 x Downstream Keyer, Chroma/Luma Keyers, Color/Pattern Generators, Hardware or Software Mac/Windows Control
ATEM 1 M/E Constellation 4K and ATEM 2 M/E Constellation 4K switchers, two new Ultra HD models of the ATEM Constellation family with up to 20 x 12G-SDI standards converted inputs. The two new 4K models have the same powerful features as the ATEM 1 M/E and 2 M/E Constellation HD models including aux outputs, DVEs, ATEM advanced chroma keyers, multiview and SuperSource.
The ATEM 1 M/E Constellation 4K is a powerful live production switcher that includes 10 standards converted 12G-SDI inputs, 6 x 12G-SDI outputs, DVE, 4 ATEM Advanced chroma keyers, a 16 way multiview, media players, talkback and USB webcam output. The larger ATEM 2 M/E Constellation 4K has 20 standards converted 12G-SDI inputs, 12 x 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced chroma keyers, 2 multiviews and a SuperSource for a total of 6 DVEs.
ATEM 1 M/E and 2 M/E Constellation 4K Features
- Advanced design with built in front panel controls.
- Up to 20 standards converted 12G-SDI inputs.
- Up to 12 customizable 12G-SDI outputs.
- USB output operates as a webcam and supports all video software.
- Includes up to 2 independent multiviews with multiple layout options.
- Includes DVE and stinger transitions.
- Includes up to 2 independent DVEs.
- Professional talkback compatible with ClearCom and RTS.
- Internal media for stills and motion graphics.
- Includes ATEM Advanced Chroma Key.
- Multi rate 12G-SDI for all HD and Ultra HD television standards up to 2160p60.
- Built in Fairlight audio mixer with up to 48 channels..
- Compatible with all ATEM hardware control panels.

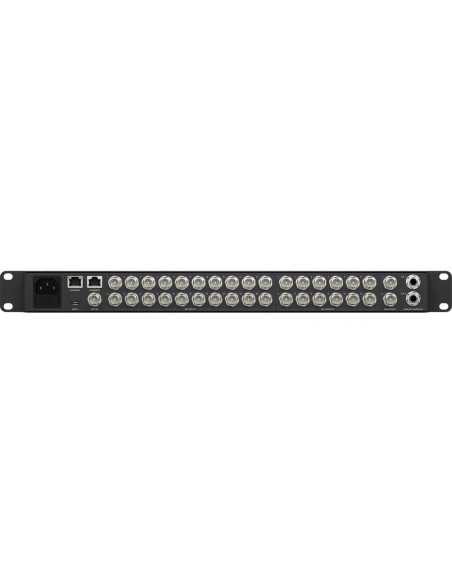

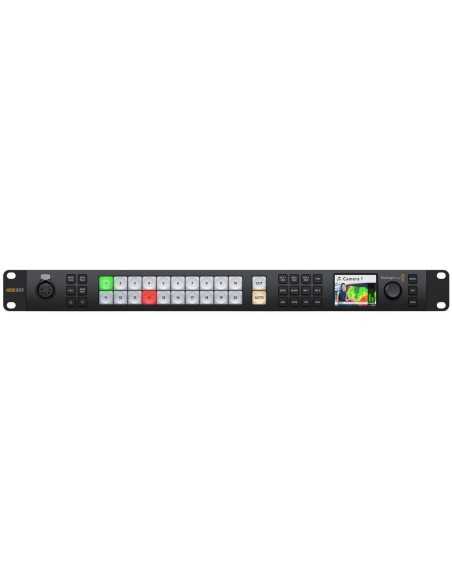

ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so customers can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control.
The ATEM Constellation family has a massive number of fully independent outputs. These SDI outputs are very powerful because customers can independently route any SDI input or any internal source to each SDI output. That’s perfect for running independent feeds to stage screens, master recorders and streaming processors. Or use the SDI outputs for ISO recorders, where each deck will get a resynchronized switcher input with matching timecode. All SDI outputs contain program audio, RP-188 timecode, SDI camera control, tally and talkback.
For live streaming, the USB-C connection on ATEM Constellation operates as a webcam source. The software is tricked into thinking the ATEM Constellation is a common webcam, but it's really a live production switcher! That guarantees full compatibility with any video software in full resolution 1080HD quality.
The built in multiview lets customers monitor multiple sources on a single monitor. The 1 M/E model includes 1 multiview while the 2 M/E model has 2 independent multiviews. All external SDI inputs, plus all internal video sources can be routed to any view. All multiviews are fully customizable and can be independently set to 4, 7, 10, 13 or 16 simultaneous views. Customers can add the tally border plus source label and VU meters as an overlay on each view. Plus a red and green border will show tally on each view, so customers know what sources are on air.
What's Included
- ATEM 2 M/E Constellation 4K
- Welcome wallet with QR code for software download
SWATEMSCN2/2ME2/4K
9338716008708
