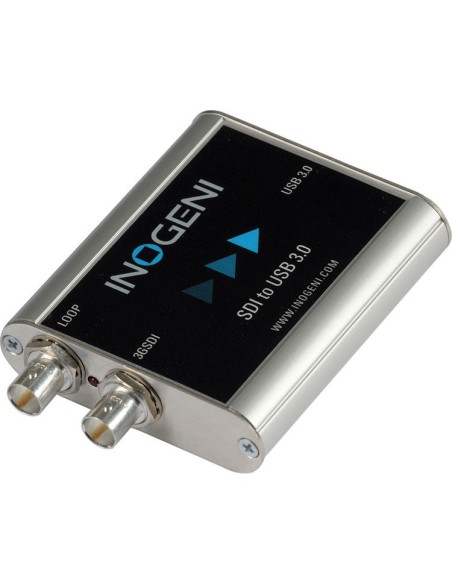

INOGENI USB 3.0 SDI Video Capture Card

Codice Prodotto
INO-SDI2USB3
EAN
040232250538
Condizione
Nuovo
Disponibile a magazzino
Spedito in 1/3 giorni
Leggi le nostre recensioni
525,00 €
( 525,00 € + IVA )

INOGENI USB 3.0 SDI Video Capture Card, Uncompressed Video & Audio Capture, Ideal for Streaming & Videoconferencing, 3G-SDI Input, Up to 1080p60 Video, Supports Video & Computer Formats, Powered via USB Port, Scaler and Colorspace Conversion, Supports Windows, OSX, Linux, & Android, DirectShow, Quicktime, V4L2 Compatible, USB 3.0 Cable Included

Parla con un esperto
Whatsapp Live Chat


The Inogeni USB 3.0 SDI Video Capture Card allows you to capture uncompressed video with audio from your camera or deck's SDI output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a 3G-SDI input and output and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.



The converter supports SD and HDTV video formats up to 1080p60. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The embedded audio in the SDI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.



Features
3G-SDI capture to USB 3.0 (Backward compatible with USB 2.0)
Supports 1080p, 1080i, 720p, 480p, and 576p video formats
Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
SDI audio support
Fluid technology - Internal frame buffers maximize frame rate regardless of PC
Hardware-based color space and sampling conversion
Automatic scaling and frame rate conversion
Customizable video processing functions
Image controls: Brightness, contrast, saturation and hue settings
Bus powered from USB port
Compatible with Windows, Max OSX, Linux, and Android


Note: Not all resolutions will be supported on some devices with input bandwidth restrictions



Specs

Input

Interface

1 x BNC 3G-SDI Input

1 x BNC 3G-SDI Loop Output

Video Resolutions

1080p, 1080i, 720p

Note: USB 2.0 connections found on older computers and mobile devices will operate at lower resolutions

Computer Resolutions

Not Supported

Video Frame Rate

23.98/24/25/29.97/30/50/59.94/60 Hz

Color Space

4:2:2

Sampling Rate

148.5/148.35 MHz

Embedded Audio

Ch 1&2 48kHz LPCM

HDCP Compliant

N/A

Output

Interface

1 x USB 3.0

Color Space

YCbCr (YUY2) 4:2:2 8-bit

Video Scaler

Automatic hardware based

Color Space Conversion

Automatic hardware based

Sampling Conversion

Automatic hardware based

Frame Rate Conversion

Automatic hardware based

Audio

2-channel LPCM audio from SDI

Compatibility

Operating System Support

Windows 7/8/8.1 (32/64-bit)

OSX (10.8.5 and above)

Linux (kernel v2.6.38 and above)

Android

Host Requirements

USB 3.0 port (Backward compatible with USB 2.0 at reduced resolutions)

Cameras Supported

Cameras and camcorder with an SDI output

Software Compatibility

UVC-compliant

Runs with all software compatible with DirectShow, V4L2, QuickTime, and AVFoundation

Tested Applications

Recording/Editing

Adobe Live Encoder

Camtasia

Debut

Elements

GUBCView

LUVCView

MATLAB

MEncoder

MPlayer

OBS

ProPresenter

QuickTime

qV4L2

ScreenFlow

SONY Vegas Pro 13

VLC

VirtualDub

VideoGlide

VIDBlaster

Wirecast

vMix

Streaming

Justin.tv

Livestream

OBS

Ustream

Wirecast

xSplit

vMix

YouTube

Videoconferencing

BlueJeans

Cisco Jabber

FaceTime

GotoMeeting

Hangout

HipChat

Lync 2010/2013

Skype

Webex

Zoom

General

Power

5V, 530 mA bus power from USB port

Dimensions

3.3 x 2.9 x 0.75" / 8.4 x 7.4 x 1.9 cm

Weight

4.9 oz / 139 g

INO-SDI2USB3
Nuovo
040232250538

INOGENI USB 3.0 Video Capture  Uncompressed Video & Audio Capture
