Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8')

The Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8') is a revolutionary lighting solution for professionals in film, television, commercial production, and live events. This 1600W inflatable LED panel combines innovative design with high-end performance, delivering soft, even, and powerful illumination across an 8 x 8' surface. Designed to eliminate the need for complex truss supports, the AM1600R is ideal for large sets, outdoor locations, or production environments that require large, controllable lighting without sacrificing portability.

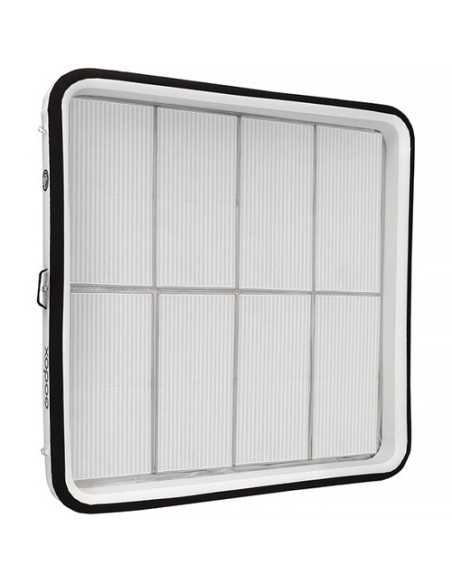

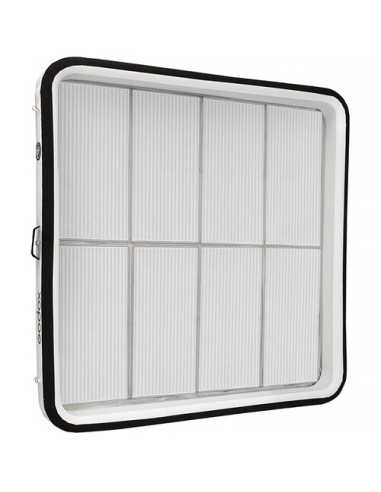

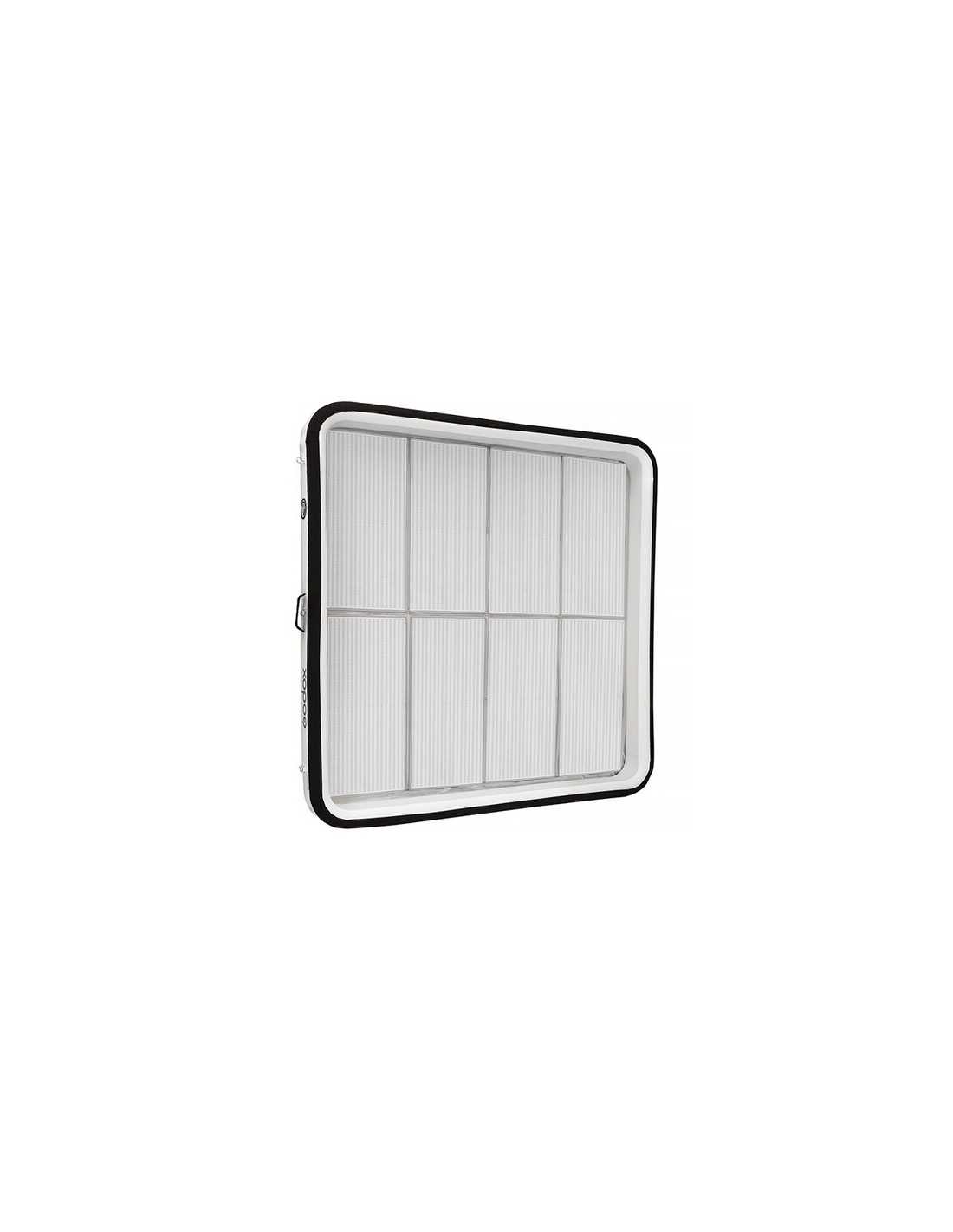

The AM1600R's structure is based on an inflatable butterfly frame that inflates to 8 PSI in about 3 minutes using the included air pump, providing exceptional stability that allows the panel to remain suspended for up to 15 days without re-inflation. Made from advanced materials, the frame offers superior resistance to scratches, abrasions, and tears, solving common problems with traditional inflatable lights, such as air leaks or fragility. The IP54 rating protects both the light head and controller from dust and splashes of water, making the AM1600R suitable for outdoor shooting, even in difficult weather conditions such as light rain or dusty environments.

The AM1600R excels in its versatile color control, supporting CCT, HSI, RGBW, GEL, and FX modes. Color temperature is adjustable from 1800K to 10000K, with a green/magenta correction for precise white balance, ideal for matching different light sources or achieving perfect tones in post-production. With a CRI ≥96 and TLCI ≥95, the panel ensures accurate color reproduction, essential for applications such as capturing skin tones or lighting complex sets. Additionally, the AM1600R includes 14 pre-programmed lighting effects, including flash, lightning, candle, fire, fireworks, and emergency effects, allowing you to create dynamic atmospheres without the addition of external equipment.

Control of the AM1600R is extremely flexible, with options including DMX512, RDM, wireless CRMX, Art-Net, sACN, and a dedicated app (Godox Light or KNOWLED) for adjustments via Bluetooth from up to 60 meters away. NFC connectivity on the controller allows for quick setup, while support for multi-light sync ensures real-time adjustments in complex production environments. The modular structure allows you to connect multiple panels to create customized configurations, ideal for illuminating large spaces or simulating extended light sources, such as those required in virtual productions or large film sets.

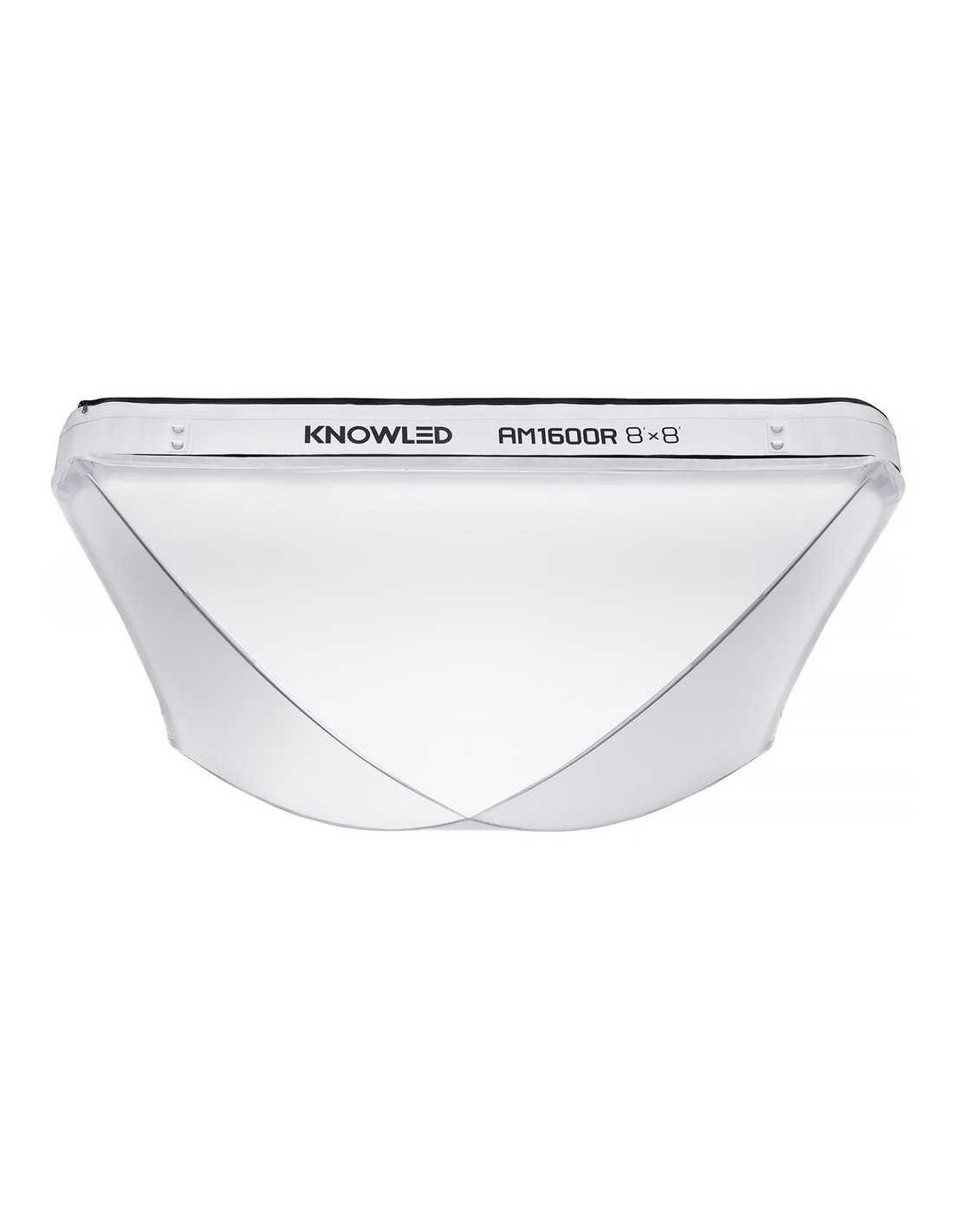

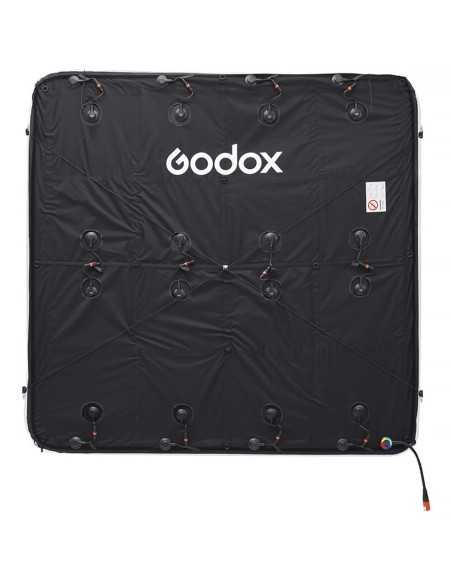

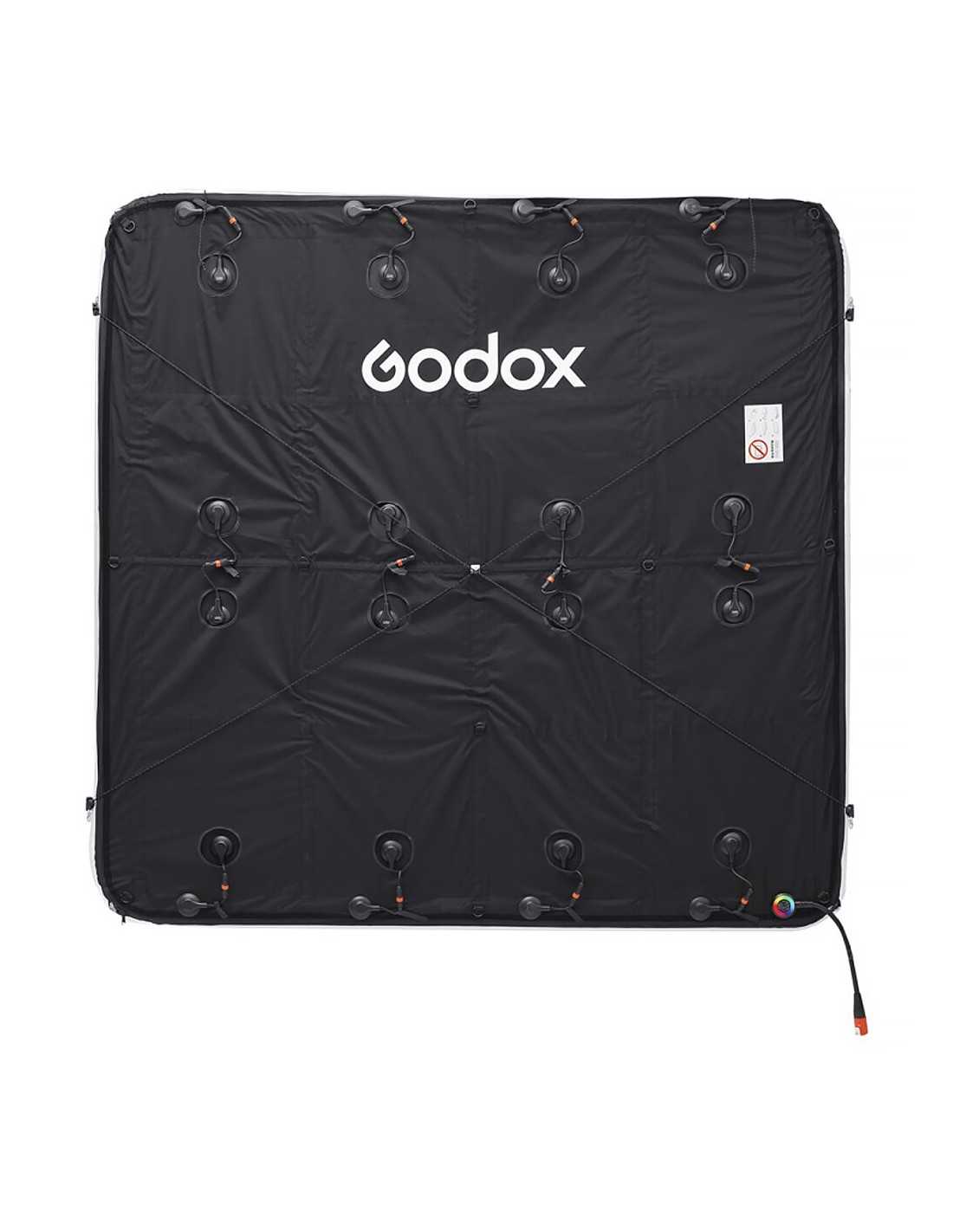

The AM1600R comes with detachable light modifiers, including two diffusion cloths with different levels of diffusion, a pancake softbox, a fabric grid, and a skirt, which offer precise control over the softness, direction, and dispersion of the light. These accessories, combined with the foldable design and included flight case, facilitate transport and storage, making the AM1600R a practical choice for mobile crews. Weighing approximately 12 kg, the panel is surprisingly light for its size and power, and rear D-rings simplify setup without the need for heavy infrastructure.

For easy maintenance, the AM1600R includes a repair kit to address any leaks in the inflatable frame, ensuring a quick resumption of on-set operations. Power is provided via 100-240V AC, making the system compatible with standard global power grids. With its ability to provide soft, even lighting over a wide area, the Godox KNOWLED AM1600R (8 x 8') is an ideal solution for cinematographers looking for versatile, powerful, and easy-to-manage lighting for high-end productions.

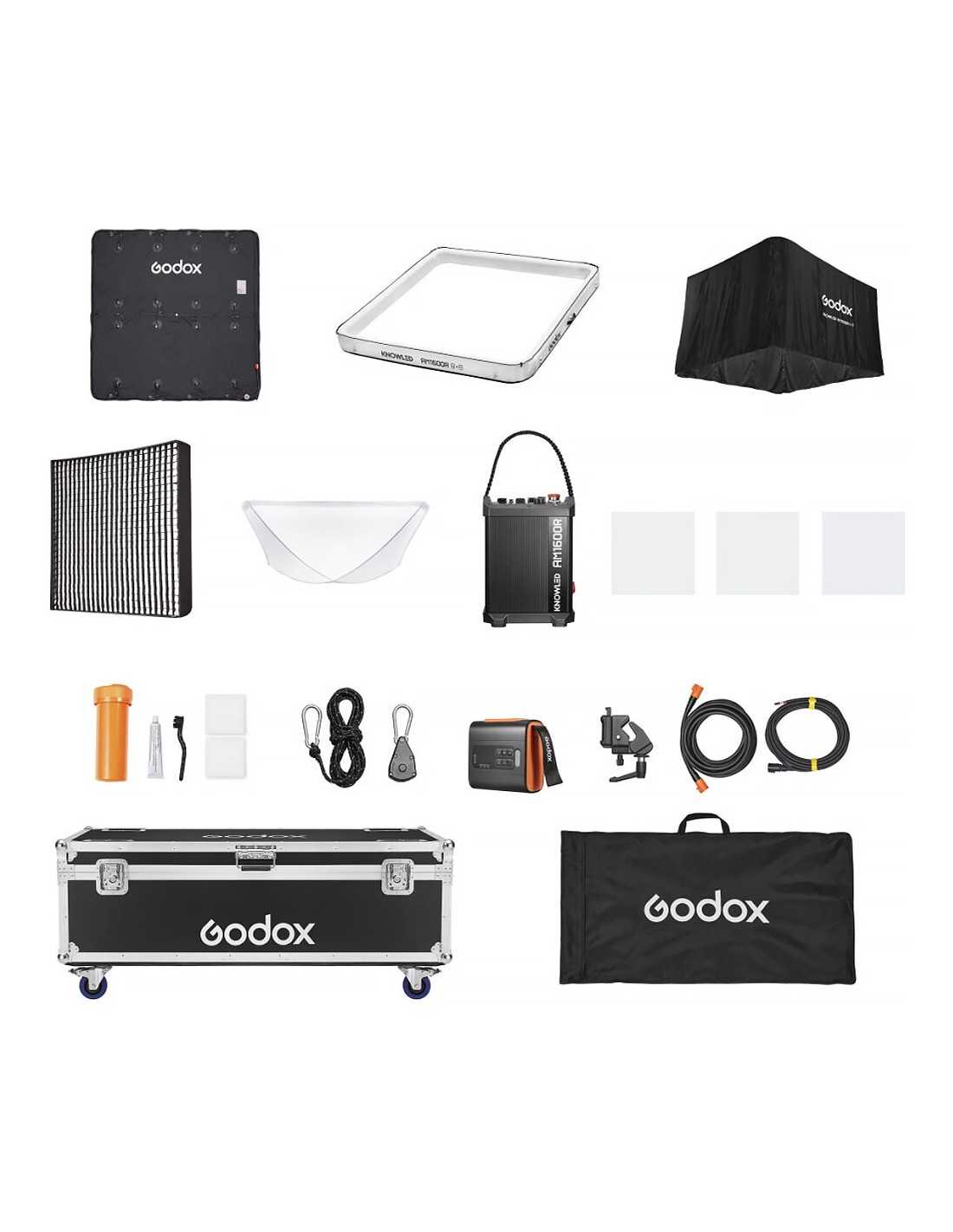

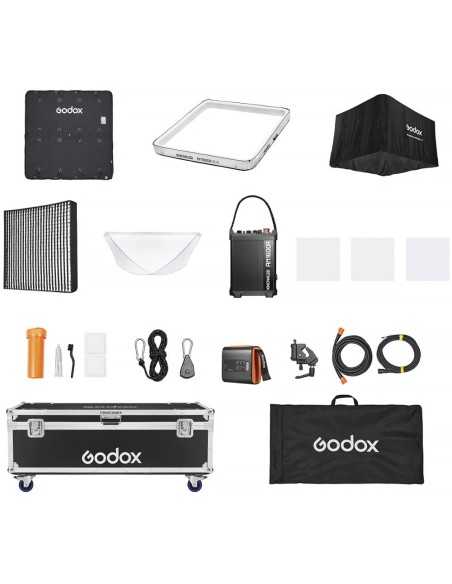

Box Contents

• Godox KNOWLED AM1600R RGB Inflatable LED Light Mat (8 x 8')
• Inflatable Butterfly Frame
• Controller with Mounting Bracket
• Air Pump
• Two Diffusion Sheets (Different Levels of Diffusion)

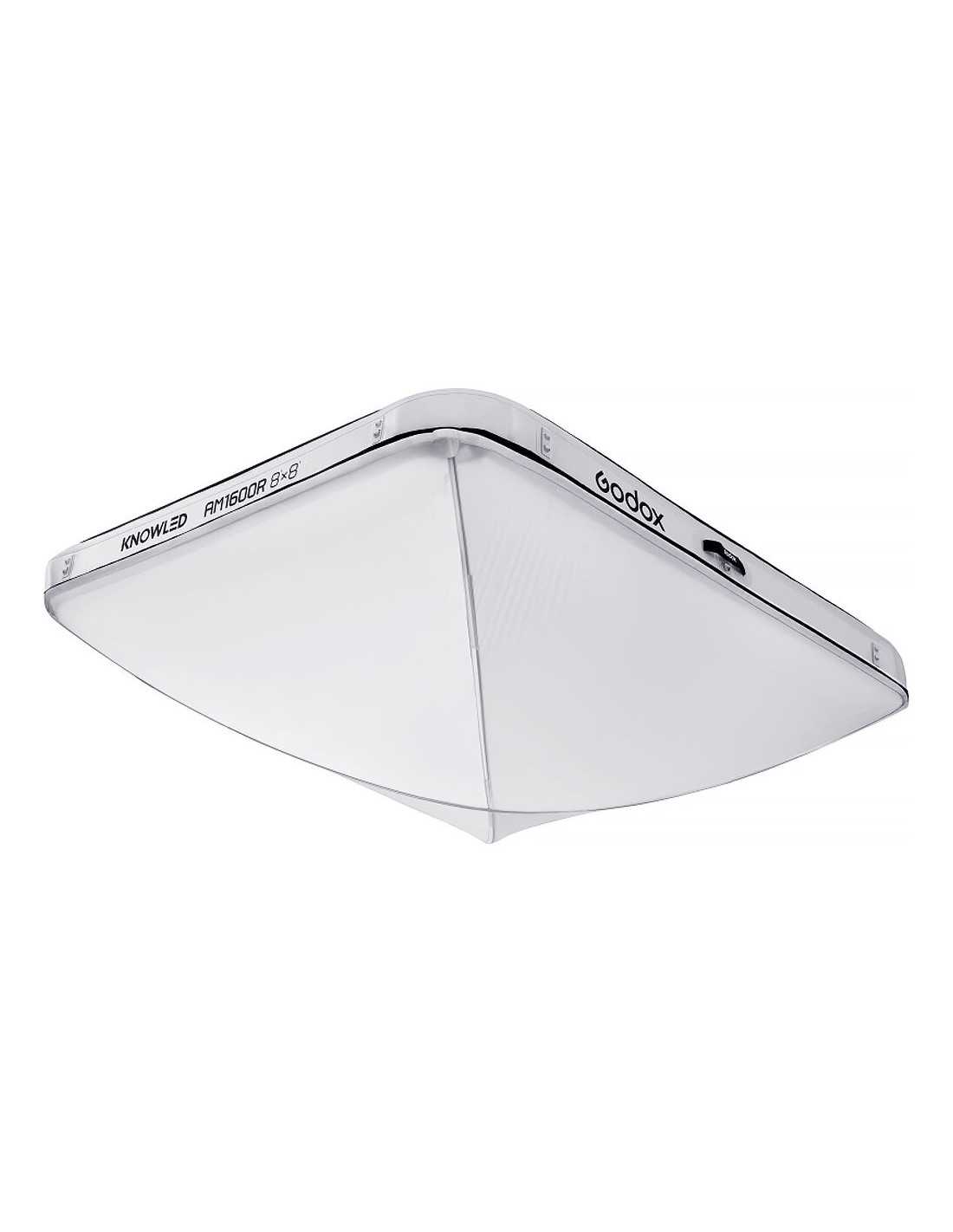

• Pancake Softbox

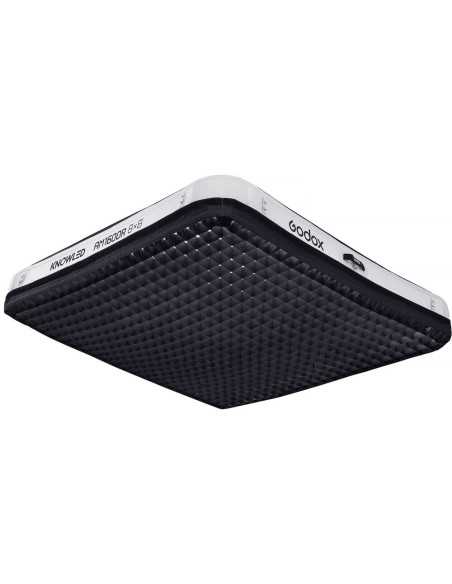

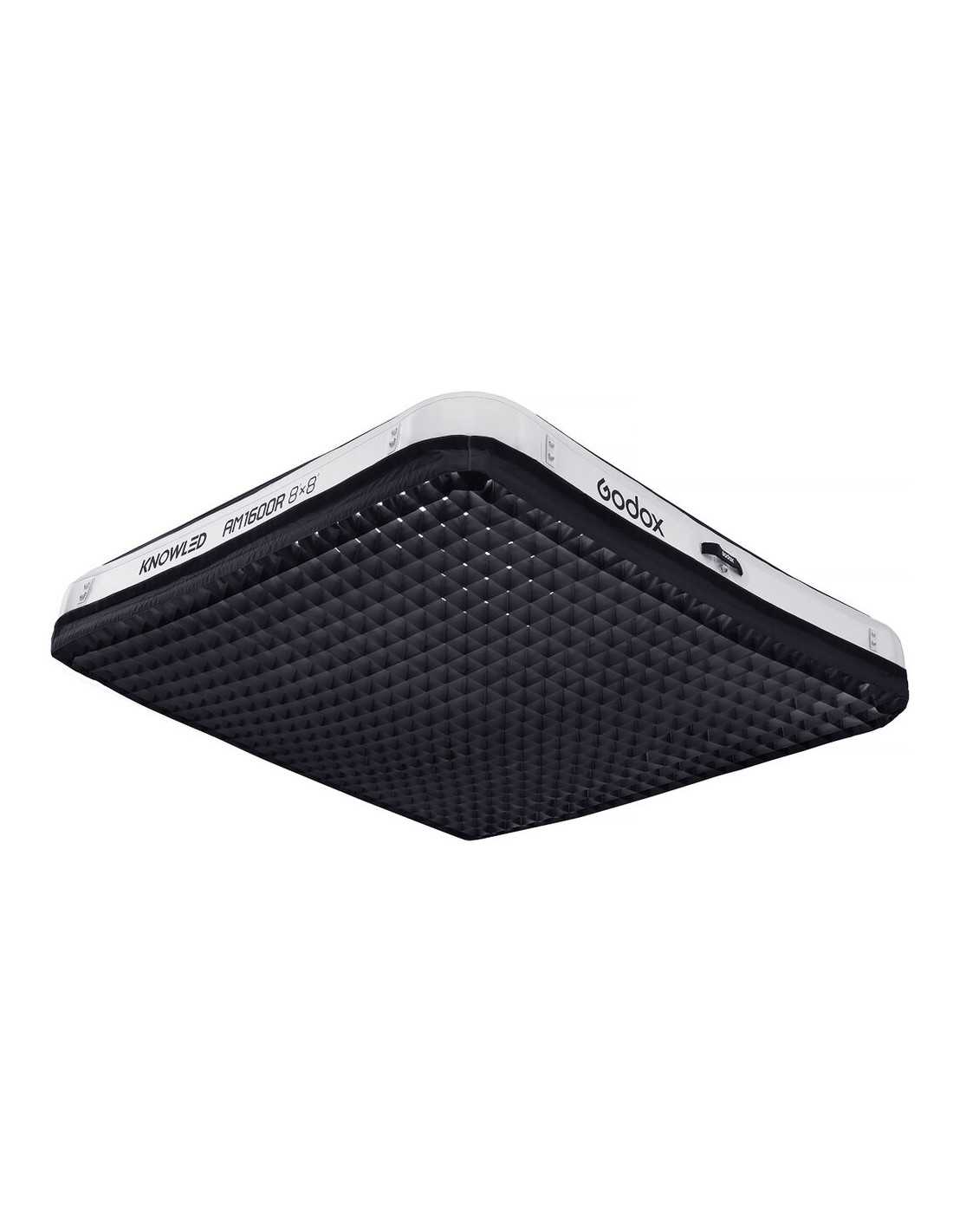

• Fabric Grid

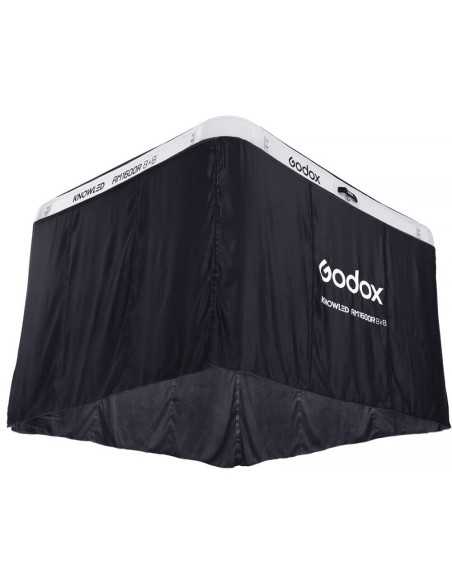

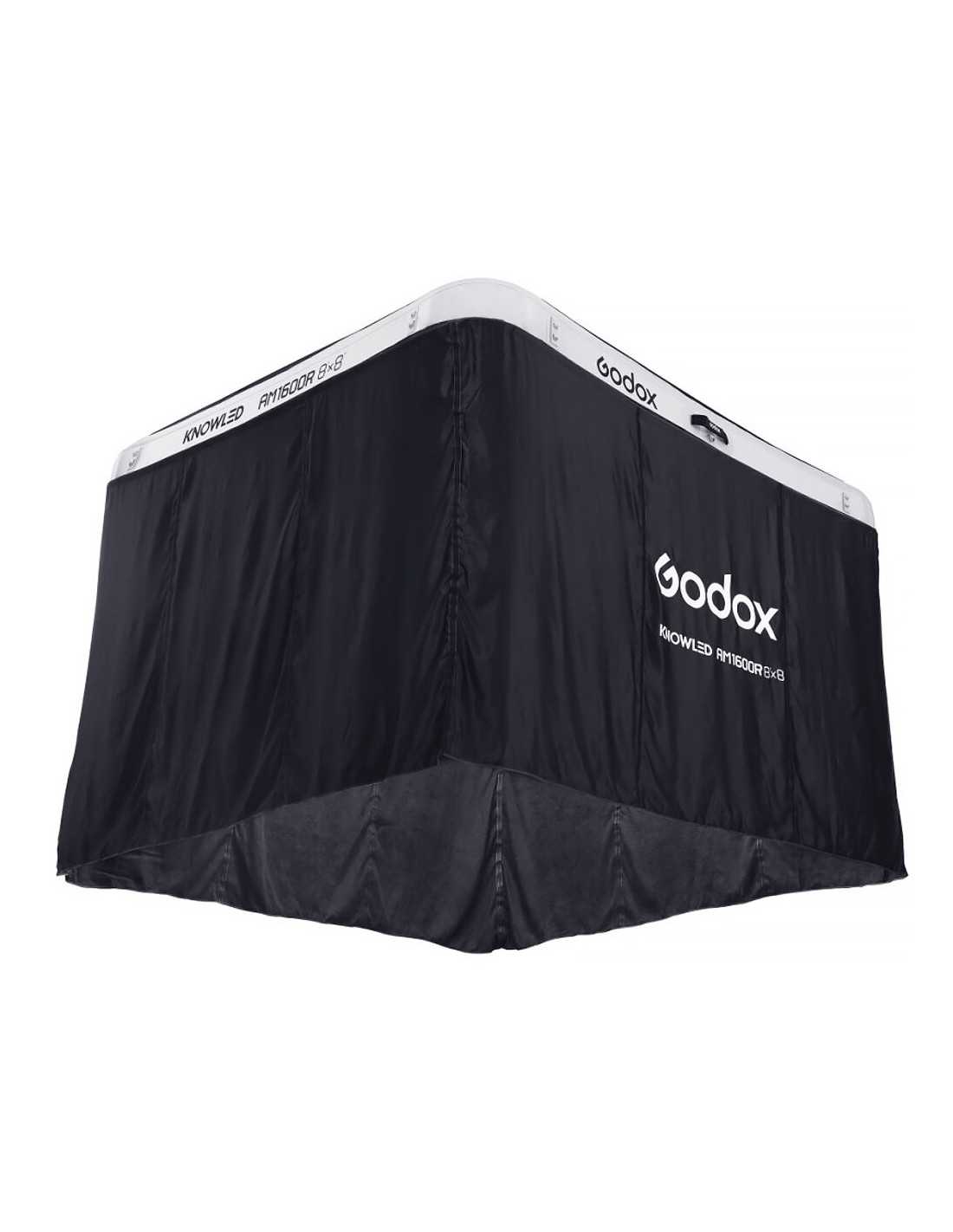

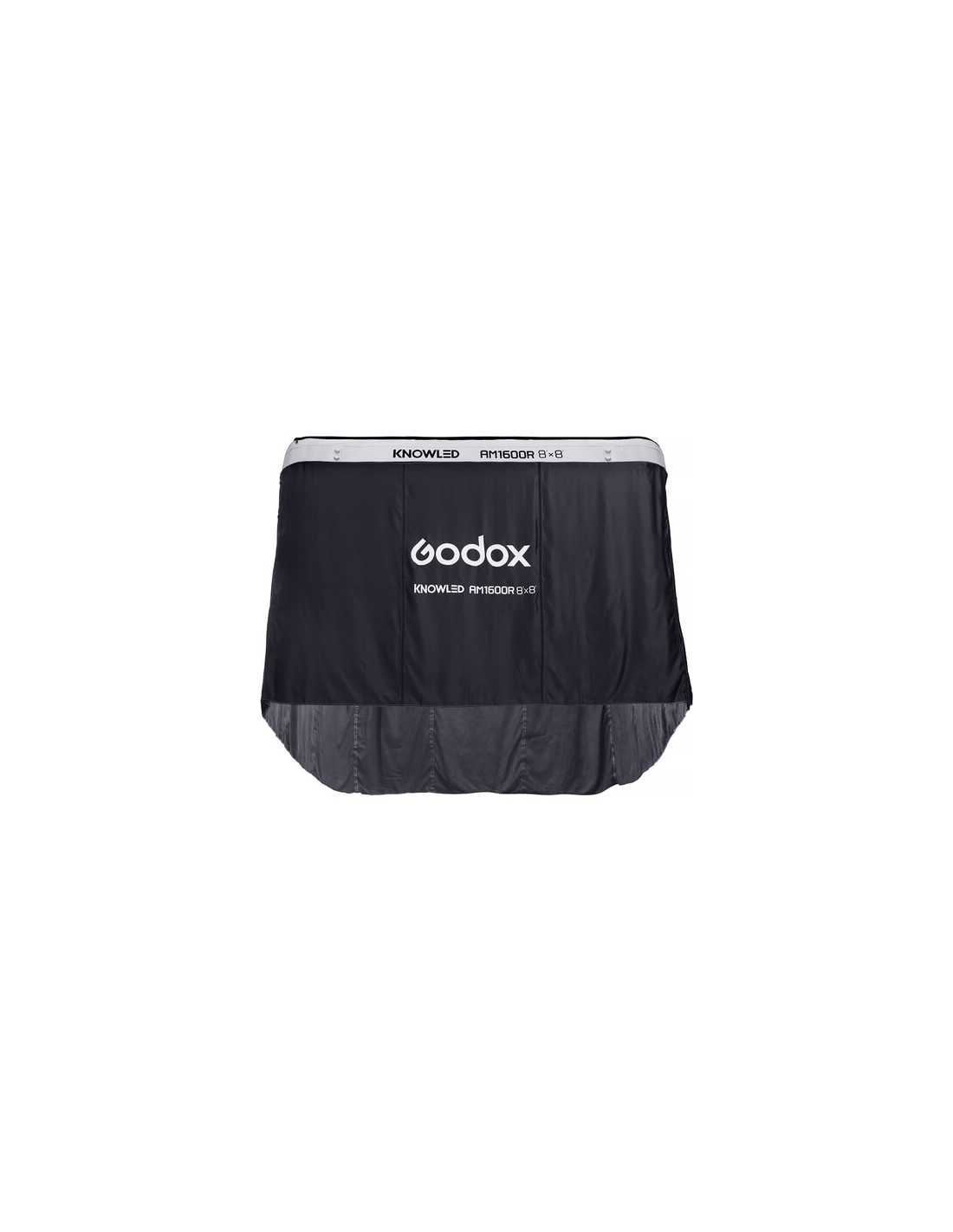

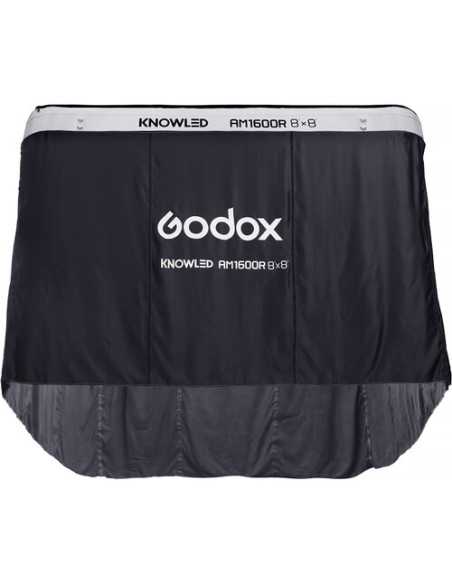

• Light Control Skirt
• Repair Kit inflatable frame repair
