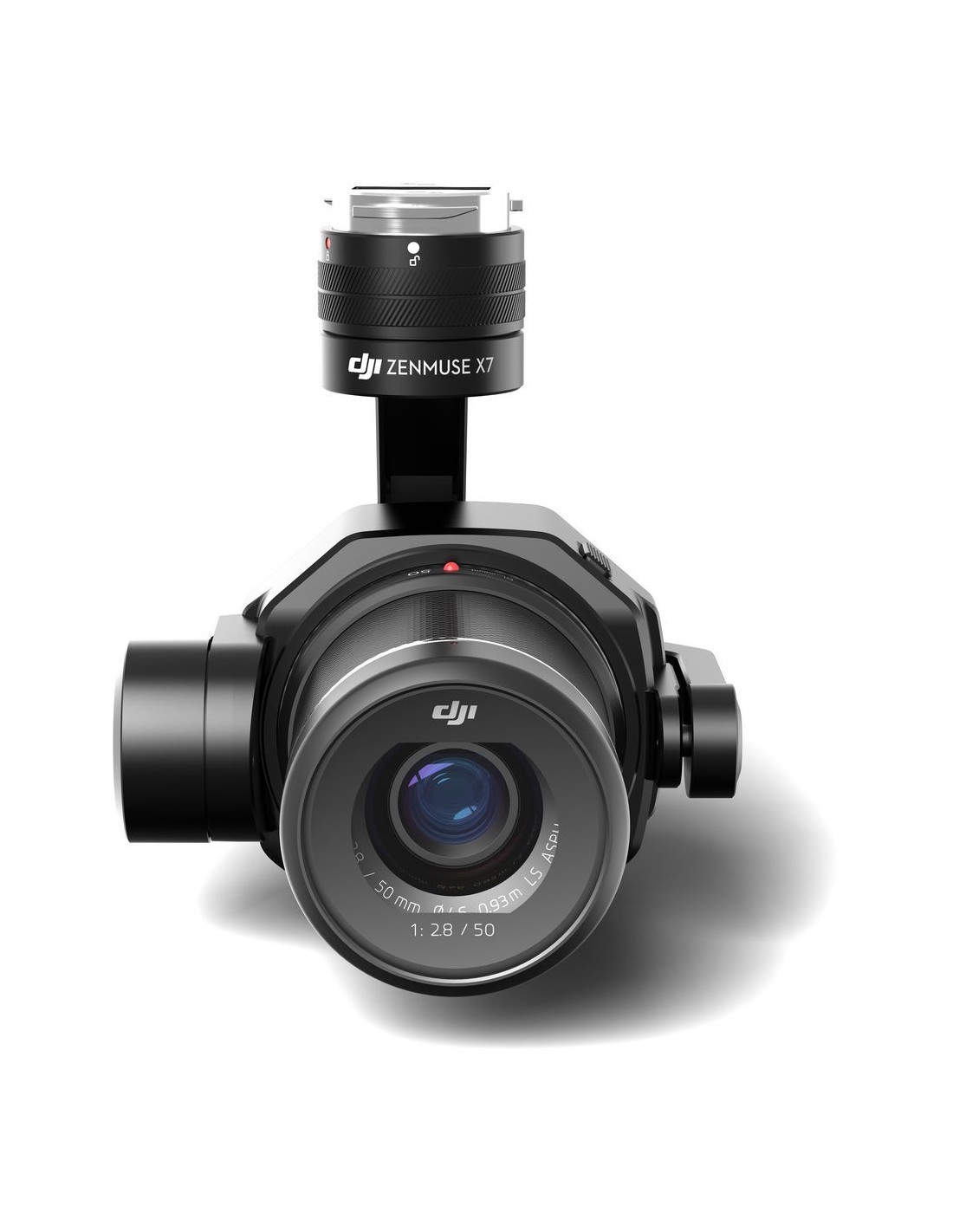

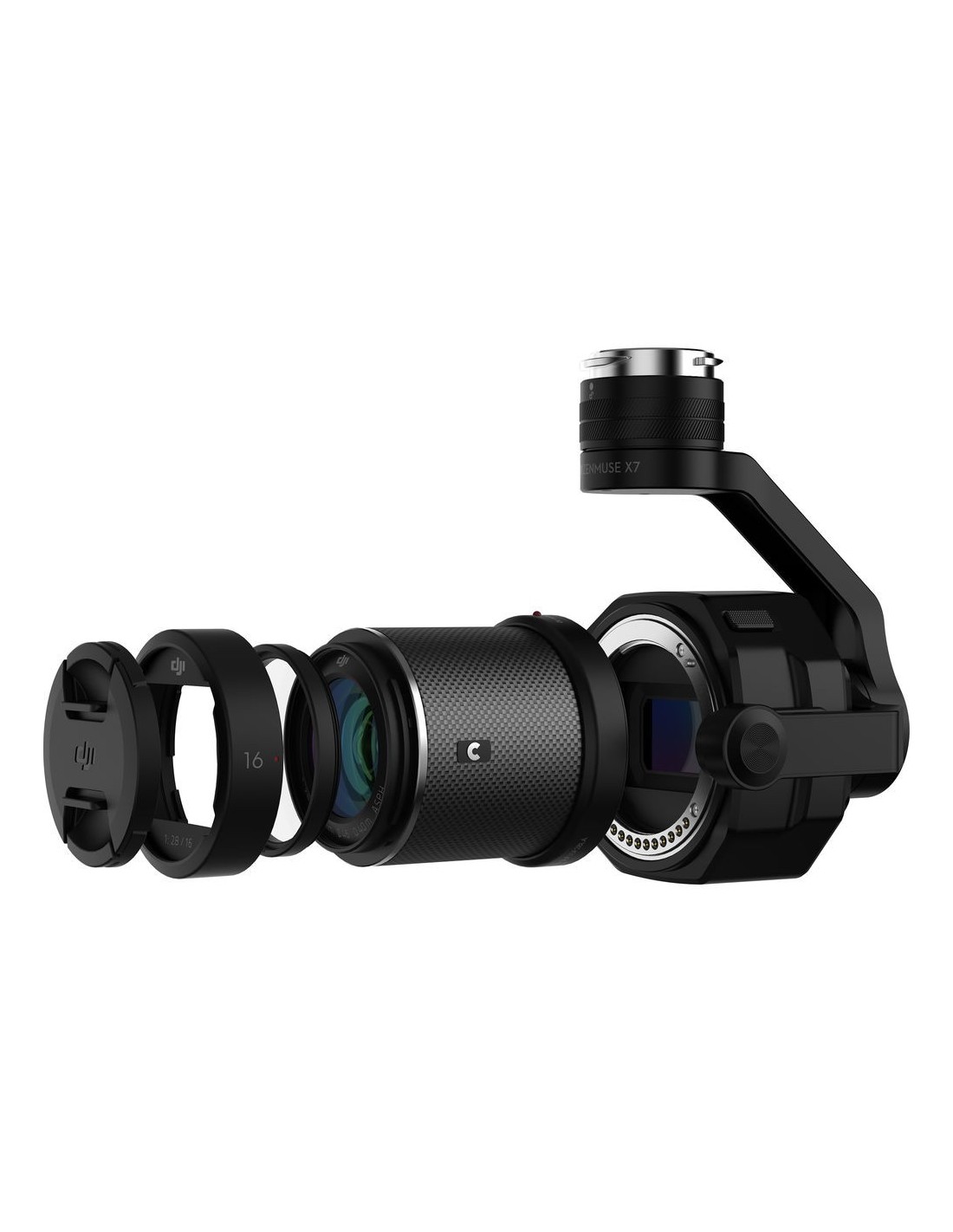

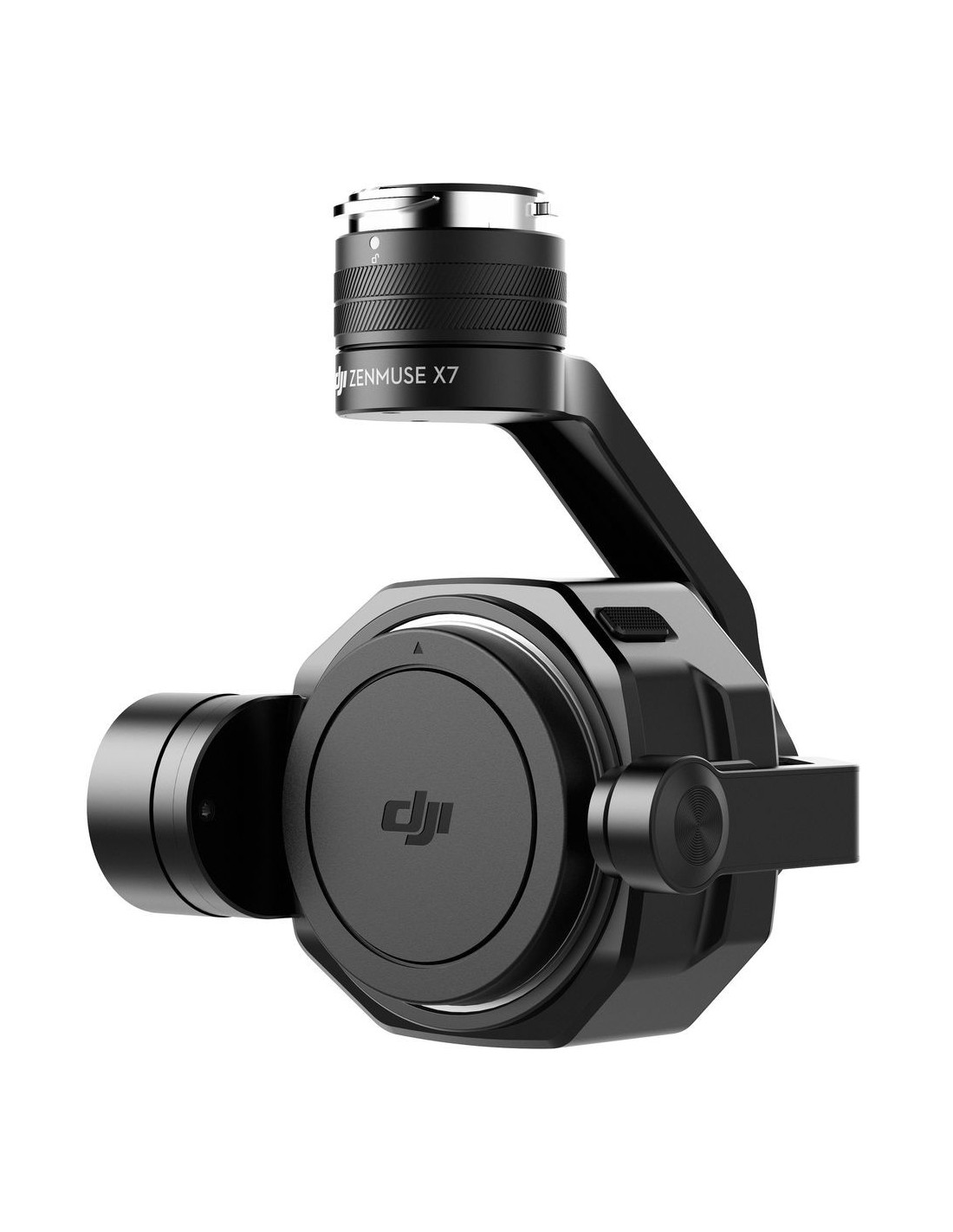

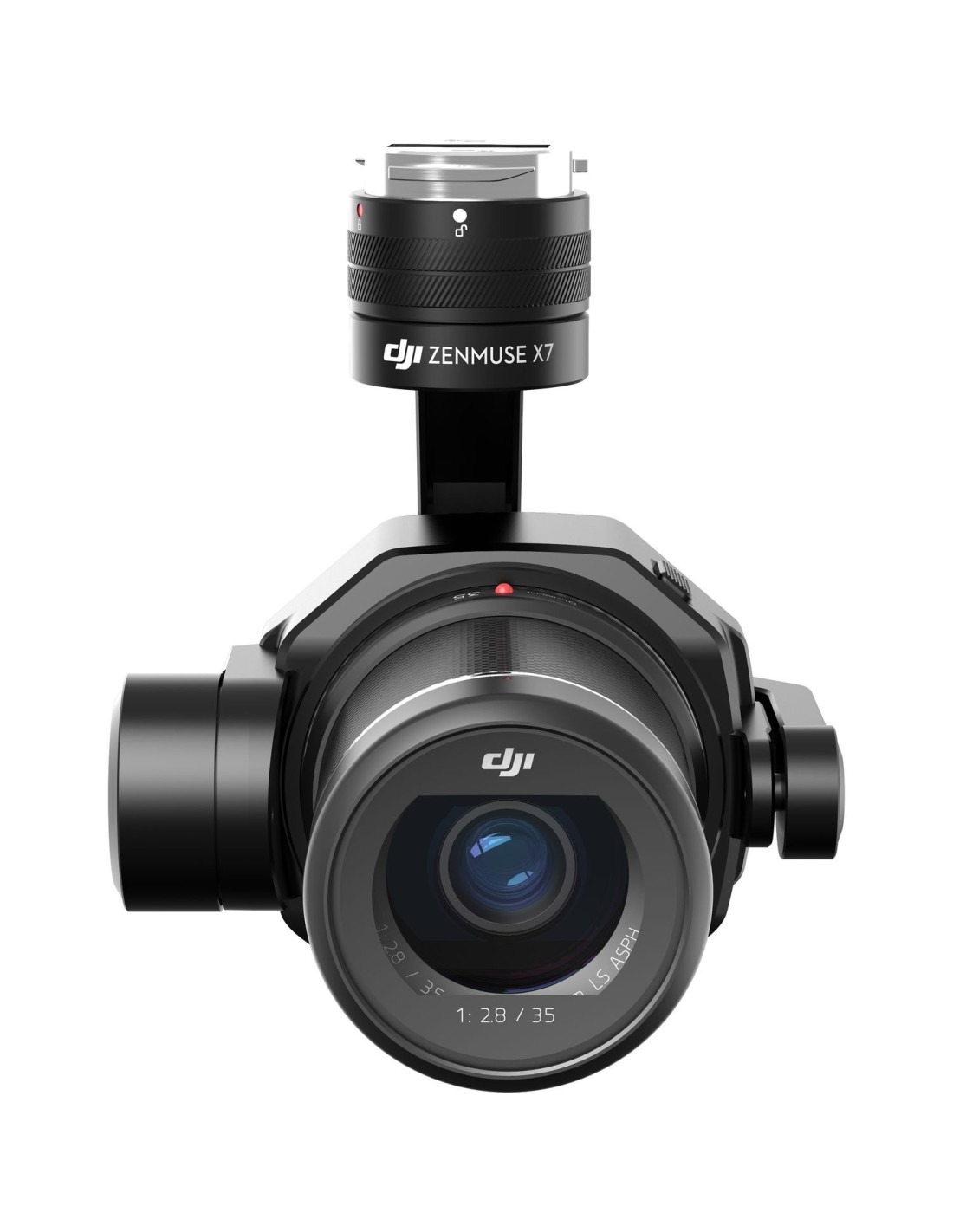

DJI Zenmuse X7 Camera and 3-Axis Gimbal

CP.BX.00000028.01

New

Zenmuse X7 Camera and 3-Axis Gimbal, Detachable Gimbal Mount, 6K (6016 x 3200) Video Capture, 24MP Still Photos, Single, Burst, Auto, & Interval Photos, microSD and CINESSD Support

More details

You can purchase this product in installments with Consel. Click here for more information.


€ 2.999,00
€ 2.458,20tax excl.

Add to my wishlist

The DJI Zenmuse X7 Camera features a detachable 3-axis gimbal that provides stabilization and enables the camera to move independently of the aircraft. This camera system offers multiple recording options, including 6K video at 17:9 and 16:9 aspect ratios, DCI 4K at 30 fps, and UHD 4K at 60 fps in Cinema-DNG format; it also supports DCI and UHD 4K in ProRes and H.265/H.264. In addition to video, the Zenmuse X7 shoots 24MP still images, which can be captured in various photo modes, including individual or bursts. The Zenmuse X7 supports both microSD and DJI CINESSD cards.



DJI Zenmuse X7 Specs

Camera
Sensor SizeStill: 0.9 x 0.6" (23.5 x 15.7 mm)
Video: 0.9 x 0.5" (23.5 x 12.5 mm), max recording area
Lens MountDL
Photo Resolution24 MP
Video ResolutionAspect Ratio 17:9
Cinema-DNG:
6K: 6016×3200, 23.976/24/25/29.97/30p, 12-bit, full FOV
C4K: 4096×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3944×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes:
4K: 4096×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
2K: 2048×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264:
C4K: 4096×2160, 24/25/30/48/50/59.94p
H.265:
C4K: 4096×2160, 24/25/30p

Aspect Ratio 16:9
Cinema-DNG:
6K: 5760×3240, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3840×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3712×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes:
4K: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ, full FOV
2.7K: 2704×1520, 47.95/50/59.94p, 10-bit, HQ, narrow FOV
FHD:1920×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264:
4K: 3840×2160, 24/25/30/48/50/59.94p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p
H.265:
4K: 3840×2160, 24/25/30p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p

Aspect Ratio 2.44:1
ProRes:
5.2K: 5280×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
H.264/H.265:
4K: 3840×1572, 30p, full FOV
Photo ModesSingle shot
Burst: 3, 5, 7, or 10 frames
Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias
Interval: 5, 7, 10, or 14 fps (up to 20 fps when using RAW burst)
ISO RangePhoto: 100 to 25600
Video: 100 to 1600 (EI mode on); 100 to 6400 (EI mode off)
Shutter SpeedElectronic Shutter Speed: 1/8000 to 8 seconds
Mechanical Shutter Speed: 1/1000 to 8 seconds (DJI DL-S 16mm F2.8 ND ASPH not supported)
Supported File TypesPhoto:
DJI CINESSD: DNG
microSD: DNG, JPEG, DNG+JPEG
Video:
CINESSD: Cinema-DNG, ProRes
microSD: MOV, MP4
Recording MediamicroSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required (up to 64 GB)
SSD: DJI CINESSD
Gimbal
MountDetachable
Number of Axes3-axis
Angular Vibration Range± 0.005°
Control RangeTilt: 40 to -125°
Pan: ± 300°
Roll: ± 20°
Manual Control SpeedTilt: 180°/s
Roll: 180°/s
Pan: 360°/s
General
Operating Temperature-4 to 104°F (-20 to 40°C)
Storage Temperature-4 to 104°F (-20 to 40°C)
Dimensions5.9 x 4.3 x 5.2" (151 × 108 × 132 mm)
Weight449 g (15.8 oz)
