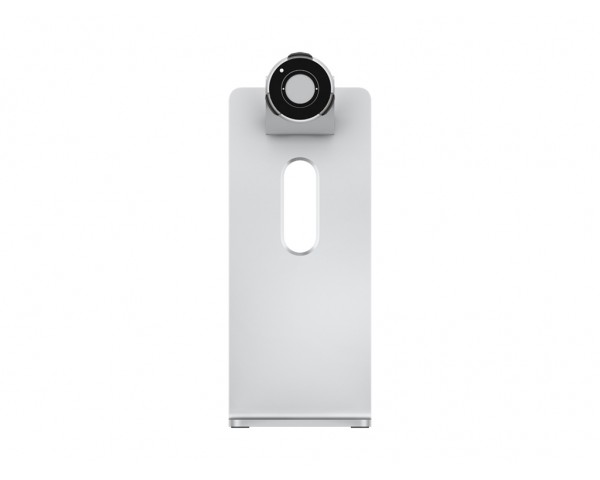

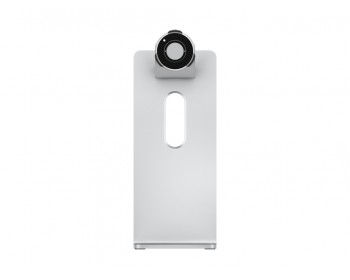

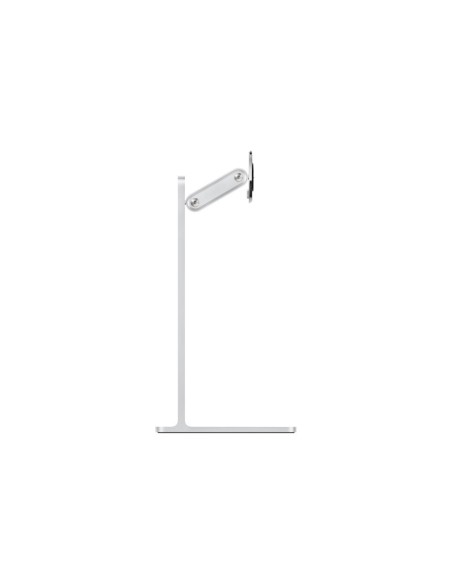

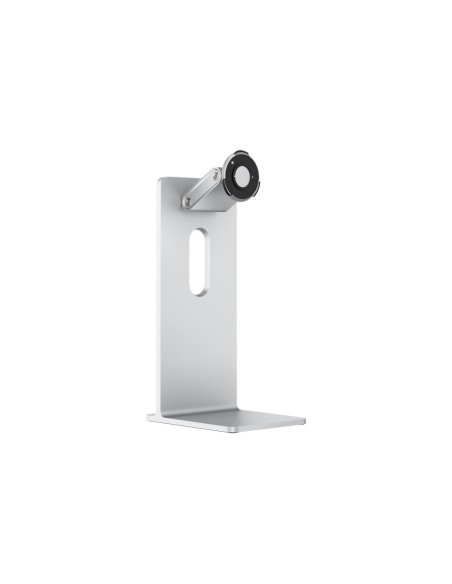

Apple Pro Stand for Pro Display XDR

Pro Stand

Effortlessly attaches and detaches for quick and easy transportation. The puck-shaped magnetic connector is designed to attach to the back of the display and locks Pro Stand and the display together. To detach, simply unlock the slider and tilt the display far back to release the magnets, then lift the display off Pro Stand.



• Height adjustment: the system allows for a total height adjustment of 120 mm (60 mm in each direction from the midpoint)

• Orientation: landscape or portrait

• Tilt: −5° to +25°



Stand size and weight
• Width: 7.1 inches (18.0 cm)
• Depth: 9.3 inches (23.6 cm)
• Weight: 9.5 pounds (4.3 kg)2
• Height (arm 0º, tilt 0º): 17.0 inches (43.3 cm)
• Height (arm 45º, tilt 25º): 19.6 inches (49.7 cm)



Display with stand size and weight
• Depth (tilt 25°): 10.9 inches (27.8 cm)
• Weight: 25.99 pounds (11.78 kg)2



Landscape orientation
• Width: 28.3 inches (71.8 cm)
• Height in top position: 25.7 inches (65.3 cm)
• Height in bottom position: 21.0 inches (53.3 cm)



Portrait orientation
• Width: 16.2 inches (41.2 cm)
• Height in top position: 31.7 inches (80.6 cm)
