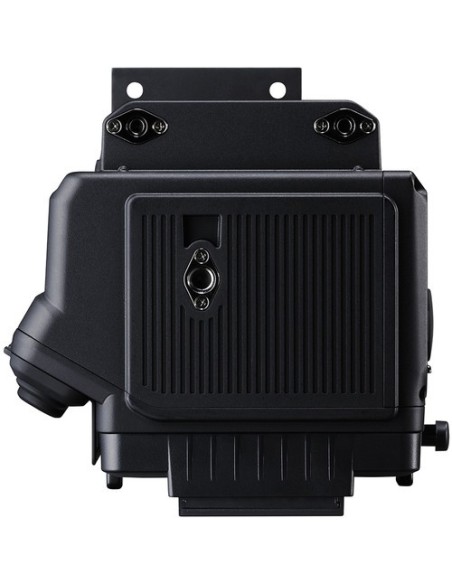

Canon Expansion Unit 2 EU-V2

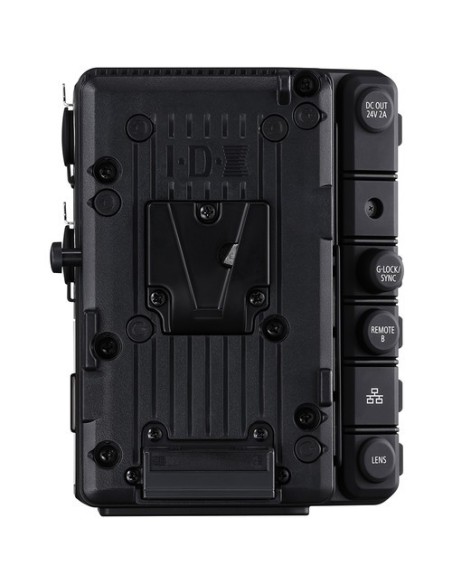

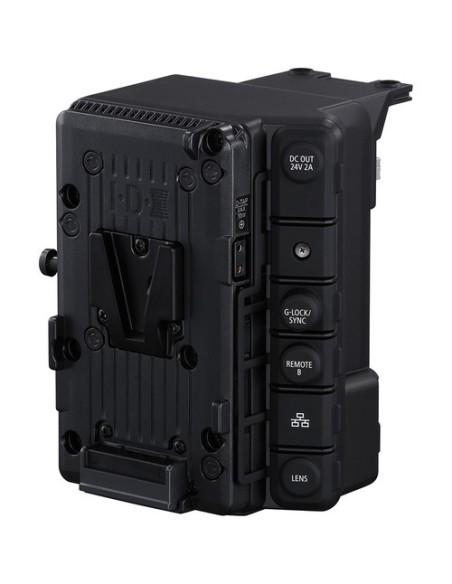

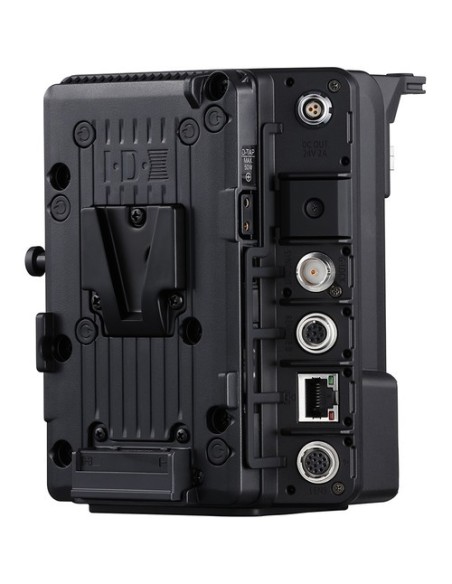

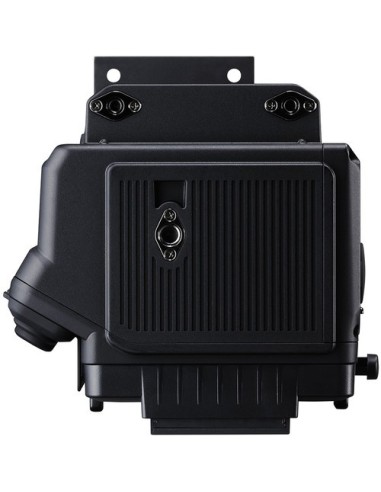

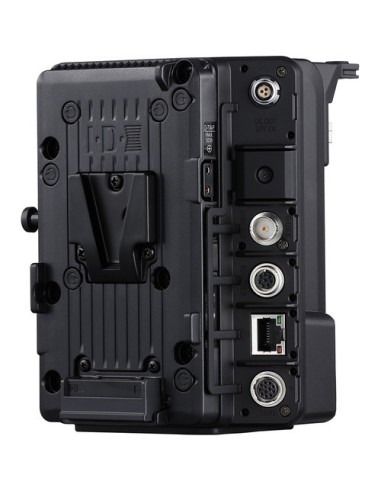

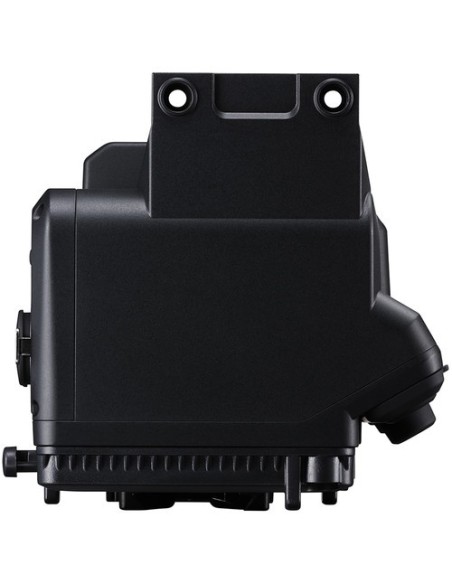

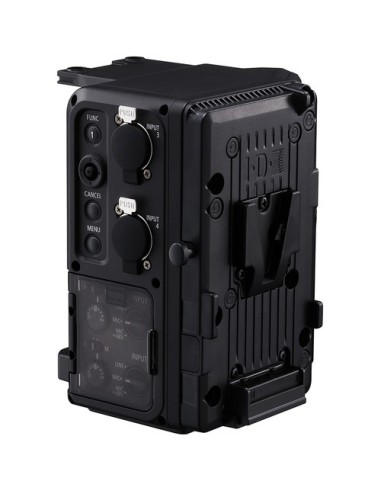

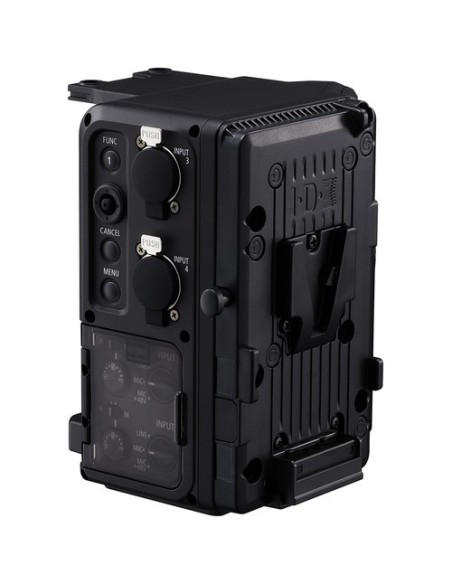

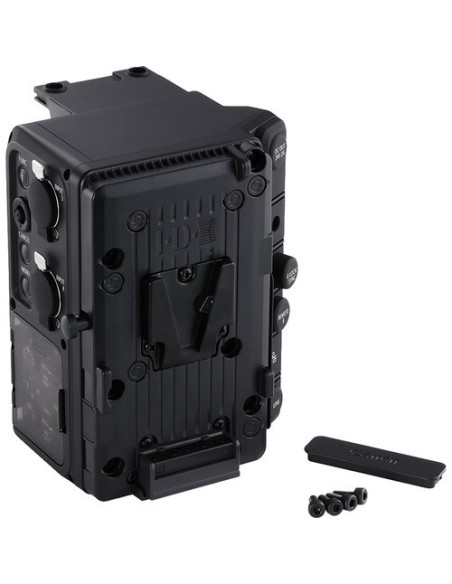

The EU-V2 is an expansion unit for the 5.9K full-frame camera EOS C500 Mark II and C300 Mark III by Canon. In addition to a V-mount battery plate with D-tap output, the unit adds a genlock / sync output, a remote control port (RS-422), an Ethernet port, two 3-pin XLR audio inputs, a 12-pin lens mount and a 24 V DC output. The EU-V2 is attached to the back of the EOS C500 Mark II and fixed easily and securely with screws.

• Compatible with the EOS C500 Mark II by Canon
• Compatible with the EOS C300 Mark III by Canon

Data Links:

Input

• 2x Audio via 3-pin XLR
• 1x Power supply DC via V-mount battery

Output

• 1x Genlock / Sync via BNC
• 1x Power supply DC via 2-pin D-Tap (max. 50 W)
• 1x Power supply DC via 3-pin connection (24 V, 2 A)

Others

• 1x Remote B via 8-pin connection
• 1x Ethernet via RJ-45
• 1x Lens via 12-pin connection
