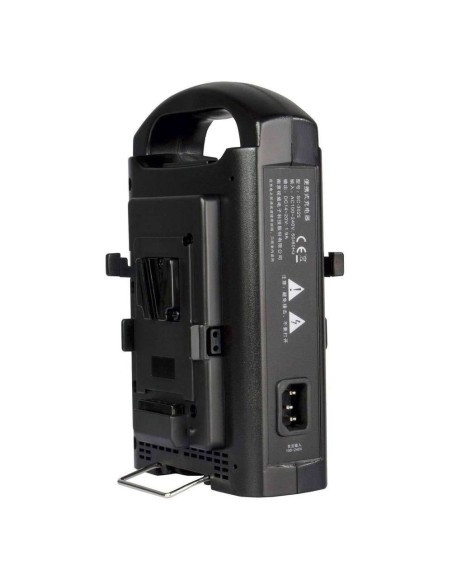

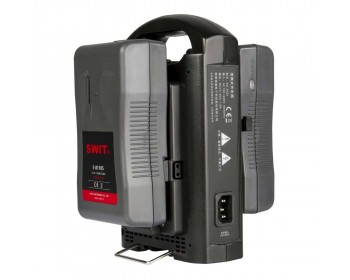

Swit SC-302S 2-Channel Sequential V-Mount Charger

2-ch sequential charger for V-mount batteries
The SC-302S has 2 V-mount plates and can charge 2 batteries one-by-one sequentially. The charging output is DC 14-20V, 1.9A.

Optimal Charging Curve
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.

Multiple Safety Protection Design
SWIT charger can identify different chemical types of batteries, and provide the correct charging program, to protect the batteries from over current, over charging, high temperature, etc

SPECIFICATION

• Input AC 100V-240V 50/60Hz
• output DC 14V-20V, 1.9A
• Applicable battery V-mount battery
• Dimension 228×140×86mm
• Weight 0.85kg
