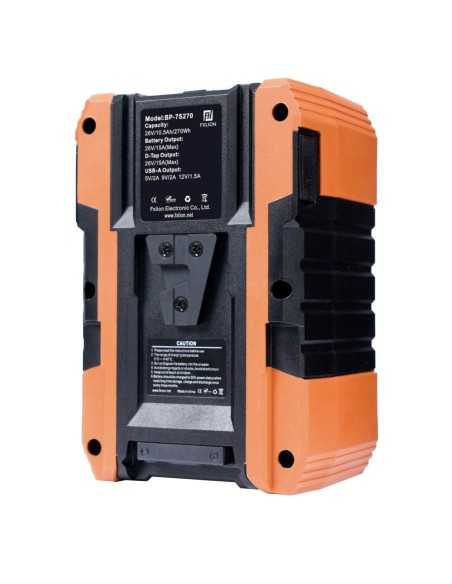

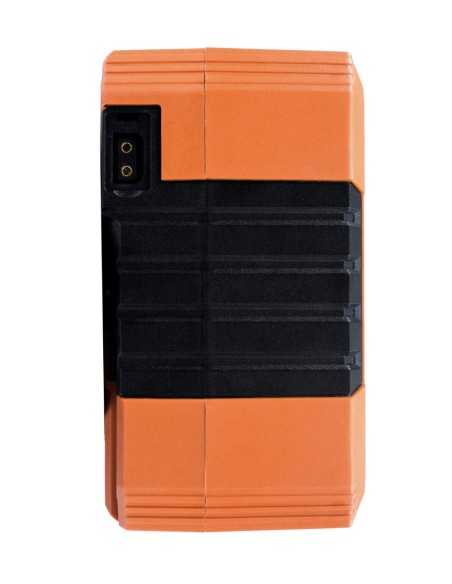

Fxlion BP-7S270 26V 270Wh Lithium-Ion Battery (V-Mount)

The 26V V-Mount/Gold-Mount battery is suited for equipment inputs ranging from 18 to 30VDC. The internal protection chips makes sure there won’t be any over-heating, over-charge, over-discharge and over- current, causing any risk or harm.

With a normal working current of 10 Amps at 26VDC the battery can provide much power. If your equipment uses more than the 10 Amps – you can get a maximum of 15 Amps Output.

The battery is chargeable and can be used in temperatures ranging from -20°C~ +55°C with a Maximum loss in sub zero temperatures of half the capacity.

A 4-level indicator shows you the remaining capacity. There’s a dedicated 26V charger available with a output of 29.4V at 5 Amps. This charger may not be used for any other equipment as the high voltage can kill electronic circuits that are not suitable.

Features

270 Wh V-Mount lithium-ion battery
For 24 to 30 V cameras and LED lighting
Rechargeable, no memory effect
26 VDC D-Tap output
Working current 10,5Ah
High power battery protection chip
4 level LED power indicator

Specifications

Voltage 26V
Capacity 270 Wh
Working current 15A (max)
Operating Temperature -4 to 131°F / -20 to 55°C
Charging time PL -7110 PL-7S2DS ~ 6 hours
PL-7115 ~ 4h
Dimension 152 (L) mm × 97 W mm × 65 H mm
Weight 1140 g
