Blackmagic Design ATEM Television Studio HD8 ISO 2TB

The Blackmagic Design ATEM Television Studio HD8 ISO 2TB is a compact, redesigned live streaming switcher ideal for television studios, remote productions, or live events. It offers eight 3G-SDI inputs supporting video up to 1080p60, built-in live streaming, USB webcam support, a 58-channel audio mixer, chroma keyers, DVE, transitions, media players, internal recording with a built-in 2TB M.2 NVMe drive, and talkback support. The switcher is also compatible with Blackmagic Cloud, allowing immediate access to program recordings from anywhere in the world.

Live Production

You get an incredibly powerful eight-input switcher with program outputs and two auxiliary outputs, providing everything you need for mobile production. This means you can connect up to eight cameras. Additionally, you will have access to professional camera control, a talkback feature, and audio mixing.

Distribution

Thanks to the built-in hardware streaming engine, you can livestream your event to a global audience. Recording into H.264 files with AAC audio ensures the correct format for uploading to YouTube. Furthermore, you can share live broadcasts with your audience using auxiliary outputs, large screens, and projectors.

Production Switcher Control

You get an advanced broadcast-grade switcher with built-in ATEM Advanced Chroma Keyers, a Fairlight audio mixer, DVE, a still store for graphics, and more. Most features can be operated from the front panel, or you can use the free ATEM Software Control on macOS or Windows to access even more advanced capabilities.

Simple Setup and Use

Just press any of the program row buttons on the front panel to switch between video sources. Alternatively, you can pre-select a source in the preview row and then choose between cut or effect transitions by selecting the cut or auto buttons. You can choose from eye-catching transitions like dissolves, or more impactful effects such as dip-to-color, DVE squeeze, and DVE push. You can even add a DVE for picture-in-picture effects with custom graphics. Media players are also available, allowing you to store graphics with alpha channels for titles and images, which you can load as live video inputs. Then, you can stream the results.

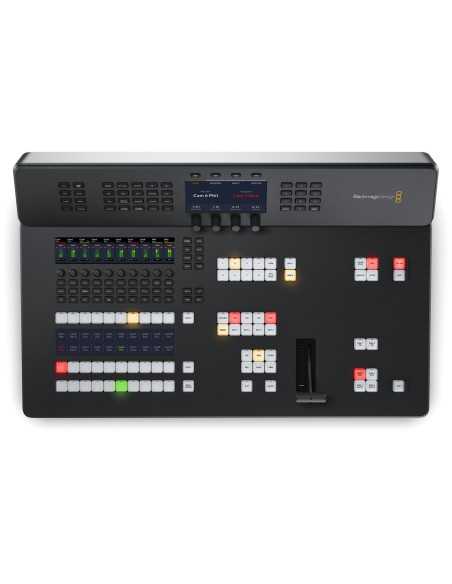

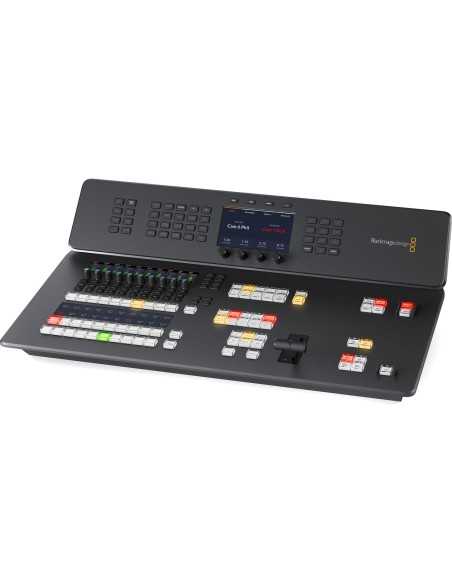

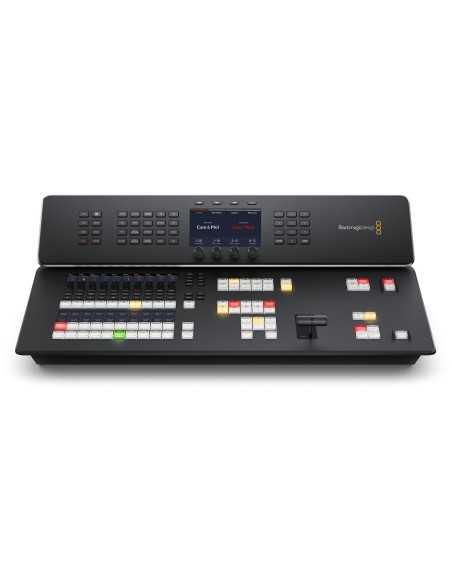

Redesigned Front Panel

The front panel includes buttons for source selection, triggering transitions, and configuring video effects. Furthermore, the buttons are of the same high quality used on expensive broadcast mixers. There is also an integrated T-bar for manual transition control. The front panel also includes an innovative audio mixer control area with real-time metering on a dedicated LCD. There are also buttons for recording and streaming control, as well as real-time AUX switching that allows you to change the AUX outputs between all eight cameras, program, preview, or multiview.

Broadcast-Style Mix/Effects Switching

ATEM Television Studio uses a professional program/preview operating mode, exactly how large broadcasters use live production switchers. However, ATEM Television Studio can be switched to A/B mode, which is simpler when used by volunteers or community groups. But if you want to operate the switcher like a broadcast professional, the program/preview mode is perfect. This means a source will not go on air until you press the cut or auto button. This two-step process allows you to preview your selection before broadcasting it, thereby reducing errors.

Add Eye-Catching Video Effects

One of the advantages of ATEM Television Studio is its range of built-in professional video effects. The Cut button ensures an instant cut when switching between sources. The T-fader can be used for video effect transitions, or you can perform the transition automatically by pressing the Auto button. Auto mode uses the transition duration set in the system control panel. You can also select the type of effect you want, including Mix, which performs a smooth transition between sources, or Dip, which transitions via a third video source, such as a color generator. A wide range of SMPTE transitions is included, along with DVE effects that slide or squeeze the image off the screen when transitioning between video sources.

Creative Transitions

ATEM Television Studio includes the same type of transitions found in expensive broadcast mixers. This means effects and transitions can be customized in many different ways, making them surprisingly powerful. You will never stop discovering new ways to use them. This is because all transitions can be customized by adjusting parameters such as duration, border color, border width, position, and direction.

You can also use the DVE with a wipe transition, where the DVE moves a graphic over the edge of the wipe. This is called a graphic transition and is frequently used in sports broadcasts. The preview transition button can be used to set up effects offline, which is great for eliminating mistakes.

Built-In DVE

ATEM Television Studio HD features an independent DVE that allows you to reposition graphics and create picture-in-picture compositions. You get stunning quality, and the DVE supports positioning, resizing, and scaling, all in real time. The DVE allows you to create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. DVEs can also be used to create fantastic DVE transitions with squeeze, swoosh, and push effects to add dynamism to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions. Additionally, there is a SuperSource multi-layer processing engine with four extra DVEs.

Supports Internal Media

The built-in media pool stores broadcast-quality graphics and animations that can be played back using the integrated media players. Media players appear as independent sources, so you don't need to waste SDI inputs for graphics. For maximum quality, all media supports RGB color space with an alpha channel, allowing transparency and overlaying. The media pool can hold 20 still images in HD resolution. Motion graphics clips for animations and stingers can hold up to 400 frames in 720p and 200 frames in 1080p. The ATEM Control software allows you to upload and manage media. You can even prepare graphics in Adobe Photoshop and then download them into the media pool using the free ATEM Photoshop plug-in.

Includes Four ATEM Advanced Chroma Keyers

ATEM Television Studio is perfect for news and on-set presentations because it includes four ATEM Advanced Chroma Keyers for green screen chroma keying effects. The chroma keyers are incredibly powerful and include features like a color picker to sample background colors for automatic key parameter generation.

You get precise controls for borders and flare, and even a foreground color corrector so you can match the foreground and background levels for seamless compositions. You can even use it for title overlays by creating graphics with a green or blue background. With four ATEM Advanced Chroma Keyers, ATEM Television Studio is perfect for creating virtual sets with fixed cameras.

SuperSource Processing

In addition to the DVE in ATEM Television Studio, there is also a powerful SuperSource multi-layer processor. SuperSource offers four additional DVE layers plus a background layer, all overlaid as an additional input source. Any video input can be used as a source for each DVE, and it is then overlaid on a custom media pool background or live video. SuperSource is perfect for creating multiple picture-in-picture displays with interviewees, because you can set up the effect so the viewer can see each person being interviewed, all within a stylish graphic. SuperSource is like having a completely independent multi-layer VFX switcher built right in.

Eight 3G-SDI Inputs with Standards Conversion

ATEM Television Studio HD features eight independent 3G-SDI inputs, each with its own dedicated standards converter. This means you can convert any 1080p or 720p input source to the switcher's video standard, allowing you to use a different television standard for each SDI input and have all inputs work seamlessly.

SDI input audio channels 1, 2, 3, and 4 can also be manually routed to various embedded audio channels in the program and auxiliary outputs. Additionally, you can route audio channels 1 and 2 from the SDI inputs to the MADI digital audio output, so you can hand off the switcher's incoming audio to an external sound engineer for mixing.

16-Source Multiview on a Single Monitor

When producing large live productions with multiple cameras, it is crucial to view all video sources simultaneously on a single monitor. ATEM Television Studio HD includes a professional multiview feature that lets you see all video inputs, preview, and program on a single SDI or HDMI monitor. You can also send the multiview to the auxiliary outputs. Each camera view includes tally indicators so you know when each source is on air, and each view has customizable labels and audio meters. You can fully customize the multiview layout with up to 16 simultaneous views. You can also select one of the additional status views that allows you to monitor recording, streaming, and audio mixer status, directly from the multiview.

Add Audio Expansion for More Microphones

If you are building a podcasting studio or need more microphones, the ATEM Microphone Converter allows for audio input expansion. It connects to the ATEM Television Studio via the MADI port, so no complex configuration is required, and you can daisy-chain units to add more inputs. Each converter features four analog inputs that are microphone/line selectable and include phantom power.

The design delivers amazing quality with an extremely low noise floor of -129 dBV, a dynamic range of 131 dB(A), low distortion of 0.002%, and uniform tolerances across all channels. It even uses eight separate ADCs on each input to collectively extend the dynamic range. Additionally, it features a fun HDMI monitoring output with scrolling audio waveforms.

Direct Recording to Internal Cloud Storage or USB Disks

ATEM Television Studio HD supports recording to external USB flash disks or the built-in 2TB M.2 flash drive, allowing you to record directly to internal cloud storage. Internal storage and any external USB disks will be available for sharing over the local Ethernet network, so other people can work on post-production tasks like editing, color correction, and graphics preparation.

All recordings are in H.264 format with AAC audio for broadcast-quality video and small file sizes. You can connect multiple USB disks, so recording continues even if one disk becomes full. There are buttons on the control panel to start recording, and you can view the recording status in the multiview.

Outputs to Any Software Supporting USB Webcams

You can use any video software with ATEM Television Studio HD because the USB connection emulates a webcam. This means you can connect it to a computer and use any video software compatible with webcams. The software is tricked into believing that ATEM Television Studio HD is a standard webcam, but it is actually a live production switcher. This ensures full compatibility with any video software and Full HD 1080p quality.

Imagine making a presentation from a professional broadcast studio to software like Zoom, Teams, or Skype. For streaming, the webcam output also works with streaming software such as Open Broadcaster, XSplit Broadcaster, and others.

Includes Free ATEM Software Control Panel

The ATEM Software Control app unlocks the hidden power of ATEM Television Studio HD by providing access to all switcher features. ATEM Software Control offers a visual user interface with parameter palettes for making adjustments. Although you can connect via USB, connecting via Ethernet allows you to run multiple copies of ATEM Software Control on different computers.

The software allows you to perform live switching, mix audio, color correct in cameras, and manage media content. You can also create and execute complex macros from the software. Additionally, you can save the switcher state as an XML file to recall jobs later. You can even control external HyperDeck recorders.

Localized in 13 Popular Languages

ATEM Television Studio HD supports multiple languages in its menus and ATEM control software, allowing you to customize it to your preferred language. Supported languages include English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian.

Simply access the setup menu to change the language, or you can switch to another language at any time. Once a language is selected, the menus on all LCDs will change to the chosen language. Multilingual support makes ATEM Television Studio HD perfect for live productions anywhere in the world and with any crew.

Flexible and Redundant Power Supply

The all-in-one design of ATEM Television Studio includes a built-in power supply, so you don't need to carry an external power brick. Simply plug it into any AC outlet and start live production. The international power supply automatically works from 100 to 240V AC, so you can use it anywhere in the world. Additionally, ATEM Television Studio features both AC and DC power connections.

A broadcast-standard 12V DC XLR power connection is included, perfect as a backup power supply or for battery operation. This means you can use it even in extremely remote locations. Furthermore, if the internal power supply malfunctions, you can simply connect an external DC power supply to keep running.

Designed to Be Easy to Repair

With so many built-in features, it is crucial that ATEM Television Studio is easy to repair. Furthermore, there is already extensive built-in redundancy, with four Ethernet connections, nine program SDI outputs, two USB ports, and two power connections. However, if someone trips over a cable and breaks a connector, you need to be able to repair the connector at a low cost.

All internal electronic PCBs are modular, so any qualified technician can purchase a replacement and easily swap out the board. This includes the connector PCBs, which can be purchased separately. All the technician needs to do is remove the bottom cover and replace the PCB. A large broadcaster could even purchase the boards as a spares kit.

Compact Broadcast Vans

With the all-in-one design, you can build a new generation of ultracompact broadcast vans. You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk.

Music Venues and Clubs

Some of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However, ATEM Television Studio can be carried into any venue. It's also easy to pack up, even if the venue is still crowded.

Live Sports

ATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed in sports clubs or taken on the road with the team. With up to eight cameras, you'll catch all the exciting angles.

Items Included

Blackmagic Design ATEM Television Studio HD8 ISO 2TB
