Blackmagic Design ATEM Monitoring Rack Panel 40

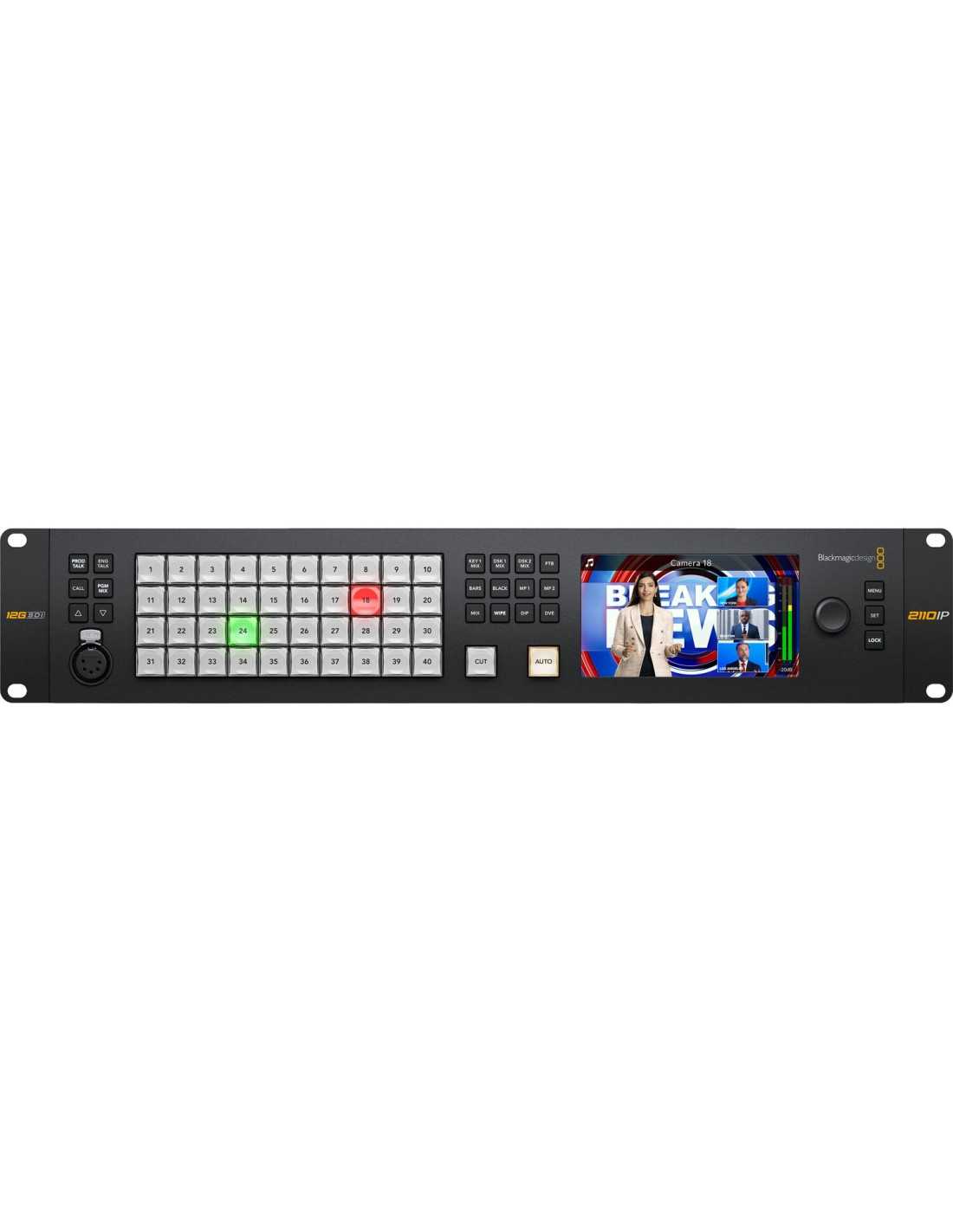

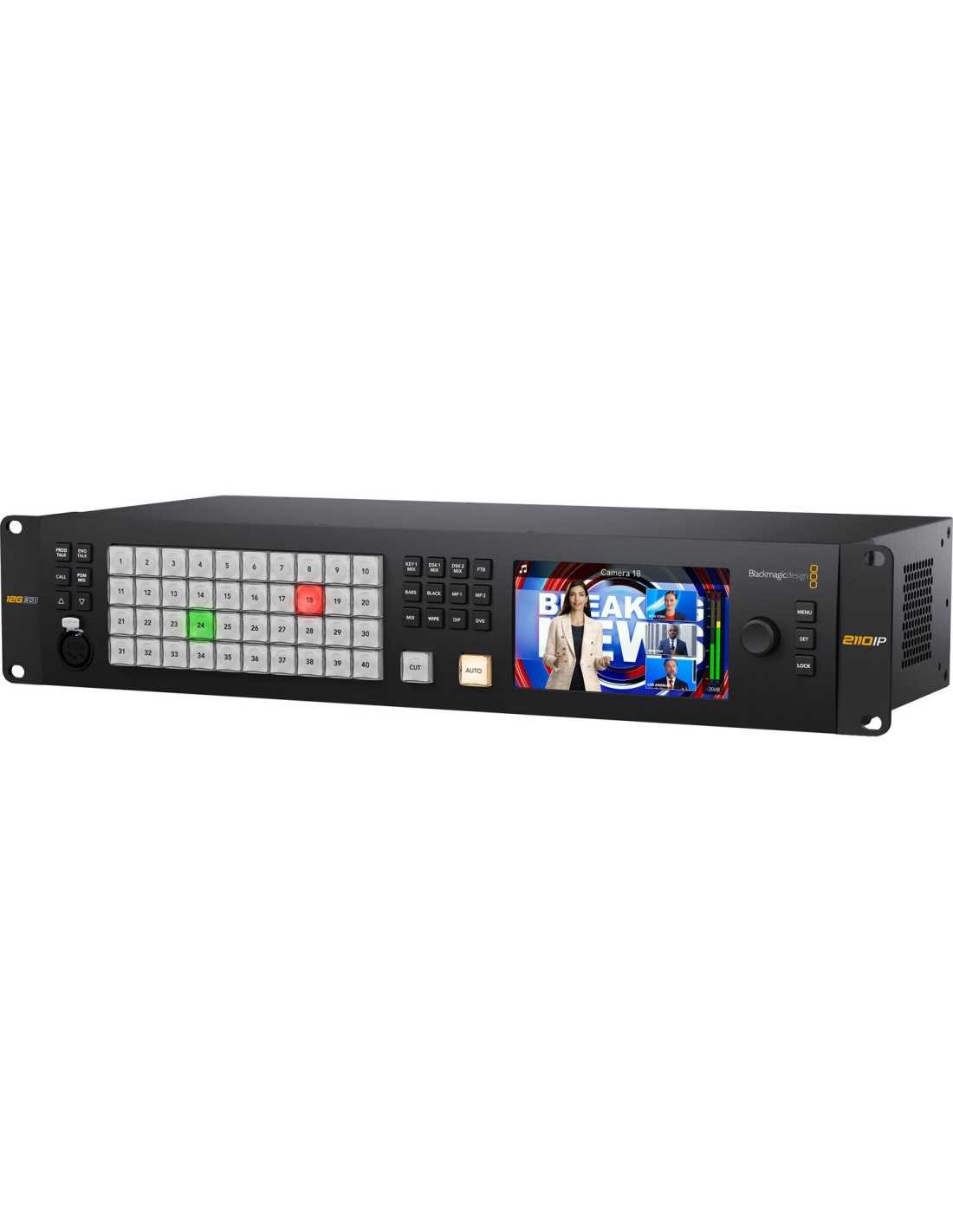

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 40 from Blackmagic Design. This video converter comes in a 2 RU form factor that looks like an ATEM switcher, but its basic use is a video converter for monitoring your SMPTE 2110 IP streams on 12G-SDI and HDMI monitors. It features 10G Ethernet ports to source your SMPTE 2110 video, 40 backlit front buttons for easy control, redundant power, a front LCD, a talkback connection, and a 1G Ethernet port that allows control via LAN.

Additional Details

• Two 10G RJ45 connectors
• One SMPTE 2110 IP video input to one HDMI and two SDI outputs
• Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
• One 1G RJ45 for connection to the switcher and NMOS control
• Two SDI Program, two Preview, and two multiview outputs
• One HDMI multiview output
• 16-channel embedded audio on both SDI outputs
• 8-channel embedded audio on HDMI output
• One 5-pin XLR talkback connection with control buttons on the front

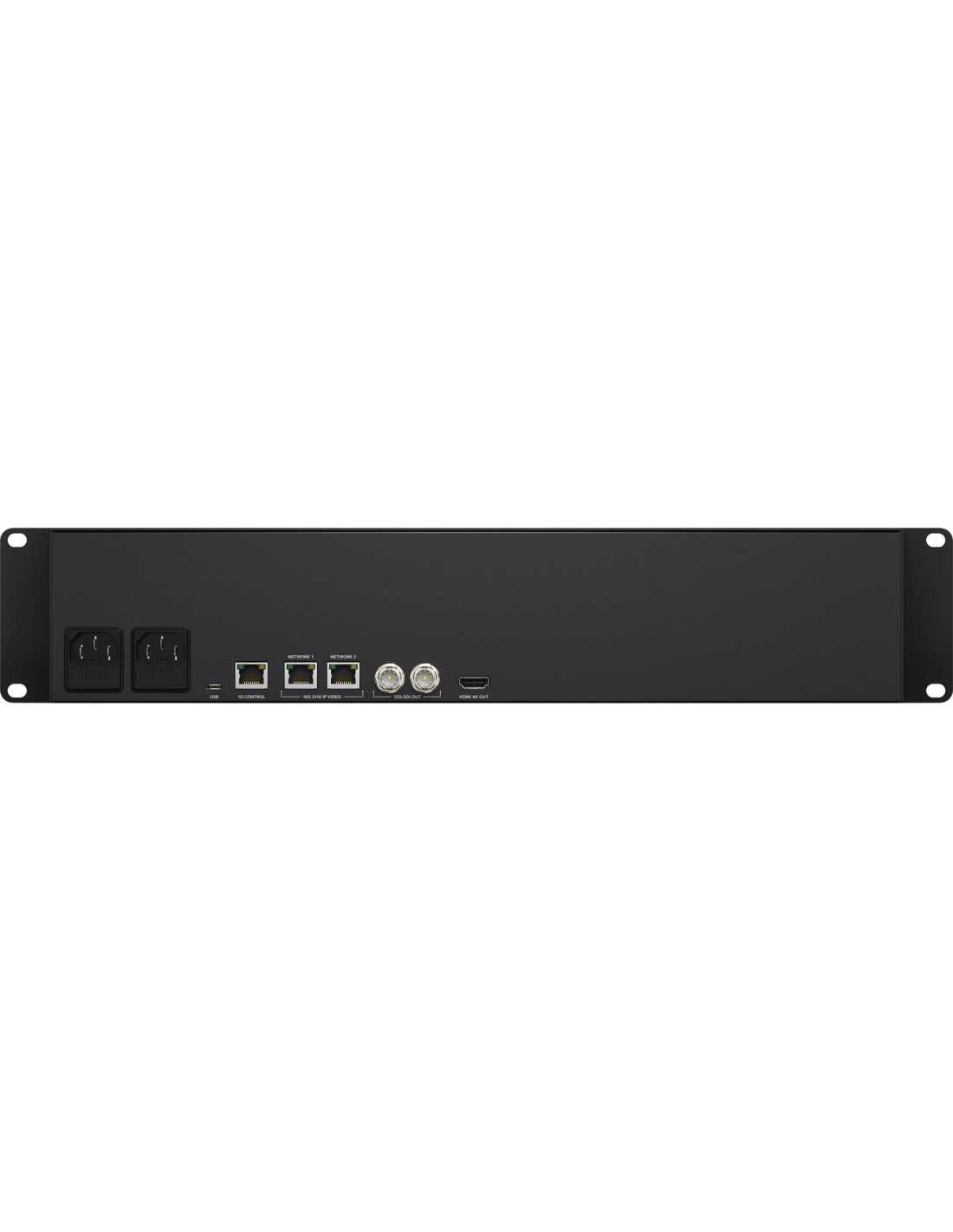

• Redundant IEC C14 power inputs
• USB-C input for setup utility and software updates

Items Included

Blackmagic Design ATEM Monitoring Rack Panel 40
