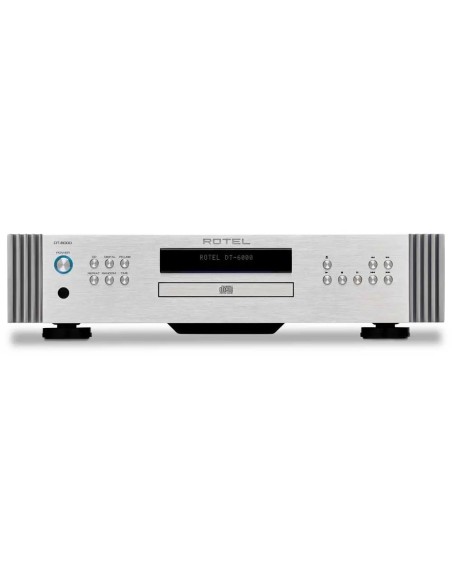

Rotel DT-6000 Diamond Series DAC Transport CD Player

DT-6000

New

The Rotel DT-6000 Diamond Series DAC Transport is the culmination of Rotel's 60 years of hi-fi design and manufacture, featuring a tray-loading CD player and high quality 32-bit ESS Sabre DAC. Additional digital inputs and a balanced XLR output allow the DT-6000 to become a key component of any system.

More details

In Stock

Add to my wishlist

The Rotel Diamond Series DT-6000 DAC Transport celebrates Rotel’s 60-Year history delivering performance, passion and value synonymous with the brands Japanese heritage. The DT-6000 supports Coaxial, Optical and PC-USB inputs as well as an integrated CD Player for the ultimate flexibility playing your favourite sources rendering digital audio with dynamic precision and authentic accuracy.

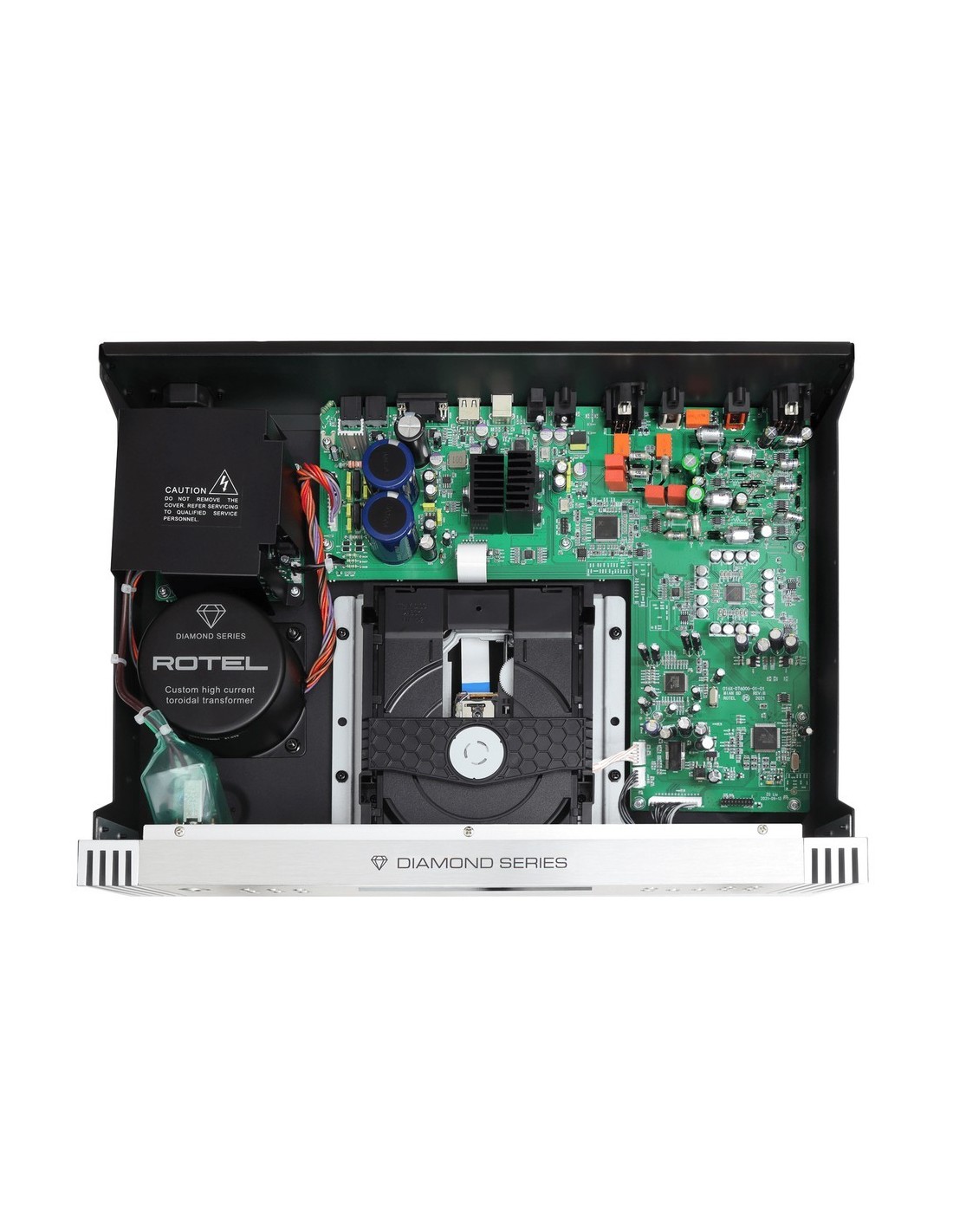

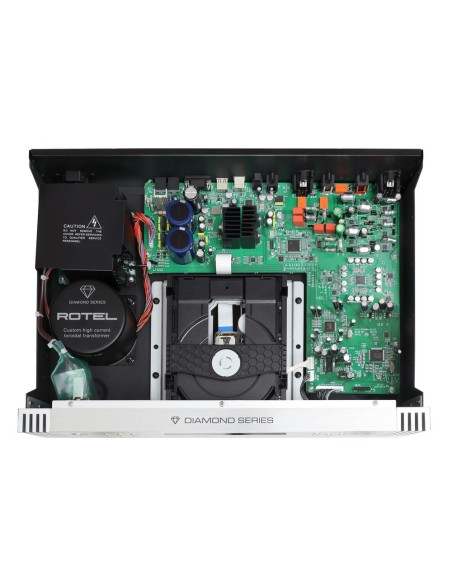

The DT-6000’s critical Digital to Analog circuits utilizes an ESS Sabre 8-Channel ES9028PRO DAC dedicating 4 channels each to the Left and Right stereo outputs. The DACs multi-channel processing delivers unprecedented details with an ultra-low noise floor through fully differential circuits resulting in an immersive, expansive sound stage. Dedicated power supplies feed all critical circuits driven by an in-house manufactured low-emission shielded toroidal transformer with high efficiency, low ESR slit-foil smoothing capacitors delivering ripple free current. Physical circuit board isolation techniques and electronic decoupling design methods result in lower residual noise and reduced distortion in the sensitive analogue stages including the external DAC output filters.



The Coaxial and Optical inputs support PCM audio up to 24-bit/192kHz with the asynchronous PC-USB input rendering up to 32-bit/384kHz high resolution music files. The PC-USB also supports MQA and DSD 4X and is certified Roon Tested for the highest compatibility with Roon software.



The smooth action tray loading CD player utilizes Rotel’s formidable 30-years of experience engineering and manufacturing award winning disc spinners. The industrial design includes a spring-floating CD mechanism with damping materials to reduce mechanical noise and vibrations during playback. Precision motor controls and the optical laser pick-up extract every nuance and detail from CD collections both large and small.

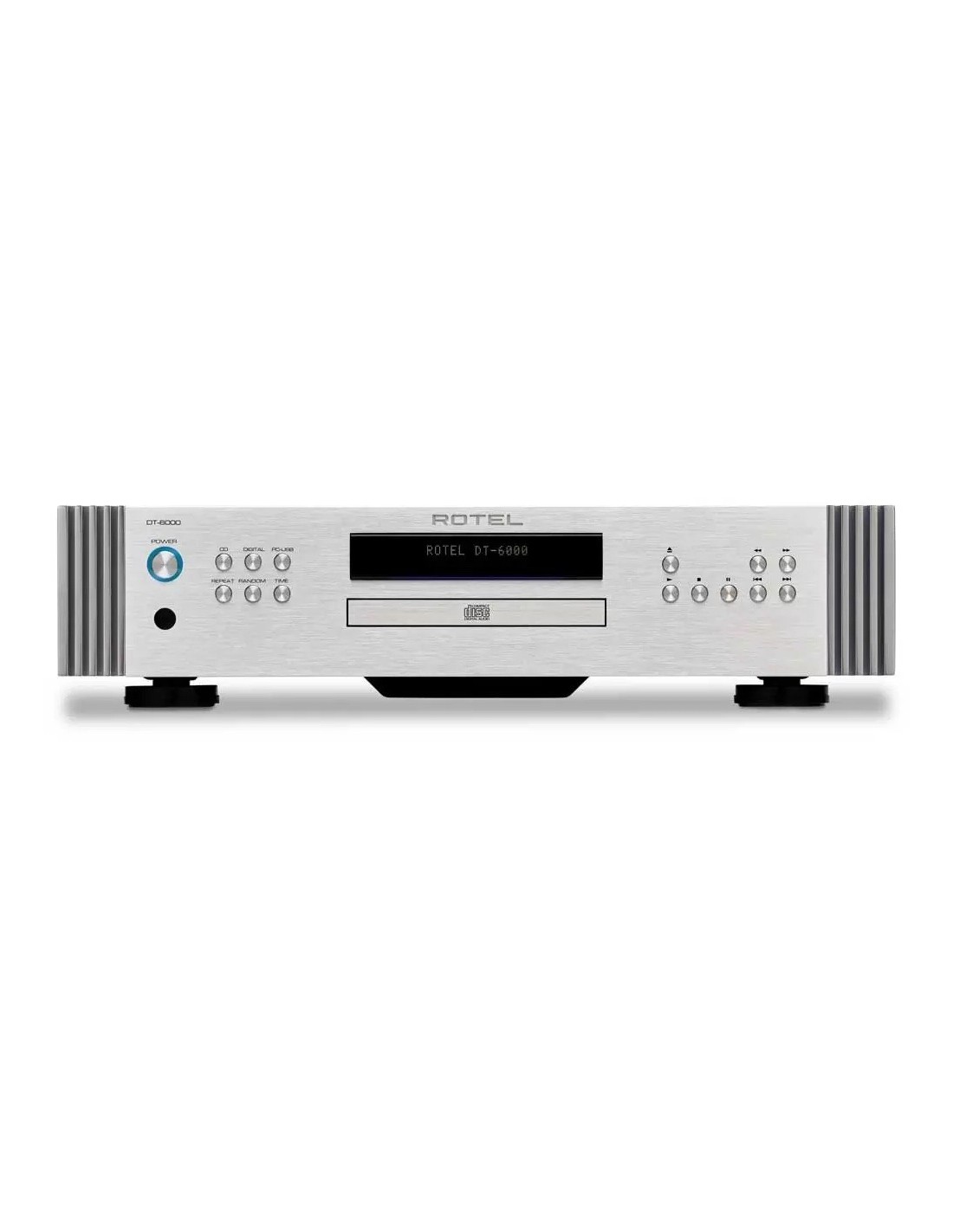

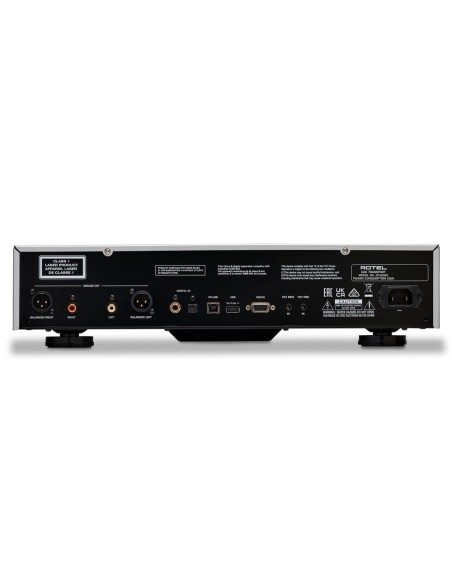

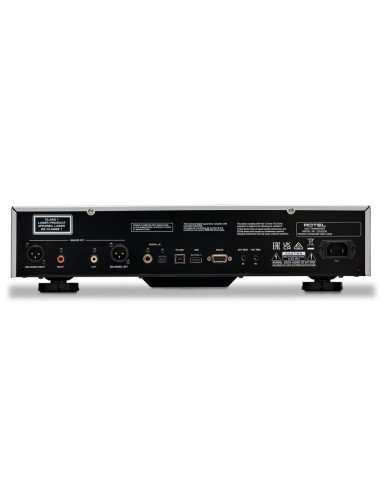

Front panel controls and a back-lit IR remote provide intuitive operation of the unit with playback status, music file stream details and CD Metadata shown on the 2-line display. The RS232, 12V trigger and external remote input ensure simplified integration with all popular control systems.



DT-6000 Specifications

Dimensions (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"
Front Panel Height
2U / 88.1mm (3.5")
Power Requirements
230V, 50Hz
Power Consumption
25W
Standby Power Consumption
<0.5W
Net Weight
8.11kg (17.88lbs.)
Total Harmonic Distortion (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%
Frequency Response
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB
S/N Ratio ("A" Weighted)
>115dB
Dynamic Range
>99dB
Digital to Analog Converters
ESS 32-Bit/768kHz DAC
Channel Balance
± 0.5dB
Channel Separation
>115dB @ 10kHz
Intermodulation Distortion
<0.0012%
Analog Output Level
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
Analog Output Impedance
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω
Input Sensitivity
0dBfs / 75 Ohms
Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Support MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
