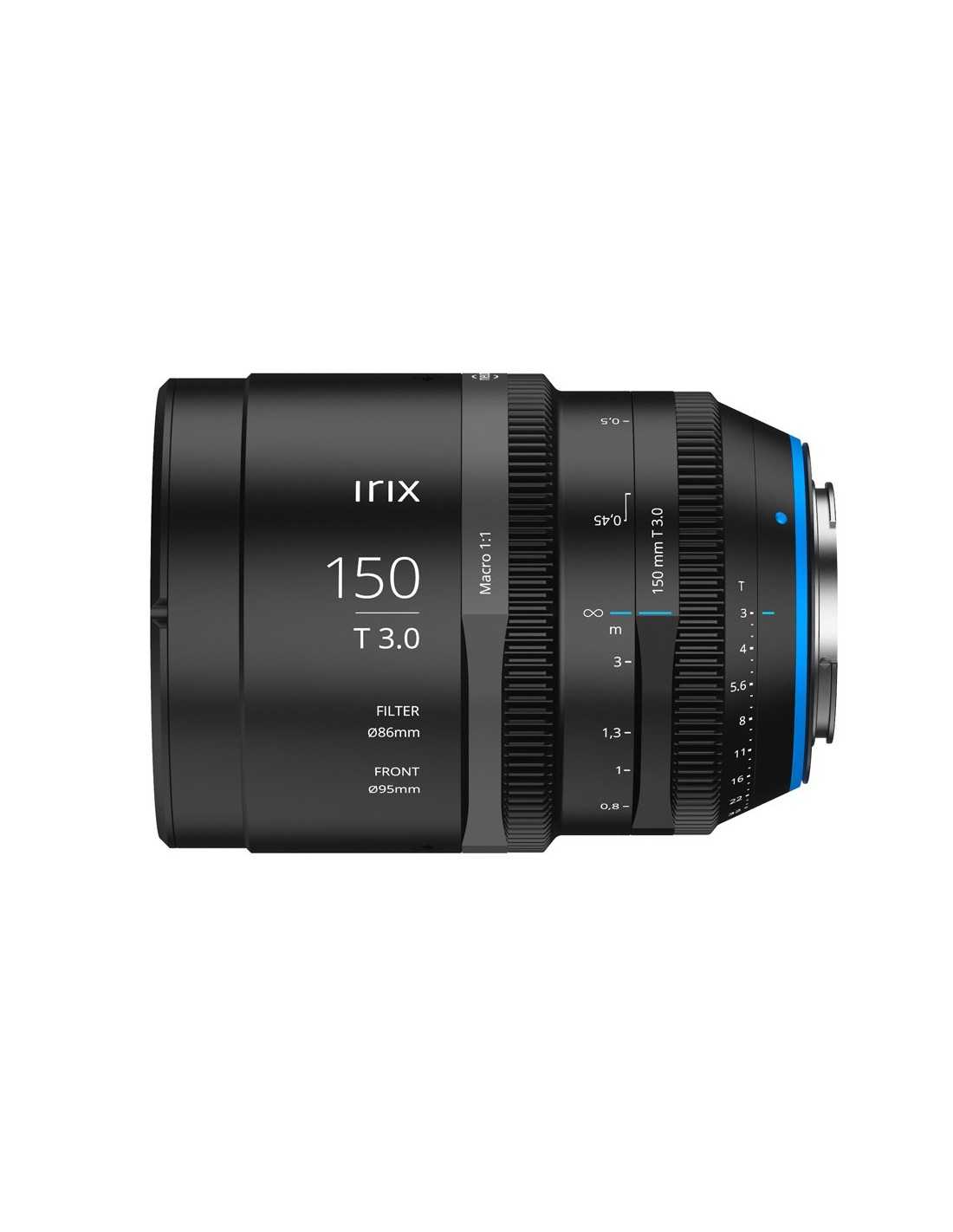

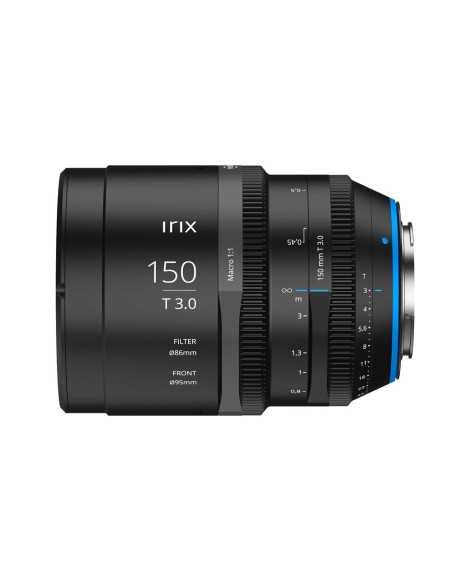

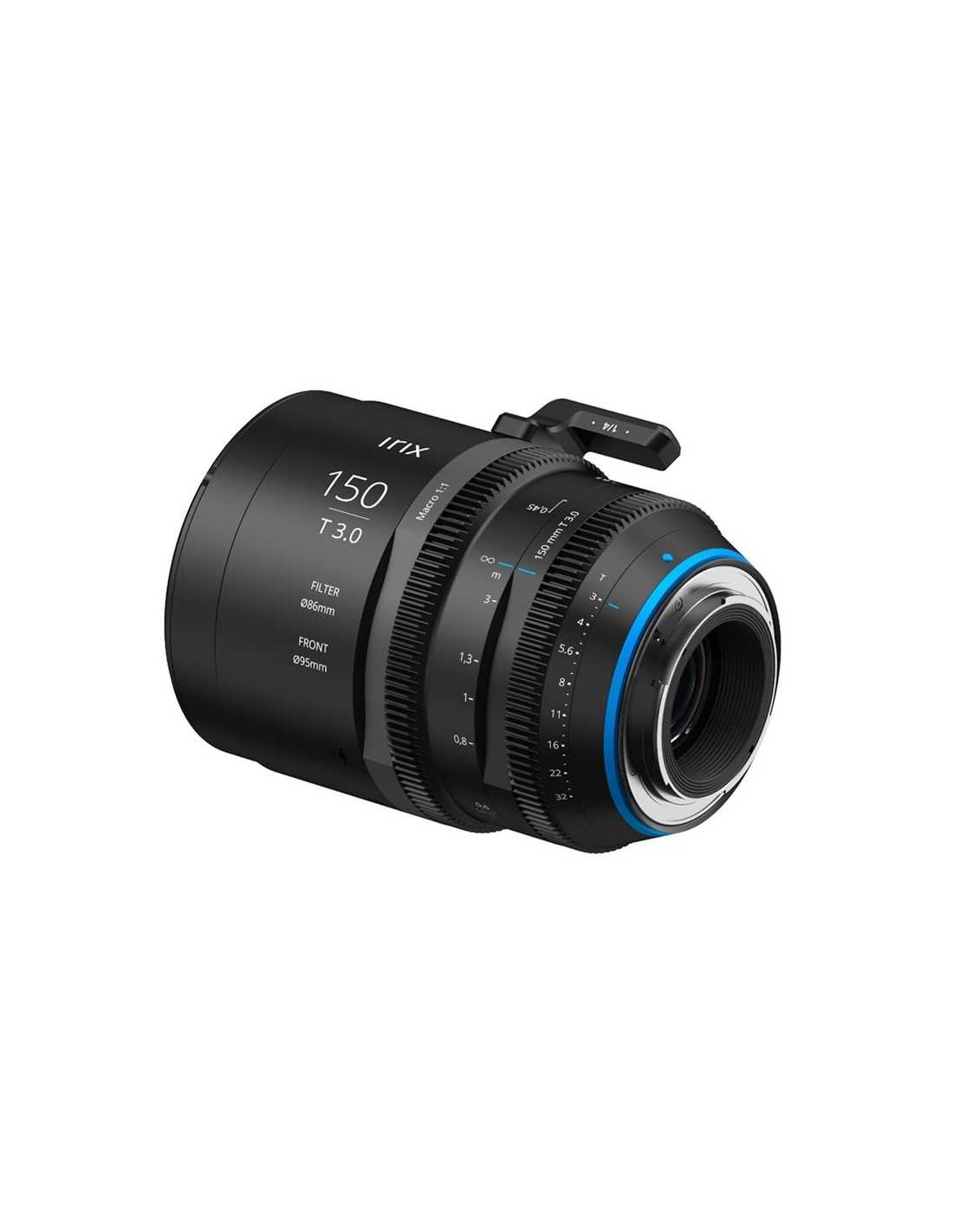

Irix Cine Lens 150mm Macro 1:1 T3.0 for Canon RF (Metric)

The Irix Cine Lens 150mm Macro 1:1 T3.0 for Canon RF (Metric) lens is designed for shooting cinematic-style images. This lens for full-frame sensors is equipped with various internal and external design features.

External and internal features
External features include a 95mm diameter, 0.8 MOD gears, illuminated focus markings and a removable 1/4’ support base. Internally, the lens features a round 11-blade aperture and 5 seals to protect the lens from inclement weather and dust.

Construction

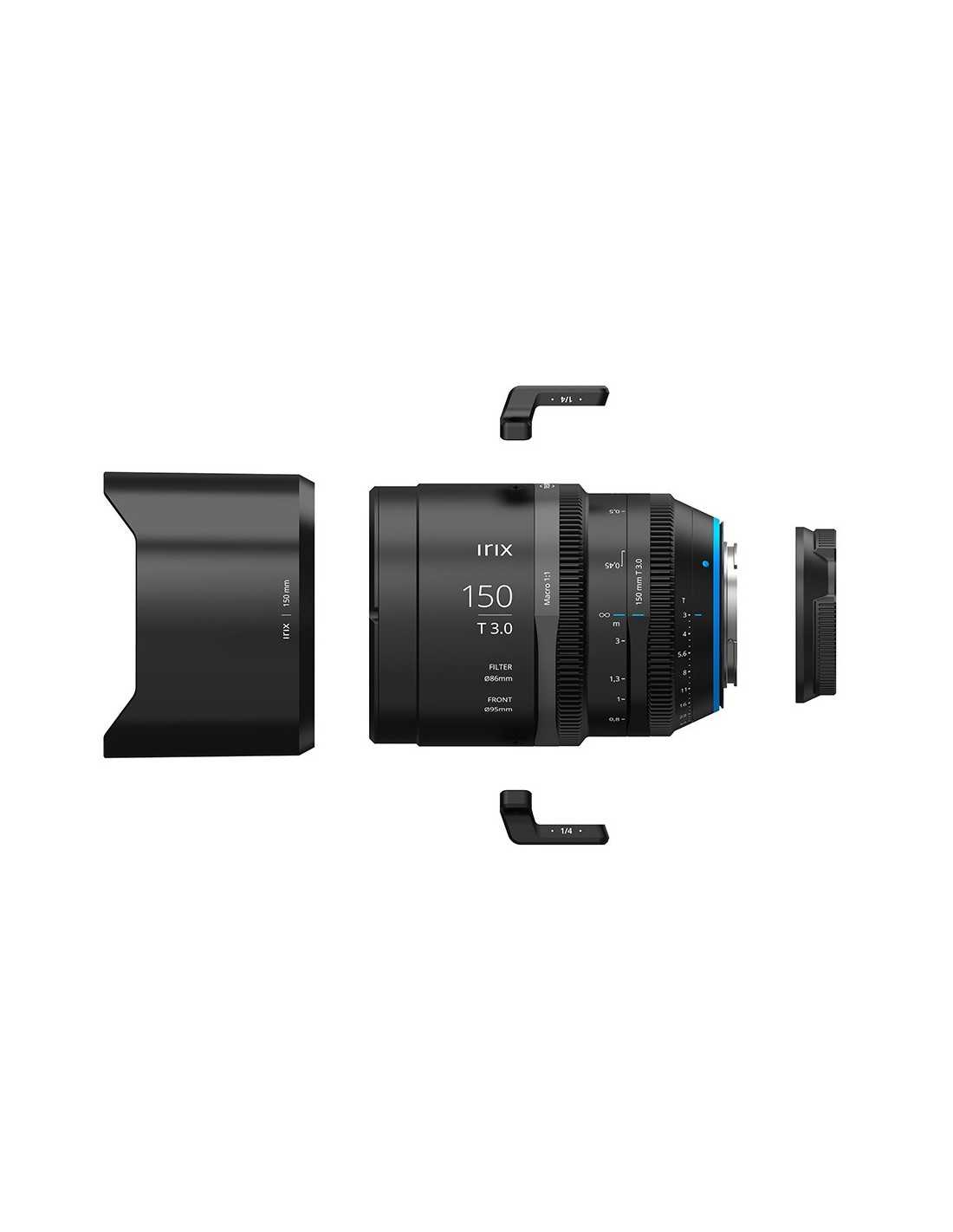

To help prevent aberrations and distortion, this lens has a construction with 12 optical elements and 9 groups, including 4 HR and 3 ED elements. The lens has 270-degree focus and 75-degree iris rotation, an 86mm filter size and a detachable lens hood with magnetic closure.

Features
Full-Frame | T3.0 to T32 Aperture
43.3mm Image Circle
1:1 Macro Magnification
Rounded, 11-Blade Aperture
Magnetic Filter & Shade Mounting System
95mm Front Diameter
270° Focus | 75° Iris Rotation
86mm Front Filter Thread
Luminous Focus Marks in metric
Sealed for Weather Resistance

In the box
Irix Cine 150mm T3.0 Macro
front lens cap
lens support foot 1/4”
rear lens caps

Compatibility
All Cine Cameras
Canon EOS C400
Canon EOS C70
Canon EOS C80
Canon EOS R5 C
RED DIGITAL CINEMA Komodo
RED DIGITAL CINEMA Komodo Monochrome
RED DIGITAL CINEMA Komodo X
RED DIGITAL CINEMA V-RAPTOR
RED DIGITAL CINEMA V-RAPTOR RHINO
RED DIGITAL CINEMA V-RAPTOR X

Mirrorless Cameras
Canon EOS R
Canon EOS R1
Canon EOS R10
Canon EOS R100
Canon EOS R3
Canon EOS R5
Canon EOS R5 Mark II
Canon EOS R50
Canon EOS R6
Canon EOS R6 Mark II
Canon EOS R7
Canon EOS R8
Canon EOS RP
Canon EOS Ra
Kolari Vision EOS RP Forensics Kit

Specifications
Type Macro
Mount Canon RF Mount
Focal length 150mm
Sensor size Full frame
Transmittance T3.0
Aperture blades count 11
Lens composition 12 elements in 9 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.35m

Viewing angle (horizontal)
Full Frame 13.7°
S-35mm 1.39x - 9.6°
APS-C 1.53x - 9°
APS-C 1.62x - 8.5°
MFT 2.0x - 6.6°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 119
Weight: 1100 g
