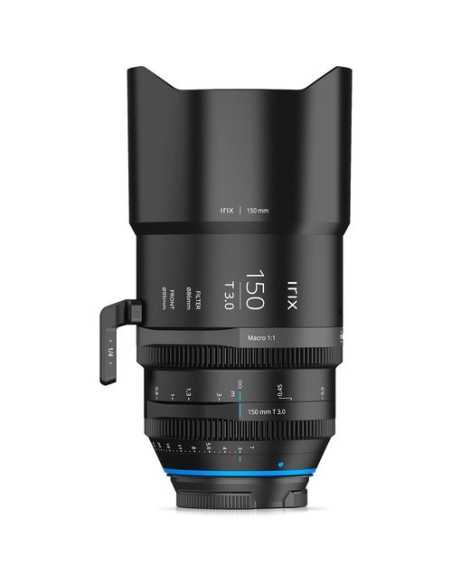

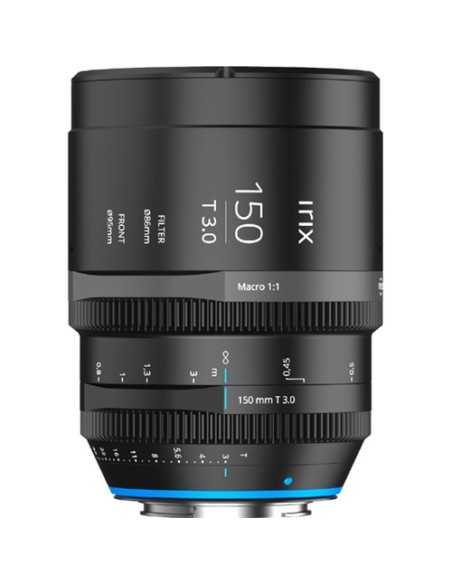

Irix Cine Lens 150mm Macro 1:1 T3.0 for PL Mount (Metric)

The Irix Cine Lens 150mm Macro 1:1 T3.0 for PL Mount (Metric) lens is designed for shooting cinematic-style images. This lens for full-frame sensors is equipped with various internal and external design features.

External and internal features
External features include a 95mm diameter, 0.8 MOD gears, illuminated focus markings and a removable 1/4’ support base. Internally, the lens features a round 11-blade aperture and 5 seals to protect the lens from inclement weather and dust.

Construction
To help prevent aberrations and distortion, this lens has a construction with 12 optical elements and 9 groups, including 4 HR and 3 ED elements. The lens has 270-degree focus and 75-degree iris rotation, an 86mm filter size and a detachable lens hood with magnetic closure.

Features
Full-Frame | T3.0 to T32 Aperture
43.3mm Image Circle
1:1 Macro Magnification
Rounded, 11-Blade Aperture
Magnetic Filter & Shade Mounting System
95mm Front Diameter
270° Focus | 75° Iris Rotation
86mm Front Filter Thread
Luminous Focus Marks in metric
Sealed for Weather Resistance

In the box
Irix Cine 150mm T3.0 Macro
front lens cap
lens support foot 1/4”
rear lens caps

Compatibility
All Cine Cameras
ARRI ALEXA 35
ARRI ALEXA 35 Live
ARRI ALEXA Mini LF
ARRI ALEXA SXT
ARRI AMIRA
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Cine 17K
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 12K
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C500
Canon EOS C700
Canon EOS C700 FF
Canon EOS C700 GS
For.A FT-ONE
Kinefinity MAVO LF MKII
Kinefinity MAVO S35 MKII
Panasonic VariCam 35
Panasonic VariCam 35B
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA DSMC2 BRAIN Monochrome
RED DIGITAL CINEMA RANGER
RED DIGITAL CINEMA V-RAPTOR XL
RED DIGITAL CINEMA V-RAPTOR XL X
RED DIGITAL CINEMA WEAPON
Sony BURANO
Sony BURANO CineAlta Digital Cinema Camera
Sony PMW-F3
Sony PMW-F5
Sony PMW-F55
Sony SRW-9000PL
Sony VENICE 2 6K Digital Motion Picture Camera
Sony VENICE 2 8K Digital Motion Picture Camera
Sony VENICE 2 LIVE Cinematic Production Package
Sony VENICE 4K LIVE BUNDLE
Sony VENICE 6K Digital Motion Picture Camera
Z CAM E2-F6
Z CAM E2-F8
Z CAM E2-S6

Specifications
Type Macro
Mount PL Mount
Focal length 150mm
Sensor size Full frame
Transmittance T3.0
Aperture blades count 11
Lens composition 12 elements in 9 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.35m

Viewing angle (horizontal)
Full Frame 13.7°
S-35mm 1.39x - 9.6°
APS-C 1.53x - 9°
APS-C 1.62x - 8.5°
MFT 2.0x - 6.6°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 119
Weight: 1100 g
