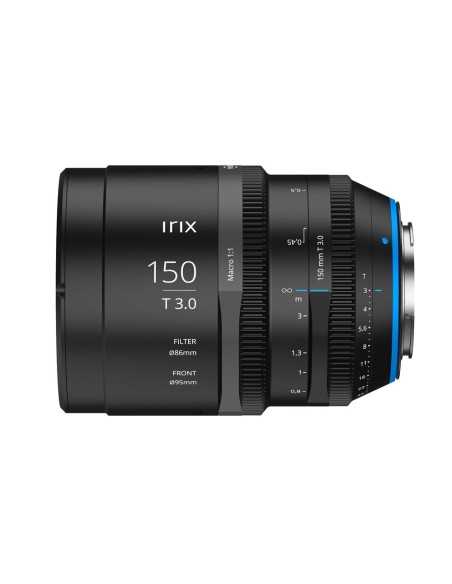

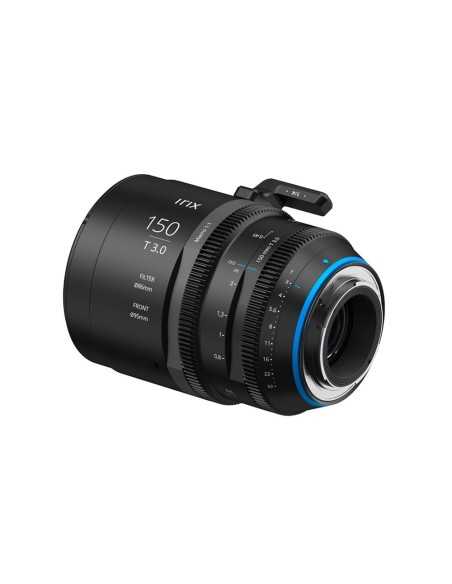

Irix Cine Lens 150mm Macro 1:1 T3.0 for L Mount (Metric)

The Irix Cine Lens 150mm Macro 1:1 T3.0 for L Mount (Metric) lens is designed for shooting cinematic-style images. This lens for full-frame sensors is equipped with various internal and external design features.

External and internal features
External features include a 95mm diameter, 0.8 MOD gears, illuminated focus markings and a removable 1/4’ support base. Internally, the lens features a round 11-blade aperture and 5 seals to protect the lens from inclement weather and dust.

Construction
To help prevent aberrations and distortion, this lens has a construction with 12 optical elements and 9 groups, including 4 HR and 3 ED elements. The lens has 270-degree focus and 75-degree iris rotation, an 86mm filter size and a detachable lens hood with magnetic closure.

Features
Full-Frame | T3.0 to T32 Aperture
43.3mm Image Circle
1:1 Macro Magnification
Rounded, 11-Blade Aperture
Magnetic Filter & Shade Mounting System
95mm Front Diameter
270° Focus | 75° Iris Rotation
86mm Front Filter Thread
Luminous Focus Marks in metric
Sealed for Weather Resistance

In the box
Irix Cine 150mm T3.0 Macro
front lens cap
lens support foot 1/4”
rear lens caps

Compatibility
All Cine Cameras
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Panasonic AW-UB50
Panasonic DC-BS1H

Mirrorless Cameras
Leica CL
Leica SL (Typ 601)
Leica SL2
Leica SL2-S
Leica SL3
Leica SL3-S
Leica T
Leica TL
Leica TL2
Panasonic Lumix S1
Panasonic Lumix S1H
Panasonic Lumix S1R
Panasonic Lumix S5
Panasonic Lumix S5 II
Panasonic Lumix S5 IIx
Panasonic Lumix S9
Sigma fp
Sigma fp L

Other
Panasonic Lumix DC-S1
Panasonic Lumix DC-S1H
Panasonic Lumix DC-S1R

Specifications
Type Macro
Mount L Mount
Focal length 150mm
Sensor size Full frame
Transmittance T3.0
Aperture blades count 11
Lens composition 12 elements in 9 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.35m

Viewing angle (horizontal)
Full Frame 13.7°
S-35mm 1.39x - 9.6°
APS-C 1.53x - 9°
APS-C 1.62x - 8.5°
MFT 2.0x - 6.6°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 119
Weight: 1100 g
