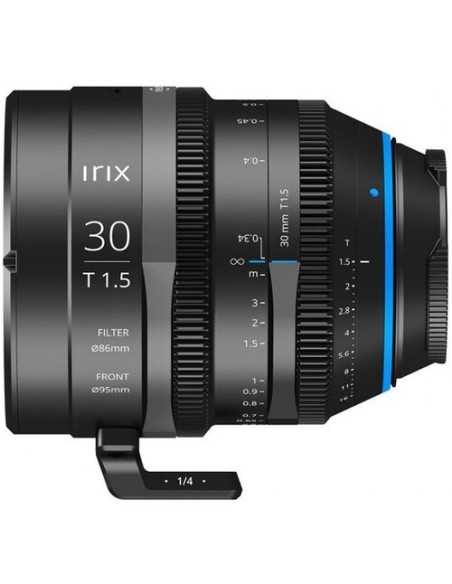

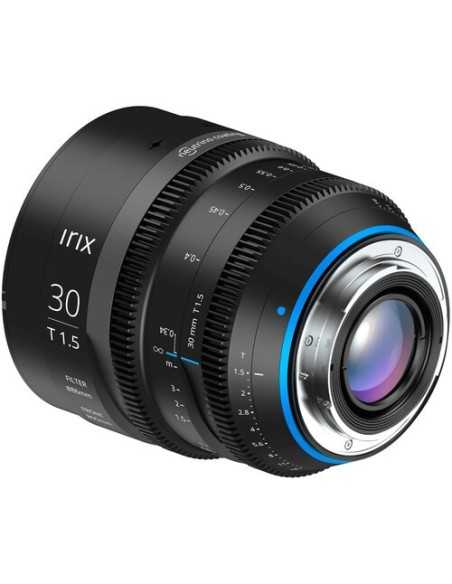

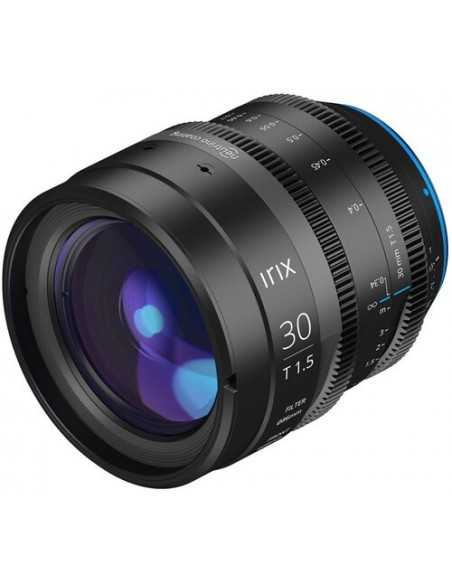

Irix Cine Lens 30mm T1.5 for Canon EF (Metric)

Irix Cine 30mm T1.5 is a full-frame cine lens, for sensor resolution up to 8K. It is excellent for interviews and medium wide shots of your subject. Especially on a crop sensor where you will get 45mm (1,5x).

READY for ANY weather conditions
Rain or shine. The rugged and durable construction of the Irix Cine 30mm guarantees that you can keep on working with whatever weather throws at you. The lens is resistant to rain, sand, and dust. So you can take it for your next adventure in a desert or jungle if your camera can handle those environments. Engraved markings on the lens have been filled with UV-reactive paint, thanks to which filming in difficult lighting conditions becomes much easier.

Functionality and innovation
All Irix film lenses have very similar dimensions and weight, which allow for quick and easy lens changes without the need to change the rest of your setup. The product is equipped with a Magnetic Mounting System (MMS), which allows you to connect accessories such as magnetic filters from the Irix Edge line up.

(Irix) CINE Standard
Irix Cine 30mm was designed in accordance with the standards of the professional film industry, being the result of a combination of traditional lens solutions and modern innovation. Irix Cine 30mm has a front filter thread size of 95mm and geared Mod 0.8 M rings, which ensure compatibility with most accessories available on the market. Irix is a young brand, but thanks to the fifth lens in its lineup, it’s closing the set covering most of the common focal lengths. All of our lenses are carefully tested, to meet the highest standards. And we don’t play around with them. We make sure, that all of our lenses are compatible. Starting from our neutrino coating, which provides the same color reproduction on each lens to the same weight and location of gears.

New and improved lens cover
We have listened to requests from our customers and decided to redesign our lens cover. The previous one didn’t allow for leaving the lens standing on it. The improved one has a flat top and slides on the lens. Thanks to this, you can now leave the lens upside down on a table and not worry about it wobbling!

Features
Full Frame | T1.5 to T16 Aperture
43.3mm Image Circle
Rounded, 11-Blade Aperture
Adaptive Focus Ring for Manual/Motor Use
95mm Front Diameter
180° Focus | 75° Iris Rotation
86mm Front Outside Filter Thread
Magnetic Filter & Shade Mounting System
Luminous Focus Marks in Metric
Sealed for Weather Resistance

In the box
Irix 30mm T1.5 Cine Lens (Canon EF)
Front Cap
Rear Cap

Compatibility
All Cine Cameras
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Blackmagic Design Pocket Cinema Camera 6K
Blackmagic Design Pocket Cinema Camera 6K G2
Blackmagic Design Pocket Cinema Camera 6K Pro
Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 4.6K
Blackmagic Design URSA Mini Pro 4.6K G2
Canon EOS C100
Canon EOS C100 Mark II
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C300 Mark III
Canon EOS C500
Canon EOS C500 Mark II
Canon EOS C700
Canon EOS C700 FF
FREEFLY Ember S2.5K
FREEFLY Ember S5K
JVC GY-LS300
Panasonic AU-EVA1
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA EPIC-W
RED DIGITAL CINEMA Komodo
RED DIGITAL CINEMA RAVEN
RED DIGITAL CINEMA SCARLET-W
Z CAM E2-F6
Z CAM E2-F6 MKII
Z CAM E2-F6 Pro
Z CAM E2-F8
Z CAM E2-S6
Z CAM E2-S6 MKII
Z CAM E2-S6G

Camcorders
Blackmagic Design URSA Broadcast G2

DSLR Cameras
Canon EOS 1D X
Canon EOS 1D X Mark II
Canon EOS 1D X Mark III
Canon EOS 5D Mark II
Canon EOS 5D Mark III
Canon EOS 5D Mark IV
Canon EOS 5DS
Canon EOS 5DS R
Canon EOS 6D
Canon EOS 6D Mark II
Canon EOS 70D
Canon EOS 77D
Canon EOS 7D Mark II
Canon EOS 80D
Canon EOS 90D
Canon EOS Rebel SL1
Canon EOS Rebel SL2
Canon EOS Rebel SL3
Canon EOS Rebel T5
Canon EOS Rebel T5i
Canon EOS Rebel T6
Canon EOS Rebel T6i
Canon EOS Rebel T6s
Canon EOS Rebel T7
Canon EOS Rebel T7i
Canon EOS Rebel T8i

Specifications
Type Standard
Mount Canon EF
Focal length 30mm
Sensor size Full frame
Transmittance T1.5
Apreture blades count 11
Lens composition 11 elements in 9 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.34m

Viewing angle (horizontal)
Full Frame 61.9°
S-35mm 1.39x 45.1°
APS-C 1.53x 42.9°
APS-C 1.62x 40.9°
MFT 2.0x 32.2°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 119
Weight 1.1 kg
