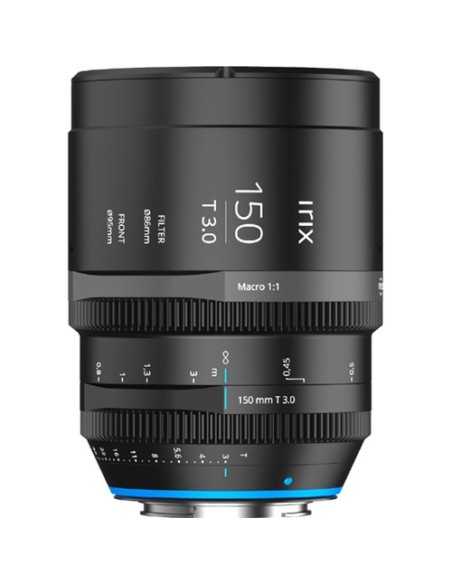

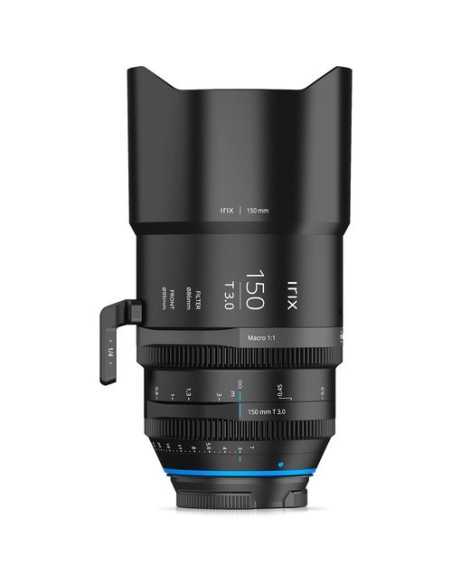

Irix Cine Lens 150mm Macro 1:1 T3.0 for Sony FE (Metric)

The Irix Cine Lens 150mm Macro 1:1 T3.0 for Sony FE (Metric) lens is designed for shooting cinematic-style images. This lens for full-frame sensors is equipped with various internal and external design features.

External and internal features
External features include a 95mm diameter, 0.8 MOD gears, illuminated focus markings and a removable 1/4’ support base. Internally, the lens features a round 11-blade aperture and 5 seals to protect the lens from inclement weather and dust.

Construction
To help prevent aberrations and distortion, this lens has a construction with 12 optical elements and 9 groups, including 4 HR and 3 ED elements. The lens has 270-degree focus and 75-degree iris rotation, an 86mm filter size and a detachable lens hood with magnetic closure.

Features
Full-Frame | T3.0 to T32 Aperture
43.3mm Image Circle
1:1 Macro Magnification
Rounded, 11-Blade Aperture
Magnetic Filter & Shade Mounting System
95mm Front Diameter
270° Focus | 75° Iris Rotation
86mm Front Filter Thread
Luminous Focus Marks in metric
Sealed for Weather Resistance

In the box
Irix Cine 150mm T3.0 Macro
front lens cap
lens support foot 1/4”
rear lens caps

Compatibility
All Cine Cameras
FREEFLY Ember S5K
FREEFLY Wave
FREEFLY Wave Handheld Bundle
Kinefinity MAVO LF MKII
Kinefinity MAVO S35 MKII
Sony BURANO
Sony BURANO CineAlta Digital Cinema Camera
Sony FX3
Sony FX30
Sony FX6
Sony ILX-LR1
Sony NEX-FS700R
Sony NEX-FS700U
Sony PXW-FS5
Sony PXW-FS5M2
Sony PXW-FS7
Sony PXW-FS7M2
Sony PXW-FX9
Sony VENICE 6K Digital Motion Picture Camera

Mirrorless Cameras
Sony Alpha A1
Sony Alpha A1 II
Sony Alpha A5000
Sony Alpha A5100
Sony Alpha A6000
Sony Alpha A6100
Sony Alpha A6300
Sony Alpha A6400
Sony Alpha A6500
Sony Alpha A6600
Sony Alpha A6700
Sony Alpha A7
Sony Alpha A7 II
Sony Alpha A7 III
Sony Alpha A7 IV
Sony Alpha A7C
Sony Alpha A7C II
Sony Alpha A7CR
Sony Alpha A7R
Sony Alpha A7R II
Sony Alpha A7R III
Sony Alpha A7R IV
Sony Alpha A7R V
Sony Alpha A7S
Sony Alpha A7S II
Sony Alpha A7S III
Sony Alpha A9
Sony Alpha A9 II
Sony Alpha A9 III
Sony Alpha ZV-E10
Sony Alpha ZV-E10 II
Sony QX1
Sony ZV-E1

Other
Thom Alpha A6300

Specifications
Type Macro
Mount Sony FE
Focal length 150mm
Sensor size Full frame
Transmittance T3.0
Aperture blades count 11
Lens composition 12 elements in 9 groups
Focal lenght type prime
Filter diameter 86mm
Front diameter 95mm
Focus type Manual
Minimum focusing distance 0.35m

Viewing angle (horizontal)
Full Frame 13.7°
S-35mm 1.39x - 9.6°
APS-C 1.53x - 9°
APS-C 1.62x - 8.5°
MFT 2.0x - 6.6°

Aperture ring rotation angle 75°
Aperture ring gear pitch 0.8 M
Aperture ring number of teeth 110
Focus ring distance scale metric
Focus ring rotation angle 180°
Focus ring gear pitch 0.8 M
Focus ring number of teeth 119
Weight: 1100 g
