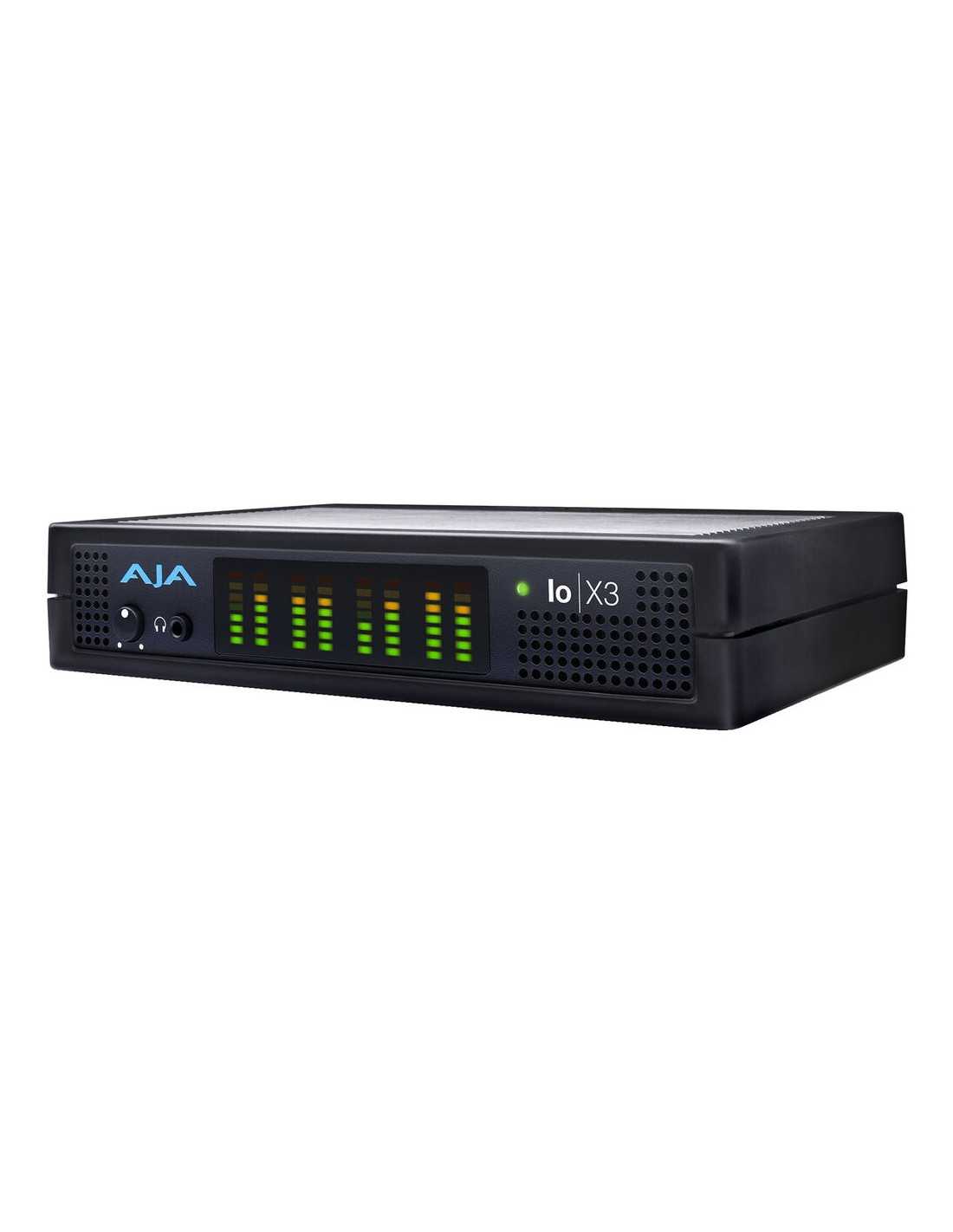

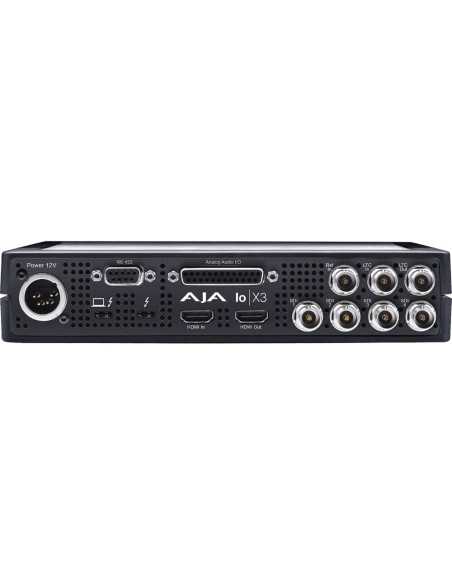

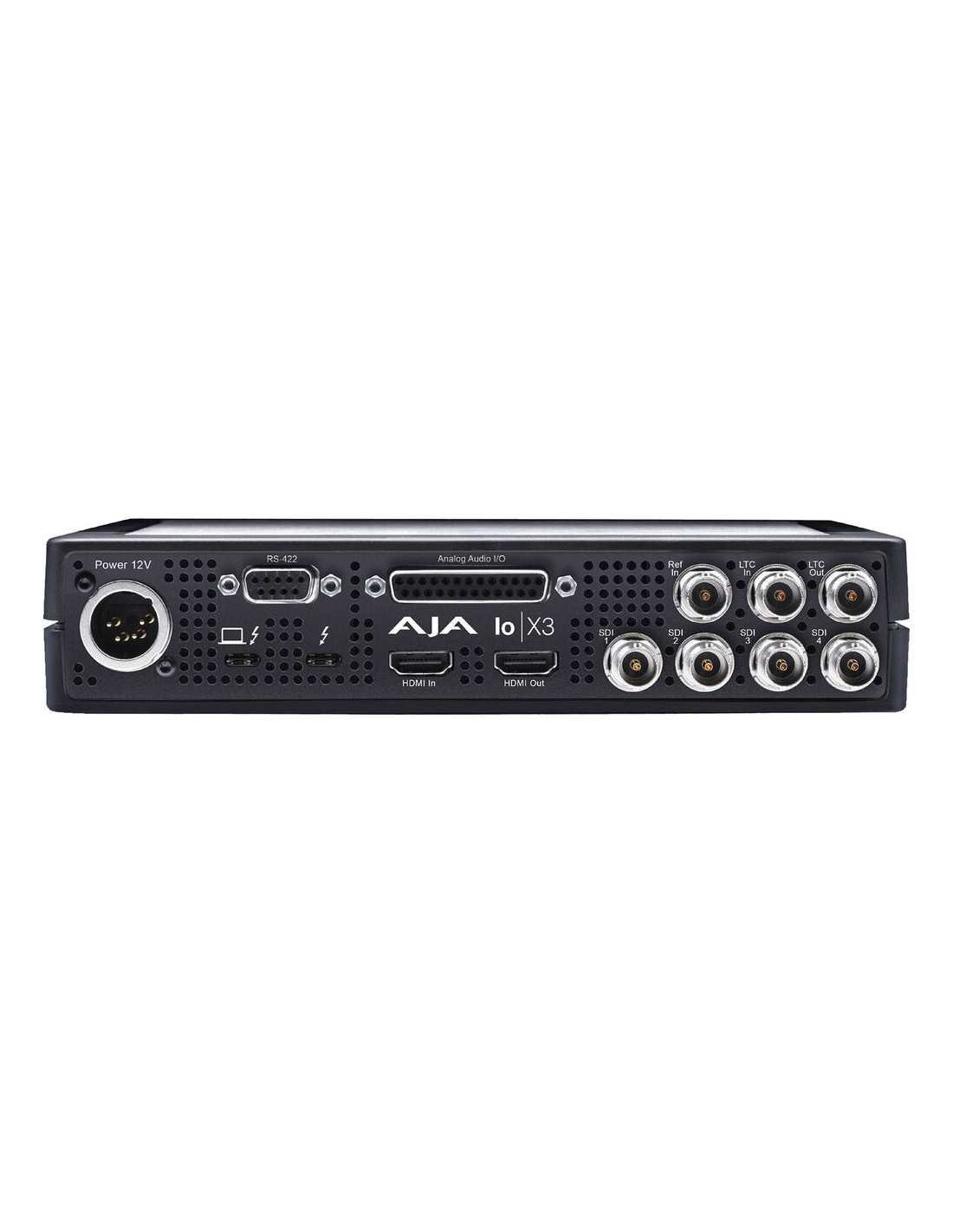

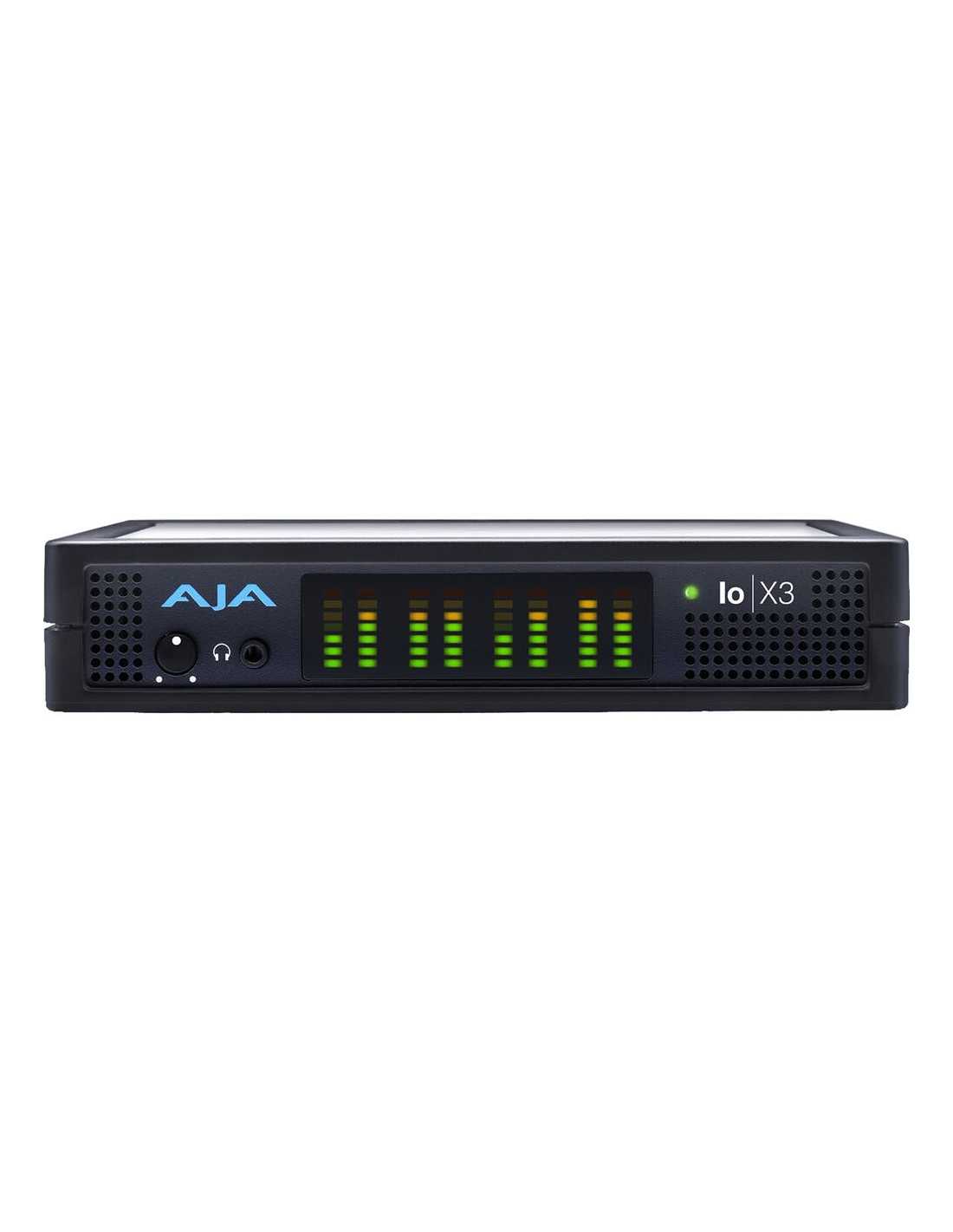

AJA Io X3 Professional Video I/O for Thunderbolt 3

AJA Io X3 is perfect for high quality HDR or SDR video work with up to 60p HD/2K signals or files with support for all major NLE applications as well as other video applications such as OBS Studio, vMix and Telestream Wirecast. Connecting with a single Thunderbolt 3 cable and providing a second Thunderbolt connector for flexibility, Io X3's compact and quiet form factor is ideal for on set, in the studio, at an event or in the edit suite.

Features

• 2K/HD/SD I/O up to 50/60p

• 4x bidirectional 3G-SDI BNC with 16-channel embedded audio

• HDMI I/O with 8-channel embedded audio

• Two Thunderbolt 3 ports with loop through

• Multi-channel workflow support for OBS/Wirecast/vMix and other applications

• YCbCr 4:2:2 10-bit up to 60p

• RGB 4:4:4 12-bit up to 30p

• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI

• PQ, HLG, HDR10, HDR10+ and Dolby Vision Support

• HDR Metadata Capture and Auto Playback Detection

• Multiview output over HDMI, to view up to 4-channels on one screen

• Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out via a standard Tascam connection

• Front panel audio display

• Includes support for the Apple M1 chip and the latest OS versions

• XLR 12V power for battery or AC use (AC adapter included)

• Headphone jack and level control for mobile and live environments

• RS-422 VTR control, Reference, LTC Input and LTC Output
