Mini Converter - SDI Distribution 4K CONVMSDIDA4K

Blackmagic Design Mini Converter SDI Distribution 4K

Blackmagic Design Mini Converter SDI Distribution 4K Single Link SD/HD/3G/6G-SDI Input, 8x Single Link SD/HD/3G/6G-SDI Outputs, Re-Clocked Outputs, Supports SD, HD, UHD 4K & DCI 4K Signals, Automatic Input Signal Detection, Ancillary Data & Embedded Audio, Supports ASI Signals, Control via DIP Switches or Software.

CONVMSDIDA4K

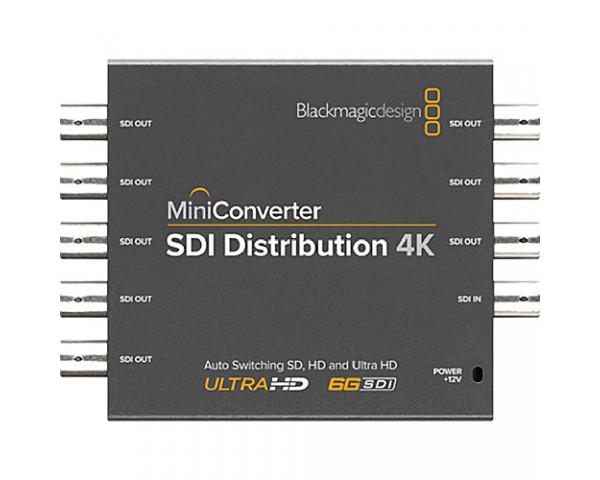

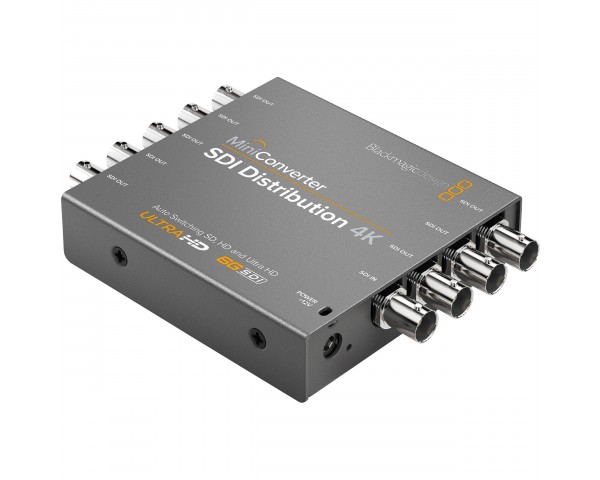

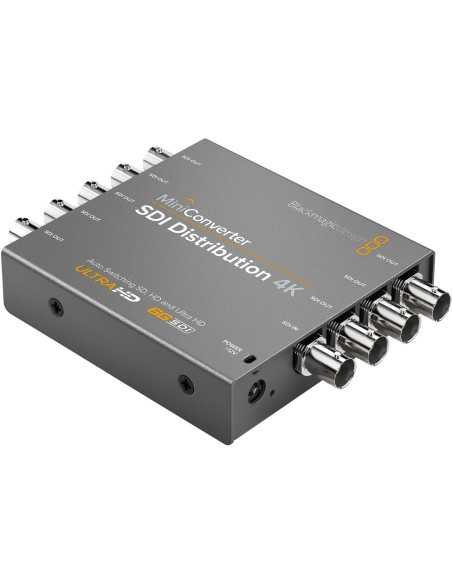

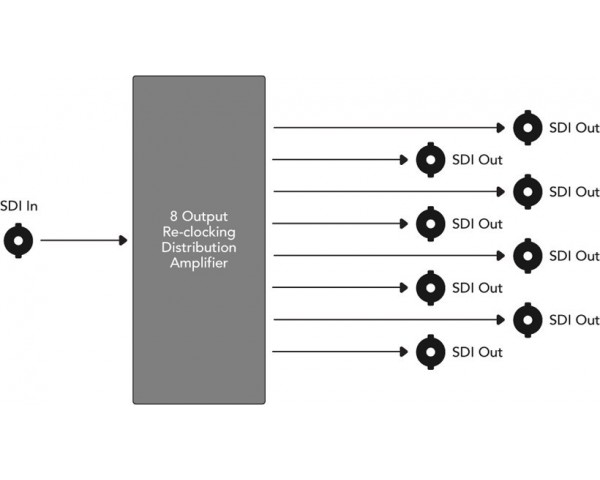

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

Additional Features

4:2:2 and 4:4:4 sampling and color precision
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards

Caratteristiche Tecniche

Video Input	1 x 6G-SDI
Video Output	8 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, or 6G SDI signals
Reclocking	Yes
Format Support	SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
SDI Video Rates	Switchable between SD, HD, and 6G SDI
SDI Video Sampling	4:2:2 and 4:4:4
SDI Audio Sampling	24-bit, 48 kHz
SDI Color Precision	4:2:2 and 4:4:4
SDI Color Space	YUV and RGB
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI
ASI Support	Yes
Settings Control	DIP switches or USB software for Mac PS X and Windows
Firmware Upgradeable	Via USB 2.0
Power Supply	12 VDC
Power Consumption	4.8 W
Operational Voltage Range	12 to 30 VDC
Operating Temperature	32 to 104° F (0 to 40 ° C)
Storage Temperature	-4 to 113° F (-20 to 45 ° C)
Relative Humidity	0 to 90% non-condensing
Dimensions	4.80 x 3.63 x 0.90" (12.19 x 9.22 x 2.29 cm)
Weight	11.88 oz (336.79 g)

Reference CONVMSDIDA4K

Condition New

ean13 9338716002157
