Datavideo KMU-100 4K MultiCamera Production from a single 4K Source

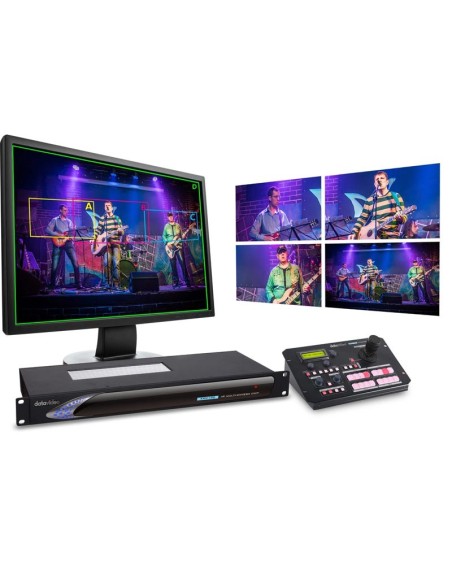

In essence, with KMU-100 a single 4K camera can be used to deliver a true 4-camera HD production, without the need to install, manage, operate and balance multiple cameras. KMU-100 is quick to set up and exceptionally easy to use. It saves time, money and resources: with the KMU-100, all you have to do it set up, cable, power and control just one camera.

As an option, the Datavideo RMC-185 camera controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal.

You can set up shots in advance and save them as presets, or you can do it in real-time.

Features

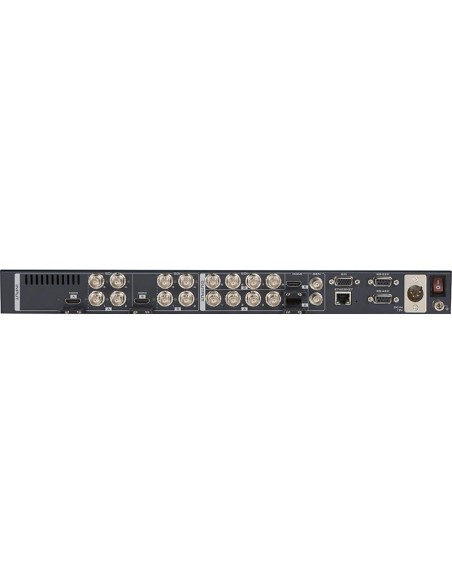

Inputs:

Quad SDI, 6G-SDI or 12G-SDI

HDMI 2.0 Video Input with Support for 3840x2160 (2160p60)

SDI Audio Input (16 Channels)

Blackburst or TriSync

Outputs:

8 x 3G-SDI

2x HDMI 1.4 (Multiview only)

SDI Audio Output (16 Channels)

Computer Interface:

Ethernet RJ45 for Control Configuration and Updates (for Laptop)

RS-232

RS-422

Specifications

Video Input:

2 sets of SDI Input

each set of 4x SDI

1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2

3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2

2 x HDMI Input:

each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2

Supported Video Input Resolution :

3840x2160p 23.98/24/25/29.97/30/50/59.94/60

1080p 23.98/24/25/29.97/30

1080i 50/59.94/60

1080PsF 23.98/24/25/29.97/30

720p 50/59.94/60

Video Output :

2 sets of SDI output:

each set of 4x SDI

1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2

3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2

Support Video Output Resolution:

1080p 25/29.97/30/50/59.94/60

1080i 50/59.94/60

720p 50/59.94/60

625/50i PAL, 525/59.94i NTSC

Multiview Out  HDMI 1.4 x2

Multiview Mode  Preview, Motion, Quad

Audio Input :

SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD

HDMI: 8 Ch embedde in SD, HD and Ultra HD 4K

Audio Output :

SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD

HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K

Audio Sampling:

Television standard sample rate of 48 kHz at 24-bit

Reference Input :

Blackburst, Tri-level

Control Interface :

Ethernet RJ45 for control, configuration and updates

RS-232 x 1 input for controlling configuration

RS-422 x 1 input with external keyboard support

GPIO x1

Controller: RMC-185/RMC-185+

Dimension (LxWxH) 484 x 192 x 49 mm

Weight  3.2 kg

Power Supply DC 12V, 5A

Operating Temp. Range 0~40 °C

What's in the box :

1 x KMU-100 Main Unit

1 x AD Switch DC 12V with AC Cord

4 x Screw

1 x Thank You Card
