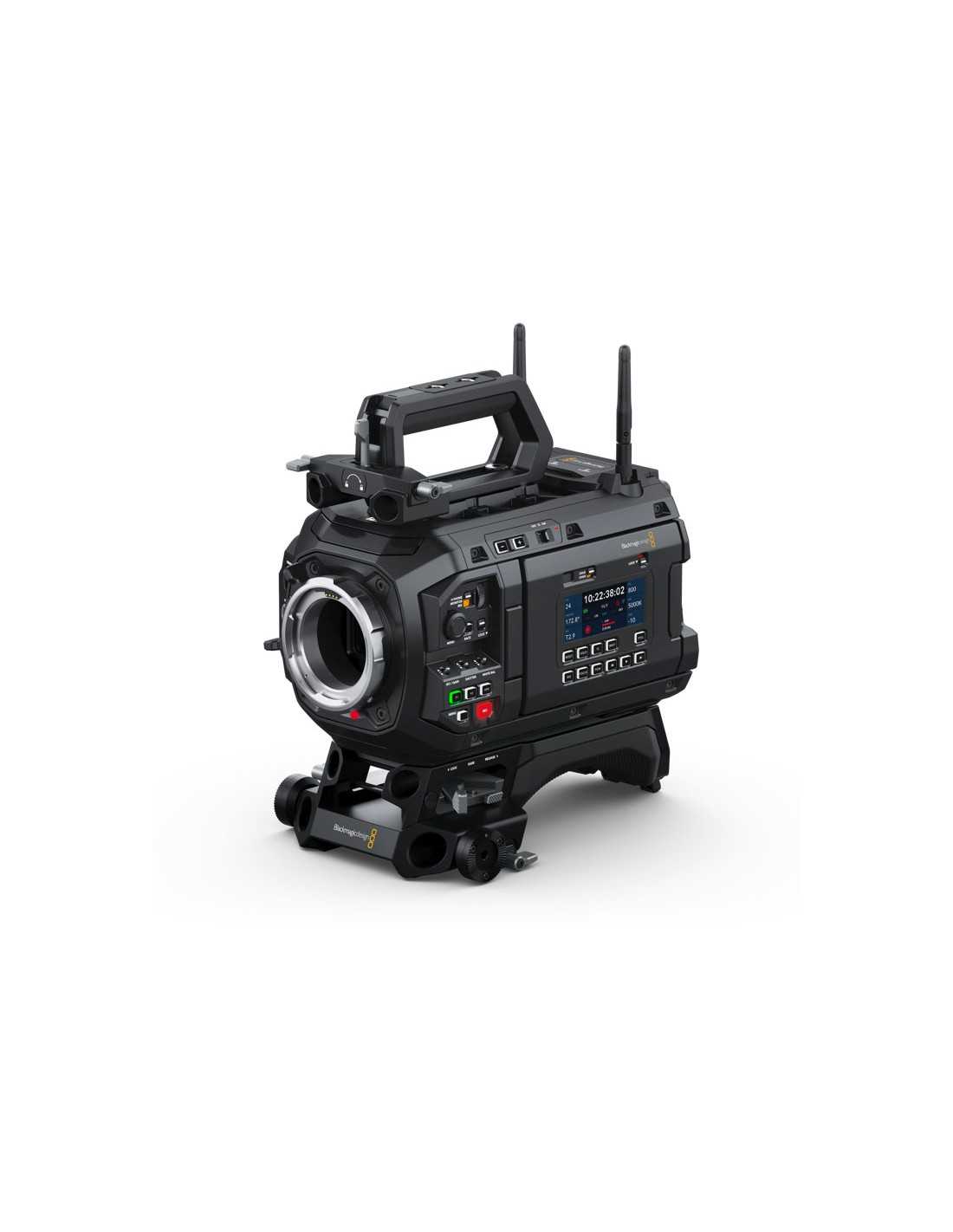

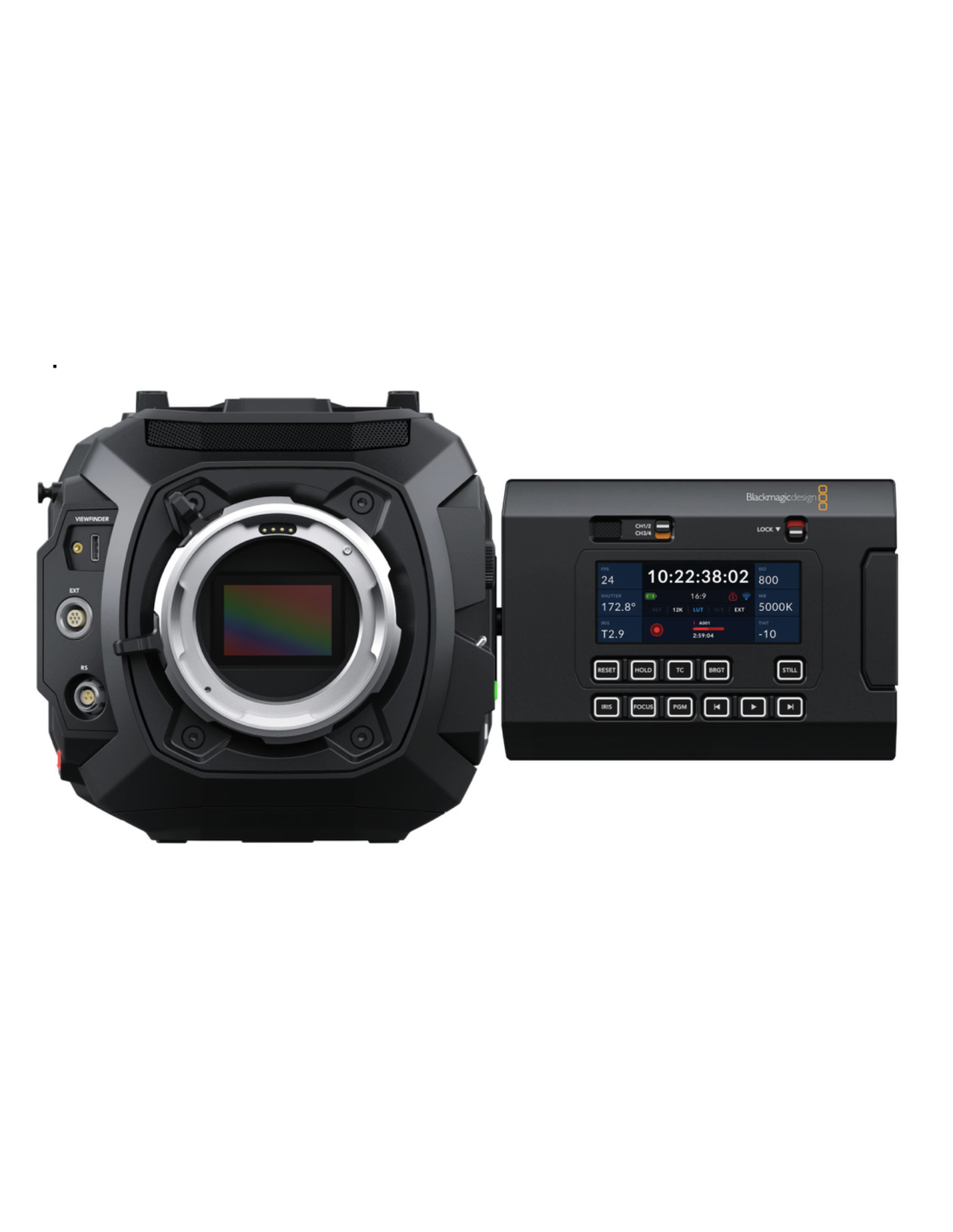

Blackmagic Design URSA Cine 12K Camera (PL Mount)

Product code
CINEURSAA12KLF
EAN
9338716008647
Available to Pre-Order
Read our reviews
€13,625.00
( €13,625.00 + IVA )

Blackmagic Design URSA Cine 12K Camera (PL Mount), 12K large format full-frame sensor, 16 stops of dynamic range, Blackmagic Raw up to 12K 3:2 Open Gate, includes top handle EVF kit, streaming via RTMP / SRT via Wi-Fi/RJ45/USB-C, integrated 2/4/6-stop transparent IRND filters, integrated 5" 1,500 cd/m² foldable monitor, 12G-SDI output, USB-C expansion ports, Timecode/ REF, LEMO/Fischer control ports, 2 x 3-pin balanced XLR audio inputs, 8TB Blackmagic memory module, with custom Pelican 1510 foam case.

Includes DaVinci Resolve Studio for Mac and Windows

Talk to an expert
Whatsapp Live Chat

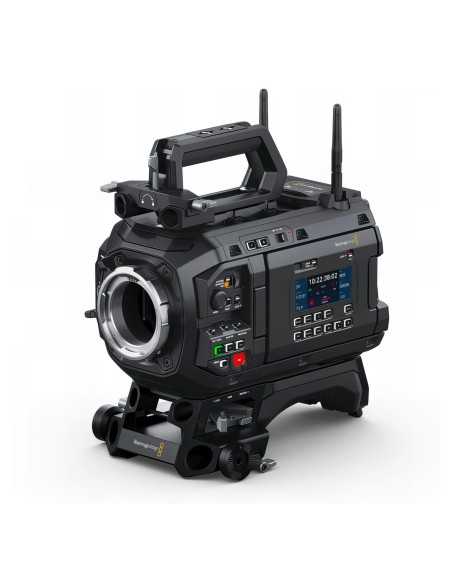

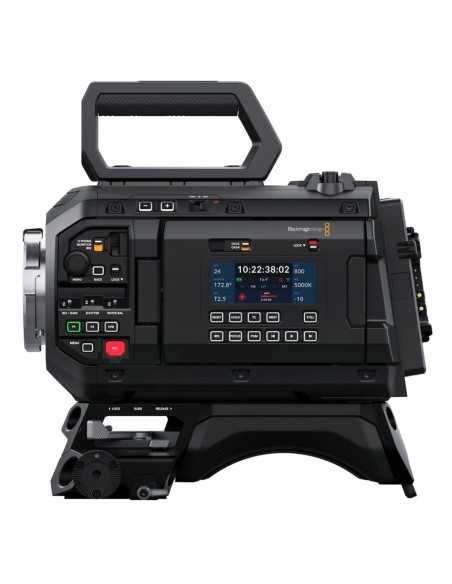

Blackmagic URSA Cine 12K is a revolutionary digital film camera that combines the latest imaging technology and seamless integration into the production workflow. The new model includes a new large 36 x 24mm RGBW sensor with larger photosites and 16 stops of dynamic range, interchangeable PL, LPL and EF lens mounts, and professional Lemo and Fischer connections. Blackmagic URSA Cine 12K integrates a super-performance 8TB internal storage and high-speed network connection to upload files and synchronize them on Blackmagic Cloud.

URSA Cine features a revolutionary new sensor designed to produce stunning images in all resolutions from 4K up to 12K. The large sensor is based on the technology of the URSA Mini Pro 12K with large photosites that reach 16 stops of dynamic range. The revolutionary RGBW architecture provides equal amounts of red, green and blue pixels. It is therefore optimized to provide intense colors in any resolution, guaranteeing unparalleled flexibility and image quality.

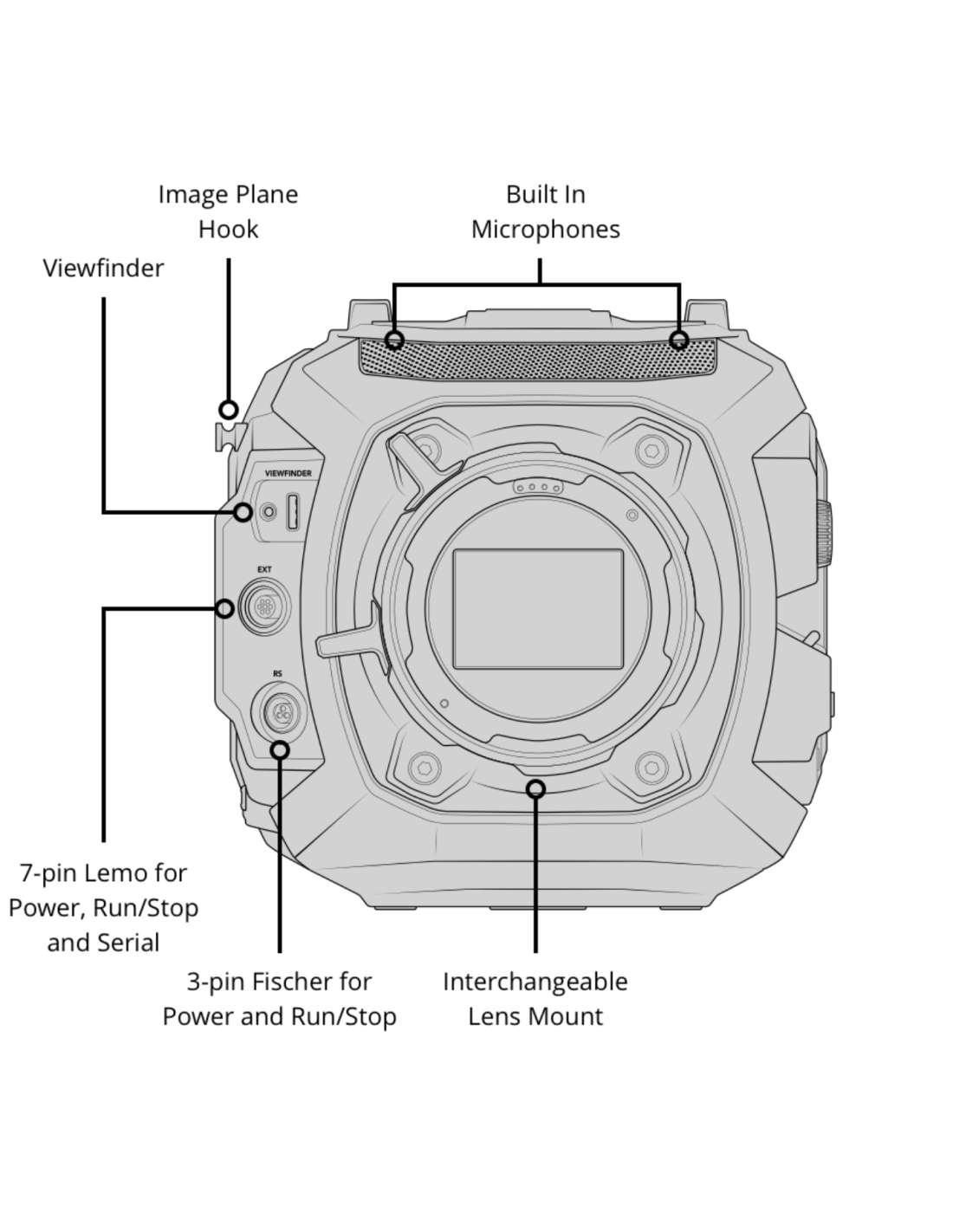

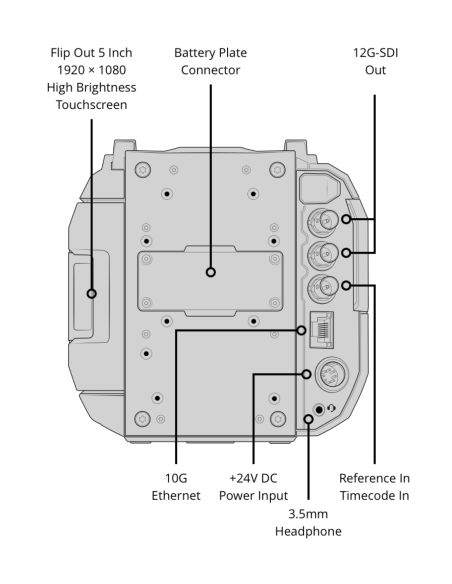

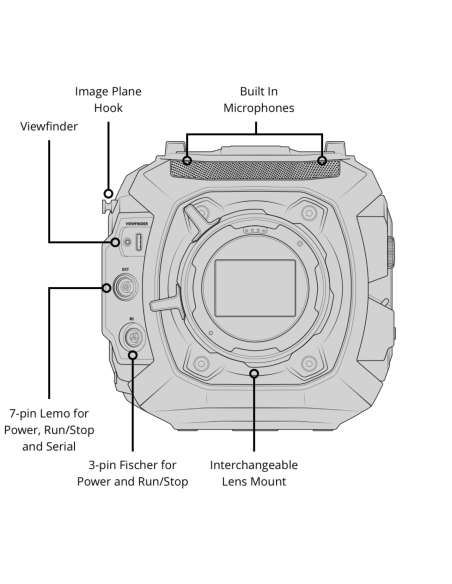

URSA Cine is designed for the needs of high-end productions. The balanced camera body is made of a durable magnesium alloy chassis covered in a lightweight carbon fiber and polycarbonate composite, ideal for facilitating rapid movement on set. The professional Lemo and Fischer connectors allow you to control the camera remotely and provide power to motorized lenses and other accessories. There is no shortage of 10G Ethernet connections, USB-C, XLR audio and a 12G-SDI output.

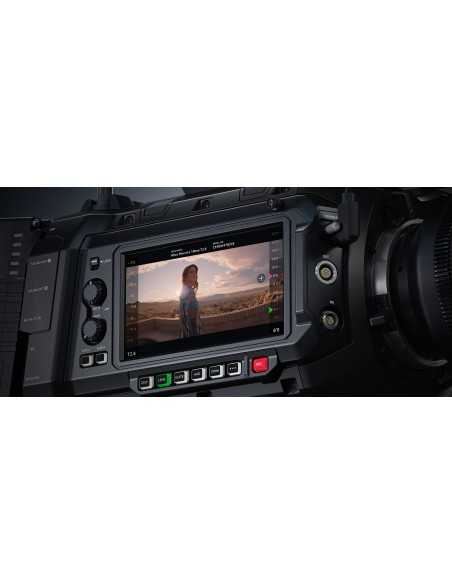

HUD display

The HUD display overlays key information, including frame rate, aperture, timecode, shutter angle, white balance, ISO and audio levels. To view or hide them, just move your finger up or down on the display. For example, you can change the white balance by tapping WB or adjust the audio by tapping the level indicators. Each element of the display is interactive, so you can manage settings instantly instead of navigating complicated menus.

Monitoring options

URSA Cine allows you to enable and disable various monitoring tools by tapping their icon on the monitor and adjust them using the on-screen options. Among others, you can define the settings of various tools: zebra to control exposure or medium gray, focus assist, guides and grids.

Frames per second

Capture dynamic high-speed or slow-motion effects by setting different frame rates for your project and sensor. Tap FPS to change the project's frame rate, or playback speed, then enable sensor off-speed recording to capture images at reduced or accelerated speed.

Shutter angle

No other camera offers more intuitive shutter angle controls than the URSA Cine. Use them to manage blur or compensate for variations in light. Select the most common values, enter them manually or let URSA Cine suggest the ideal solutions to avoid flickering.

Diaphragm

Easily adjust the iris to manage the amount of light passing through the lens. If you use an automatic lens, tap IRIS to view compatible options and configure different exposure modes.

Timecode

The timecode indicator at the top center displays all the information you need at a glance. It shows the duration of the clips - lighting up red while recording - and the timecode. It also displays status indicators when the sensor is in window mode, time of day timecode, external timecode, and more.

Blackmagic Cloud

If you are recording to Blackmagic Cloud, the name of the selected project will appear above the timecode in the camera's HUD display, colored blue when you are connected to the internet and gray if you are offline but recording to a project ready to be uploaded. The next time you record a clip or connect to the internet, the camera will automatically begin uploading files to the selected Blackmagic Cloud project.

ISO

URSA Cine is extremely sensitive to light to always guarantee the best images in all conditions. Tap ISO to select the desired values instantly and see how the image changes in real time, without constantly switching between screens.

White balance and tint

With URSA Cine it takes just a moment to adjust the white balance. Tap WB to see a list of the most common default temperatures including direct sunlight and, incandescent and fluorescent. You can enter the values manually and compare them with the predefined ones by cyclically touching the appropriate icon. Use a white card to self-balance and perfectly compensate for any lighting conditions.

Streaming info

During live streams you can see the type of connection currently in use, for example ethernet, integrated wi-fi or 4G/5G phone. A counter indicates the duration of the streaming and the data rate measured in megabits per second.

Power

On URSA Cine the battery indicator at the top right of the HUD shows the remaining charge as a percentage, bars or voltage. When the camera is connected to the power, the indicator displays AC or indicates that the battery is charging.

Advanced digital clapperboard

The digital clapperboard offers extraordinary features that optimize the insertion of shot metadata. To open it, just move your finger left or right on the screen. Plus, when you start and stop recording, URSA Cine automatically increments the take number, so you don't have to change it manually. Even when you format the card the number under film progresses automatically. Electronic lens metadata is read by default, or can be entered manually along with other specific information. All metadata are saved with the respective files and are accessible during editing and color correction on software such as DaVinci Resolve.

Innovative dashboard for total control

The URSA Cine dashboard features six elegant, easy-to-use tabs that give immediate access to all camera functions. In the Record, Monitor, Audio, Setup, Preset and LUT tabs you manage each option with a touch of your finger. The refined interface design organizes the items in a logical and intuitive way to immediately learn where the settings are and how to change them.

shooting settings

The Record tab opens to a revolutionary, fast interface where you can select format, resolution, frame rate and more. Simply tap on the desired resolution and aspect ratio parameters and you will see the relevant available Blackmagic RAW compression options appear below them. The tab also allows you to select the Video, Extended Video, or Film dynamic range. You can set the sensor mode, frame rate, recording options to storage media, time lapse effect, and more.

Versatile monitoring

The Monitor tab offers complete control of the images that appear on the LCD display, the viewfinder output and the two SDI outputs. Each output can have its own overlays. For example, you can send the clean feed or apply zebra, focus assist and framing guides to one or all outputs. You can set the resolution and choose LUTs, and resize the image so that the overlay entries appear around the image instead of overlaying it. With URSA Cine you can also monitor the anamorphic format without deformation! What's more, you have the option to decide who to send different status information to as needed, for example to the cinematographer or director, across the different outputs.

Professional audio

Adjust audio levels directly from the interactive HUD display, or open the Audio tab of the dashboard to access full controls. You can select the camera's microphone input or XLR input, adjust headphone, speaker and microphone levels, low cut filter and more. Choose whether to use microphone or line levels for channels 1 and 2, enable 48V phantom power for microphones without their own power supply and manage the gain of each input.

Quick setup

URSA Cine optimizes setup times and is immediately ready to use. In the Setup tab of the dashboard you can set the server for date and time, choose the language, shutter and light sensitivity parameters, the electrical system, timecode and more. Furthermore, if you want to create a wireless connection for remote monitoring of a shoot, you can stream via a Blackmagic ATEM Streaming Bridge, a decoder that converts the H.264 video stream to SDI video. You can even customize the external F1 and F2 buttons to operate presets, move through options, or enable/disable different functions.

Create configurations

Each user and production requires a different configuration. Thanks to the specific Preset tab in the dashboard, URSA Cine allows you to create and save 12 configurations ui USB disks or on CFexpress cards, which can also be used on other cameras to work with the same settings. If you switch between cameras often, save your preset setup to a CFexpress card or USB-C disk and load it into any URSA Cine to get the shots you want.

Integrated 3D HDR LUTs

3D LUTs are used to modify the color of the output content, allowing the director and director of photography to see the images with a particular look during shooting. LUTs are extremely useful for shooting RAW or Dynamic Range Film, which tend to flatten images. It is a simple and effective system for viewing images with a semi-final aesthetic, as if the color had already been corrected in post production on DaVinci Resolve. With URSA Cine you can apply your choice of 3D LUTs to the LCD touchscreen, viewfinder or SDI outputs and use them for high-end film productions.

Features of Blackmagic URSA Cine 12K

  • Large cinematic sensor with 16 stops of dynamic range
  • Lightweight and robust design with professional connections
  • PL and EF locking attachments included as standard and optional LPL attachment
  • Blackmagic RAW for real-time 12K editing
  • Fifth Generation Color Science with a New Film Curve
  • High performance OLPF filter to reduce moiré effect and aliasing
  • Built-in ND filters for filming in any situation
  • Capture at 80 fps in 12K, 144 fps in 8K and 240 fps in 4K
  • High performance 8TB Blackmagic Media Module for internal recording
  • Recordings compatible with Blackmagic Media Dock
  • High speed WiFi, 10G Ethernet or mobile data connection
  • Integrated RTMP and SRT protocols for live streaming
  • Blackmagic URSA Cine EVF optional
  • DaVinci Resolve Studio for post production included.

Package contents

  • Blackmagic URSA Cine 12K body
  • Blackmagic URSA Cine Mount PL (installed)
  • Blackmagic URSA Cine Mount EF and screws
  • 8TB Blackmagic Media Module
  • URSA Cine handle and bolts
  • URSA Cine 15 upper pole holder
  • URSA Cine 19 baseplate
  • Foldable plastic screen for 5" service station.
  • URSA Cine B battery plate holder
  • Wi-Fi antennas
  • URSA Cine PL body cap
  • URSA Cine EF body cap
  • Rubber caps for connectors
  • Power supply +24Vdc 250W
  • DaVinci Resolve Studio with activation key
  • Welcome wallet with QR code to download the software
  • Blackmagic sticker

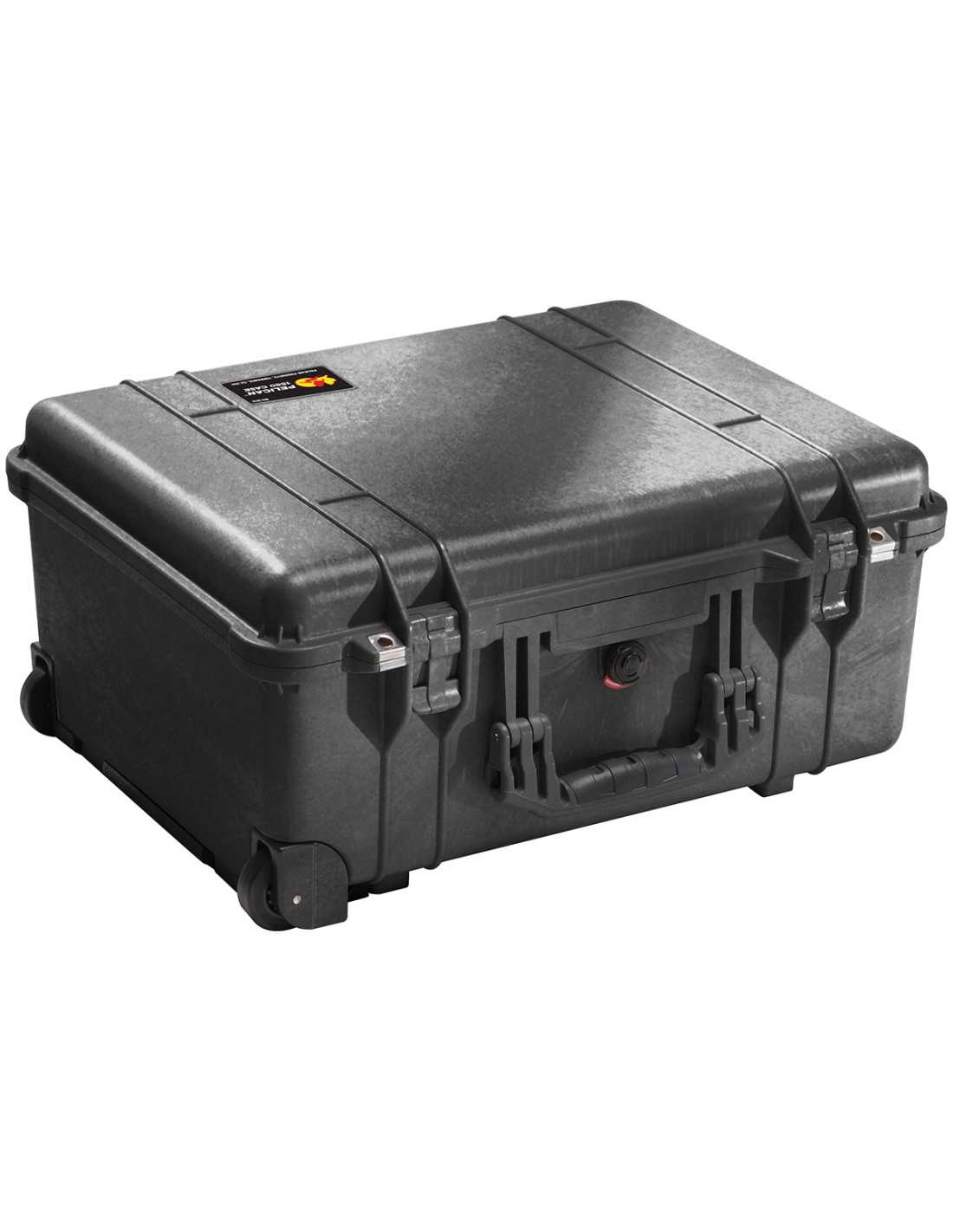

  • Personalized Pelican 1510 foam case
Application
Digital Cinema
Video Resolution
12K
Sensor Size
Full-Frame
Media Format
Digital Interface
12G-SDI
Codec
BRAW
CINEURSAA12KLF
9338716008647
