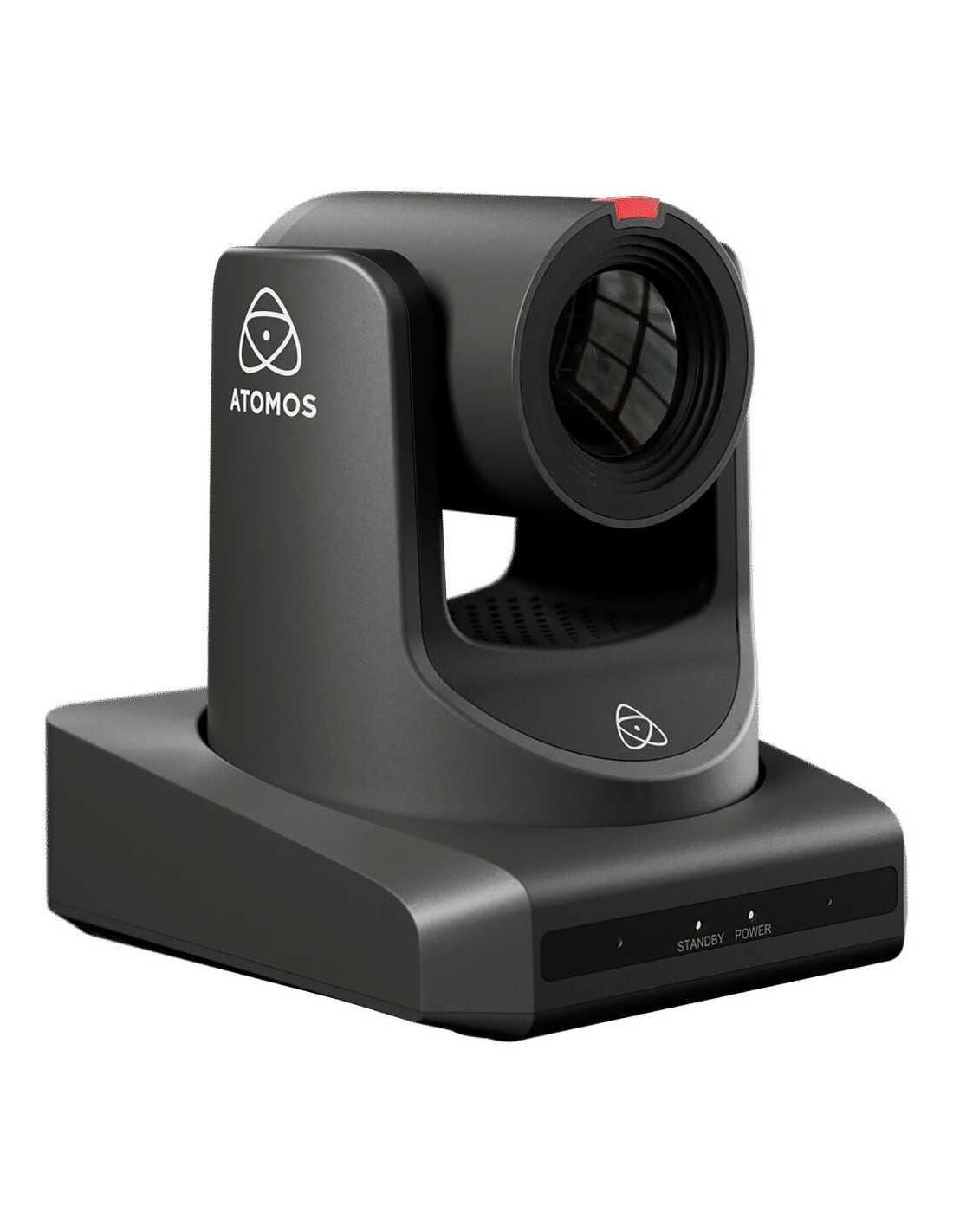

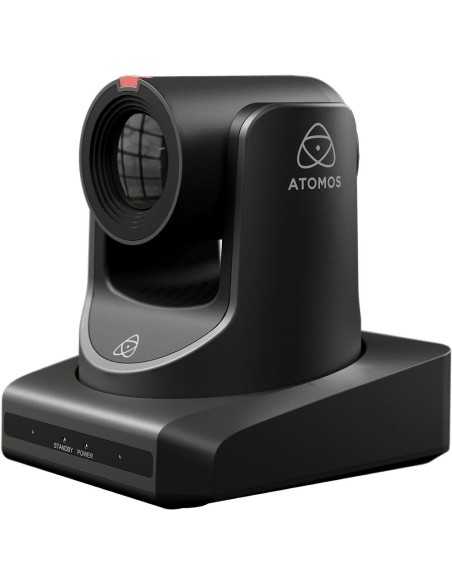

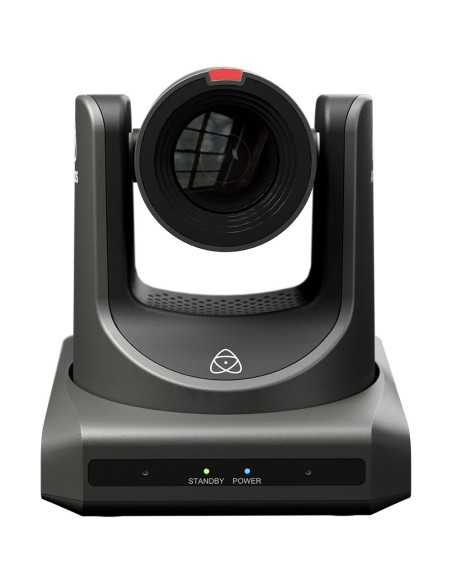

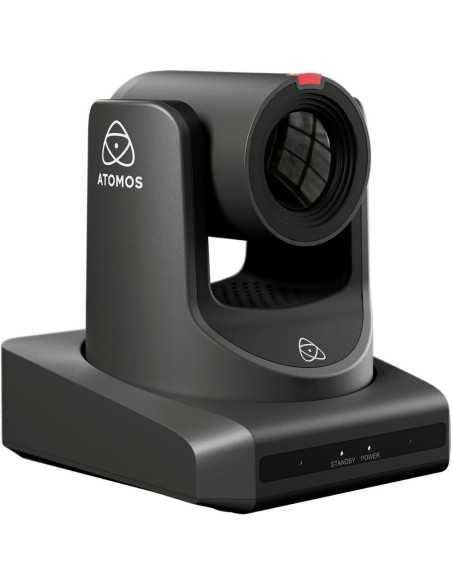

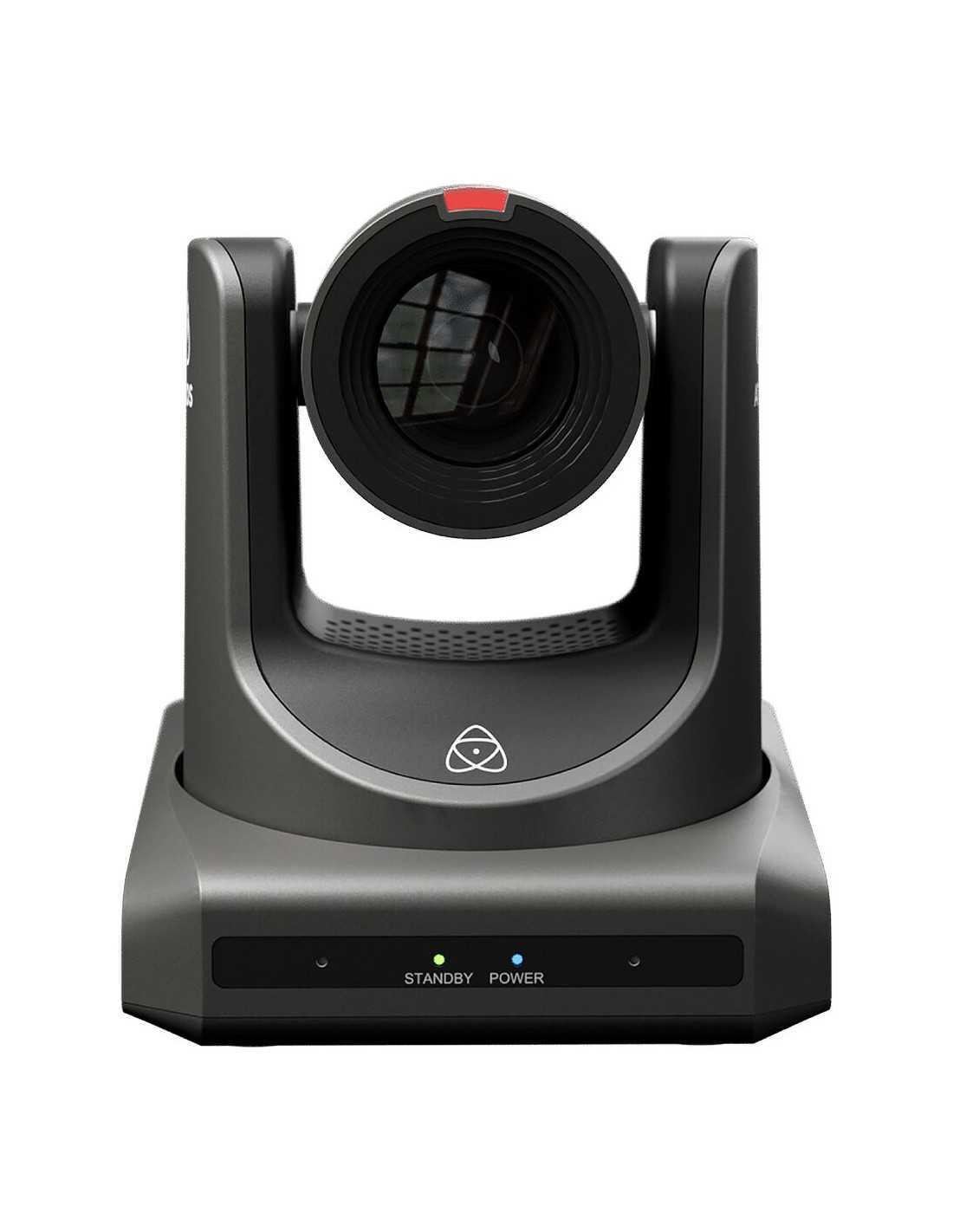

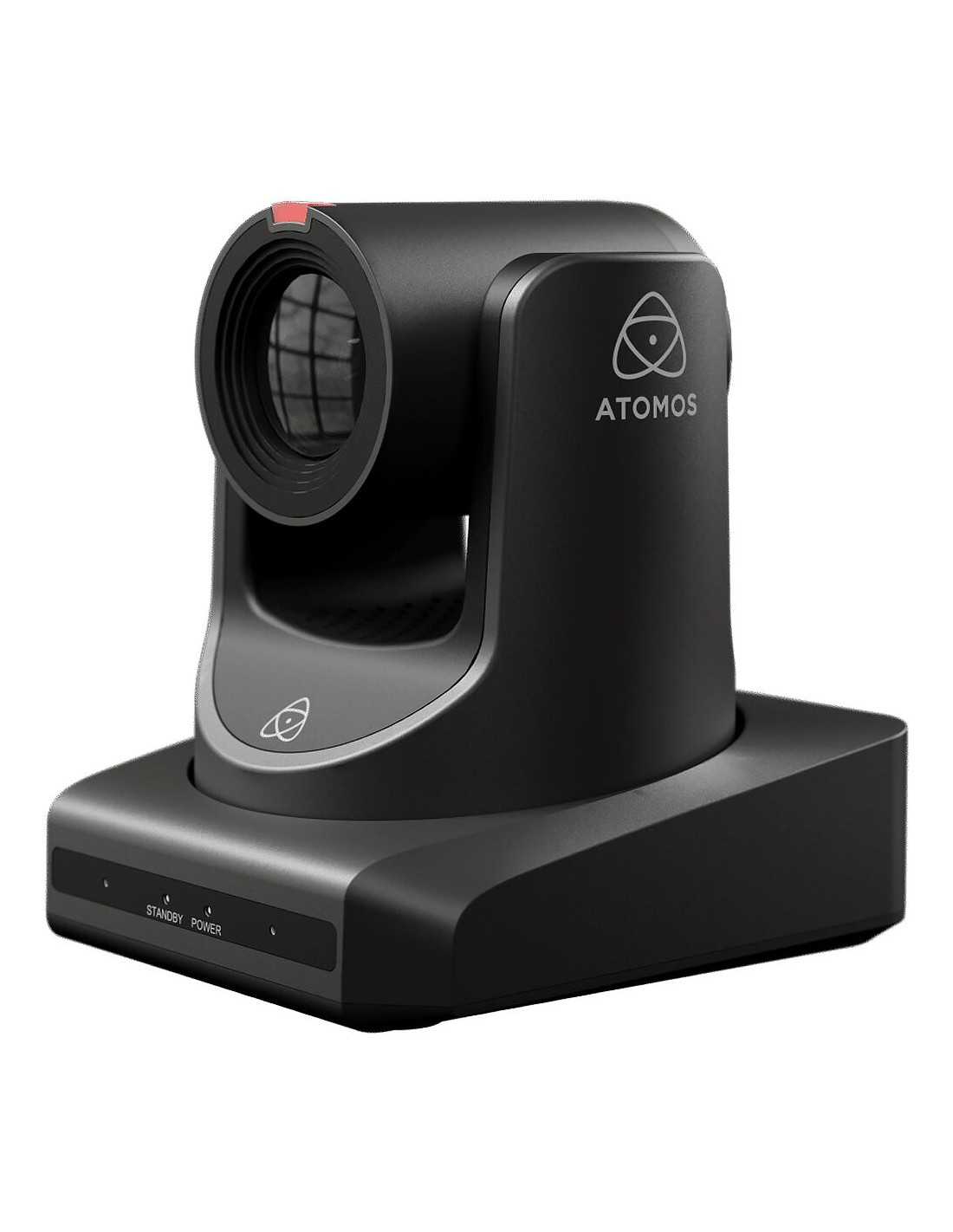

Atomos A-Eye HD-20X PTZ Camera with 20x Optical Zoom

Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the A-Eye HD-20X PTZ Camera with 20x Optical Zoom from Atomos. The A-Eye HD-20X camera captures HD resolutions up to 2K60 (2048 x 1080) over IP, HDMI, USB-A, and 3G-SDI, and it features AI auto-tracking for presentations where your subject moves around the room. It is great for education, how-to videos, and corporate environments without the need for an operator. It also includes a license for NDI|HX3 high-quality, low-latency streaming networks.

The built-in zoom lens has an optical zoom range of 20x and further 16x digital zoom for closer shots. You can remotely control the camera to rapidly move between positions using IP or RS-485 with a separately available controller. Video output is compressed using H.265, H.264, or MJPEG formats. The camera features a built-in mic and supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by power adapter or via PoE+ (Power-over-Ethernet) on a supported network.

Quick Features

• 1/2.8" CMOS sensor
• Effective pixels: 2.07MP up to HD 2K60
• Includes NDI|HX3 license
• 20x optical zoom, 16x digital zoom

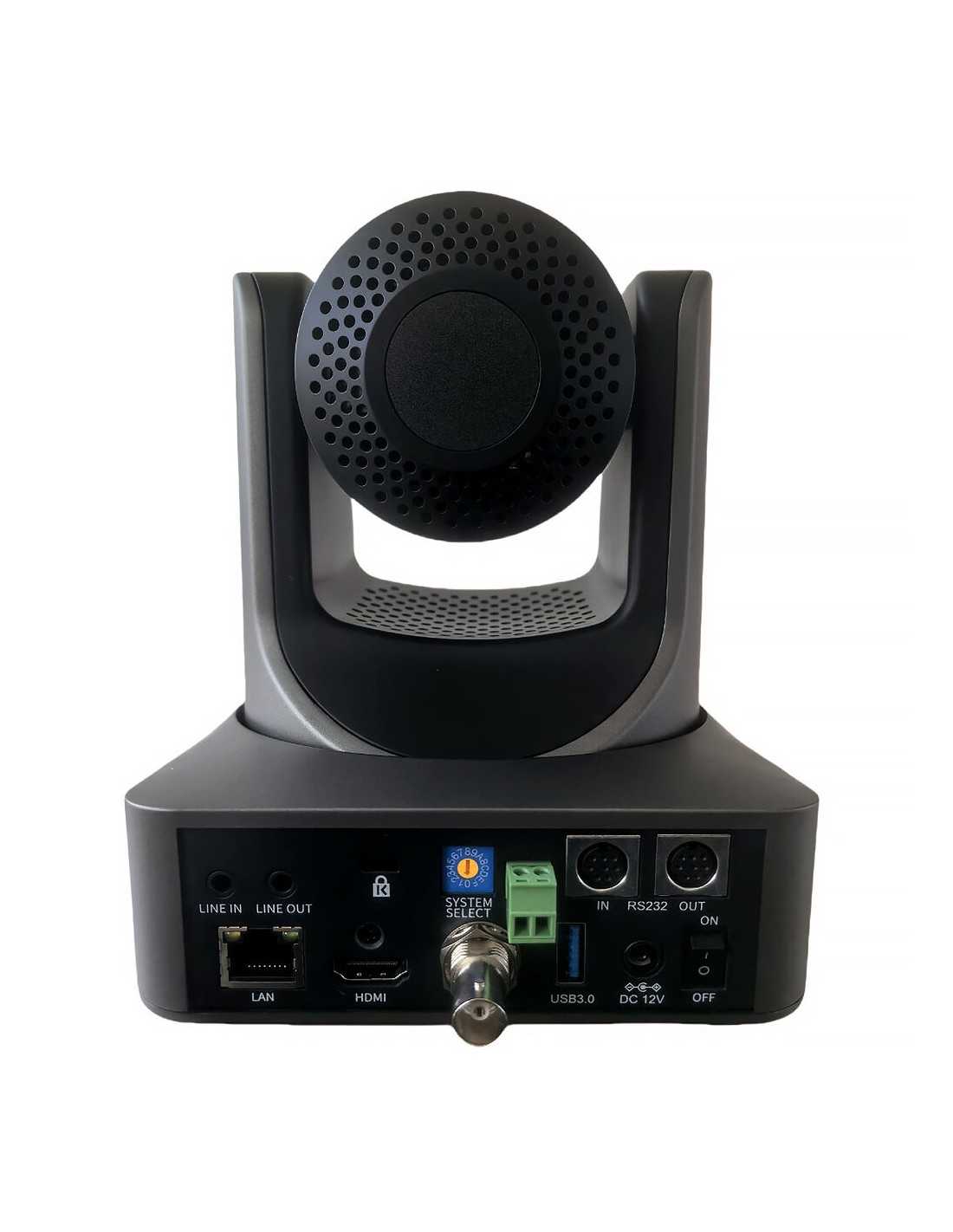

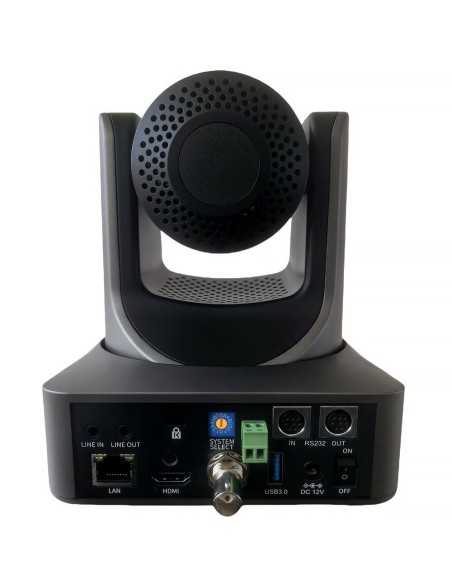

• HDMI, 3G-SDI, USB-A 3.0, and IP outputs
• 3.5mm stereo audio in/out and built-in mic
• RS-232 serial in/out
• UVC, RS-485 serial, and IP VISCA control
• Supports H.265/H.264/MJPEG compression
• DC and PoE+ support
• Tally lights
• AI tracking
• For education, houses of worship, and budget-friendly productions

NOTE: USB 3.0 outputs video but does not support recording

Items Included

• A-Eye HD-20X PTZ camera
• RS-232 serial cable (2m)
• USB 3.0 A-A cable (1.5m), lens cover
• Remote controller
• Accessory tray
• Wall mount rack
• Screw pack
• Power adaptor with 4 plugs
• Quick Start Guide
