Edelkrone SliderPLUS v6 – Motorized Heavy-Duty Slider with up to 90 cm Sliding Range

The Edelkrone SliderPLUS v6 is a heavy-duty motorized slider with up to 36 inches of travel. From the inventors of the Dual Distance Slider comes a new benchmark in motion control: the SliderPLUS v6, featuring a fully integrated motor, HyperAxial support, and flawless vertical performance.

Why Edelkrone

The Edelkrone is designed for filmmakers who value flexibility and efficiency. Since 2008, the company has been dedicated to developing innovative and unique tools that make capturing extraordinary images easier and more intuitive.

From sliders and stands to advanced camera movement control systems, Edelkrone offers solutions for every type of filmmaker and photographer.

The mission is simple: to design products that enhance the user experience.

As video production continues to evolve at a rapid pace, Edelkrone remains at the forefront of innovation. His deep understanding of visual storytelling and commitment to reshaping production workflows enable filmmakers to stay competitive and create compelling, impactful content.

Key Features

• Magically Portable

• Integrated Precision Motor

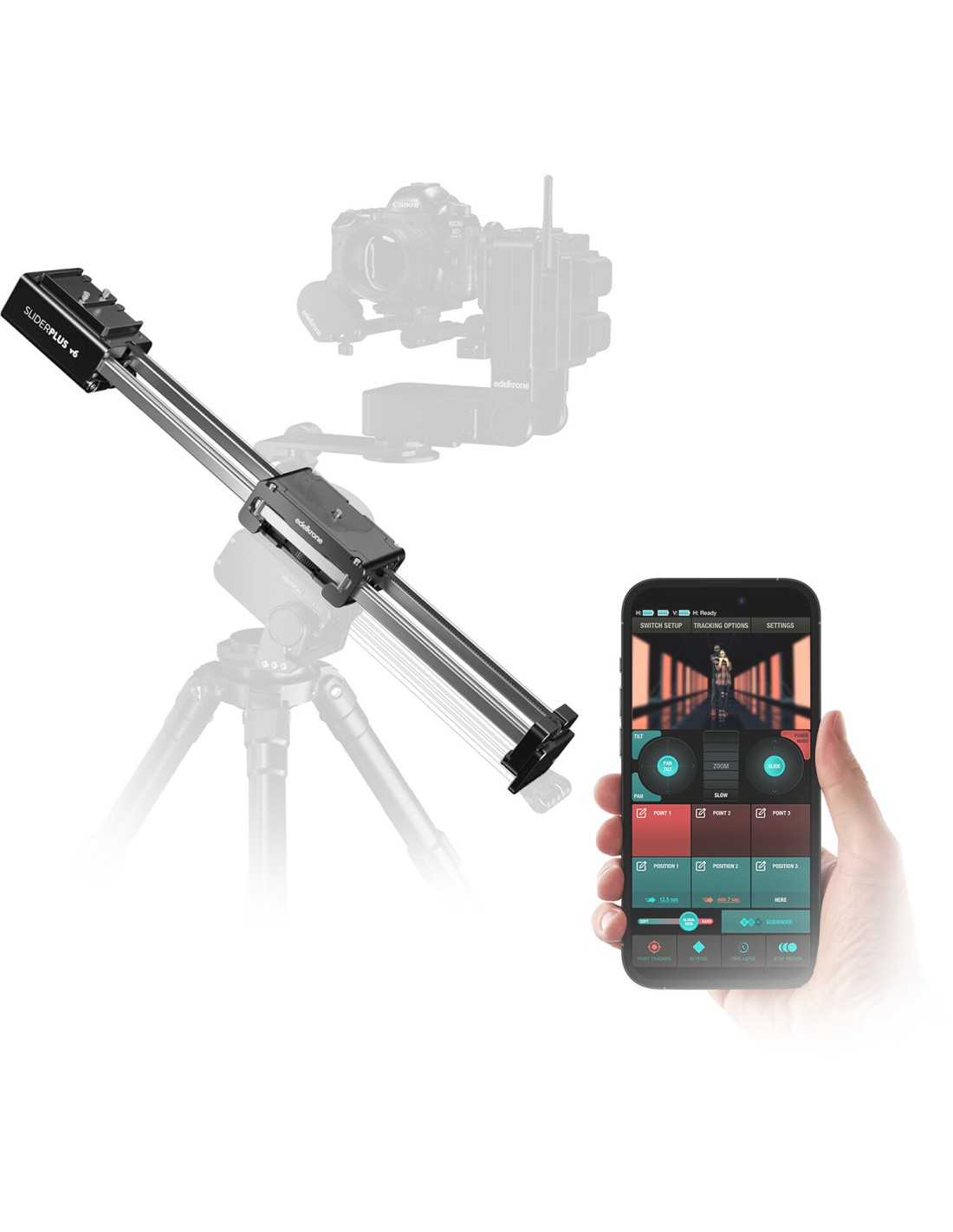

• Support for Apps, Controllers, and Handheld Controls

• Wireless Connectivity with Edelkrone Heads

• Ultra-Quiet Operation

• Tripod Load Capacity Up to 11kg (Supports All Camera Types)

What's New in Version 6

Integrated Motorized Design

The motor is now fully integrated: no assembly, no external modules, and no setup time. configuration.

Faster and more powerful motor

Significantly improved motor speed and torque for faster, smoother, and more stable movement.

Improved belt and pulley mechanism

No more belt changes, no more shocks due to belt memory, and no more slippage due to loose motor connections.

Smooth, reliable performance every time.

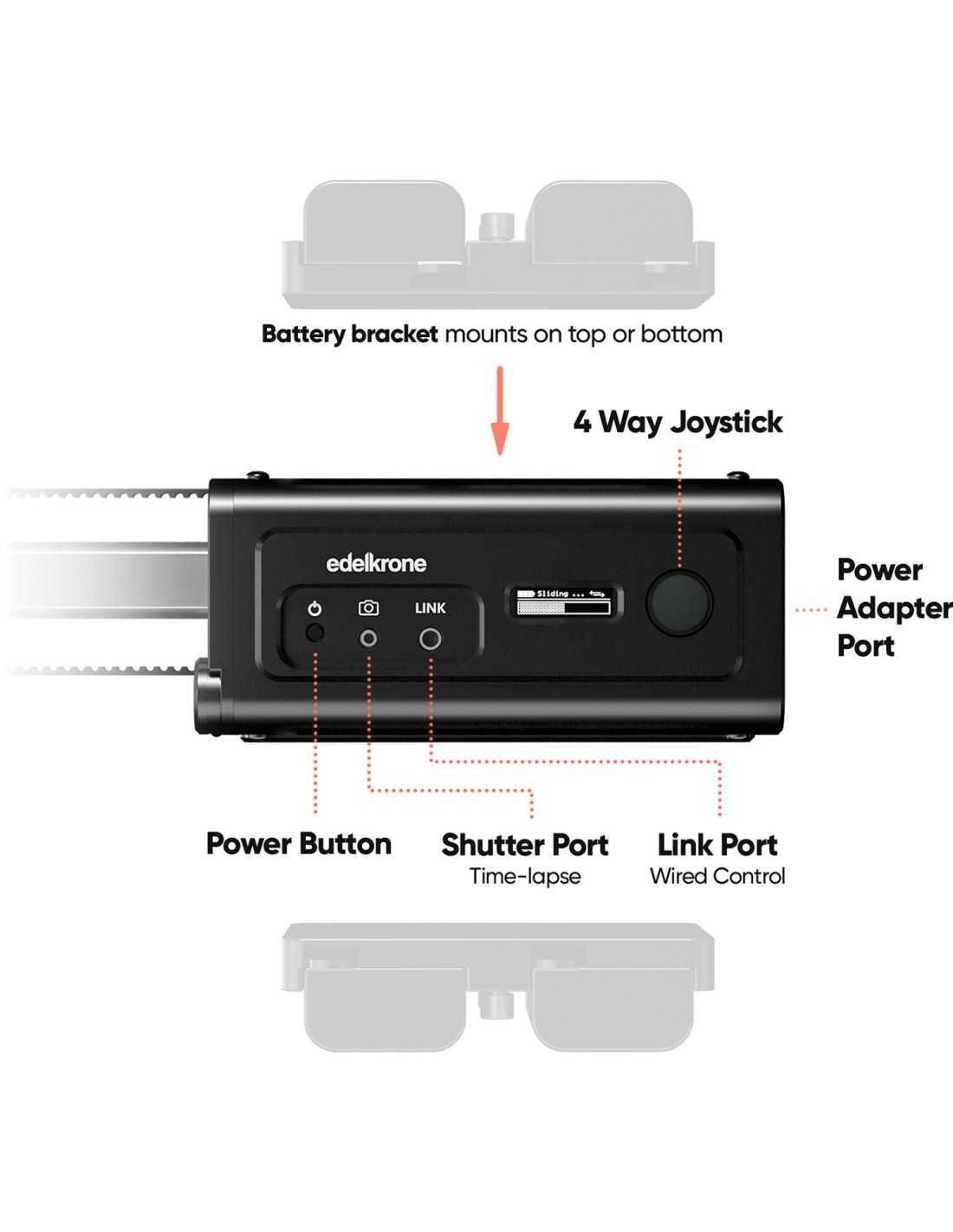

Manual control buttons

On-device buttons allow direct manual movement with adjustable speed and acceleration, without the need for an app or programming.

HyperAxial-Ready – Advanced 5+1-axis integration

Compatible with additional motion control modules such as DollyPLUS, allowing True 5+1-axis operation.

Perfect for synchronized scrolling, tilting, panning, and tilting over long distances.

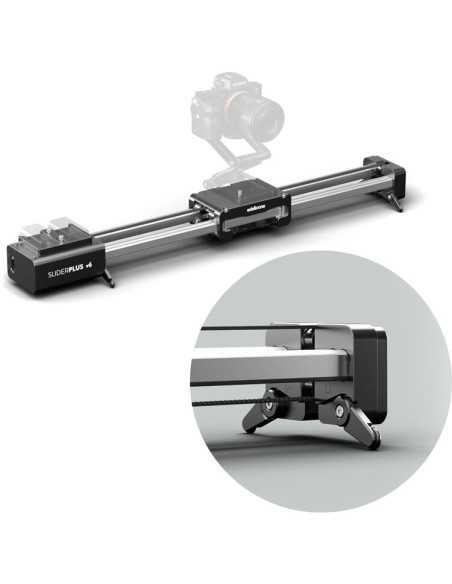

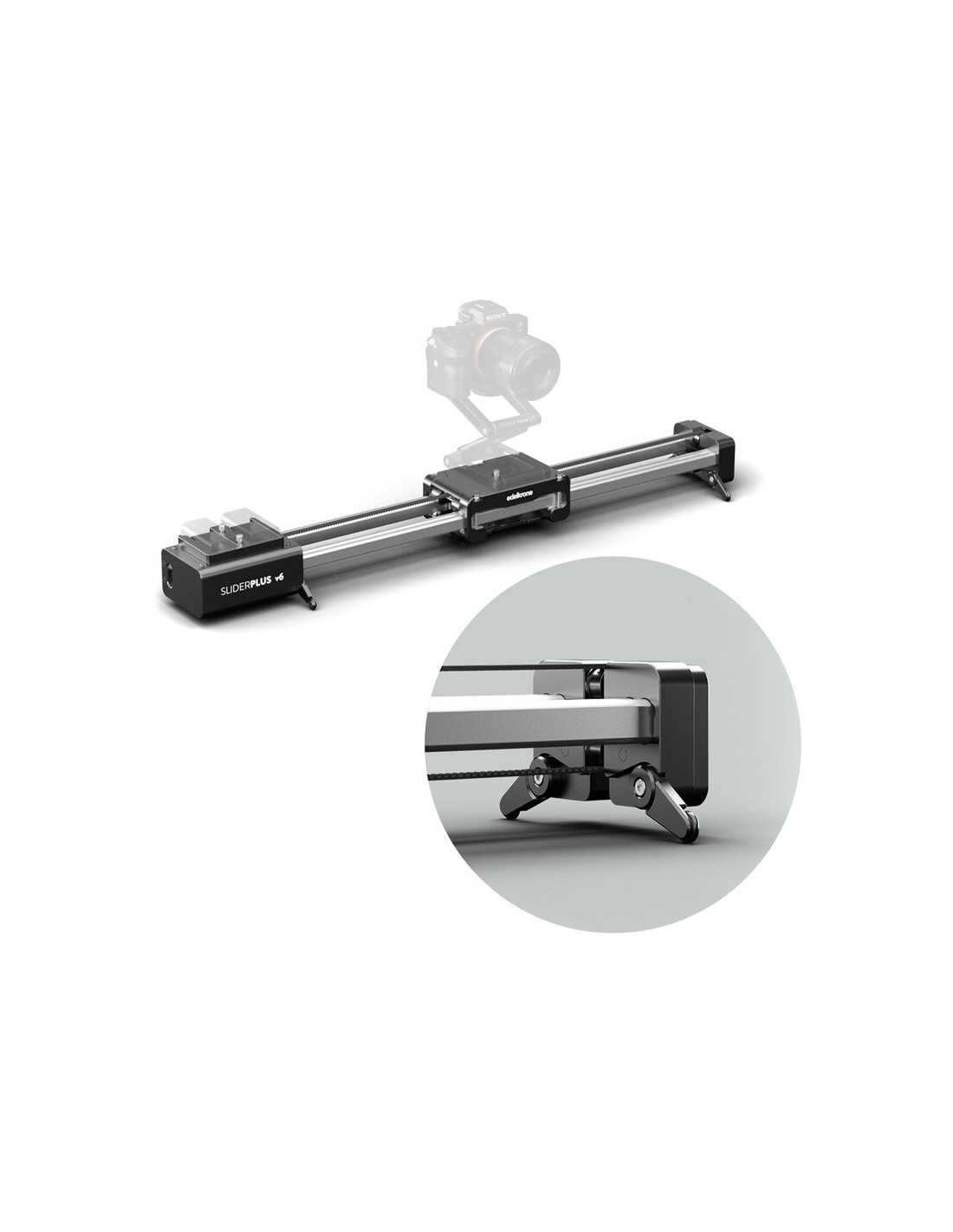

Improved and more balanced tabletop feet

Redesigned feet provide greater stability for tabletop use, especially when combined with HeadPLUS.

Vertical module-ready design

Optimized for the vertical module. Integrated side slots allow for quick installation of support cables for easy vertical setups.

In the Box

• SliderPLUS v6 (with built-in motor)

• NP-F battery holder (batteries not included)

Technical Specifications

Dimensions (W x D x H) 77 x 6.5 x 9.5 cm (30.3 x 2.6 x 3.7 in)

Camera Movement 90 cm on tripod / 45 cm on the ground

Weight

3.3 kg (7.3 lbs)

Mounting Options Mounting

3/8"-16 mounting port on the bottom

3/8"-16 mounting screw on the top

Additional Features

Security Lock

Folding Legs

Manufacturing Method: 100% CNC Machined

Load Capacity (Horizontal) On the Ground: 22.5 kg (50 lb)

On Tripod:

1-Foot (30 cm) Sled: 22.5 kg (50 lb)

24" (60 cm) 2-Foot Sled: 15.9 kg (35 lb)

35" (90 cm) Sled: 9 kg (20 lb)

Load Capacity load (tilted)

With the Vertical Module v2, the system can lift a total of 11.4 lb (5.2 kg) in a fully vertical configuration.

This includes the weight of the HeadPLUS v3 of 5.7 lb (2.6 kg) plus an additional 5.7 lb (2.6 kg) for the camera body, lens, batteries, and any additional HeadPLUS components.

The edelkrone Power Module (sold separately) is highly recommended for vertical configurations. It allows you to remove the batteries mounted on the HeadPLUS or SliderPLUS, which would otherwise consume some of the system's lift capacity.

Alternatively, the entire system can be powered by a single battery. external air positioned in a fixed position, not moving with the sled. This frees up valuable load capacity for the camera, lens, and HeadPLUS add-ons, allowing you to mount heavier equipment and make the most of the setup's vertical range of motion.

Shift Speed

• Maximum speed: 60 mm/sec
• Minimum speed: 0.6 mm/sec
• Communication and Control
• Bluetooth connection to the edelkrone app for device control
• Bluetooth or wired connection to HeadPLUS

Power Supply

• Can be powered by a single NP-F battery (NP-F battery holder already included)
• Can also be powered by LP-E6 batteries (battery holder sold separately) (Separately)
• Can be powered with the edelkrone power supply module
