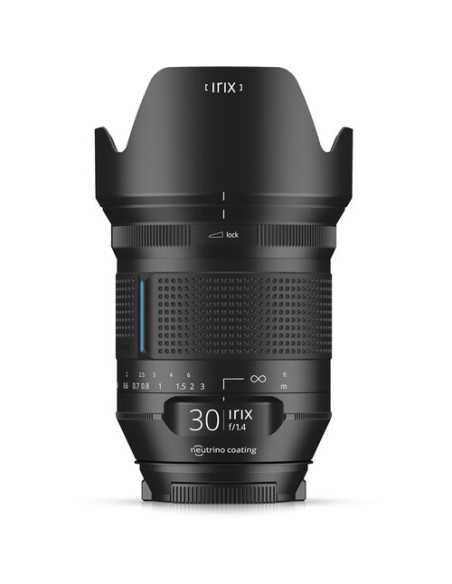

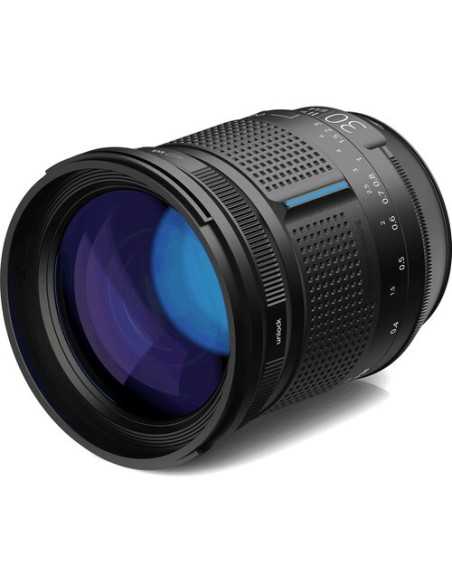

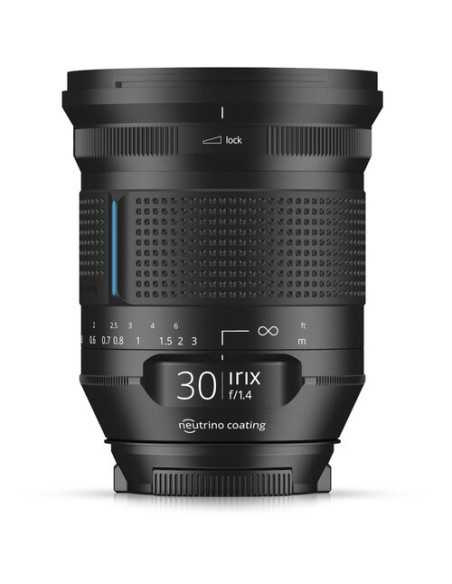

Irix 30mm F1.4 Dragonfly for Canon

The newest Irix 30mm f/1.4 lens is a product based on the 30mm Cine model, and therefore intended for the much more demanding film industry market. The entire optical structure of the lens is identical in both versions - the main emphasis here is on the vividness of the image. Of course, the photographic version has a completely different housing, while retaining the optical properties of the cine version.

Optics that guarantee sharp images
The Irix 30mm F / 1.4 features a modern optical design that includes 3 ultra-low dispersion glass elements, 2 high reflectance glass elements and one aspherical lens. There are a total of 13 elements in 11 groups that provide sharp details, vivid colors and ultra-low distortion - 0.95%. However, what deserves special attention is the smoothness and “cine look” of the image it offers. The lens is designed to work with 35mm full frame sensors. It is worth emphasizing the use of a new, 11-blade design aperture with rounded edges, which ensures a pleasant and very vivid background blur. It works in the range of f/1.4 to f/16.

A Build You Can Trust
Irix customers often use their lenses in extremely difficult conditions. Therefore, the construction of the Irix 30mm f/1.4 lens had to meet their needs. Only the best materials were used. The guarantee of operation in all conditions is ensured by a system of seals located in key places of the lens, and rear focusing - thanks to which the lens does not change its dimensions while focusing. These properties allow not only to work in difficult conditions, but also guarantee the cleanliness of the mirror chamber and the sensor of the camera you are using.

Intelligent Lens Design
The Irix 30mm f/1.4 lens has a module that allows you to control the lens iris directly from the camera, thanks to which popular semi-automatic modes (PASM) and data recording in EXIF format are available. The use of electronics also enables the lens to be equipped with a focus confirmation system – the camera will announce the correct focus setting (either in the form of an icon in the viewfinder, or as a sound) every time you set the focus correctly – it’s easy and convenient!

Focusing Ring
A special focusing ring with a characteristic shape has become a kind of hallmark of Irix 150mm and 45mm lenses. Many of our clients pay attention to the convenience it provides. The newest Irix 30mm is following same way. Special texturing and properly selected rubber material which covers it, allows for reliable and precise focusing. Dedicated emboss lets you to feel the ring’s position. This makes focusing even easier!

"Focus Lock" function
The Focus Lock function is also a hallmark of Irix lenses - it allows you to lock the focusing ring in a specific position. It’s especially useful when you want to keep a specific distance to the photographed object (zone-focusing) or you want to keep perfect focus at infinity in landscape photography or astrophotography.

Designed for any challenge
Irix customers often use their lenses in extremely difficult conditions. Therefore, the construction of the Irix 30mm f/1.4 lens had to meet their needs. Only the best materials were used. The guarantee of operation in all conditions is ensured by a system of seals located in key places of the lens, and rear focusing - thanks to which the lens does not change its dimensions while focusing. These properties allow not only to work in difficult conditions, but also guarantee the cleanliness of the mirror chamber and the sensor of the camera you are using.

Compatible with filters
The Irix 30mm f/1.4 lens allows the use of classic screw-in filters (86mm) and square filters, thanks to the Irix Edge IFH-100 and IFH-100-PRO mount. The use of filters in landscape photography allows you to awaken your creativity and achieve amazing effects, which makes them extremely practical.

Features
Canon EF-Mount Lens / Full-Frame Format
Aperture Range: f/1.4 to f/16
Neutrino Lens Coating
Manual Focus with Focus Lock
Weather Sealed; Rubber Mount Seal
Minimum Focus Distance: 13.38"
Rounded 11-Blade Diaphragm
3 ULD, 2 HR, 1 Aspherical Glass Elements
13 Elements in 11 Groups

In the box
Irix 30mm f/1.4 Dragonfly Lens for Canon EF

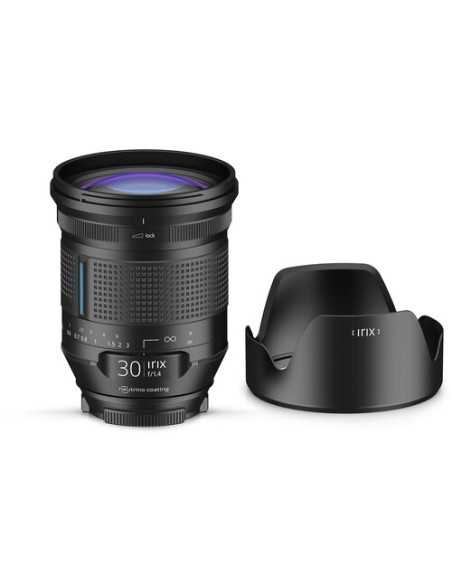

Lens Hood
86mm Front Cap
IRIX Rear Cap for Canon EF-Mount Lenses
Hard Case

Compatibility
All Cine Cameras
ARRI ALEXA Mini
Blackmagic Design Cinema Camera
Blackmagic Design Cinema Camera
Blackmagic Design Cinema Camera
Blackmagic Design Cinema Camera 6K
Blackmagic Design PYXIS 6K
Blackmagic Design Pocket Cinema Camera 6K
Blackmagic Design Pocket Cinema Camera 6K G2
Blackmagic Design Pocket Cinema Camera 6K Pro
Blackmagic Design Production 4K
Blackmagic Design URSA 4.6K
Blackmagic Design URSA Cine 12K
Blackmagic Design URSA Mini 4.6K
Blackmagic Design URSA Mini 4K
Blackmagic Design URSA Mini Pro 4.6K
Blackmagic Design URSA Mini Pro 4.6K G2
Canon EOS 1D C
Canon EOS C100
Canon EOS C100 Mark II
Canon EOS C200
Canon EOS C300
Canon EOS C300 Mark II
Canon EOS C300 Mark III
Canon EOS C500
Canon EOS C500 Mark II
Canon EOS C700
Canon EOS C700 FF
FREEFLY Ember S2.5K
FREEFLY Ember S5K
JVC GY-LS300
Panasonic AU-EVA1
Panasonic VariCam LT
RED DIGITAL CINEMA DSMC2 BRAIN
RED DIGITAL CINEMA EPIC-W
RED DIGITAL CINEMA Komodo
RED DIGITAL CINEMA RAVEN
RED DIGITAL CINEMA SCARLET-W
Z CAM E2-F6
Z CAM E2-F6 MKII
Z CAM E2-F6 Pro
Z CAM E2-F8
Z CAM E2-S6
Z CAM E2-S6 MKII
Z CAM E2-S6G

Camcorders
Blackmagic Design URSA Broadcast G2

DSLR Cameras
Canon EOS 1D X
Canon EOS 1D X Mark II
Canon EOS 1D X Mark III
Canon EOS 5D Mark II
Canon EOS 5D Mark III
Canon EOS 5D Mark IV
Canon EOS 5D Mark IV Canon Log
Canon EOS 5DS
Canon EOS 5DS R
Canon EOS 6D
Canon EOS 6D Mark II
Canon EOS 70D
Canon EOS 77D
Canon EOS 7D
Canon EOS 7D Mark II
Canon EOS 80D
Canon EOS 90D
Canon EOS Rebel SL1
Canon EOS Rebel SL2
Canon EOS Rebel SL3
Canon EOS Rebel T100
Canon EOS Rebel T5
Canon EOS Rebel T5i
Canon EOS Rebel T6
Canon EOS Rebel T6i
Canon EOS Rebel T6s
Canon EOS Rebel T7
Canon EOS Rebel T7i
Canon EOS Rebel T8i

Industrial & Multi-Purpose Cameras
Canon ME200S-SH
Canon ME20F-SH
Canon ML-100
Canon ML-105
IO Industries Flare 4KSDI

Specifications
Mount Canon EF
Focal length 30mm
Sensor size Full frame
Maximum aperture f/1.4
Minimum aperture f/16
Filter diameter 86mm
Type Standard
Apreture blades count 11
Minimum focusing distance 0.34m
Focal lenght type prime
Stabilization No
Focus type Manual
Weather sealing 3 rubber o-rings
Focus ring distance scale metric
Size (mm) 107 x 94mm
Weight 863 gr
