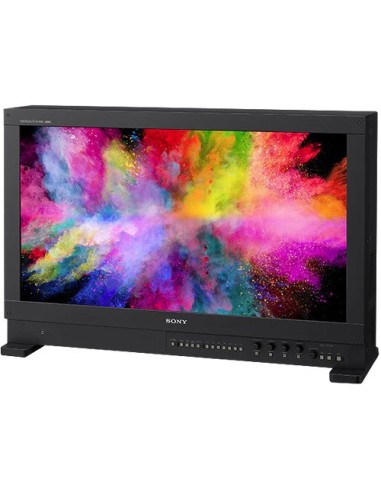

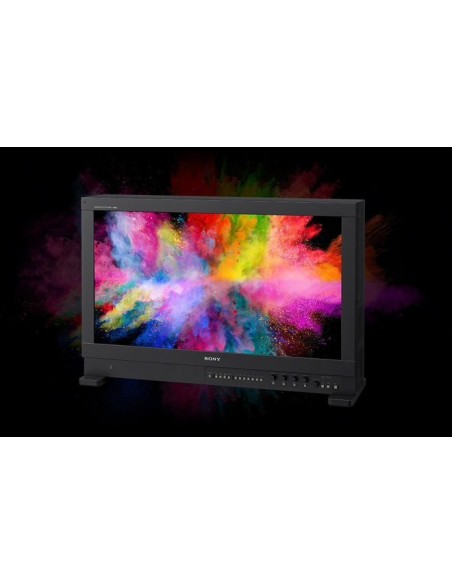

Sony Trimaster HX 31" 4K HDR Master Monitor

The BVM-HX310 is a professional 4K HDR reference monitor of the TRIMASTER HX™ series with a size of 31" and a resolution of 4096 x 2160. Due to the flexibly adjustable frame rate in conjunction with the extended color space and the brightness of 1,000 nits, it is ideally suited as a reference monitor in the post production or the studio. The BVM-HX310 has an adjustable colour temperature from 5,000 to 10,000 Kelvin, numerous SDI connections (12G- and 3G- SDI) and HDMI connections.

• Perfect for complex color corrections
• Real HDR with 1,000 cd / m2 (nits)
• Additional EOTF tables for live and post-production environments
• SDI and HDMI connections for full flexibility
• True interlace mode
• Support for multiple video formats

Technical Specifications:

• Panel: Alpha-SI TFT Active Matrix LCD
• Screen Diagonal: 31" (789.1 mm)
• Effective Pixels (H x V): 698 x 368.1 mm
• Resolution (H x V): 4096 x 2160
• Aspect Ratio: 17:9 (1.89:1)
• Pixel Efficiency: 99.99 %
• Panel Drive: 10-bit
• Frame Rates: 48 / 50 / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1,001 frame rates)
• Viewing Angle: 89° (contrast greater than 10:1)
• Color Temperature: D55, D61, D65, D93, DCI and User 1 - 5 (5.000 K to 10.000 K adjustable), DCI XYZ
• Brightness: typ. 1,000 cd / m2
• Color Space: ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, Native, S-GAMUT3, S-GAMUT3.cine
• Transmission Matrix: ITU-R BT.2020 (non-constant luminance is supported), ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4 (HDR), S-Log3 (HDR), S-Log3 (Live HDR), S-Log2 (HDR), SMPTE ST 2084 (HDR), ITU-BT.2100 (HLG)

Data Links:

Input

• 2x 12G-SDI via BNC (75 Ohms, unbalanced)
• 6x 3G-SDI via BNC (75 Ohms, unbalanced)
• 1x HDMI via HDMI-A (HDCP2.3 / 1.4)
• 1x Ethernet via RJ-45 (10BASE-T / 100BASE-TX)
• 1x Power supply AC via power cord

Output

• 2x 12G-SDI via BNC (75 Ohms, unbalanced)
• 6x 3G-SDI via BNC (75 Ohms, unbalanced)
• 1x Speaker via 3.5 mm stereo mini jack
• 1x Headphones via 3.5 mm stereo mini jack

General Product Information:

• Dimensions (W x H x D): 778 x 519.5 x 230 mm
• Weight: approx. 30 kg
• Operating Temperature: 0° to +35° C (30 - 85 % rel. air humidity, non-condensing)
• Storage Temperature: -20° to +60° C (max. 90 % rel. air humidity)
• Pressure: 700 - 1,060 hPa
• Operating Voltage: 100 - 240 V AC, 2.1 - 5.1 A, 50 / 60 Hz
• Power Consumption: approx. 450 W (max.)

Included in Delivery:

• 1x AC power cord
• 1x AC plug holder
• 1x CD-ROM
• 1x Before Using This Unit
