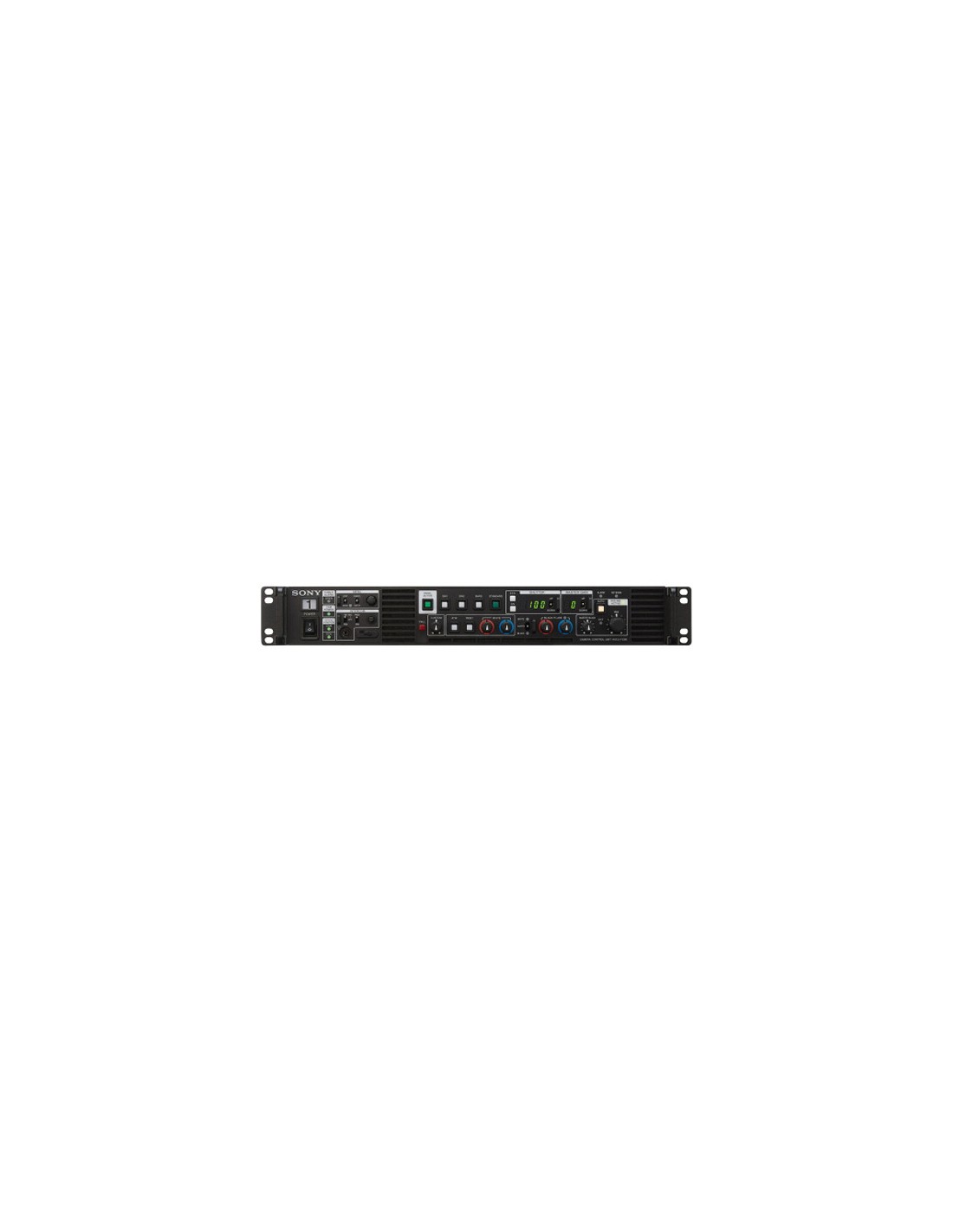

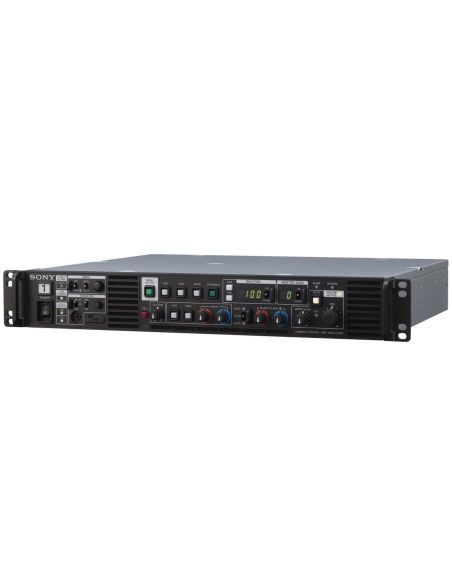

Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (LEMO)

The HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera from Sony supports multiple frame rates up to UHD 4K60p over both 3G-SDI and 12G-SDI. Connecting to your HXC-FZ90 camera via its LEMO connector and a separately available optical fiber cable, this CCU supplies power to the camera, performs signal processing, and provides an interface with external equipment. Pair the HXCU-FZ90 with the separately available HXCE-FZ90 unit to extend signals up to 6.21 miles.

Multiple Frame Rates

The HXCU-FZ90 CCU works with the HXC-FZ90 camera to comfortably output UHD 4K 50, 59.94, or 60p video over 12G-SDI and 1080 50, 59.94, or 60p over 3G-SDI. Its new processor also supports 1080 23.98, 24, and 29.97 PsF rates.

Optional 4K Future Proofing and HDR Support

Add a separately available software upgrade to obtain 4K output and 4K HDR within the BT.2020 (HLG/S-Log3) color space, depending on the look you need.

Fiber Cable Extension

Add the separately available HXCE-FZ90 extension unit to transmit high-quality images up to 6.21 miles over a LEMO single-mode fiber connection or carry both signals and power for up to 9.84 feet.

In the Box

• Sony HXCU-FZ90 4K/HD Camera Control Unit for HXC-FZ90 Camera (LEMO)
• Tally Number Plate Set (0-9)
