TECHLY HDMI over IP Extender with PoE IR 4K UHD on Cat.6 cable up to 120m

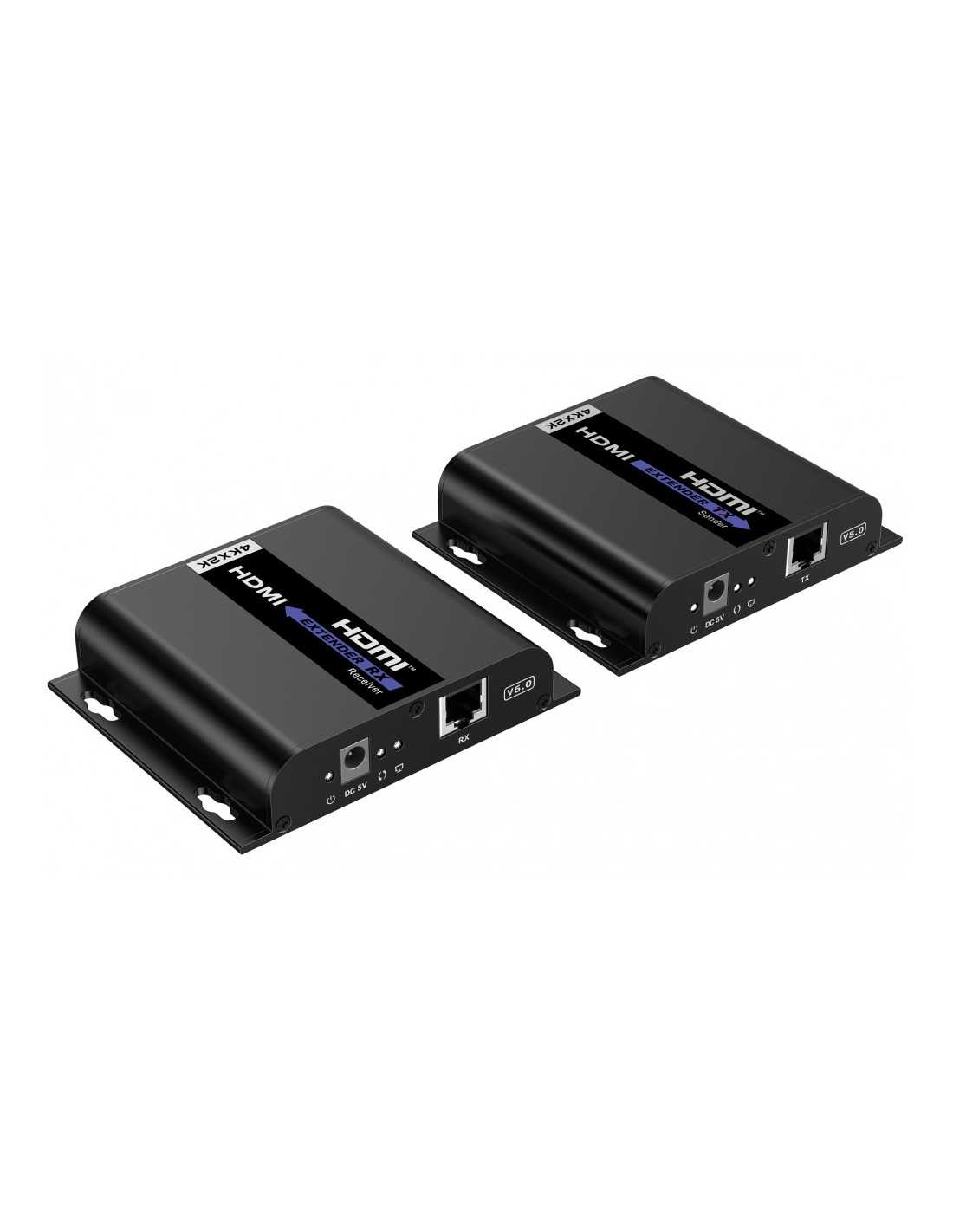

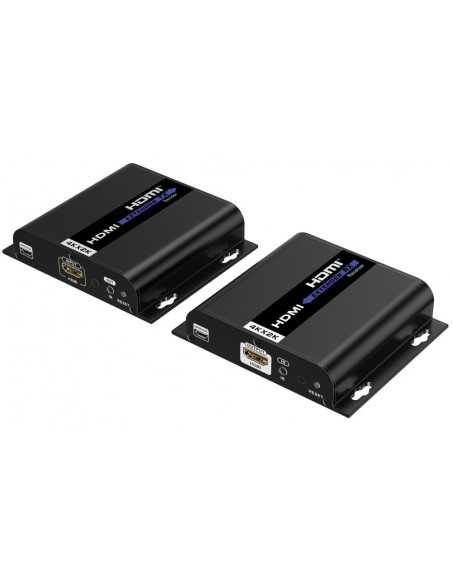

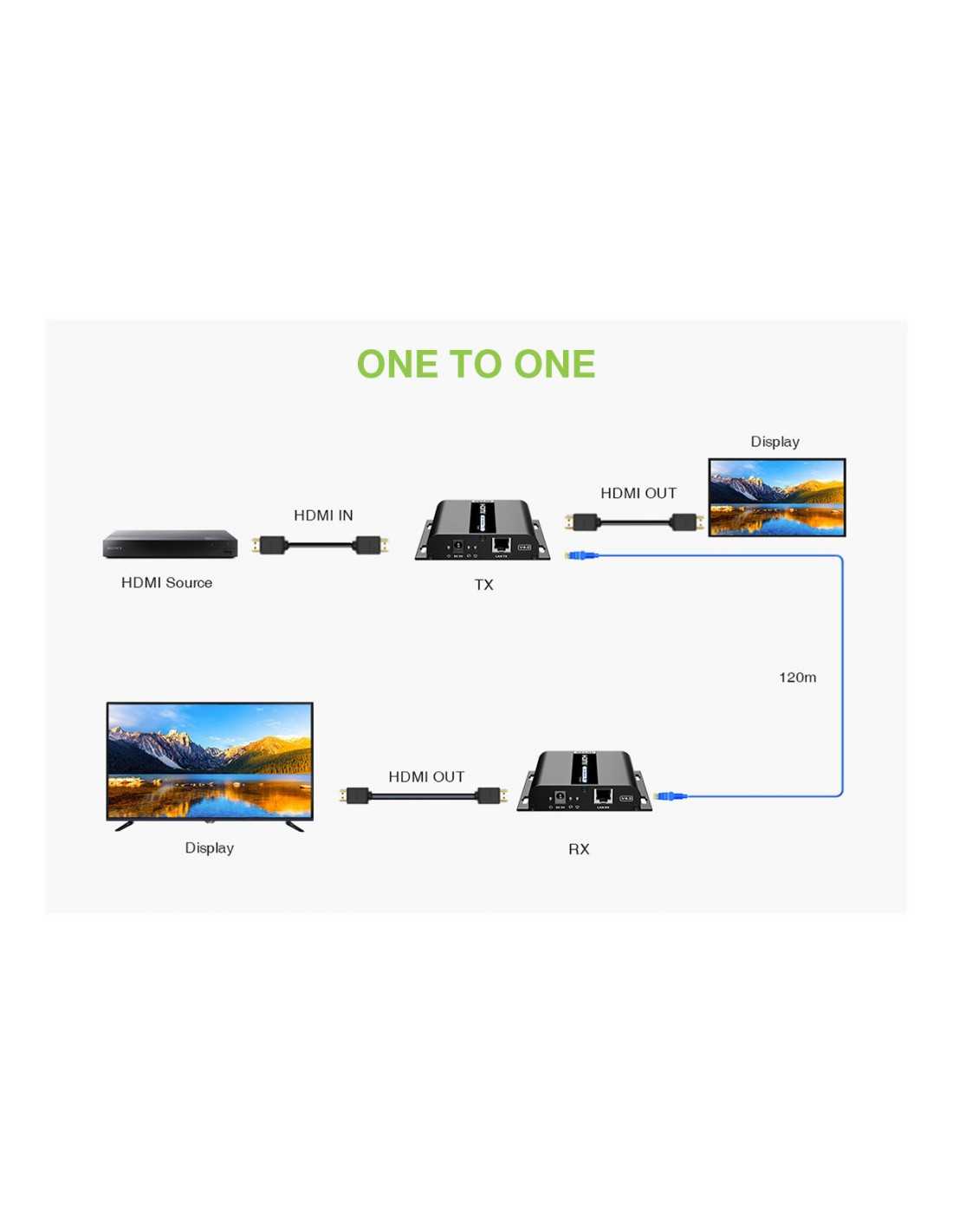

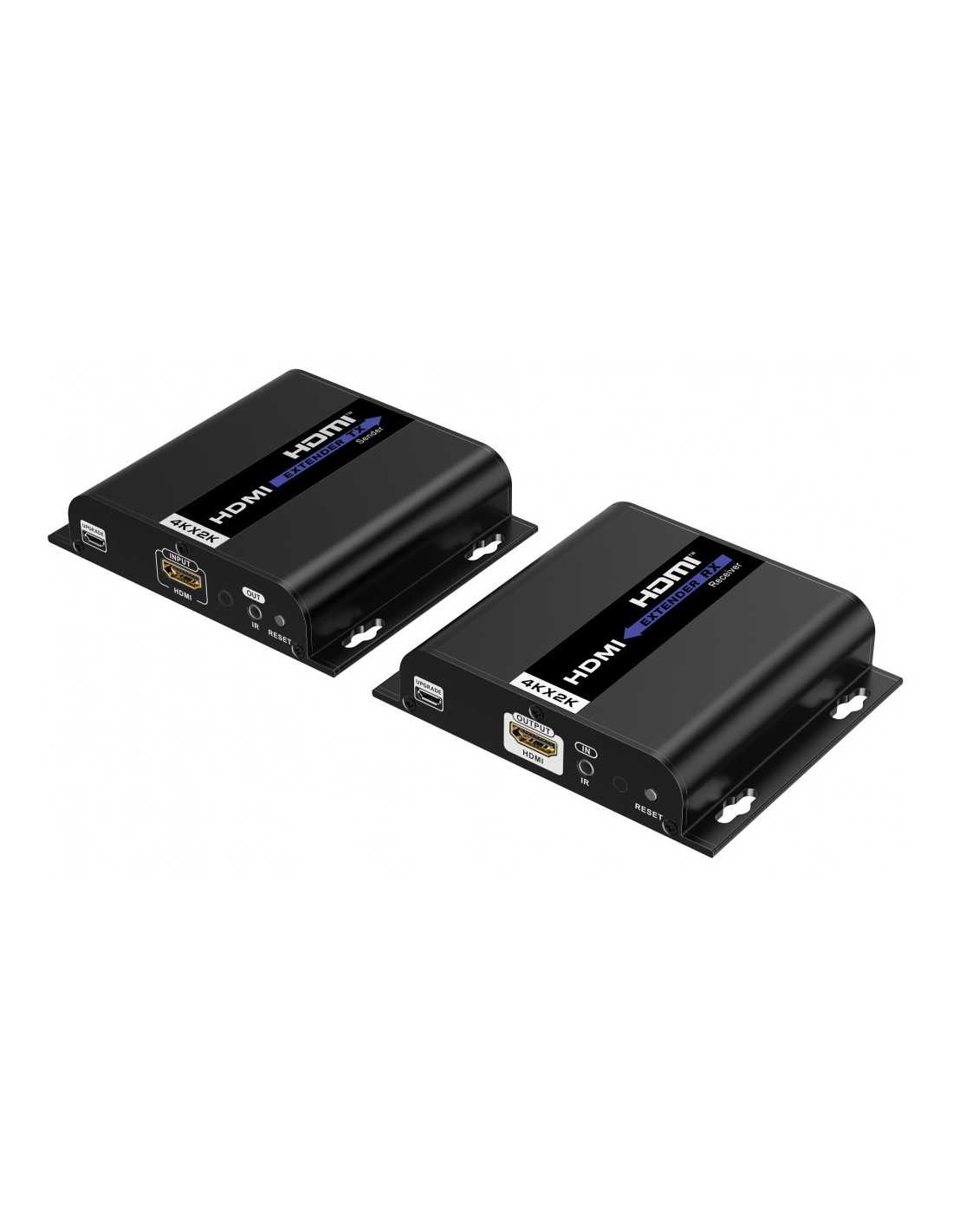

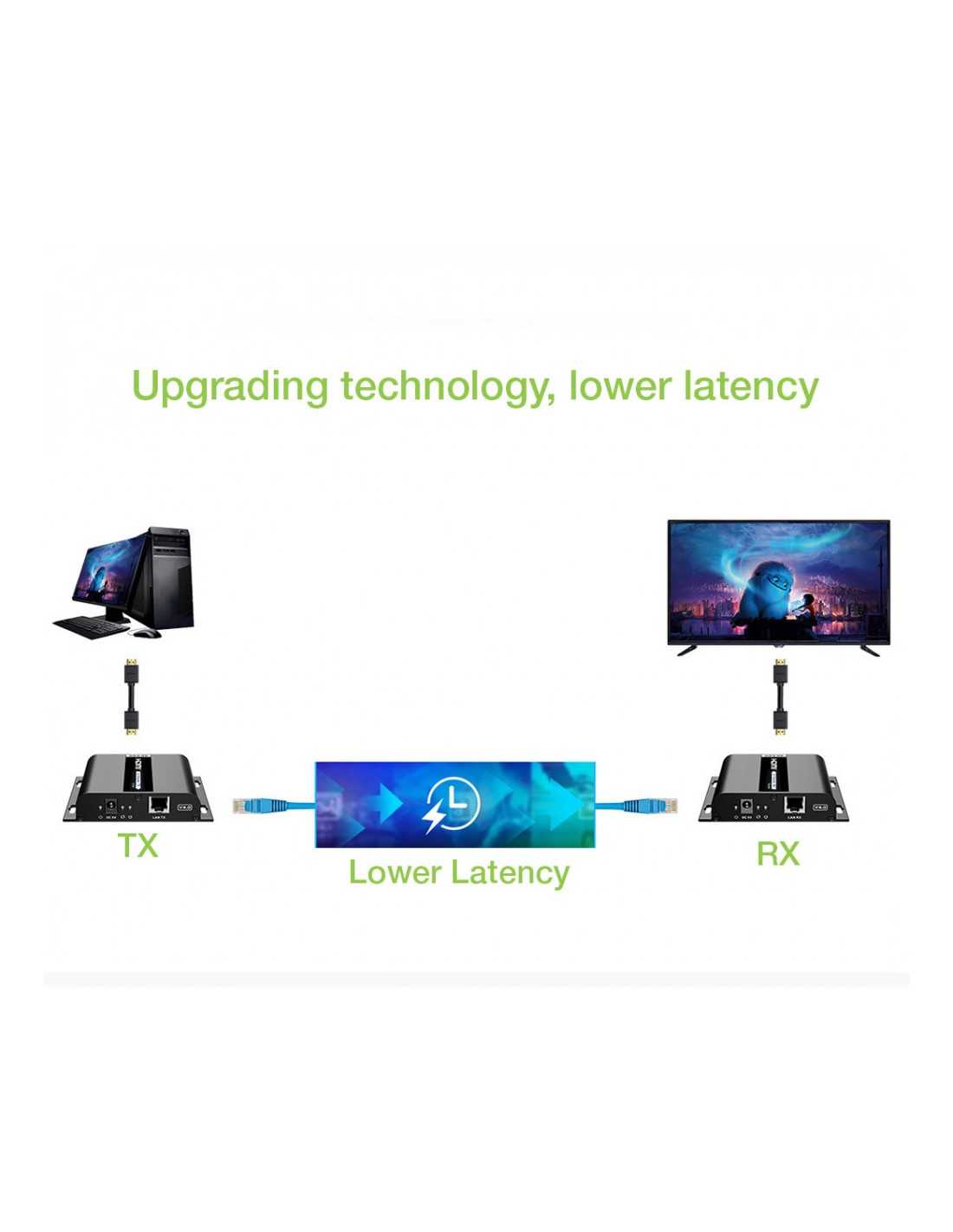

The HDMI over IP extender with PoE leverages the latest transmission technology to extend 4Kx2K (at 30Hz) HDMI video and audio signals up to 120 meters via a single Cat.6 network cable. It consists of a transmitting unit (HDMI over IP PoE Transmitter) and a receiving unit (HDMI over IP PoE Receiver).

It supports IR signal transmission, allowing you to control the source device's media playback from the display location.

Additionally, thanks to PoE support, it directly powers both the TX and RX units, allowing for a cleaner, more compact installation.

Not compatible with the previous version, IDATA EXTIP-3834KP6

Features

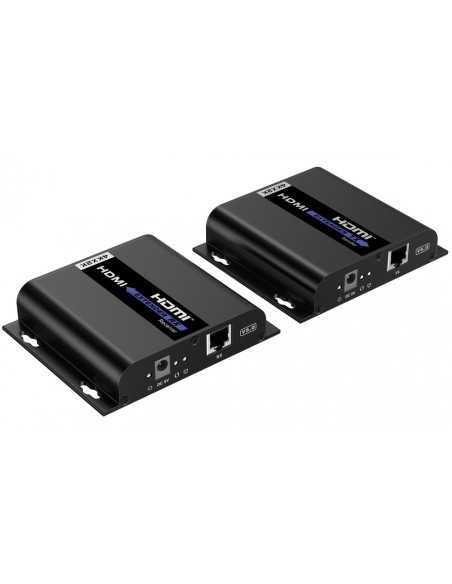

Includes receiver and transmitter

Extends HDMI over a single network cable

Supports Cat. 5E/6 cables

Transmits 4K Ultra HD signal (4Kx2K@25/30Hz) up to 120 meters over Cat.6

Supports IR pass-back for easy control

PoE: supplies power to the transmitter and receiver units via the connection cable

Compatible with existing networks; does not interfere with internet connectivity

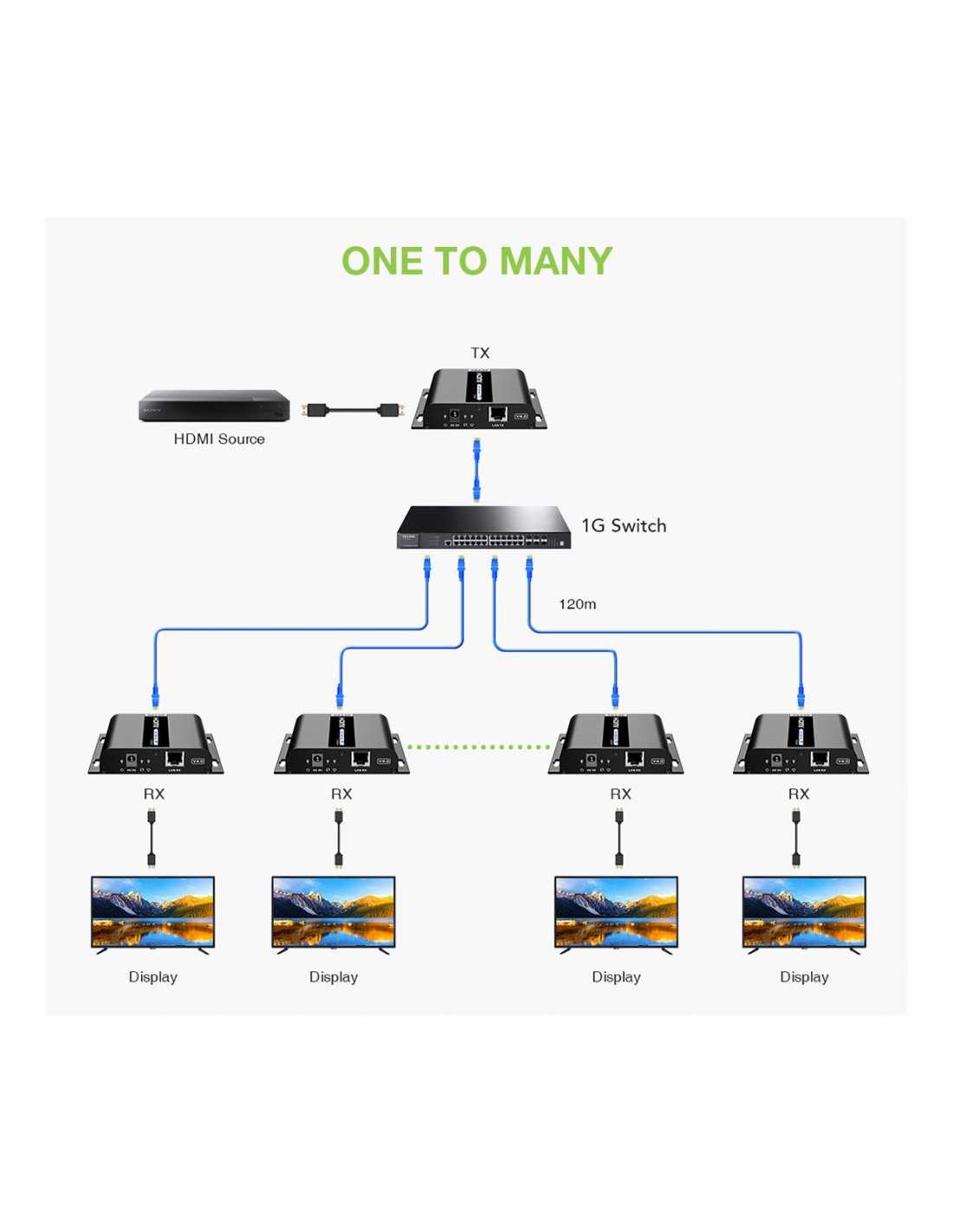

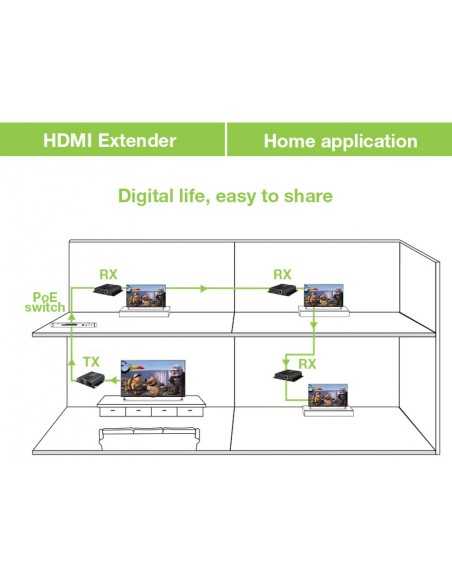

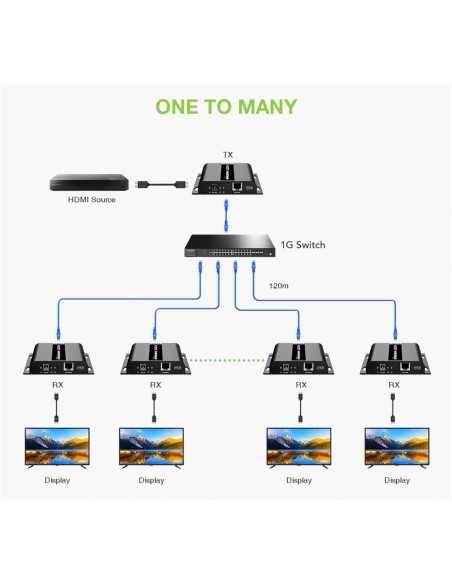

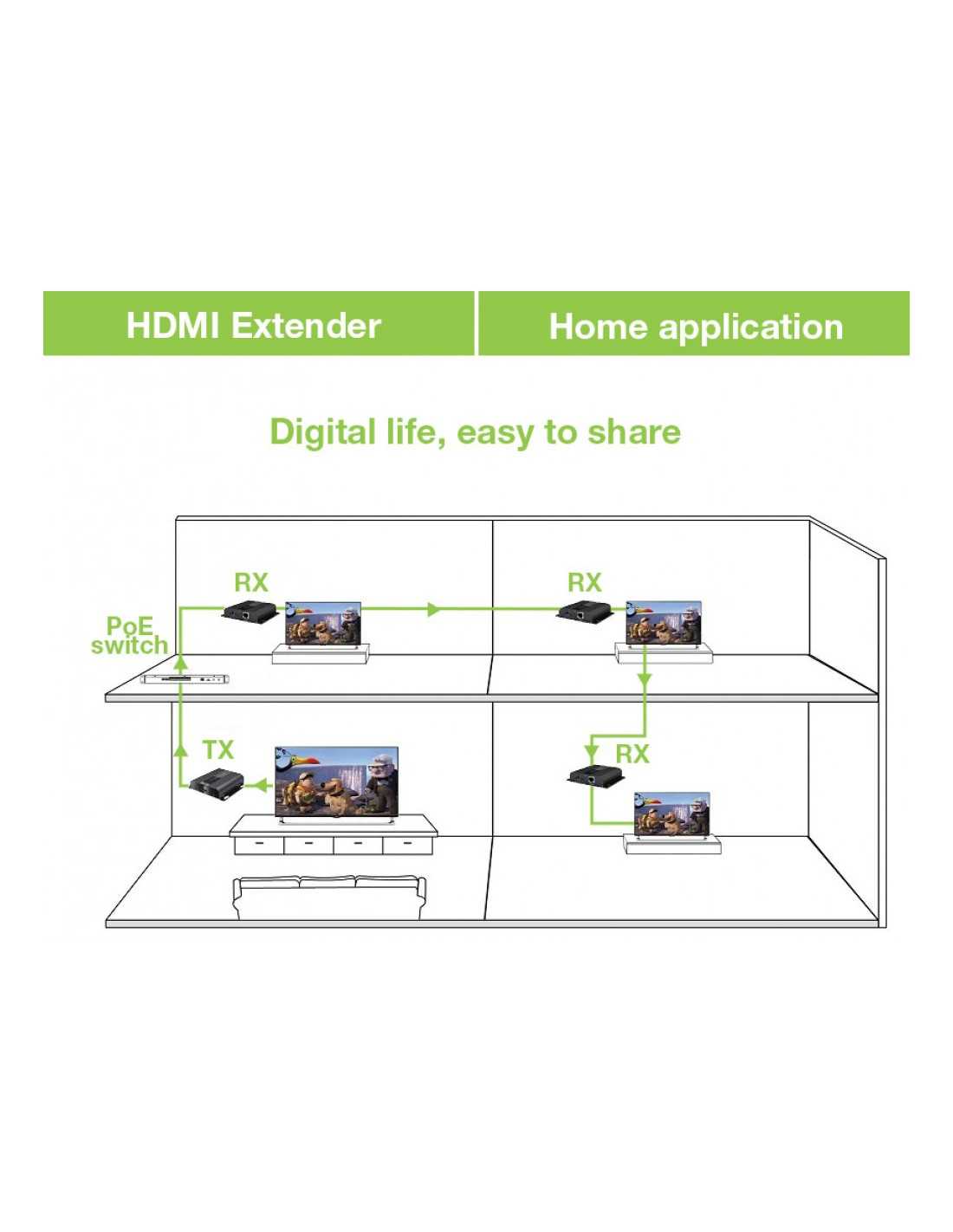

Supports connection to a PoE router to share and extend the HDMI signal without limits

HDMI and HDCP

Design allows for wall mounting

Color: black

Technical Specifications

HDMI 1.4

HDCP 1.4

Supported resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30Hz

UTP/STP network cable Cat5/5e/6

Transmission distance up to 120 meters at 4Kx2K@30Hz Full HD over a single CAT6 cable

PoE input: supports IEEE802.3af (10W input power); External 5V 2A power supply (optional, not included)

Supports powering both TX and RX via PoE switch

Supports 20~60KHz IR devices

Operating temperature: 0°C–60°C

Power supply: DC 5V/2A

Power consumption: TX: 4.5W; RX: 3.5W

Supports IEEE802.3af PoE input (10W input power)

Weight: TX: 275g; RX: 275g

Color: Black

Protections

• Lightning protection
• Surge protection
• ESD protection
• TX and RX dimensions
• Length: 119 mm
• Width: 94 mm
• Height: 23.8 mm
• Certifications
• CE
• FCC
• RoHS
• WEEE

Package contents

• 1x HDMI transmitter
• 1x HDMI receiver
• 1x IR blaster extension cable
• 1x IR receiver extension cable
• 1x User manual
