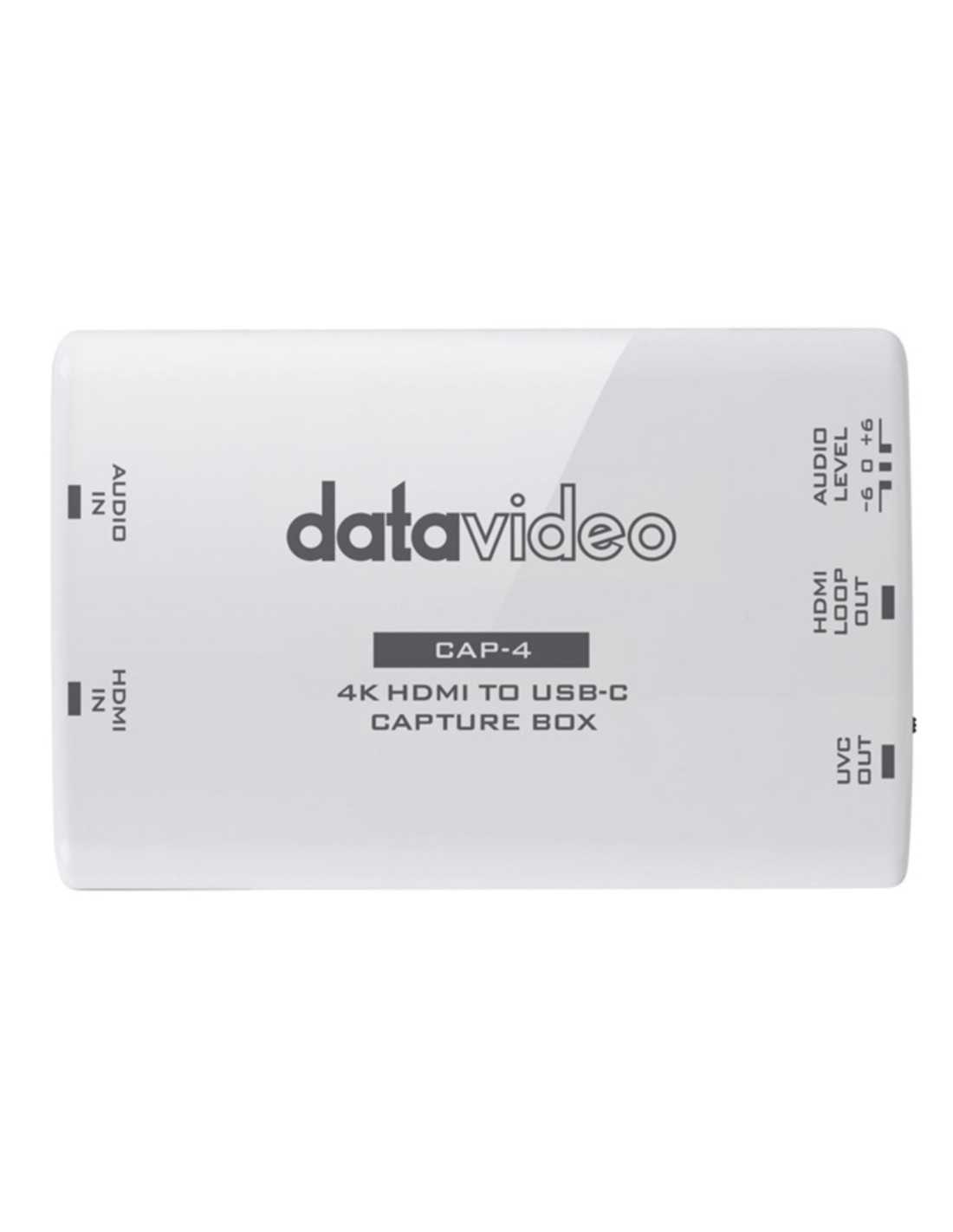

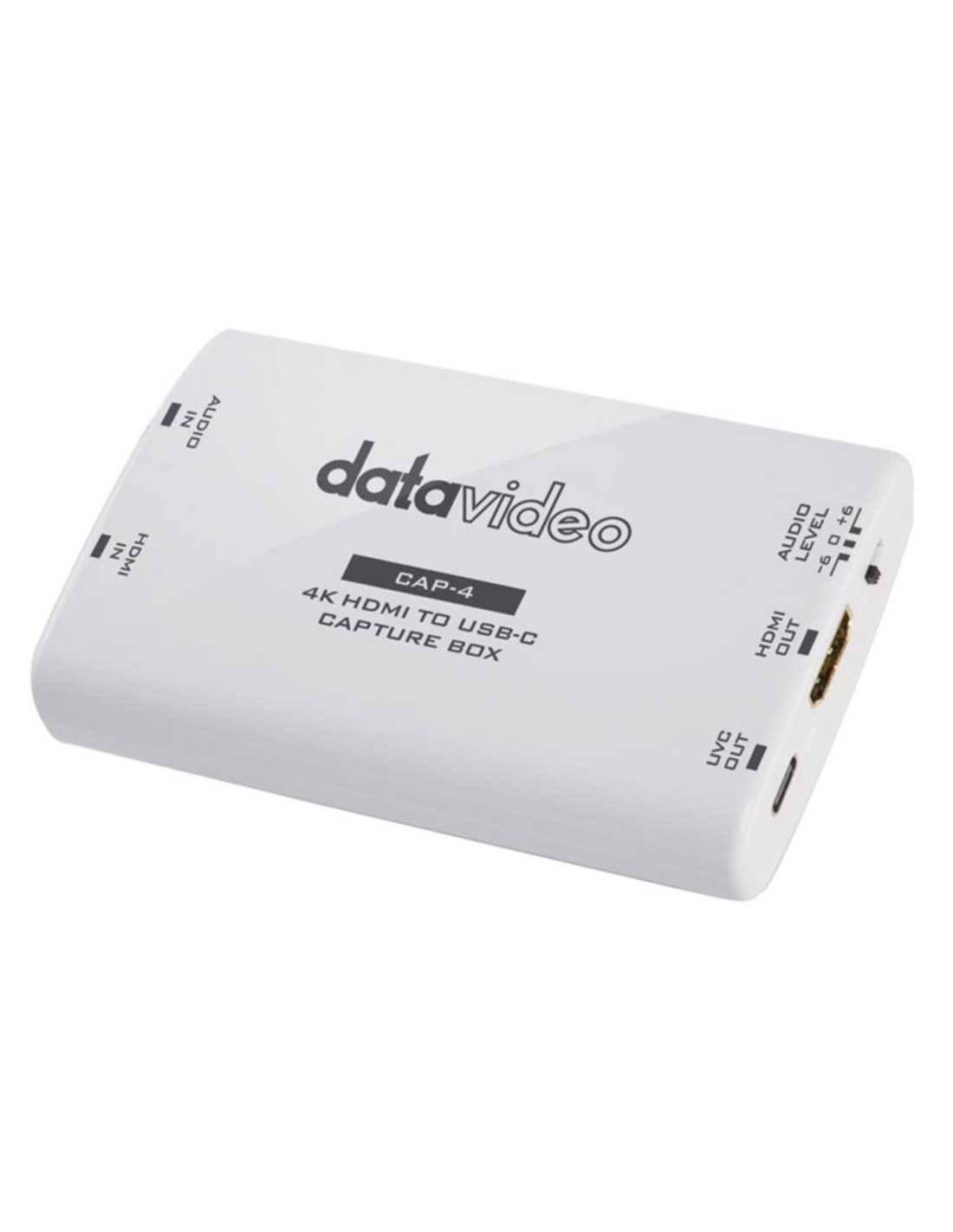

Datavideo CAP-4 4K HDMI to USB-C Capture Box

In the fast-paced world of modern video production, where image quality and ease of use are paramount, the Datavideo CAP-4 4K HDMI to USB-C Capture Box emerges as a revolutionary solution for professionals and enthusiasts.
This compact device, designed with Datavideo's trademark precision engineering, allows you to capture HDMI signals in 4K UHD resolution (3840x2160) at high frame rates up to 60fps, ensuring smooth, detailed video that captures every nuance with extraordinary clarity.
Imagine broadcasting live events, conducting interactive webinars, or recording educational tutorials without losing a single visual detail: the CAP-4 makes it all possible with disarming simplicity.

One of the most appreciated features of the Datavideo CAP-4 is its USB-C 3.2 Gen 2 interface, which supports data transfer speeds of up to 10Gbps.
This means minimal latency and seamless streaming, essential for real-time applications such as video conferencing on platforms like Zoom or Google Meet.
The device is completely plug-and-play, eliminating the need for additional drivers: simply connect it to your Windows 10 or higher PC, Mac with High Sierra or even Linux, and you're ready to capture.
Extensive compatibility with popular software such as OBS Studio, VLC, XSplit and PotPlayer makes it a versatile ally for creators operating in different ecosystems.

But the CAP-4 doesn't stop at basic video capture.
Thanks to HDMI loop-through, you can monitor the incoming signal on an external display without any loss of quality, allowing precise control during production.

This is especially useful in complex setups where timing and synchronization are critical. are crucial, such as in broadcast studios or corporate events.
Furthermore, support for multiple video formats – including 4K@60/50/30, 1440p, 1080p up to 120fps and 720p – guarantees flexibility to adapt to different input sources, from professional cameras to game consoles for game streaming.
Audio is another strong point of the Datavideo CAP-4 4K capture box.

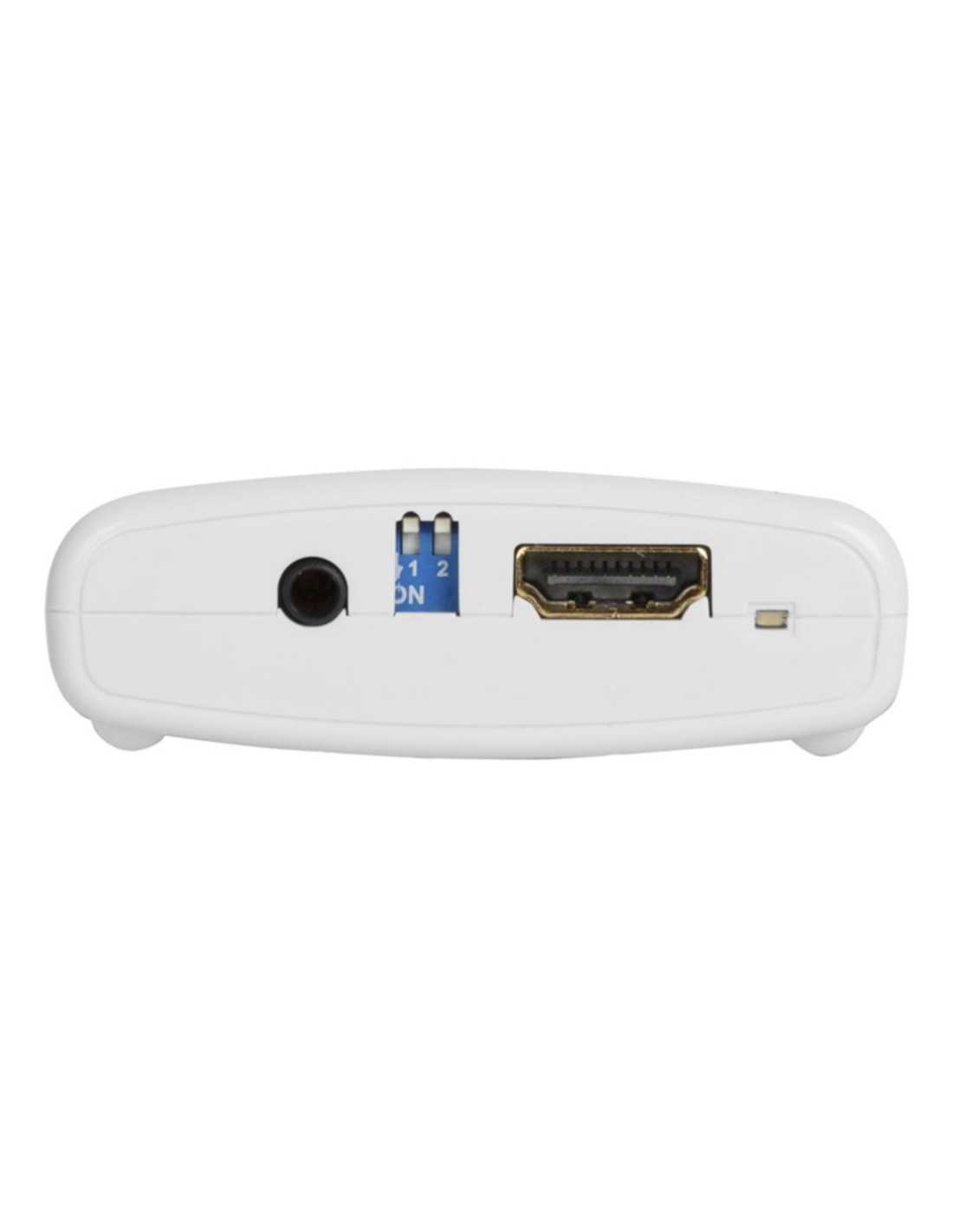

It integrates 2-channel HDMI embedded audio with sample rates of 44.1kHz and 48kHz, and includes a 3.5mm stereo line-in input for connecting external microphones or audio mixers.

This allows for flexible audio mixing, with output up to 24-bit PCM at a fixed 48kHz, ensuring that the sound is rich and synchronized with the video.
/>For content creators producing video podcasts or gaming sessions with commentary, this feature elevates production to broadcast-ready levels, reducing reliance on extensive post-production.
From a portability standpoint, the Datavideo CAP-4 excels with its compact dimensions of 105 x 68 x 23 mm and a weight of just 75g.
Powered directly via USB without the need for external adapters, it consumes less than 4.5W, making it ideal for laptops and mobile setups.
It operates within a temperature range of 0°C to 40°C, with storage up to 60°C, and withstands humidity of 20-90% non-condensing – perfect for variable environments such as trade shows, classrooms or outdoor shooting locations.

Regarding build quality, Datavideo has opted for robust materials that guarantee durability without sacrificing minimalist aesthetics.

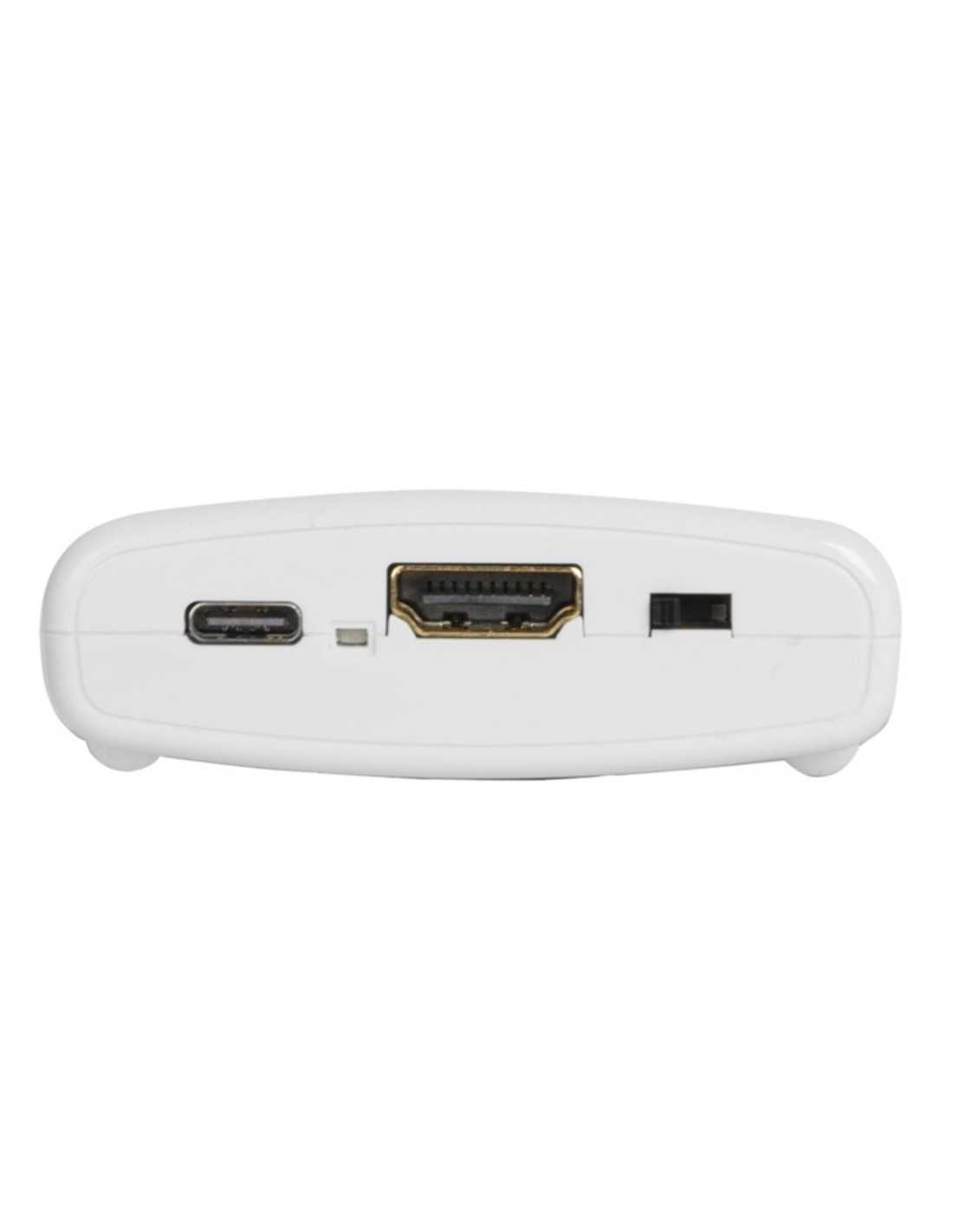

/>The reinforced plastic case resists light impacts, while the connections – HDMI input/output and USB-C – are protected by an ergonomic design for safe cabling.
Firmware updates via USB keep the device cutting edge, allowing for future improvements without additional hardware.
Imagine real-world use cases: a teacher capturing interactive 4K lectures for e-learning platforms, a gamer streaming on Twitch with custom audio overlays, or a company integrating the CAP-4 into conference rooms for crystal-clear hybrid meetings.
In each of these cases, the Datavideo CAP-4 4K capture device shines with its reliability and performance.
Compared to more complex alternatives, it offers an unbeatable quality-to-performance ratio, with UVC support for auto-detection of resolution and frame rate, eliminating laborious manual configurations.

Furthermore, the CAP-4 supports a wide range of USB capture formats, including RGB, YUY2, NV12, I420, P010 and MJPEG over USB 3.2, and MJPEG/YUY2 over USB 2.0 for legacy compatibility.
This makes it scalable for entry-level or high-end systems, such as PCs with Intel Core i3 and 16GB RAM or MacBook Pros with dedicated GPUs.
I Minimum requirements are accessible: all you need is a USB 3.2 Gen 2 port and an NVIDIA GTX 1060 GPU or equivalent to take full advantage of 4K.
In terms of innovation, the Datavideo CAP-4 represents the natural evolution of Datavideo capture solutions, building on previous models like the CAP-3 but elevating everything with USB-C and higher frame rates.

It is certified for professional environments, with an emphasis on low latency for timing-sensitive applications.
For production teams, seamless integration with tools like TeamViewer for remote control adds a layer of versatility.
Expanding on audio mixing, the device allows you to seamlessly balance between HDMI audio and external input, ideal for narration overlays on raw footage.
This is crucial for editors who want an end-to-end workflow without multiple switches.
Compatibility with Linux VLC and OBS opens the door to open-source users, democratizing access to tools pro.
In conclusion, the Datavideo CAP-4 4K HDMI to USB-C Capture Box isn't just a device: it's a gateway to next-level video production.
With its combination of power, simplicity, and reliability, it transforms creative ideas into engaging content, ready for the web or broadcast.
Whether you're an emerging creator or an established professional, the CAP-4 empowers you to capture the moment with surgical precision.

What's in the Box

• Datavideo CAP-4 4K HDMI to USB-C Capture Box
• USB-C to USB-C Cable
• Quick Setup Guide
