Blackmagic Design UltraStudio HD Mini Portable Thunderbolt 3

BDLKULSDMINHD

New

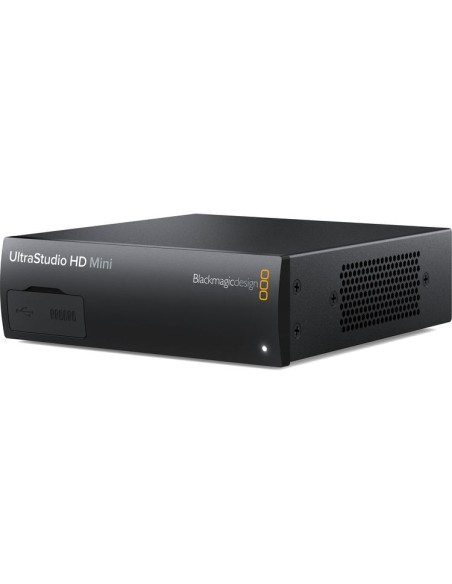

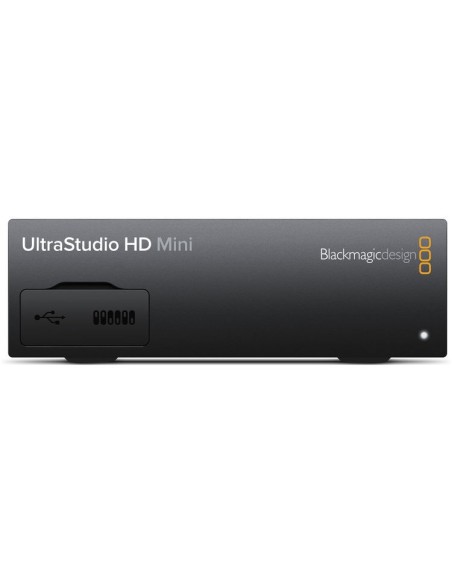

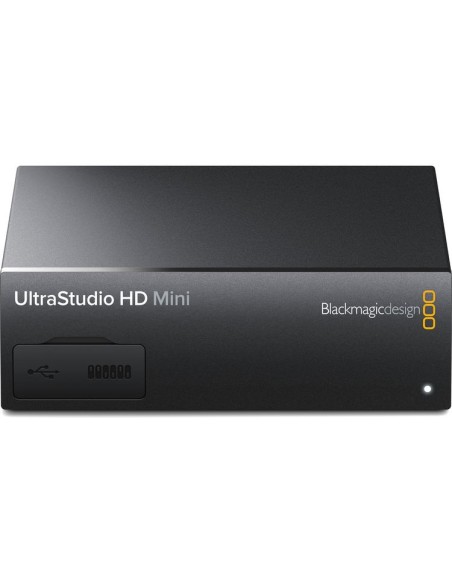

UltraStudio HD Mini is a portable Thunderbolt 3 capture and playback solution that’s small enough to take anywhere and powerful enough to work on high end projects. It can capture and playback all formats up to 1080p60 in full 10-bit YUV, or up to 1080p30 and 2K DCI in 12-bit RGB.

More details

In Stock

You can purchase this product in installments with Consel. Click here for more information.


€ 530,70
€ 435,00tax excl.

Add to my wishlist

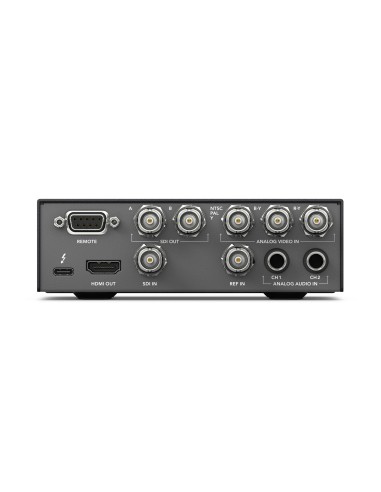

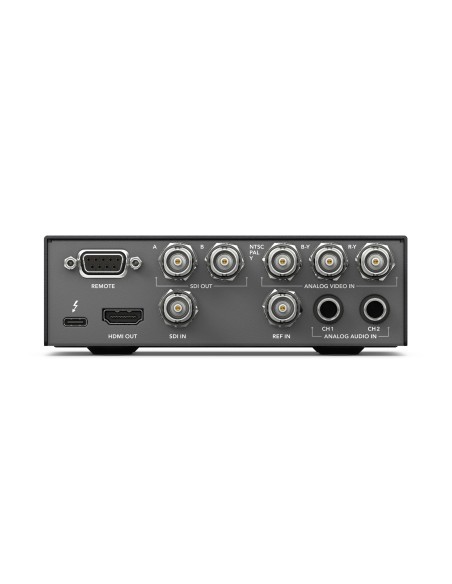

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!

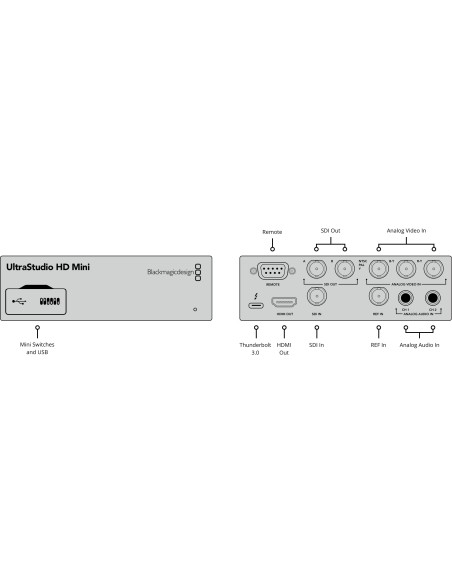

Connections
SDI Video Inputs
1 x 3Gb/s SD/HD switchable.
SDI Video Outputs
2 x 3Gb/s SD/HD switchable, supports fill and key.
SDI Rates
270Mb, 1.5G, 3G
Optical SDI
None
HDMI Video Inputs
None
HDMI Video Outputs
1 x HDMI 1.4b type A connector.
Analog Video Inputs
Y, B-Y, R-Y/NTSC/PAL.
Analog Video Outputs
None
Analog Audio Inputs
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
Analog Audio Outputs
None, embedded audio only.
SDI Audio Inputs
16 Channels embedded in SD and HD.
SDI Audio Outputs
16 Channels embedded in SD and HD.
HDMI Audio Outputs
2 Channels embedded in SD and HD.
Timecode Connection
None. RP-188 only.
Reference Input
Tri-Sync or Black Burst.
UltraStudio HD Mini


Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.


Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.


Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Other supported applications include: Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D.


Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards
None
4K Video Standards
None
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television rate of 48kHz and 24 bit.
SDI Video Sampling
4:2:2/4:4:4
Color Space
REC 601, REC 709.
HDMI Resolution
Pixel for pixel HD resolution input from connected device.


Multiple Rate support
SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
Hardware Frame Buffer
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB).
Color Precision
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.


Computer Capture
1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK.


Control
Built in Control Panel

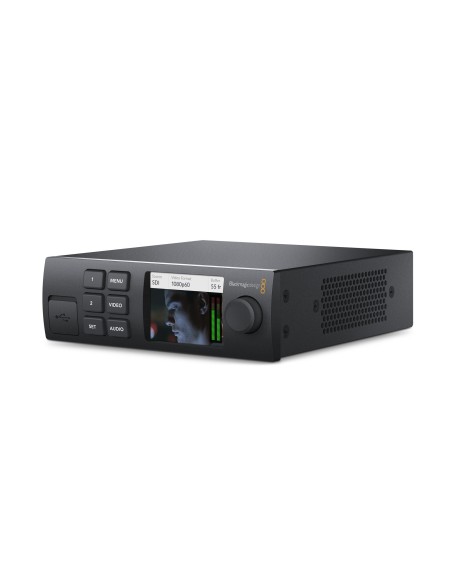

None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
1 x RS-422 deck control.
